Eaton · Electrical

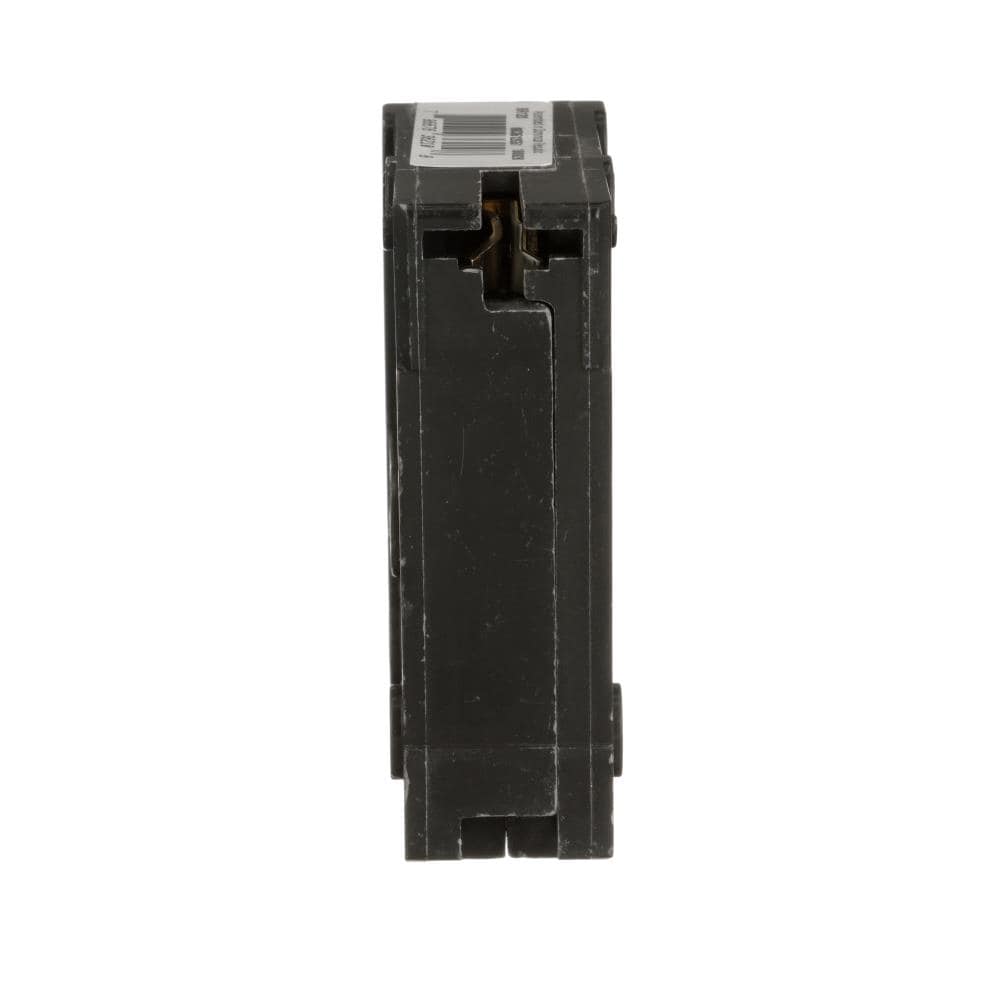

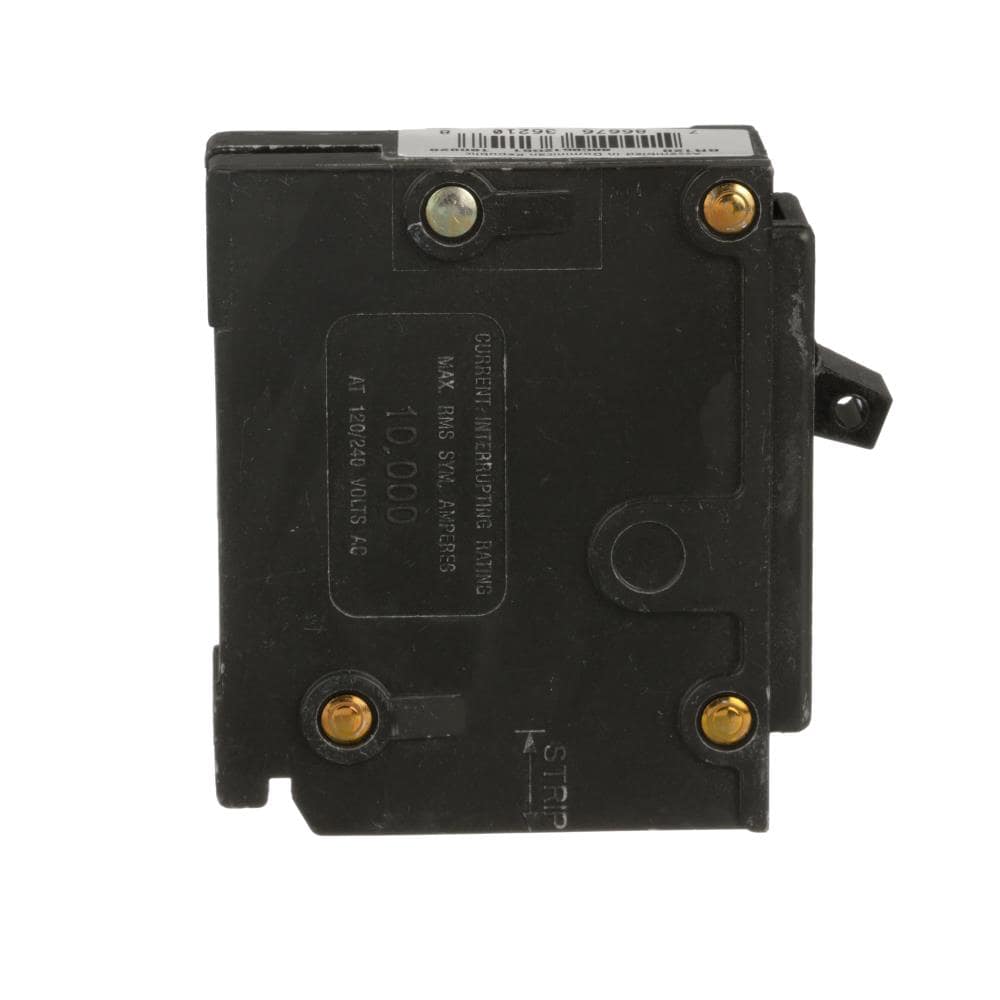

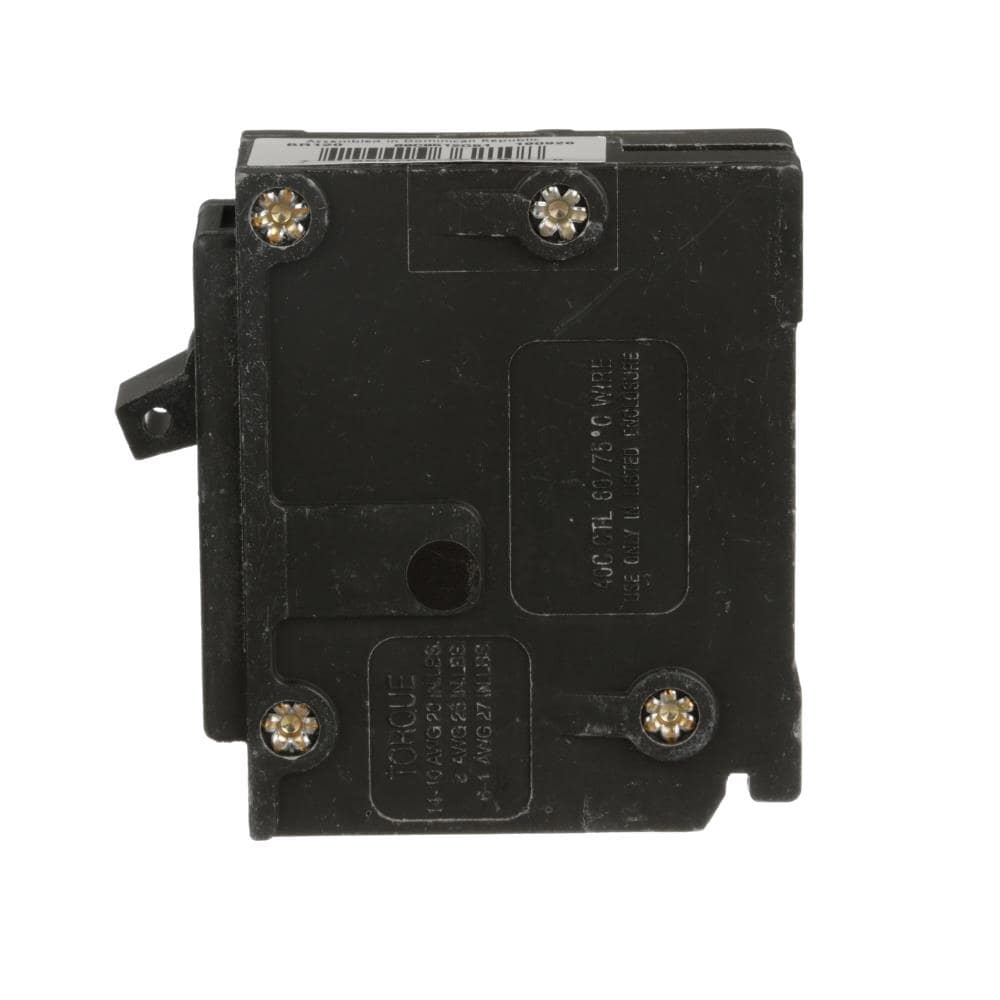

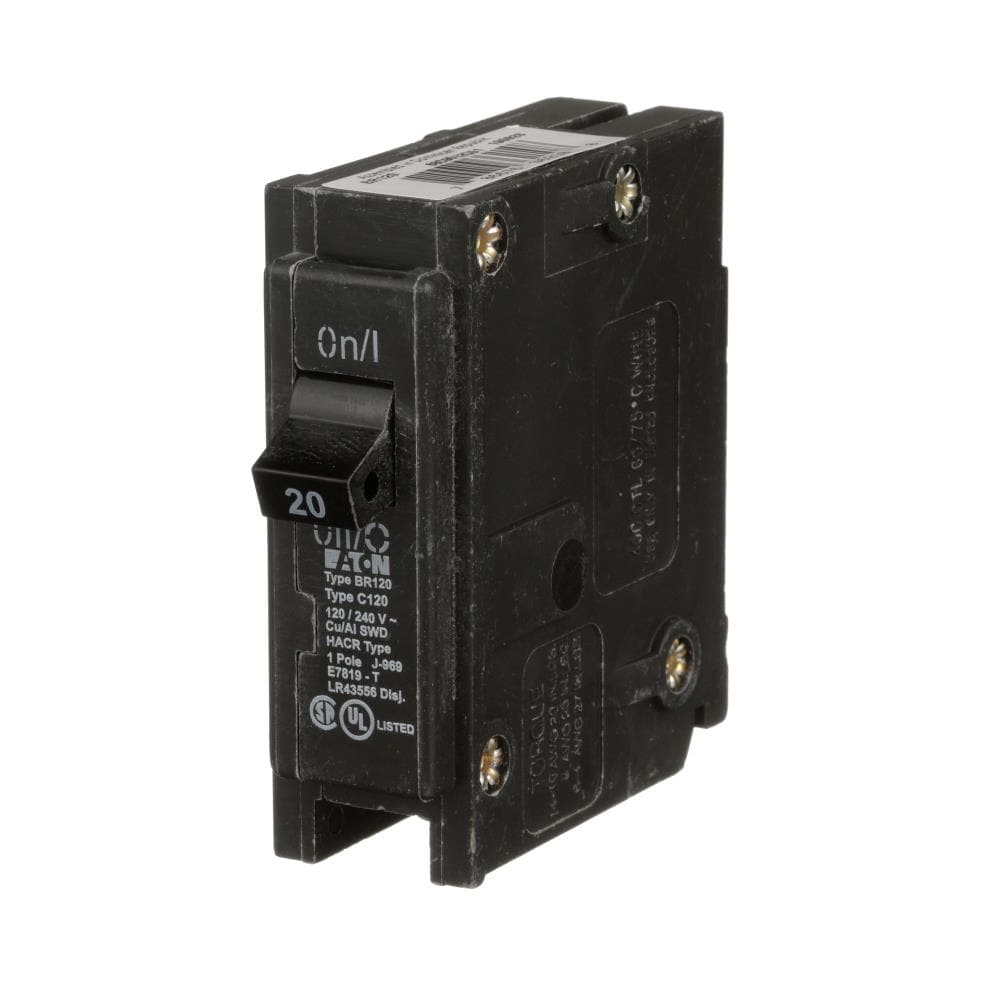

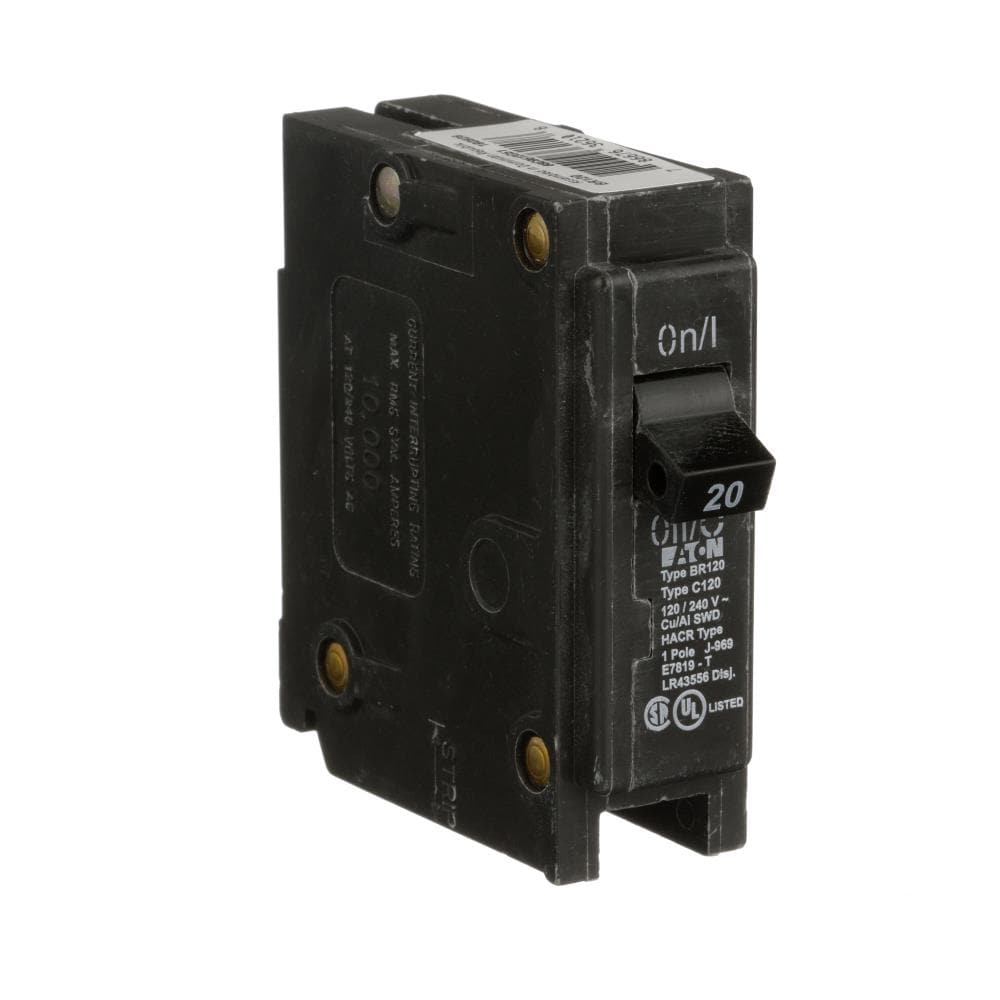

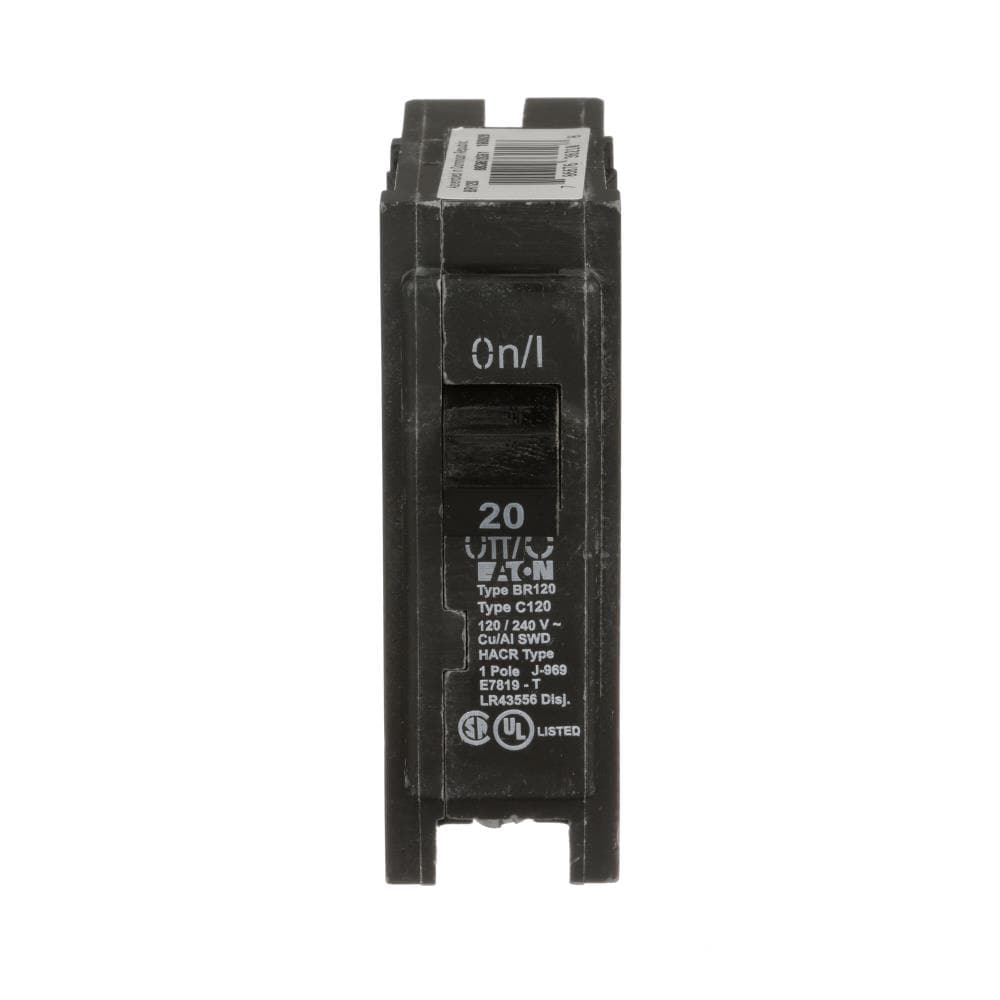

20A Single-Pole Type BR Circuit Breaker

1-pole

$8.00 each

Orders start at $399. Combine any items to reach it.

Breakers
1 breaker
$8.00
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Eaton · Electrical

Details & specifications.

From the maker · Eaton’s description

Protect residential circuits with Eaton’s Type BR 20A standard trip breaker. Designed for BR load centers, it offers reliable overcurrent protection with a 10 kAIC interrupt rating and a compact 1-inch width for easy panel fit.

Streamlined Safety for Clean, Modern Panels

This sleek, minimal breaker keeps your electrical panel crisp and intentional while delivering robust protection. The compact 1-inch profile and clear handle design provide an orderly visual rhythm in the load center. Pair it with a well-labeled BR panel to maintain a refined, functional aesthetic. It’s a quiet essential—smart, unobtrusive, and integral to elevated everyday living.

Upgrade your panel with dependable Eaton protection—add this Type BR 20A breaker to your cart today.

SKU
BR120
UPC
786676362108
Poles
1-pole
Brand
Eaton
Series Name
Type BR
Type
Standard trip
Amperage
20 amp
Width
1 in
Voltage
120/240 V AC
Phase
Single phase (120/240)
Interrupting Amp Rating
10,000 AIC
Ground Fault Protection
No self test
Plug-On Neutral
No
Surge Protection
No
Safety Listing
UL safety listing
Warranty
10-year limited
UNSPSC
39121600
Switch Duty Rated
Yes
Panel Compatibility
Eaton Type BR load centers and meter breaker panels
UL Replacement Approvals
Bryant, Westinghouse, Challenger panels
Full product name
Eaton Type BR 20-Amp 1-Pole Standard Trip Circuit Breaker

Key features

  • UL Listed Safety: UL safety listing and HACR rated for dependable code compliance
  • Easy Reset: Trips to center position; switch OFF then ON to reset
  • Compact 1-Inch Design: Requires just 1-in of space in the panel
  • Solid Performance: 10 kAIC interrupt rating; 120V single-phase, 1-pole

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Before you buy a breaker

  1. 1

    Match the panel

    Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.

  2. 2

    Match the wire

    The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.

  3. 3

    Protection

    Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.

  4. 4

    Tandem and quad

    Two circuits in one space, only in the slots the panel label allows.

Before you ask

Questions about this product.

Rather talk it through? 1.877.490.7099

  • Yes—it's a UL-approved replacement for Bryant, Westinghouse, and Challenger panels when used in compatible BR-style equipment.
