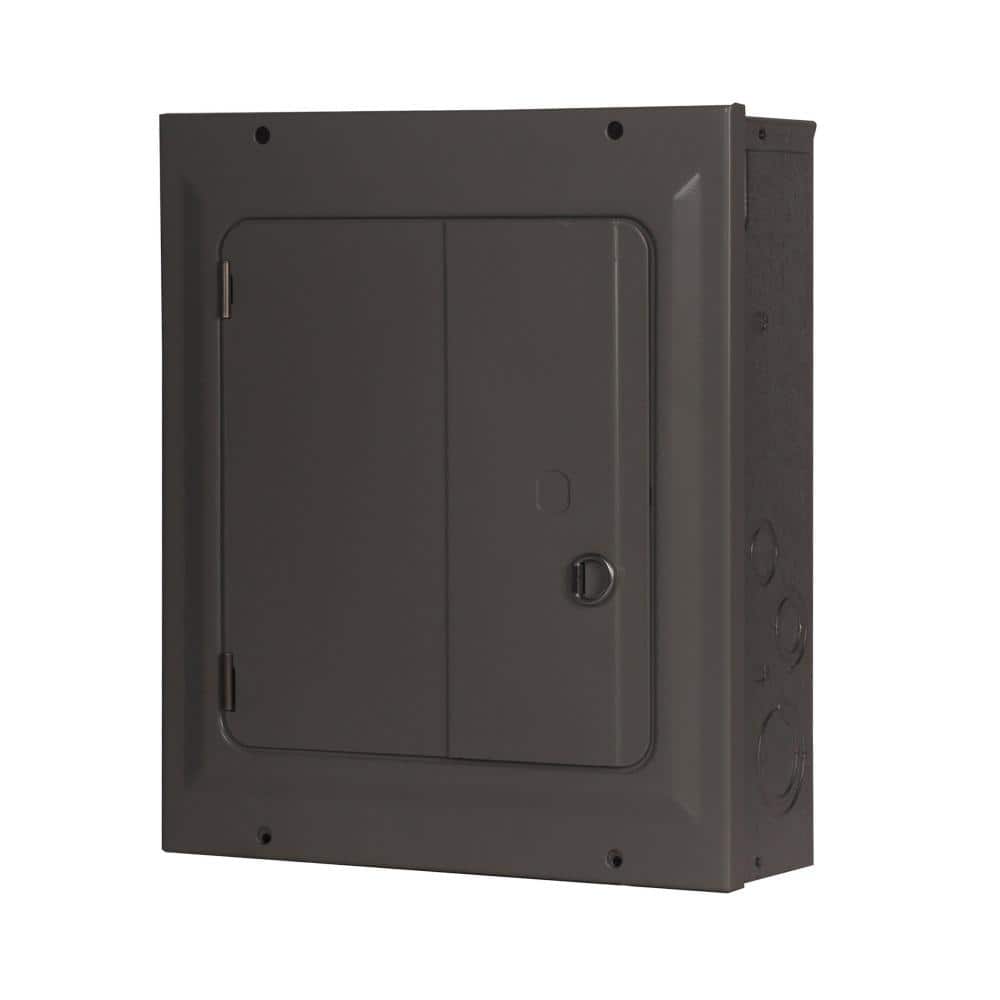

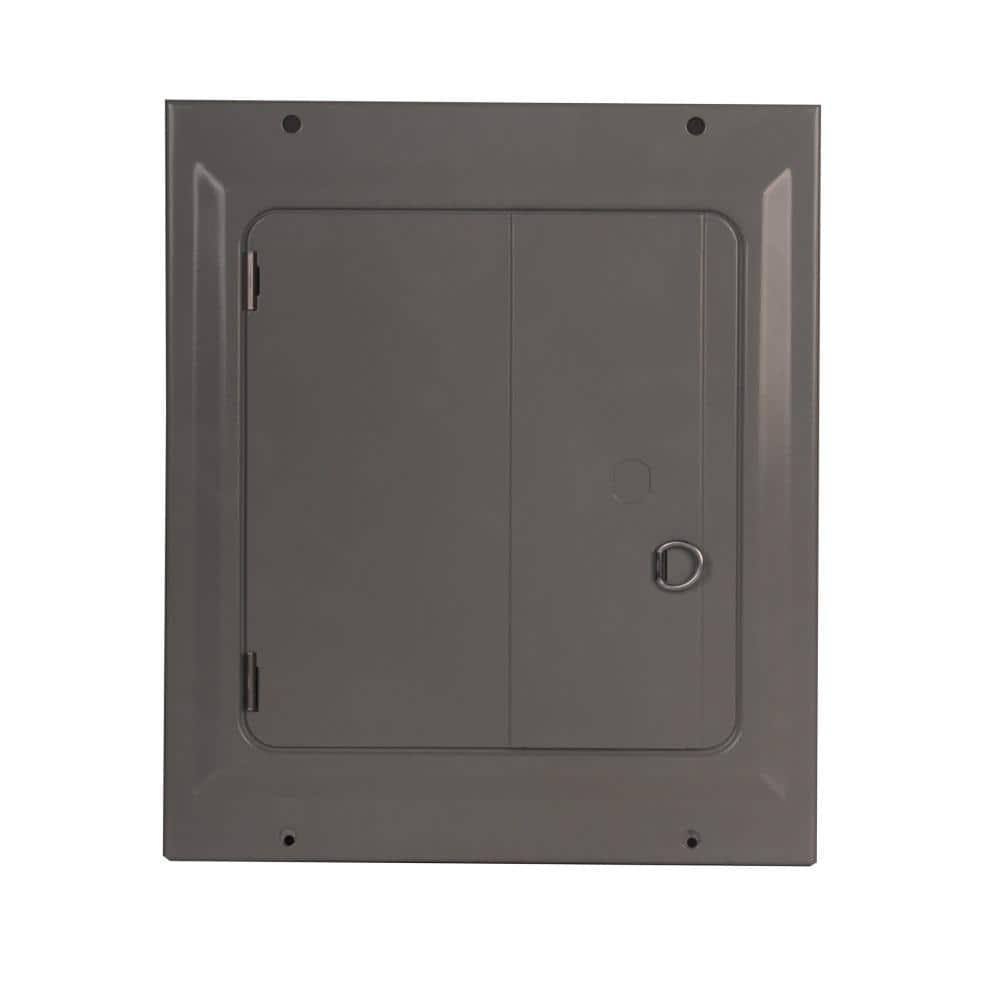

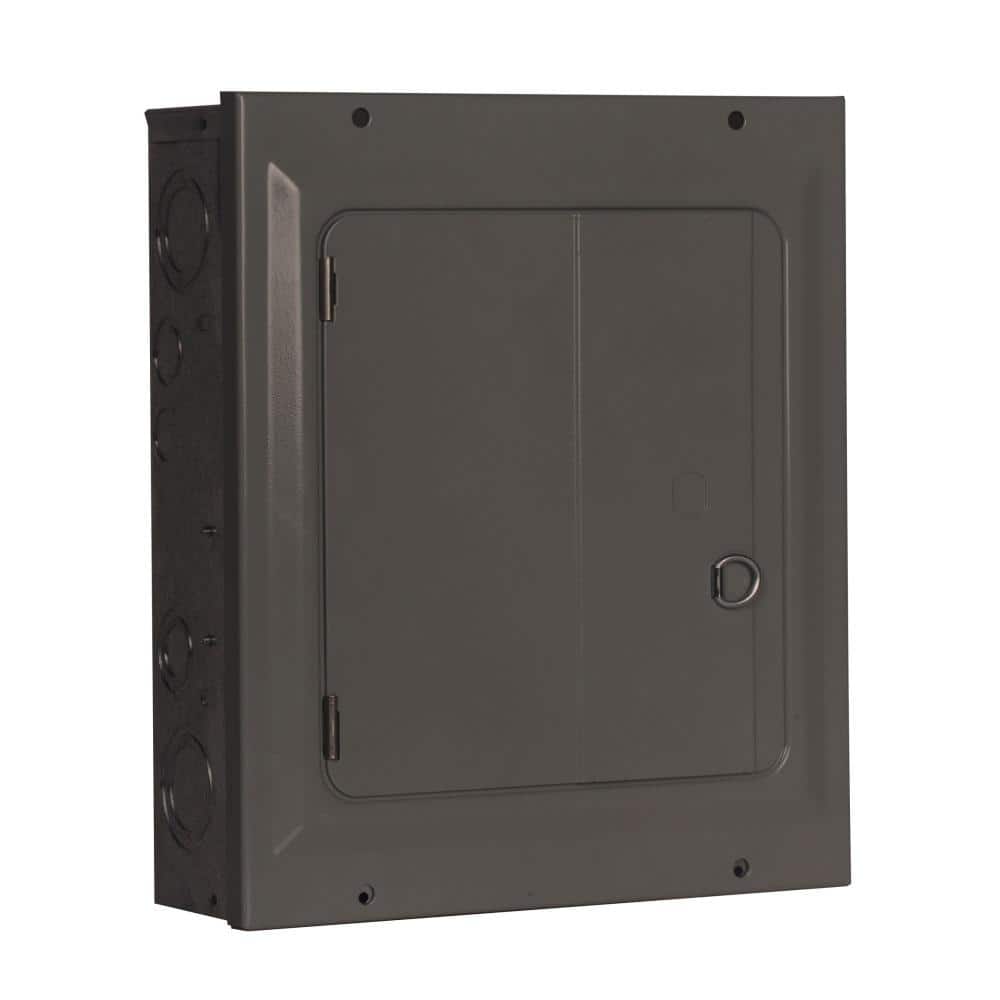

Eaton BR 125 Amp 8-Space 16-Circuit Indoor Main Lug Surface Door with Ground Bar
Regular price $93.58Eaton 125 Amp 8-Space Indoor Subpanel

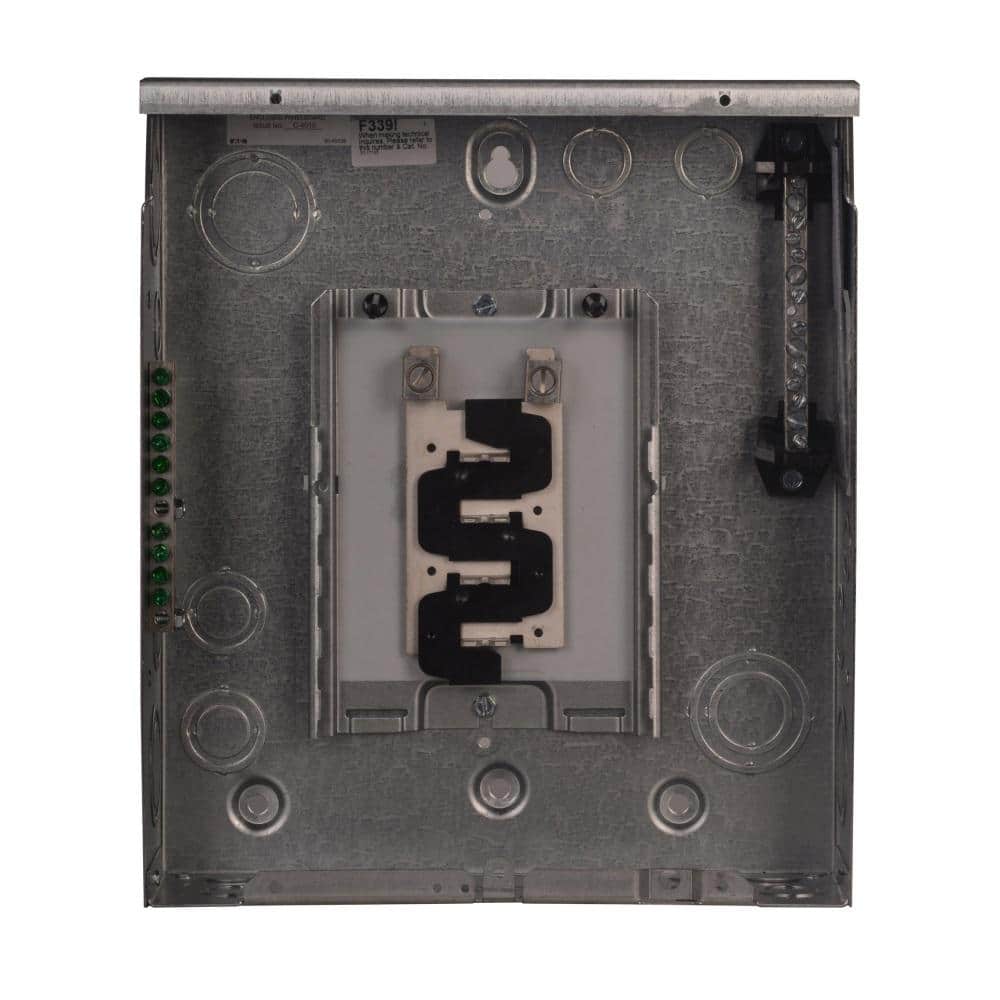

Eaton's 125 Amp Main Lug Indoor Subpanel offers an efficient solution for expanding electrical circuits in spaces like garages or home additions. With its robust steel backpan and tin plated aluminum bus, this subpanel ensures durability and reliability, while being suitable for use in a variety of indoor settings. Featuring easy installation markers and keyhole mounting, it's an ideal choice for both professional contractors and DIY enthusiasts.
Key Features:
- Durable Construction: Steel backpan provides reliable breaker mounting.
- Ample Capacity: Accommodates up to 16 circuits in 8 spaces, ideal for growing electrical needs.
- Easy Installation: Includes drywall markers for adjusted flush mounting and single keyhole for hassle-free setup.
- Versatile Use: Suitable for service equipment with up to six main disconnects, adaptable to various locations.

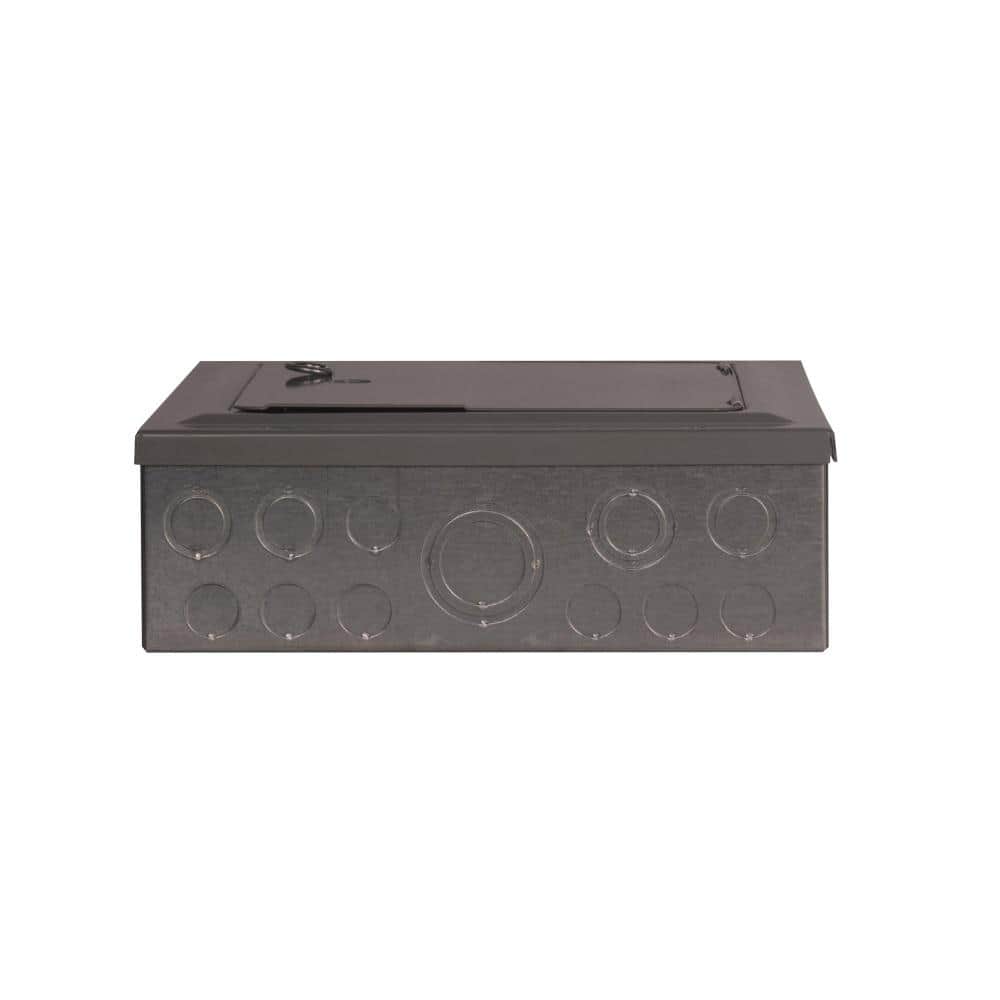

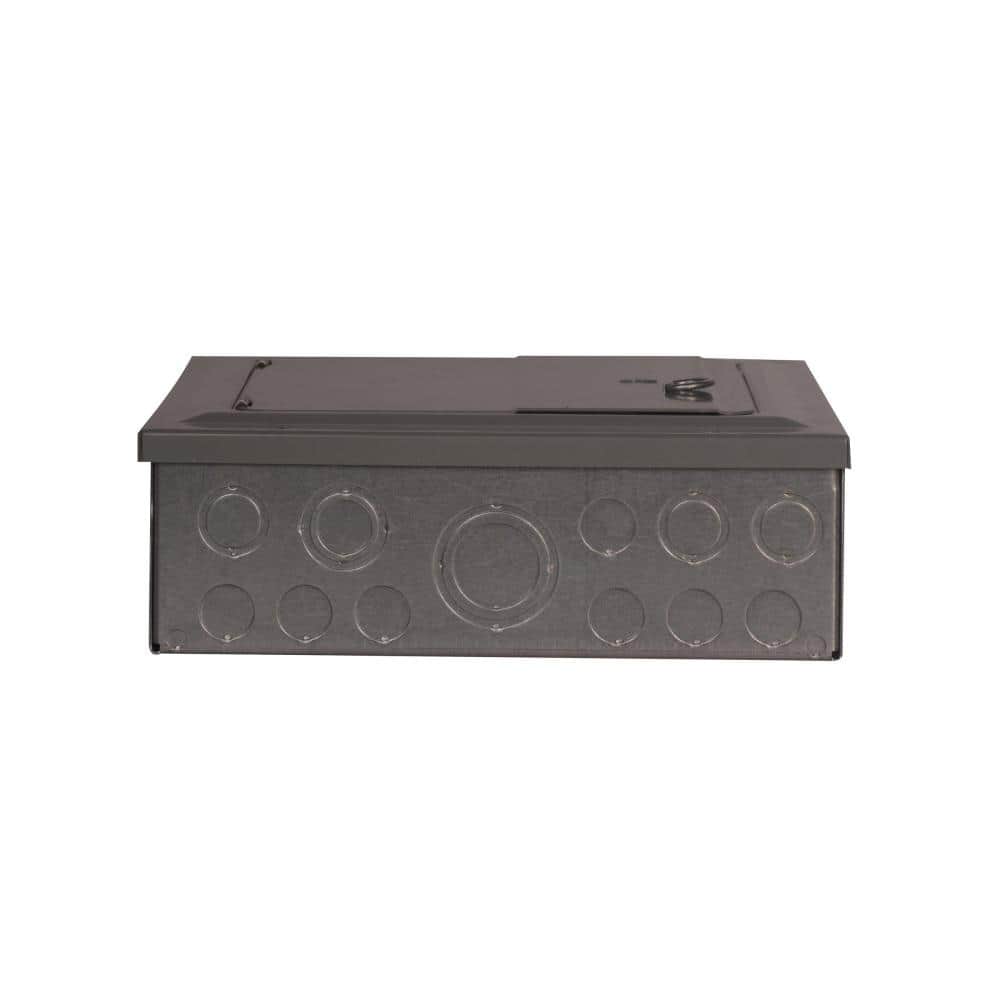

- Accessible Wiring: Features knockouts on all sides for straightforward and flexible wiring.
Specifications Table:
| Specification | Details |
|---|---|
| Breaker Box Type | Subpanel |
| Connection Type | Neutral |
| Indoor/Outdoor | Indoor |
| Maximum Amperage (A) | 125 A |
| Mounting Type | Flush |
| NEMA Configuration | NEMA 1 |
| Number of Circuits | 16 |
| Number of Spaces | 8 |
| Product Weight (lb.) | 9.3 lb |
| Series Type | BR |
| Voltage (V) | 120/240 V |
| Certifications and Listings | ANSI Certified,UL Listed |
| Manufacturer Warranty | 10 Year Limited |
| Product Depth (in.) | 14 in |
| Product Height (in.) | 4.6 in |
| Product Width (in.) | 11.6 in |
Frequently Asked Questions (FAQ):
Q: What is the primary use of this Eaton Main Lug Subpanel?
A: This subpanel is ideal for adding circuits to an existing main breaker panel, often used in garages, home additions, barns, or workshops.
Q: Can this panel be used outdoors?
A: No, this Eaton subpanel is designed for indoor use only, as indicated by its NEMA 1 enclosure type.
Q: What materials are used in the bus construction?
A: The panel features a tin plated aluminum bus, known for both its conductivity and resistance to corrosion.
Q: How does the panel ensure easy installation?
A: The panel has single keyhole mounting slots for easy leveling and includes drywall markings to indicate the proper depth for flush mounting.
Q: What type of breakers can be used with this panel?
A: It is designed to be used with Type BR 1-inch breakers.
A Command Center for Modern Living Spaces
Transform any utility area into a well-ordered nerve center with the Eaton 125 Amp Indoor Subpanel—a true powerhouse in compact form. Its robust steel backpan is not just about utility; it stands as a statement of industrial elegance, ideal for infusing a touch of professional precision. Plant this panel in a utility room or workshop, and watch it seamlessly blend functionality with flawless style, essential for organizing the electrical backbones of refined domains.
Expand your electrical capacity effortlessly with Eaton's dependable 125 Amp Subpanel—order today and power up your workspace!
