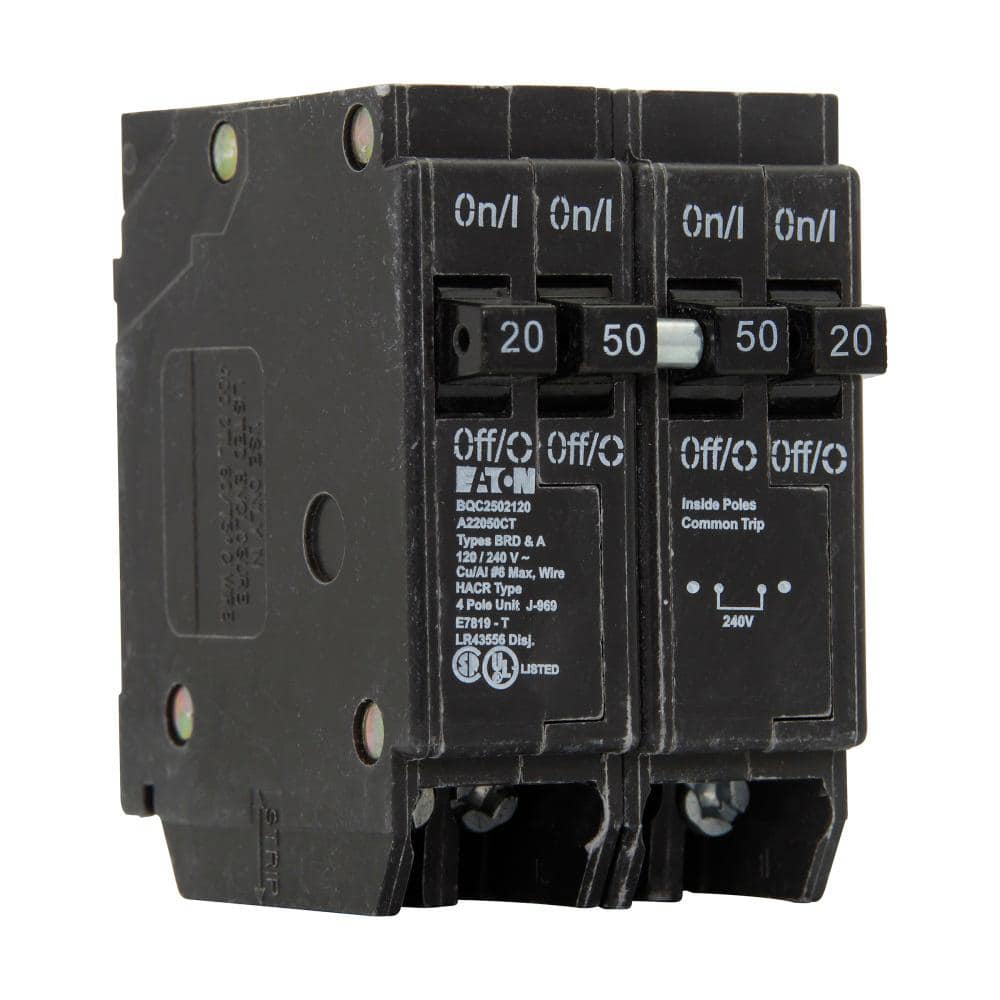

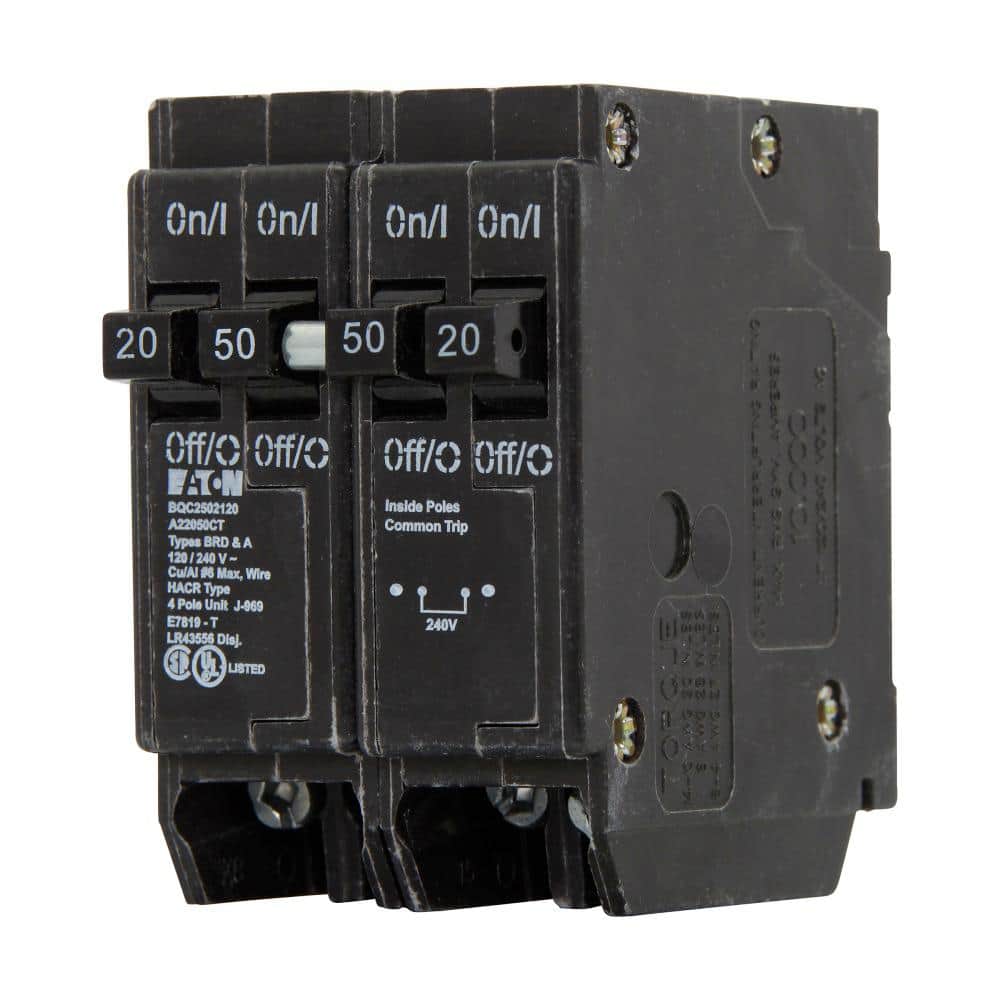

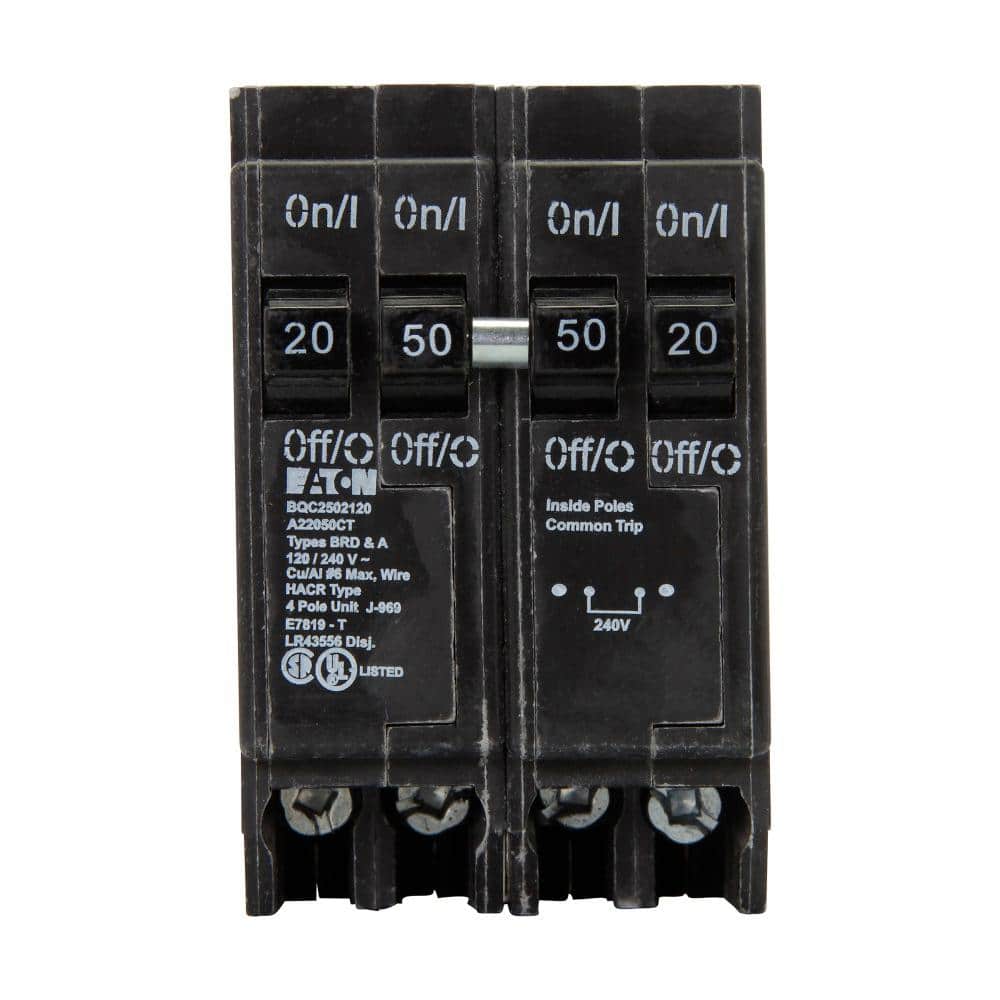

Eaton BR 1- 50 Amp 2-Pole and 2-20 Amp 1 Pole BQC (Common Trip) Quad Circuit Breaker
Regular price $41.85Eaton Quad Circuit Breaker 50/20 Amp
The Eaton BR Circuit Breaker combines safety, efficiency, and innovation with its quad design, allowing for four circuits in just two spaces. Specifically crafted for BR type load centers, it features a common trip mechanism and rejection tab for reliable performance. UL approved for use with Westinghouse, Challenger, and Bryant load centers, this circuit breaker ensures optimal protection for your electrical systems.
Key Features:
- Quad Design: Supports four circuits using two spaces, optimizing your panel's capacity.
- Common Trip: Ensures all poles shut off during a fault, enhancing safety.
- Rejection Tab Feature: Securely fits into notched bus stabs in BR type load centers.
- High Voltage Rating: Handles 120/240-Volt, making it versatile for various applications.
- UL Approved: Trusted replacement for specific Westinghouse, Challenger, and Bryant panels.
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| AIC Rating | 1000 |
| Amperage (A) | 50 A |
| Breaker Type | Quadplex |
| Connection Type | Neutral |
| Interruption Type | Standard Trip |
| Mounting Type | Plug-On |
| Number of Poles | Quad |
| Number of Spaces | 4 |
| Pack Size | 1 |
| Power Distribution Features | No Additional Features |
| Product Weight (lb.) | 0.9 lb |
| Series Type | BR |
| Trip Unit | Thermal Magnetic |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | 10 years per the Warranty Policy |
| Product Depth (in.) | 3 in |
| Product Height (in.) | 3 in |
| Product Width (in.) | 2 in |
Frequently Asked Questions (FAQ):
Q: How do I know if this circuit breaker is compatible with my load center?
A: Ensure your load center is BR type with notched bus stabs to accommodate the breaker's rejection clip. Check compatibility with Westinghouse, Challenger, or Bryant panels if applicable.
Q: What is the purpose of the common trip feature?
A: The common trip feature ensures all connected circuits shut down simultaneously in the event of a fault, providing added safety by preventing partial power failures.
Q: Can this circuit breaker be used for outdoor panels?
A: Yes, as long as the outdoor panel is a BR type load center and has the appropriate notched bus stabs for secure installation.
Q: Is this product easy to install for a DIY home project?
A: While installation might be straightforward for experienced DIYers, it's recommended to have a professional electrician conduct the installation to ensure all safety standards are met.
Q: What does the UL listing mean for this circuit breaker?
A: The UL listing verifies that the circuit breaker has been tested and meets safety standards for its intended uses, providing confidence in its reliability and performance.
Power and Precision in Essential Harmony
Experience the seamless blend of safety and design with the Eaton Quad Circuit Breaker. Its structured layout and compact form breathe new life into your electrical panel aesthetic. Envision a space where functionality meets sophistication, with each circuit breaker meticulously enhancing the flow of your home's energy system. This essential component offers a foundation of security and performance, indispensable for transforming any space into a haven of luxury and peace of mind.
Secure your home's electrical safety with the Eaton Quad Circuit Breaker, the reliable choice for modern load centers.
