Eaton · Electrical

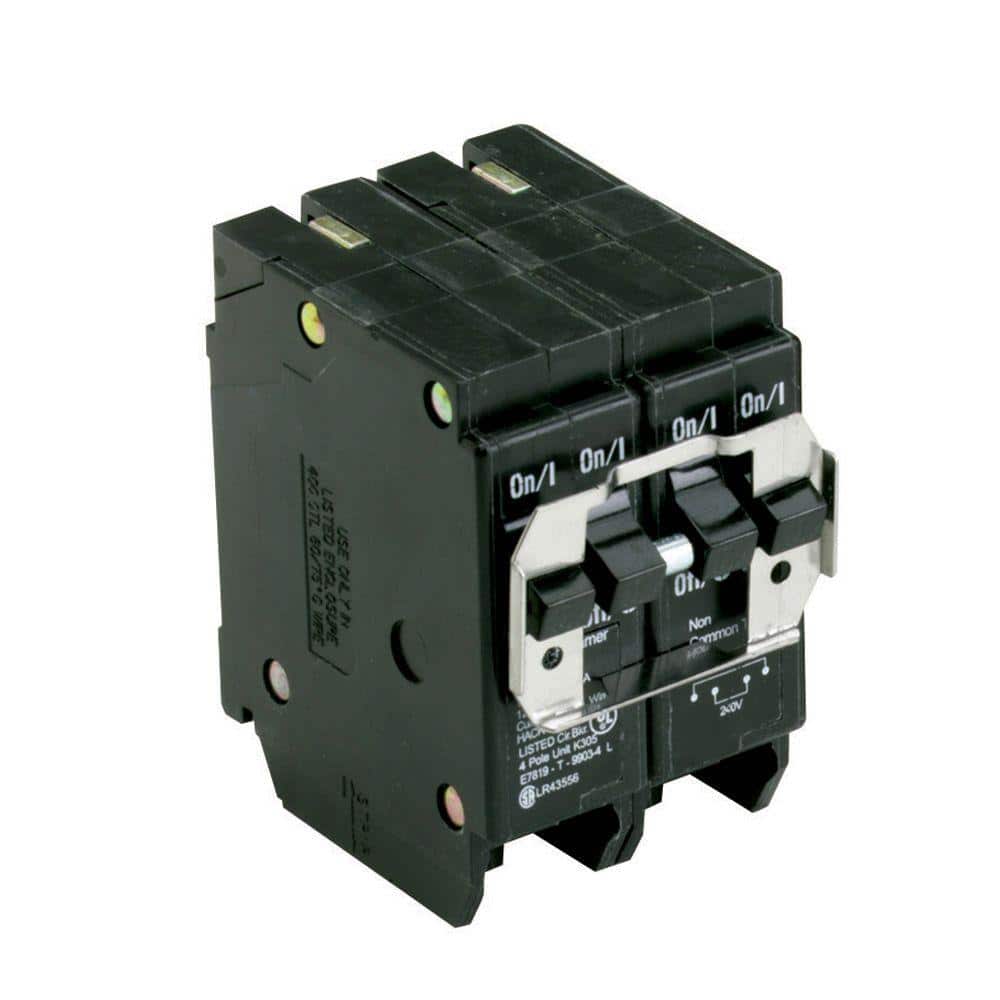

Quad Circuit Breaker with Common Trip

StandardBR

$23.73 each

Orders start at $399. Combine any items to reach it.

Breakers
1 breaker
$23.73
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Eaton · Electrical

Details & specifications.

From the maker · Eaton’s description

The Eaton BR Quad Circuit Breaker with a common trip is designed for seamless installation in BR load centers, enabling the creation of four circuits using just two spaces. This quad breaker offers reliable protection against both overloads and short circuits, with an innovative rejection tab feature ensuring safety and compliance. Perfect for residential and light commercial applications, it's a durable, UL-approved replacement for Westinghouse, Challenger, and Bryant panels.

Elegant Efficiency in Electrical Design

Transform your spaces with the Eaton Quad Circuit Breaker, merging function with flair. Its streamlined design not only ensures electrical safety but also enhances the overall functionality of your living areas. The distinctive common trip feature sets it apart, embodying both technological sophistication and practical safety. Embrace this device as a vital component in crafting a seamless, luxurious living environment, where peace of mind and style coexist beautifully.

Ensure your electrical systems are safely protected—upgrade to the Eaton Quad Circuit Breaker today!

SKU
BQC230250
UPC
0786676371919
Poles
Quad
Protection
Standard
Series
BR
Type
Tandem
Interrupt rating
10 kA
Voltage
120/240 V
Brand
Eaton
AIC Rating
10000
Amperage (A)
30 A
Connection Type
Neutral
Interruption Type
Standard Trip
Mounting Type
Plug-On
Number of Spaces
2
Pack Size
1
Product Weight (lb.)
0.79 lb
Trip Unit
Thermal Magnetic
Certifications and Listings
ANSI Certified, CSA Listed, UL Listed
Manufacturer Warranty
10 years per the Warranty Policy
Product Depth (in.)
2.884 in
Product Height (in.)
3.105 in
Product Width (in.)
1.97 in
Full product name
Eaton BR 1-30 Amp 2 Pole and 1-50 Amp 2 Pole BQC (Common Trip) Quad Circuit Breaker

Key features

  • Common Trip: Simultaneous disconnection of load for enhanced safety.
  • Quad Design: Supports creation of 4 circuits in 2 spaces, maximizing panel capacity.
  • Rejection Tab: Ensures correct alignment and prevents incorrect installations.
  • Durable Construction: Designed for long-lasting performance in BR type centers.
  • UL Certified: Meets stringent safety standards for your peace of mind.

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Before you buy a breaker

  1. 1

    Match the panel

    Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.

  2. 2

    Match the wire

    The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.

  3. 3

    Protection

    Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.

  4. 4

    Tandem and quad

    Two circuits in one space, only in the slots the panel label allows.

Before you ask

Questions about this product.

Rather talk it through? 1.877.490.7099

  • This circuit breaker is compatible with BR type load centers and is an approved replacement for panels by Westinghouse, Challenger, and Bryant.
