DSCM Galvalume Ridge Anchor 26 Ga Mill Finish, 4"–7" x 10 ft
Regular price $21.26Orders start at $399 — combine any items to reach the minimum. Learn more
DSCM Galvalume Ridge Anchor 26 Ga Mill Finish, 4"–7" x 10 ft

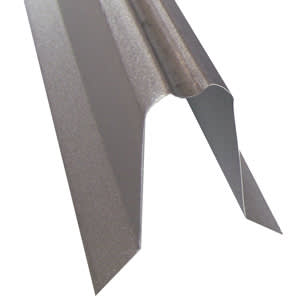

The DSCM Galvalume Ridge Anchor is an inverted channel profile that holds foam or adhesive in place for hip and ridge cap installation, diverting water while forming to standard tile with a beveled top edge. Available in 4", 5", 6" and 7" widths, all 10 ft lengths in 26 ga Galvalume, mill finish. Sold individually.
Key Features:
- Holds foam/adhesive: The inverted channel profile holds foam or adhesive in place without running, making hip/ridge cap installation much easier.
- Water diversion: Designed to divert water away from the hip or ridge.
- Galvalume metal: Fabricated from Galvalume, which offers far superior corrosion resistance compared with galvanized steel.
- Beveled edge: The beveled top edge forms to standard hip/ridge tile.
- Faster install: Easier and faster to install than traditional lumber and strapping.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | DSCM |
| Sell unit | 1 piece, 10 ft length (6" size may sell per piece; confirm at checkout) |
| Product line | Ridge Anchor |
| Available colors | Mill |
| Available sizes | 4" x 10 ft, 5" x 10 ft, 6" x 10 ft, 7" x 10 ft (all 26 ga) |
| Material | Galvalume (not galvanized steel) |
| Finish / texture | Mill finish |
| Gauge | 26 ga |
| Length | 10 ft |
| Profile | Inverted channel, beveled top edge |
| Intended use | Hip and ridge cap installation on tile roofs, holds foam or adhesive and diverts water |
Coverage & How Much You Need:
Each anchor is a 10 ft length; measure total hip and ridge linearity and divide by 10 ft, adding a small allowance for laps at joints, to determine quantity.
Fit and Compatibility:
Made to form to standard hip/ridge tile with foam or adhesive; foam/adhesive and ridge cap tiles are sold separately. Choose the 4"–7" width to match the ridge tile and channel width you need.
Frequently Asked Questions (FAQ):
Q: What sizes are available?
A: 4", 5", 6" and 7" widths, all 10 ft long in 26 ga Galvalume with a mill finish.
Q: What is the profile for?
A: The inverted channel holds foam or adhesive in place so it does not run while the hip/ridge cap is set.
Q: Why Galvalume instead of galvanized?
A: All DSCM products are made from Galvalume, which offers far superior corrosion resistance.
Q: What does it replace?
A: It replaces traditional lumber and strapping and is faster and easier to install.
Q: How many do I need?
A: Measure your hip and ridge runs and order one 10 ft piece per 10 linear feet plus laps.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
On tile roofs, the Ridge Anchor's inverted channel solves the classic problem of foam or adhesive migrating before the cap sets, so crews can work longer runs per day. Pick the width that matches your ridge tile overhang — the beveled top edge seats standard hip/ridge profiles — and specify Galvalume in coastal or high-humidity environments where galvanized metal corrodes prematurely.
Cut edges of Galvalume sheet metal are sharp — wear cut-resistant gloves and eye protection when handling and cutting.
Upgrade your tile hip and ridge installation with DSCM Galvalume Ridge Anchors in 4" to 7" widths, 10 ft lengths.
