CrystaLite Open Skylight Frame with LoE Glass, Curb-Mount, 2626 or 2650
Regular price $575.00CrystaLite Open Skylight Frame with LoE Glass, Curb-Mount, 2626 or 2650

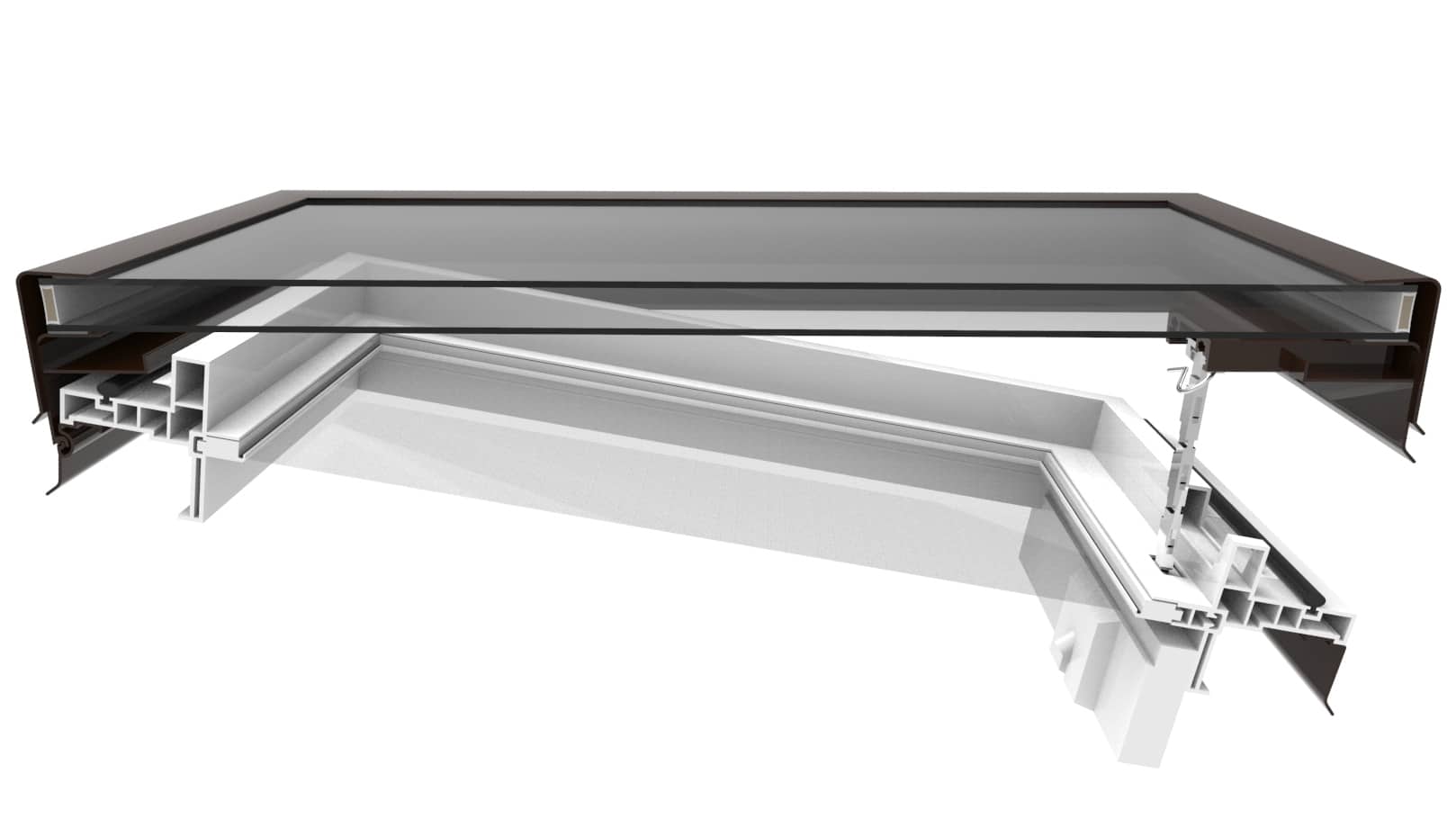

This is the CrystaLite Open curb-mounted skylight frame with high-performance LoE glazing and an aluminum exterior cap. It features welded interior and exterior frames. CrystaLite skylights are NAMI certified and NFRC rated for thermal performance. Sold individually in two sizes.
Key Features:

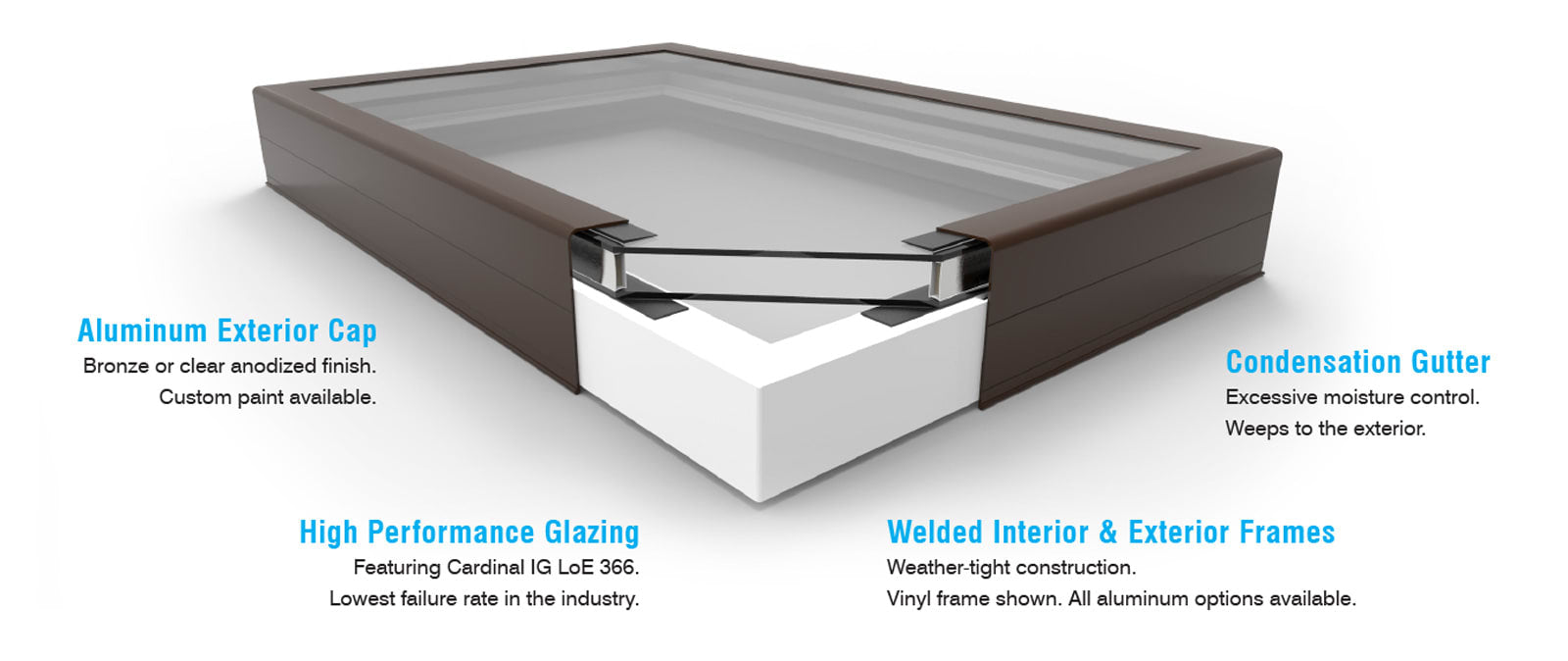

- Aluminum exterior cap: Aluminum exterior cap protects the glazing edge on the roof.
- Welded frames: Both interior and exterior frames are welded for strength.
- High performance glazing: Fitted with high-performance LoE insulated glazing (glazing code 366).
- NAMI certified: NAMI certified to the NAFS standard for air infiltration, water penetration and structural loading.
- NFRC rated: NFRC rated for U-Factor, SHGC and Visible Light Transmittance.
- Two sizes: Offered in 2626 and 2650 unit sizes.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | CrystaLite |
| Sell unit | 1 skylight unit |
| Product line | CrystaLite Open frame |
| Available sizes | 2626, 2650 |
| Material | Welded interior frame with aluminum exterior cap |
| Glazing | High-performance LoE insulated glazing (366) |
| Approvals | NAMI certified to NAFS (air infiltration, water penetration, structural loading); NFRC rated for U-Factor, SHGC, Visible Light Transmittance |
| Intended use | Curb-mounted open-style skylight frame |
Fit and Compatibility:
Designed for curb-mount installation sized to the 2626 or 2650 unit. CrystaLite flashing kits, glazing accessories and controls are sold separately.
Frequently Asked Questions (FAQ):
Q: What is included?
A: One Open frame skylight unit in the selected size with LoE glazing installed.
Q: What sizes are offered?
A: 2626 and 2650 unit sizes.
Q: Is it tested?
A: Yes, CrystaLite skylights are NAMI certified to the NAFS standard and NFRC rated for U-Factor, SHGC and visible light transmittance.
Q: How is the frame built?
A: It has welded interior and exterior frames with an aluminum exterior cap.
Q: Is flashing included?
A: No, curb flashing is supplied separately; order the matching CrystaLite flashing for your roof type.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
The Open frame is the choice when you want the skylight opening finished with an operable or vented upper unit rather than a fixed glass panel—pair it with the matching CrystaLite upper section. Confirm curb dimensions and NAFS/AAMA requirements for your jurisdiction before ordering. Keep the aluminum cap clear of dissimilar metals on the curb to avoid corrosion.
Curb openings are a fall hazard—secure the area, use fall protection, and cover the opening when unattended.
Order the CrystaLite Open curb-mount skylight frame with LoE glazing in 2626 or 2650.
