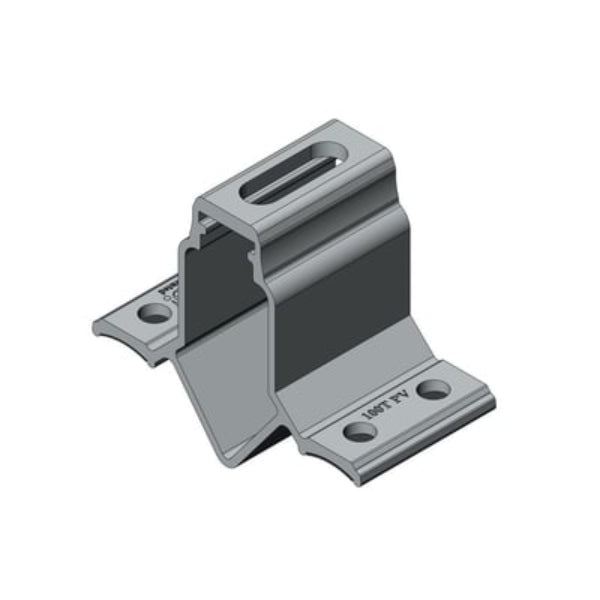

CorruBracket™ 100T PV

$7.64 $7.18

Save $0.46

Shipping calculated at checkout.

[{"id":53068657426799,"title":"Single Unit","option1":"Single Unit","option2":null,"option3":null,"sku":"USCBTFPV14125175","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CorruBracket™ 100T PV - Single Unit","public_title":"Single Unit","options":["Single Unit"],"price":718,"weight":0,"compare_at_price":764,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068657459567,"title":"Box of 10","option1":"Box of 10","option2":null,"option3":null,"sku":"USCBTFPV14125175-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CorruBracket™ 100T PV - Box of 10","public_title":"Box of 10","options":["Box of 10"],"price":6893,"weight":0,"compare_at_price":7333,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068657492335,"title":"Box of 30","option1":"Box of 30","option2":null,"option3":null,"sku":"USCBTFPV14125175-30","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CorruBracket™ 100T PV - Box of 30","public_title":"Box of 30","options":["Box of 30"],"price":19885,"weight":0,"compare_at_price":21154,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068657525103,"title":"Box of 90","option1":"Box of 90","option2":null,"option3":null,"sku":"USCBTFPV14125175-90","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CorruBracket™ 100T PV - Box of 90","public_title":"Box of 90","options":["Box of 90"],"price":58163,"weight":0,"compare_at_price":61875,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

CorruBracket 100T PV is your solar solution for corrugated roofing profiles common in North America and is compatible with 7/8" and 3/4" tall and 2.67” crest to crest corrugated roofing profiles.

Dimension from the bottom of the roof profile to the module glass is over 4+ inches providing ample height for solar panel attachment. The 100T PV seamlessly integrates with the PVKIT 2.0 to accommodate a rail-less PV attachment.

PVKIT integration also significantly reduces jobsite logistics - with no need for large van or truck for material transport, minimal roof staging (without rails), and a lay and play module to roof assembly resulting in up to 50% faster installation time. All mounting hardware for a 10kW system weighs less than 35 lbs. - carry it up the ladder in your pack!

Key Features

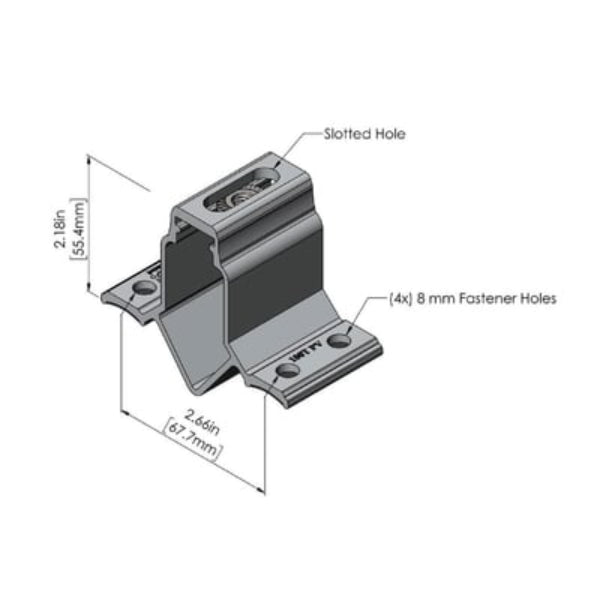

7/8” and 3/4” (H) x 2.67” rib-pitch, U.S. corrugated profiles

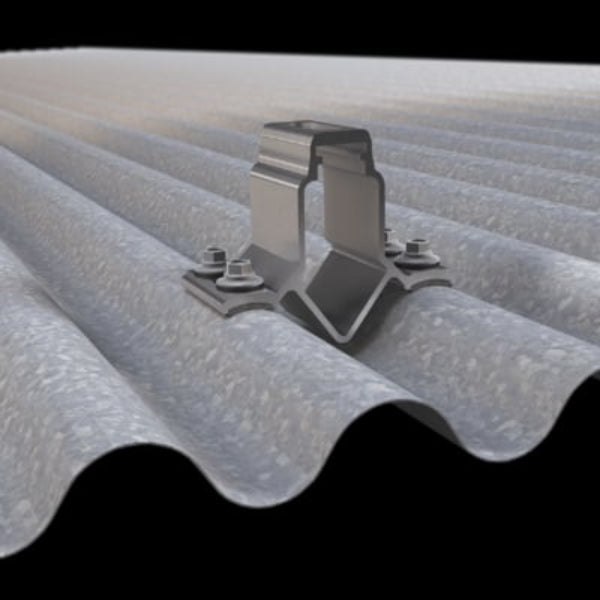

Mounts directly into crest of corrugation, straddling valley
Four pre-punched holes in base
Open channel for wire containment/management
Fastens into sheeting-only with the provided stainless-capped piercing fasteners
Bracket allows module glass to sit 4+ inches above valley of corrugation
Slotted top hole offers more than 1” of adjustability
PVKIT® 2.0 compatible
Allows for attachment of solar inverters and/or optimizers
4 self-piercing screws and 1 M8 nut included

S5 Lifetime Warranty

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
