CorruBracket™ 100T for Corrugated Metal Roofs

The 100T is specifically designed to securely and safely attach walkways and other utilities, rail-based PV systems or low-profile, direct-attach, solar mounting with the S-5-PVKIT®. For added height when mounting solar with the PVKIT.

For medium-duty applications, the 100T can be used as a sheeting-only attachment to attach anywhere along the corrugation. For heavy-duty applications, the bracket can be fixed into the underlying deck or purlin for additional support. The “V” configuration prevents crushing of the ribs when significant downward forces are present.

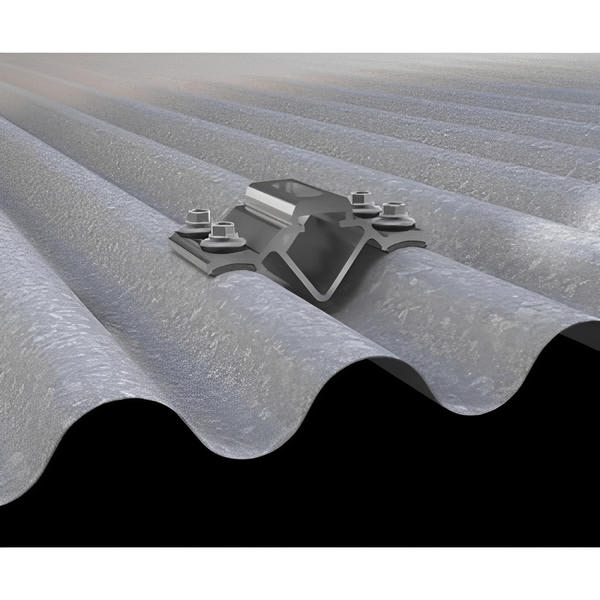

CorruBracket™ 100T is designed specifically for corrugated roofing profiles that are common in North America. CorruBracket 100T is affixed to the crest of the corrugation, leaving the drainage plane free of holes to protect against leaks. For medium‑duty applications, the bracket can be attached directly to the sheeting, accommodating ancillary attachment anywhere along the corrugation. For heavy‑duty applications, the bracket can be fixed into the underlying substrate for additional support without crushing the corrugation.

Key Features

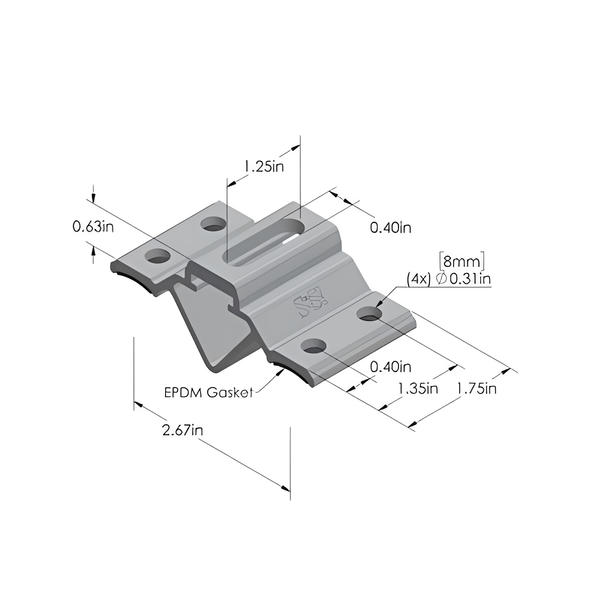

• 7/8” and 3/4” (h) x 2.67” rib-pitch U.S. corrugated profiles
• Mounts directly into crest of corrugation, straddling valley
• Fastens into sheeting OR through sheeting into structure
• Slotted top hole simplifies alignment, with adjustability

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
