Carlisle SynTec SecurShield 2.5 in. x 4 ft x 4 ft Polyiso Roof Insulation Panel, Grade II (20 psi)
Regular price $22.00Orders start at $399 — combine any items to reach the minimum. Learn more
Carlisle SynTec SecurShield 2.5 in. x 4 ft x 4 ft Polyiso Roof Insulation Panel, Grade II (20 psi)

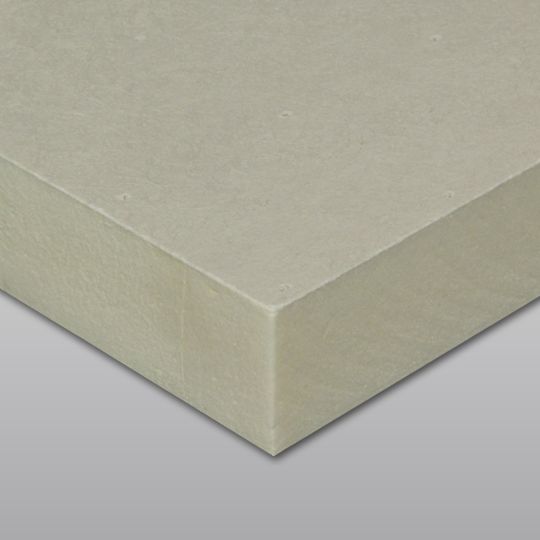

This Carlisle SynTec SecurShield panel is a 2.5 in. thick, 4 ft x 4 ft Grade-II polyiso roof insulation board with a closed-cell foam core bonded to premium coated-glass facers (CGF). Sold as a single panel covering 16 sq ft, it features ReadyFlash Technology for controlled adhesive flash-off and pairs with Carlisle single-ply membrane systems.
Key Features:

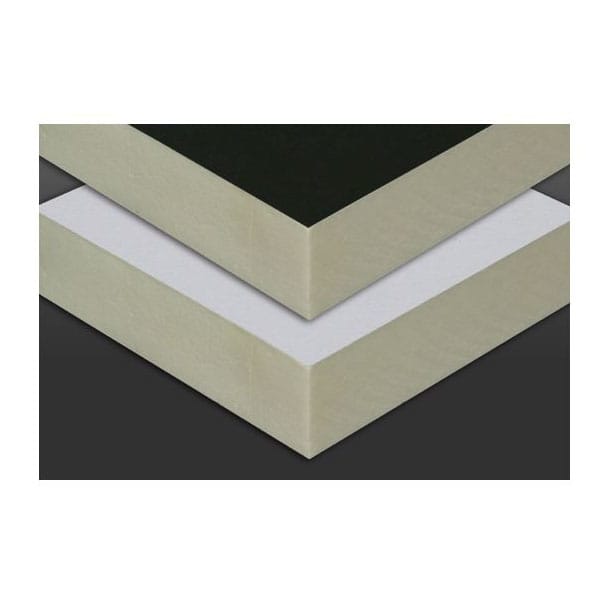

- ReadyFlash Facers: A dark CGF facer accelerates adhesive flash-off while the light CGF facer slows it, letting you control flash-off times.
- Fast Adhesive Work: The dark facer provides up to 2x faster flash-off on cooler days and up to 4x faster on warmer days.
- Premium Facer Performance: The coated-glass facers improve fire resistance, moisture resistance and dimensional stability.
- Wind Uplift Bond: A superior bond between facer and foam core enhances wind-uplift performance.
- Top R-Value Per Inch: SecurShield delivers the highest R-value per inch of commercially available insulation.
- Class A at 1 Inch: Achieves a UL Class A combustible deck rating at 1 in. thickness without a fire-rated slip sheet (max slope 1/2:12).
- 20 psi Grade II: Meets ASTM C1289-11, Type II, Class 2, Grade 2 (20 psi).
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Carlisle SynTec |
| Manufacturer model | 316895 |
| Sell unit | 1 panel, 4 ft x 4 ft x 2.5 in. |
| Product line | SecurShield |
| Material | Closed-cell polyisocyanurate foam with premium coated-glass facers (CGF) |
| Color | Tan |
| Dimensions | 4 ft x 4 ft, 2.5 in. thick |
| Thickness | 2.5 in. |
| Compressive strength | Grade 2 (20 psi) |
| Coverage per unit | 16 sq ft per panel |
| Fire rating | UL Class A combustible deck rating at 1 in. thickness (max slope 1/2:12) |
| Standards | ASTM C1289-11 Type II Class 2; IBC Section 2603; UL 790, 263, 1256; FM 4450/4470; CAN/ULC S704 Type 2 & 3, Class 2 |
| Certifications | PIMA Quality Mark, CDPH compliant, LEED, Florida Building Code approved, California Title 24 |
| Weight | 9.4 lb per panel |
Coverage & How Much You Need:
Each 4 ft x 4 ft panel covers 16 square feet of deck; divide the roof area by 16 to size panel quantities.
Fit and Compatibility:
Part of the Carlisle SynTec roofing system; use under Carlisle single-ply membranes with Carlisle adhesives, fasteners and cover boards (sold separately). ReadyFlash lets you pick which facer receives membrane adhesive to manage flash-off time.
Frequently Asked Questions (FAQ):
Q: What comes in one order?
A: One 2.5 in. x 4 ft x 4 ft SecurShield Grade-II polyiso insulation panel.
Q: How much area does one panel cover?
A: A 4 ft x 4 ft panel covers 16 square feet of roof deck.
Q: What is ReadyFlash Technology?
A: SecurShield has a dark CGF facer on one side and a light CGF facer on the other; the dark facer speeds adhesive flash-off up to 2x on cool days and up to 4x on warm days, while the light facer slows it.
Q: What is the compressive strength?
A: This Grade 2 panel provides 20 psi minimum compressive resistance per ASTM C1289-11.
Q: Which membrane systems is it compatible with?
A: It is designed for Carlisle low-slope commercial roofing assemblies; confirm attachment and membrane compatibility with Carlisle's product data sheets.
Q: Does it need a fire-rated slip sheet?
A: The line achieves a UL Class A combustible deck rating at 1 in. thickness without a fire-rated slip sheet or gypsum coverboard on slopes up to 1/2:12.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
SecurShield's coated-glass facers make it a strong choice for adhered single-ply assemblies where dimensional stability and wind-uplift performance matter. The 4 ft x 4 ft size is easier to handle on congested or tapered roofs than 4x8 stock. Stage boards so you can choose facer side by weather: dark facer up on cool mornings, light facer up in heat, per Carlisle's adhesive flash-off guidance.
Foam boards are lightweight and can lift in wind before attachment; stack and secure panels promptly and follow manufacturer installation instructions and local code.
Order the Carlisle SynTec SecurShield 2.5 in. polyiso panel for precise adhesive control on your roof project.
