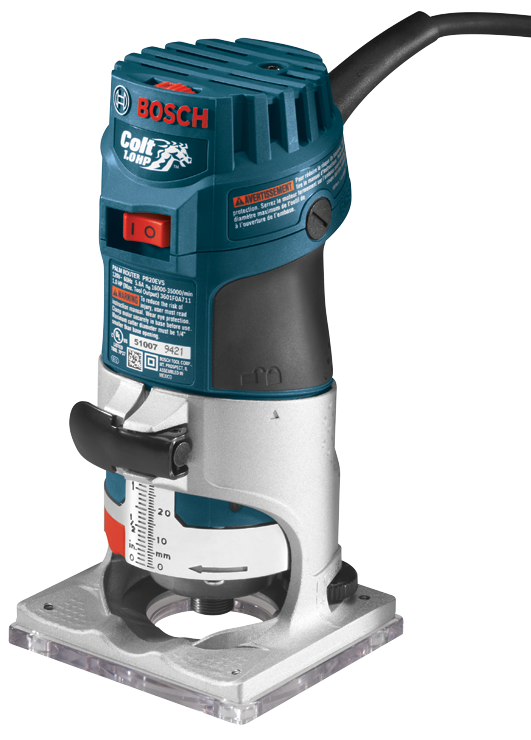

Bosch PR20EVS Variable-Speed Palm Router, Fixed Base

Compact yet powerful, the Bosch PR20EVS Colt palm router delivers 1.0 HP with a 5.6-amp motor and variable speed from 16,000–35,000 RPM for precise control. Its rugged aluminum fixed base, soft-start and Constant Response circuitry provide smooth, consistent performance for edge trimming and detailed routing.

---

Key Features:

• Power and Control: 5.6-amp, 1.0 HP motor with variable speed 16,000–35,000 RPM
• Durable Fixed Base: Rugged aluminum base ensures stability and precise cuts
• Accurate Depth Adjustments: Macro and micro depth system with easy-to-read scale
• Comfortable Handling: Palm-grip design with soft grip and finger support pockets
• Quick Bit Changes: Versatile system with spindle lock for fast, easy changes

---

Specifications Table:

Specification	Details
Amperage	5.6 A
Max Tool HP	1.0 HP
Voltage	120V
Variable Speed	Yes
No Load RPM	16,000–35,000
Base Opening	1-9/16 in.
Collet Capacity	1/4 in.
Fixed-Base Depth Range	1-3/16 in.
Plunge Depth	1-3/16 in.
Subbase Length	3-1/2 in.
Subbase Width	3-3/4 in.
Height	7.5 in.
Length	3.5 in.
Width	3.75 in.
Dust Collection	No
Case Type	No case included
Works With	PR102 Edge Guide; PR003 Roller Guide; PR004 Offset Base; PR005 Tilt Base; PR006 Underscribe Attachment; PR007 Side Handle Subbase & Dust Collection Attachment; PR008 Plastic Cover for Fixed Base; PR009 Subbase for RA-Series Template Guides; PR110 Subbase for Threaded Template Guides; PR011 Plunge Base
Includes	PR20EVS Palm Router; PR001 Fixed Base; 1/4 in. Self-Releasing Collet Chuck; Shaft Wrench; Collet Wrench
Color	Blue
Bit capacity (max cutter diameter)	1-5/16 in.
Corded/Cordless	Corded
Soft-start circuitry	Yes
Constant Response circuitry	Yes
Angled cord exit	Yes

---

Frequently Asked Questions (FAQ):

Q: What collet size does this router use?
A: It accepts 1/4-inch bits and supports cutters up to 1-5/16 inch in diameter.

---

Q: Does it have soft start and speed control?
A: Yes, it features soft-start circuitry and a variable speed dial for matching speed to the task.

---

Q: Is dust collection supported?
A: No, the PR20EVS does not include integrated dust collection.

---

Q: What is included in the box?
A: PR20EVS palm router, PR001 fixed base, 1/4 in. self-releasing collet chuck, shaft wrench, and collet wrench.

---

Q: What is the depth range?
A: Fixed-base depth range is 1-3/16 inches with micro-fine adjustment capability.

---

Sculpt Precision in the Palm of Your Hand

This petite powerhouse brings tailored craftsmanship to cabinetry edges and custom millwork with a sleek, aluminum base that gleams like hardware jewelry. I love the intuitive depth gauge—its micro-fine control lets you finesse details with couture-level accuracy. Style it with a clean template guide and contrast woods to create crisp, modern profiles. Essential for a luxe finish, it delivers refined control in a compact form.

---

Elevate your edge work with the PR20EVS—add it to your kit for smooth, precise routing every time.
