Bosch 10 in. Worksite Table Saw with Gravity-Rise Wheeled Stand (4100XC-10)
Regular price $0.0010 in. Worksite Table Saw with Gravity-Rise Stand

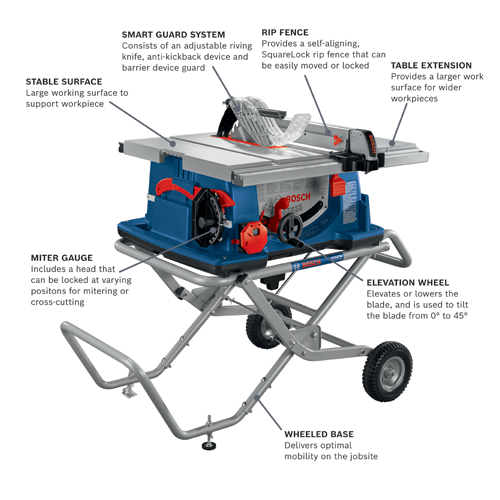

Portable, pro-grade 10-in table saw with a Gravity-Rise wheeled stand for easy jobsite mobility. A 15-amp, 4.0 max HP motor with soft-start and Constant Response circuitry powers rip and cross cuts, while the Smart Guard System and SquareLock rip fence enhance safety and accuracy.
Key Features:
- Powerful 15-Amp Motor: Delivers 4.0 max HP and 3,650 RPM for fast rip- and cross-cutting
- Jobsite Portability: Gravity-Rise GTA47W wheeled stand enables single-action setup, takedown, and transport

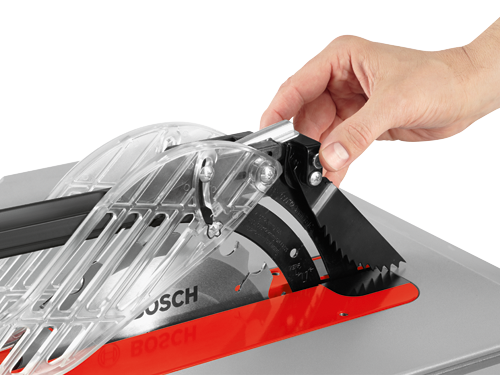

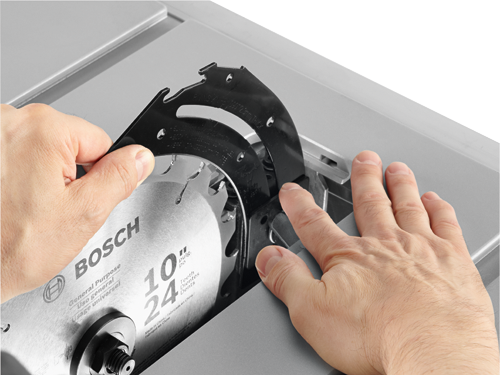

- Enhanced Safety: Smart Guard System with adjustable riving knife, anti-kickback pawls, and clear barrier guard

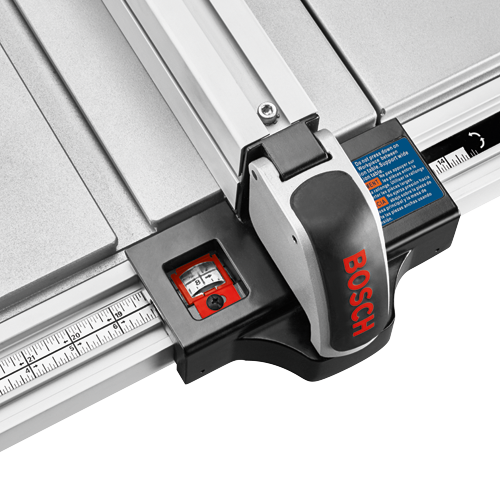

- Precision Cutting: SquareLock self-aligning rip fence with 30 in. right rip capacity and 8.5 in. left
- Large Work Surface: Cast aluminum top with 30 in. x 22-1/2 in. tabletop; onboard storage for accessories
Specifications Table:
| Specification | Details |
|---|---|
| Model | 4100XC-10 |
| Amperage | 15 A |
| Max Horsepower | 4.0 max HP |
| No-Load Speed | 3,650 RPM |
| Blade Diameter | 10 in. |
| Blade Size | 10 in. |
| Arbor Size | 5/8 in. |
| Bevel Angle Range | -2° to 47° |
| Max Bevel Capacity | 47° |
| Max Depth of Cut at 90° | 3-1/8 in. |
| Max Depth of Cut at 45° | 2-1/4 in. |
| Rip Capacity Right | 30 in. |
| Rip Capacity Left | 8.5 in. |
| Tabletop Size | 30 in. x 22-1/2 in. |
| Top Material | Cast aluminum |
| Voltage | 120 V |
| Dimensions (L x W x H) | 27 in. x 32.5 in. x 13 in. |
| Weight (saw, standard equipment, and stand) | 94 lb |
| Weight of Bare Saw | 58 lb |
| Stand | GTA47W Gravity-Rise wheeled stand |
| Safety Features | Smart Guard System with adjustable riving knife, anti-kickback pawls, and clear barrier guard; restart protection; overload protection; soft-start circuitry; Constant Response circuitry |
| Fence | SquareLock self-aligning rip fence |
| Dust Collection Compatibility | Common 2-1/2 in. vacuum hoses; VAC004 adapter; Dust Bag TS1004 |
| Works With | Zero-Clearance Insert TS1005; Dado Insert TS1007; Molding Insert TS1009; Outfeed Support TS1016; Left-Side Support TS1008 |
| Includes | Table saw, Gravity-Rise stand, 10 in. carbide-tipped blade, SquareLock rip fence, auxiliary fence for narrow workpieces, miter gauge, Smart Guard System, push stick, throat plate insert, multi-function blade wrench, adjustment wrench |
Frequently Asked Questions (FAQ):
Q: What blade size and arbor does it use?
A: It uses a 10 in. blade with a 5/8 in. arbor.
Q: What are the max cut depths?
A: 3-1/8 in. at 90° and 2-1/4 in. at 45°.
Q: What is the bevel range?
A: -2° to 47° with up to 47° max bevel capacity.
Q: Is dust collection supported?
A: Yes, it works with common 2-1/2 in. vacuum hoses and Bosch adapters; a dust bag (TS1004) is compatible.
Q: What’s included in the box?
A: Table saw, Gravity-Rise stand, 10 in. carbide blade, SquareLock rip fence, auxiliary fence, miter gauge, Smart Guard System, push stick, throat plate, multi-function blade wrench, and adjustment wrench.
Portable Power With Polished Precision
This table saw brings a refined, architectural presence to the jobsite—sleek cast aluminum meets Bosch’s signature blue for a look that feels both modern and enduring. The Gravity-Rise stand is the star, transforming from compact cart to stable workstation in one fluid motion. Pair it with a crisp outfeed table and matte-black clamps for a studio-worthy setup that moves with you. For those who value craftsmanship and efficiency, it’s a must-have foundation for elevated, luxurious builds.
Upgrade your jobsite with portable precision—add the Bosch 4100XC-10 to your cart today.
