Bosch 1-1/8-in Carbide-Tipped Vertical Raised Panel Router Bit
Regular price $43.651-1/8-in Vertical Raised Panel Router Bit
Create classic, raised-panel profiles with this Bosch carbide-tipped vertical panel bit. Engineered with micrograin carbide and a control-cut design, it delivers clean cuts, reduced kickback, and long life when used on a router table.
Key Features:
- Raised Panel Profiles: Ideal for cabinet doors and drawer fronts with a traditional bevel.
- Control-Cut Design: Helps minimize kickback for safer, smoother routing.
- Durable Carbide Tips: Micrograin carbide resists wear for extended edge retention.
- Router Table Use: Recommended for best control and finish; minimum panel thickness 3/4 in.

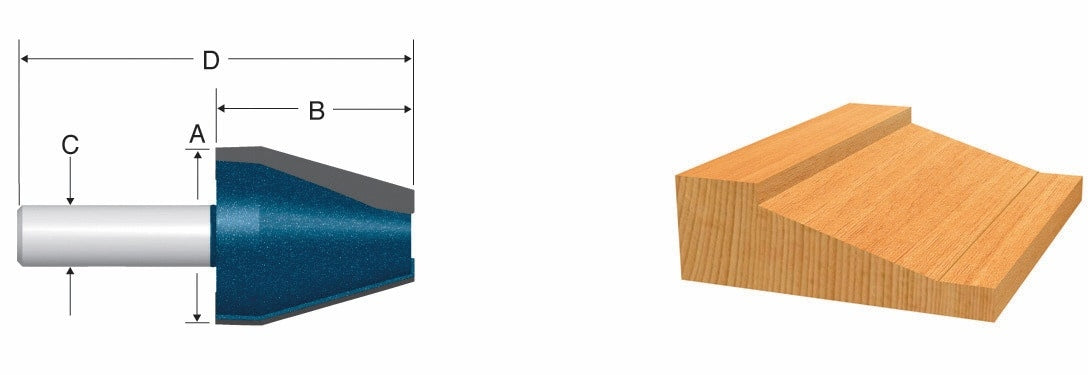

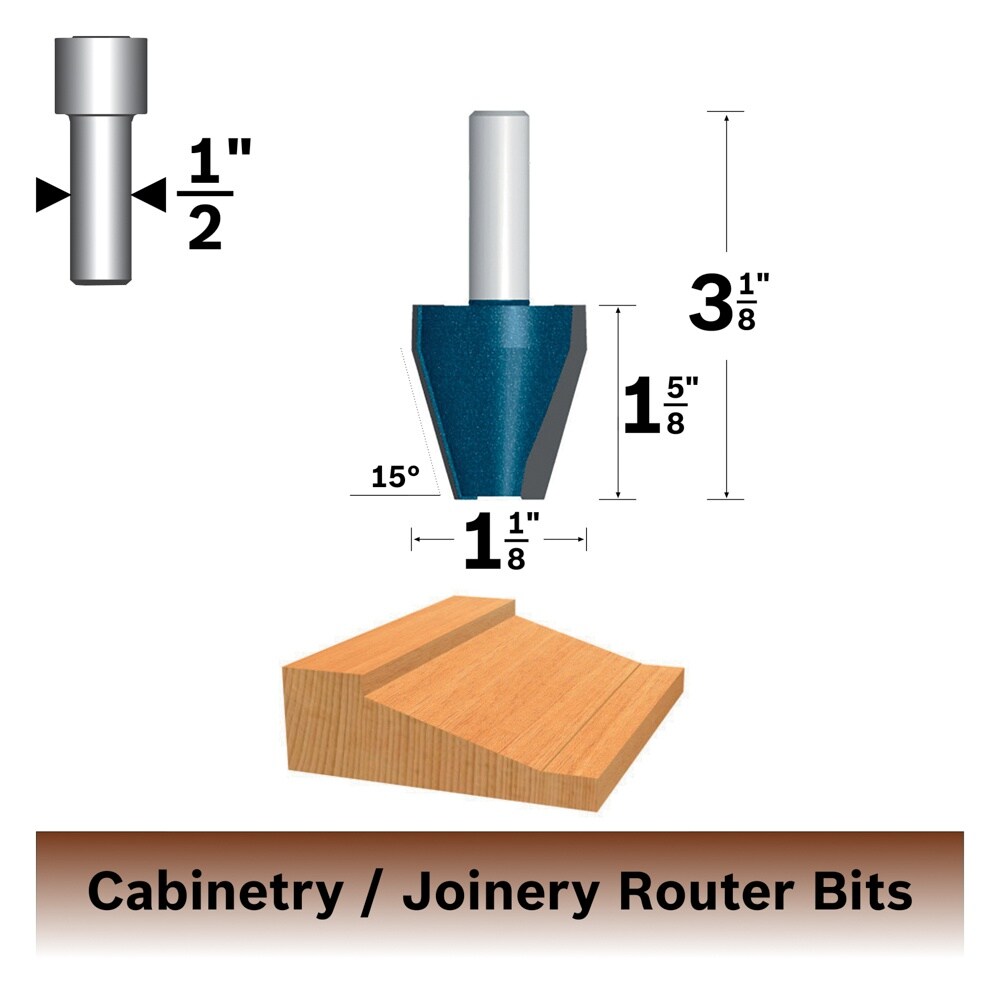

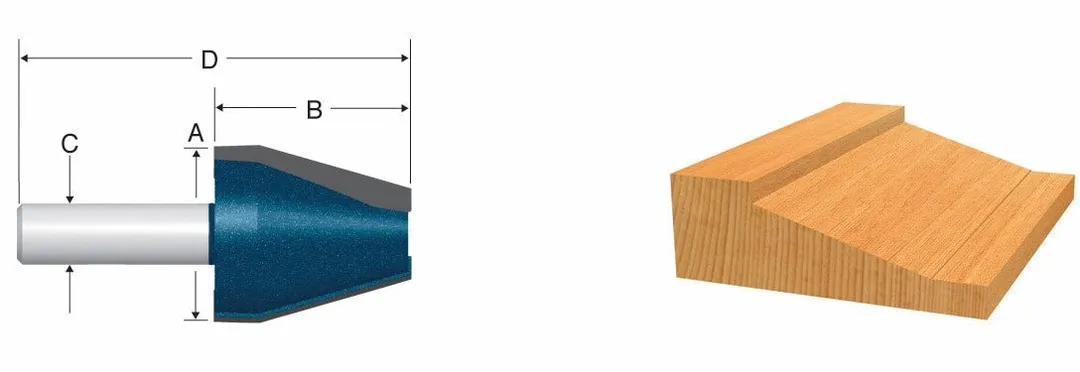

- Precision Dimensions: 1/2-in shank, 1-1/8-in diameter, 1-5/8-in cutting edge length.
Specifications Table:
| Specification | Details |
|---|---|
| Bit Cutting Width | 1-1/8-in |
| Bit Shank Diameter | 1/2-in |
| Cutting Edge Length | 1-5/8-in |
| Overall Diameter | 1-1/8-in |
| Overall Length | 3-1/8 in |
| Bit Angle | 15 degrees |
| Bit Material/Finish | Carbide-tipped |
| Bit Style | Vertical raised panel |
| Number of Flutes | 1 |
| Minimum Panel Thickness | 3/4 in (recommended) |
| Recommended Use | Router table |
| Warranty | None |
| Prop 65 Warning | No |
| UNSPSC | 27112800 |
Frequently Asked Questions (FAQ):
Q: Can I use this bit with a handheld router?
A: It can be used with a router, but Bosch recommends a router table for better control and safety due to the bit’s size.
Q: What thickness panel should I use?
A: Minimum recommended panel thickness is 3/4 inch.
Q: What is the shank size?
A: 1/2-inch shank.
Q: What material is the cutting edge?
A: Carbide-tipped with micrograin carbide for longer life.
Q: What profile/angle does it cut?
A: Vertical raised panel profile with a 15-degree angle and 1-1/8-in cutting width.
Sculpted Cabinetry Starts Here
This bit carves a refined bevel that instantly elevates cabinetry with tailored, architectural lines. I love the crisp 15-degree profile—clean, modern, yet timeless. Pair it with warm oak or painted shaker doors to add depth and shadow play across the panels. It’s a small tool with a luxuriously outsized impact on custom millwork.
Upgrade your cabinetry projects with Bosch’s durable, control-cut raised panel bit and achieve crisp, professional panels on your next build.
