Blum SPACE STEP Pull-Out Step Set, 330 lb Capacity, 16-3/4 in. or 18-11/16 in. L, Orion Gray
Regular price $143.07Orders start at $399 — combine any items to reach the minimum. Learn more
Blum SPACE STEP Pull-Out Step Set, 330 lb Capacity, 16-3/4 in. or 18-11/16 in. L, Orion Gray

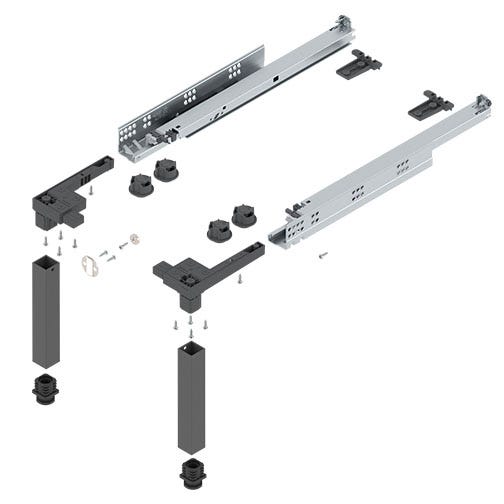

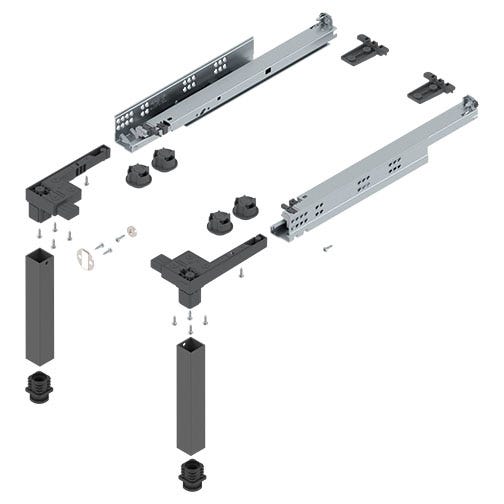

The Blum SPACE STEP Set turns a base cabinet drawer into a pull-out step with a 330 lb rating. Each set includes two TANDEM 561H runners (left/right), vertical supports, corner connectors, support feet, rear panel brackets, a front connector set, spring bumpers, stickers, 14 flat head screws and instructions, in Orion Gray. Two lengths are available: 16-3/4 in. and 18-11/16 in.
Key Features:
- 330 lb capacity: Rated for a 330 lb step load per the printed specification.
- Complete kit: Includes two TANDEM 561Hxxx1B95 runners (left/right), two vertical supports, two corner connectors, two support feet and two rear panel brackets.
- Front connector set: Ships with a front connector set including magnet and catch plate.
- Spring bumpers: Four spring bumpers included; use all four for outside cabinet widths greater than 35-7/16 in.
- Two lengths: Offered in 18-11/16 in. (Z95.4600) and 16-3/4 in. (Z95.4100) lengths.
- Hardware and instructions: Includes 14 flat head screws, safety and manufacturer information stickers, and installation instructions.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Blum |
| Sell unit | 1 set |
| Model / series | SPACE STEP |
| Available sizes | 18-11/16 in. L (Z95.4600); 16-3/4 in. L (Z95.4100) |
| Available finishes | Orion Gray |
| Capacity | 330 lb |
| Mounting | TANDEM 561H runners, left and right |
| Included | 2 runners, 2 vertical supports, 2 corner connectors, 2 support feet, 2 rear panel brackets, 1 front connector set (magnet and catch plate), 4 spring bumpers, 2 stickers, 14 flat head screws, instructions |
| Intended use | Pull-out step in base cabinet drawer |
| Assembly | Required; installation instructions included |
Fit and Compatibility:
Built around TANDEM 561Hxxx1B95 runners; pair with Blum SPACE STEP horizontal profiles, spacers and an anti-slip step surface. The step surface must be anti-slip via a mat or panel material, and the anti-slip mat is not included.
Frequently Asked Questions (FAQ):
Q: What is included in the set?
A: Two TANDEM 561H runners (left/right), two vertical supports, two corner connectors, two support feet, two rear panel brackets, one front connector set with magnet and catch plate, four spring bumpers, two stickers, 14 flat head screws and installation instructions.
Q: What weight can it hold?
A: The printed rating is 330 lb.
Q: Which length should I choose?
A: Choose 18-11/16 in. (Z95.4600) or 16-3/4 in. (Z95.4100) based on your drawer depth; measure the drawer interior before ordering.
Q: Is the anti-slip surface included?
A: No. The step surface must be anti-slip, using an anti-slip mat applied to the step or anti-slip panel material; the mat is not included.
Q: When do I use all four spring bumpers?
A: Blum recommends using all four spring bumpers for outside cabinet widths greater than 900 mm (35-7/16 in.).
Expert Verdict — Reviewed by the SuperArbor Pro Desk
SPACE STEP is a smart accessibility upgrade for tall base cabinets or hard-to-reach upper storage, effectively hiding a step stool inside a drawer. Confirm your drawer box depth against the 16-3/4 in. or 18-11/16 in. runner lengths and verify face-frame clearance before ordering. Install the step surface with a proper anti-slip mat or panel, since the rating assumes secure footing, and use all four bumpers on wider cabinets to keep the loaded drawer from slamming.
The step surface must be finished with an anti-slip mat or anti-slip panel material before use to prevent slipping while standing on the extended drawer.
Order the Blum SPACE STEP Set and turn any base drawer into a 330 lb pull-out step.
