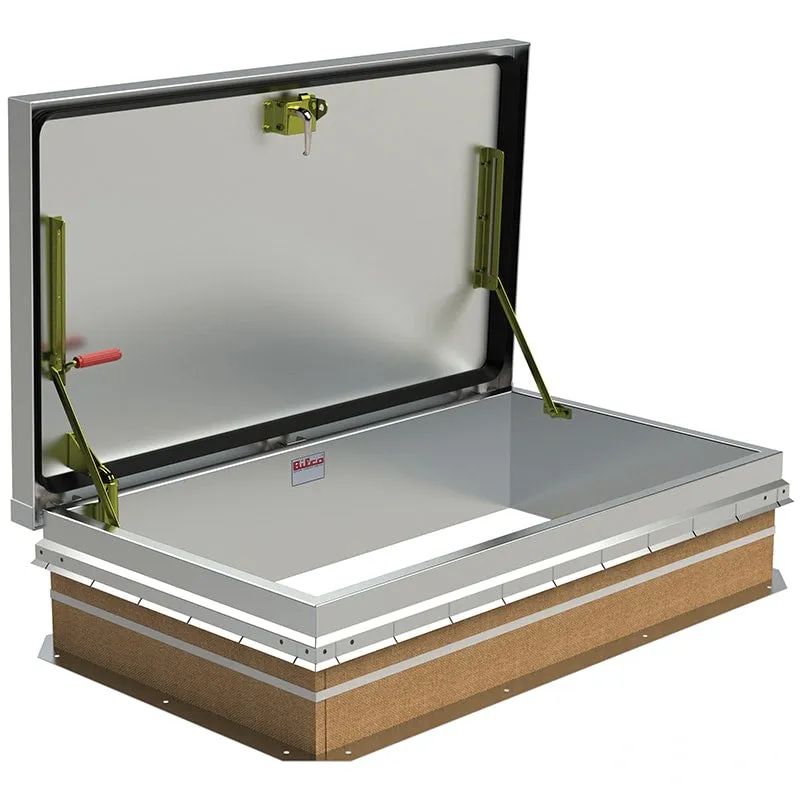

Bilco Thermally Broken Aluminum Equipment Roof Hatch, 36 in. x 36 in. or 36 in. x 54 in., Mill Finish
Regular price $1,745.00Bilco Thermally Broken Aluminum Equipment Roof Hatch, 36 in. x 36 in. or 36 in. x 54 in., Mill Finish
The Bilco Thermally Broken Aluminum Equipment Roof Hatch provides secure, energy-efficient roof access with R-20+ polyisocyanurate insulation in a thermally broken cover and curb that resists condensation. Available in standard single-leaf sizes including 36 in. x 36 in. (E) and 36 in. x 54 in. (NB), each hatch ships as one complete unit in mill finish aluminum. The curb features the Bil-Clip flashing system for fast single-ply attachment.
Key Features:
- Thermally broken design: The frame and cover design minimizes heat transfer between interior and exterior metal surfaces and is patent pending.
- R-20+ insulation: Ozone-friendly polyisocyanurate insulation provides superior energy efficiency.
- Condensation resistance: The thermally broken cover and curb resists harmful condensation.
- EPDM weather gasketing: Special EPDM gasketing provides enhanced weather and wind resistance.
- Weathertight construction: Overlapping cover, full welded corners, EPDM rubber gasket and fully insulated cover and curb ensure weathertightness.
- Secure and durable: Heavy gauge corrosion-resistant construction with a positive latching mechanism maintains building security.
- Bil-Clip flashing: The curb features the Bil-Clip flashing system to quickly secure single-ply roofing material to the hatch.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Bilco |
| Sell unit | 1 hatch with curb |
| Product line | Bilco Thermally Broken roof hatches (single leaf) |
| Available colors | Mill finish aluminum |
| Available sizes | Standard single-leaf sizes S, E (36 in. x 36 in.), NB (36 in. x 54 in.), L, F, GS; special single leaf sizes available upon request |
| Dimensions | E-50: 36 in. x 36 in.; NB-50: 36 in. x 54 in. (curb opening sizes) |
| Material | Aluminum |
| Finish / texture | Mill finish |
| Insulation | Ozone-friendly polyisocyanurate, R-20+ |
| Gasket | Special EPDM gasketing with enhanced weather and wind resistance |
| Construction | Heavy gauge, full welded corners on cover and curb, overlapping cover design |
| Flashing | Bil-Clip flashing system for single-ply roofing |
| Intended use | Equipment roof access on single-ply and other commercial roofs |
| Assembly | Complete hatch with curb; Bil-Clip flashing secures single-ply membrane |
Fit and Compatibility:
Fits the curb opening for the selected size: E-50 at 36 in. x 36 in. or NB-50 at 36 in. x 54 in., with other standard Bilco single-leaf sizes (S, L, F, GS) and special sizes available upon request. The Bil-Clip curb integrates with single-ply roofing membranes; flashing materials and roof membrane are supplied separately.
Frequently Asked Questions (FAQ):
Q: What sizes are available?
A: The thermally broken design comes in all standard Bilco single-leaf sizes (S, E, NB, L, F, GS), including 36 in. x 36 in. E-50 and 36 in. x 54 in. NB-50; special single-leaf sizes are available upon request.
Q: What insulation does it use?
A: Ozone-friendly polyisocyanurate insulation rated R-20+ fills the thermally broken cover and curb.
Q: How does it resist condensation?
A: The thermally broken design minimizes heat transfer between interior and exterior metal surfaces, resisting harmful condensation.
Q: How is it flashed into the roof?
A: The curb features the Bil-Clip flashing system, which quickly and easily secures single-ply roofing material to the hatch.
Q: Is it secure?
A: Heavy gauge construction and a positive latching mechanism maintain building security.
Q: Will it hold up to weather?
A: Overlapping cover design, welded corners, EPDM gasketing and corrosion-resistant aluminum provide weathertight, long-term service.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
On conditioned buildings, a thermally broken hatch pays for itself by cutting the heat loss and condensation problems typical of standard aluminum hatches. Verify the required clear opening for the equipment you are moving before choosing between the 36 x 36 E and 36 x 54 NB sizes. During install, use the Bil-Clip system to terminate the single-ply membrane into the curb and confirm the positive latch engages for security and wind uplift.
Roof hatches are floor openings during installation; guard the opening, install the hatch ladder or safety rail system, and follow fall protection requirements on the roof.
Order the Bilco Thermally Broken Aluminum Roof Hatch for secure, energy-efficient roof access.
