Arts Galvanized Hemmed Tile W-Valley Flashing, 26 Gauge, 3-Rib 26 in. or 5-Rib 30 in.
Regular price $60.00Orders start at $399 — combine any items to reach the minimum. Learn more
Arts Galvanized Hemmed Tile W-Valley Flashing, 26 Gauge, 3-Rib 26 in. or 5-Rib 30 in.

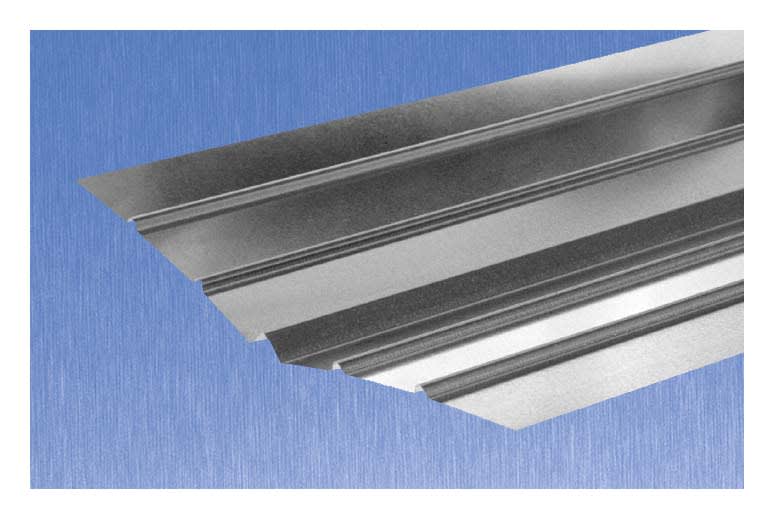

The Arts Galvanized Hemmed Tile W-Valley is a W-shaped metal valley flashing that channels water off the intersection of two roof slopes into the gutters. Choose the 3-rib 26 in. panel or the 5-rib 30 in. panel, both 26 gauge mill-finish galvanized steel, sold as individual pieces.
Key Features:
- W-shaped channel: The W profile efficiently channels water off the intersection of two roof planes.
- Hemmed edges: Hemmed construction adds rigidity to the formed valley flashing.
- 26 gauge steel: Formed from 26 gauge galvanized steel in mill finish.
- Two sizes: Available as a 3-rib 26 in. panel or a 5-rib 30 in. panel.
- Residential and commercial: Suitable for residential and commercial use on metal or shingled roofs.
- Critical protection: Protects the valley where two slopes come together, a critical flashing area.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Arts |
| Sell unit | 1 piece |
| Product line | Arts W-Valley Tile Flashing |
| Material | Galvanized steel |
| Finish / texture | Mill finish |
| Available sizes | ['3-Rib 26 in., 26 GA', '5-Rib 30 in., 26 GA'] |
| Wire gauge | 26 ga |
| Dimensions | 26 in. wide (3-rib) or 30 in. wide (5-rib) |
| Category | Residential Roofing / Flashing / Valley Flashing |
| Intended use | Valley flashing for metal or shingled roofs, residential and commercial |
Coverage & How Much You Need:
Each piece flashes one linear foot of valley per foot of panel length, so order one piece per foot of valley plus waste. Select the 30 in., 5-rib format for wider valleys or higher water volume and the 26 in., 3-rib format for standard tile valleys.
Fit and Compatibility:
Used within a tile or shingled roof flashing system and works with compatible underlayment lining in the valley. Closed valleys are not required to have metal flashing, but an additional underlayment lining is recommended.
Frequently Asked Questions (FAQ):
Q: What sizes does it come in?
A: Two versions: a 3-rib 26 in. wide panel and a 5-rib 30 in. wide panel, both 26 gauge.
Q: What material and finish?
A: 26 gauge galvanized steel with a mill finish.
Q: How is it sold?
A: Sold as individual pieces.
Q: Where is it used?
A: In roof valleys, where two slopes meet, on residential or commercial metal or shingled roofs.
Q: Do closed valleys need metal flashing?
A: Closed valleys are not required to have metal flashing, but an additional underlayment lining is recommended.
Q: How many pieces do I need?
A: One piece per linear foot of valley, plus allowance for laps and waste.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
W-valleys are the preferred valley flashing for tile because the center rib separates converging water streams and the ribs lock into the tile course. Always run a self-adhered membrane under the metal and lap upper pieces over lower ones so water stays on top of the flashing. Pick the 30 in., 5-rib version for long or steep valleys where water volume is greater.
Galvanized flashing edges can be sharp; wear cut-resistant gloves, and work with roof anchorage when installing valley metal.
Order Arts Galvanized Hemmed Tile W-Valley flashing in the size your valley requires.
