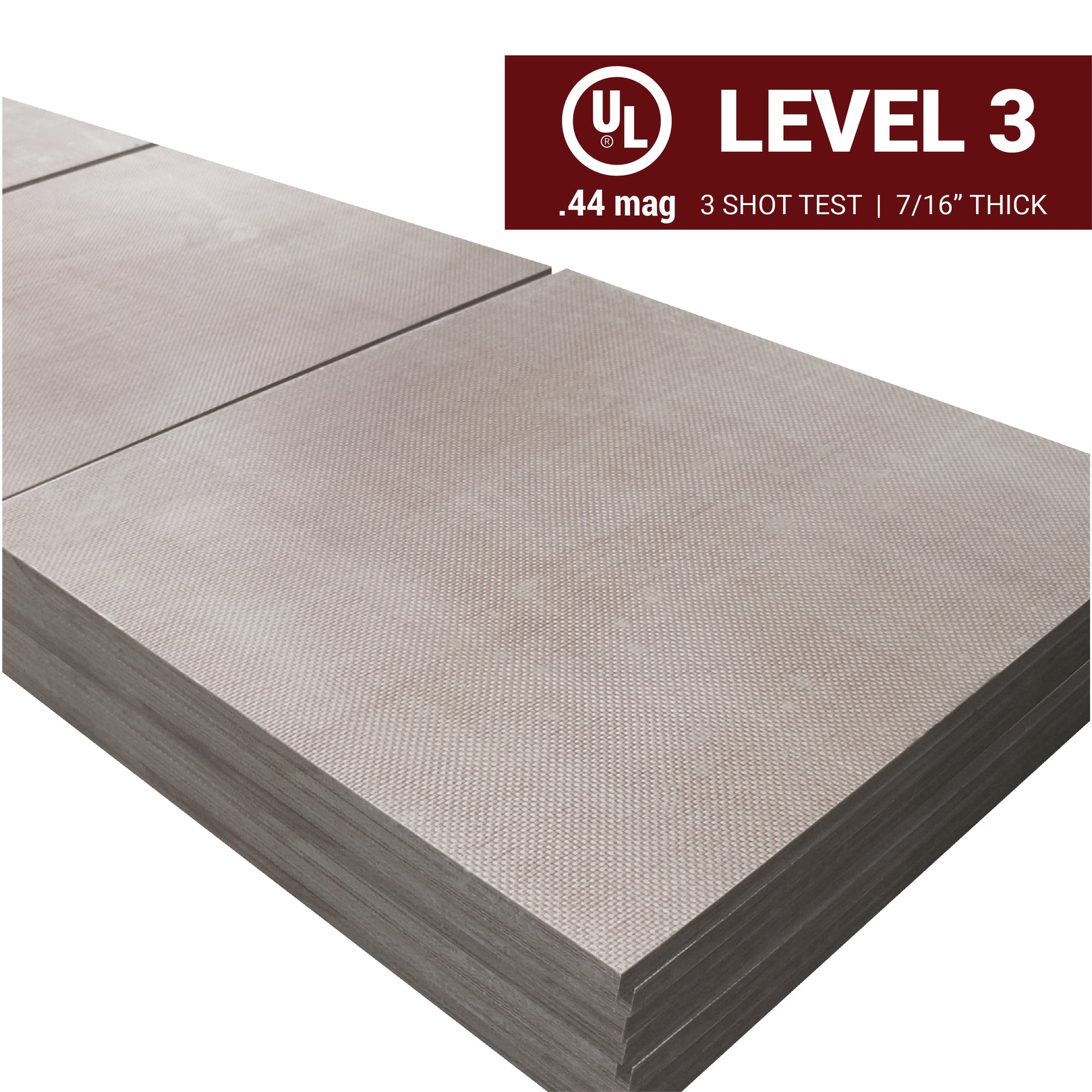

Armorcore UL 752 Level 3 Bullet and Fire Resistant Fiberglass Wall Panel – UL752
Regular price $933.40Armorcore UL 752 Level 3 Bullet and Fire Resistant Fiberglass Wall Panel
This Armorcore Level 3 bullet resistant fiberglass wall panel is UL 752 rated and carries a one hour fire rating per ASTM E119-98. Made of woven roving ballistic grade fiberglass cloth with thermoset polyester resin, it is lighter than steel and can be covered with drywall or laminate. Sold as one panel in standard sizes from 3 ft x 8 ft up to 5 ft x 10 ft, with custom sizes available.
Key Features:
- UL 752 Level 3: Rated to UL752 Standard for Bullet Resisting Equipment, Level 3.
- Fire rated: One hour fire rating per ASTM E119-98.
- Lighter than steel: Fiberglass composite construction weighs less than equivalent steel armor.
- Low wicking: Low wicking material helps prevent buildup of mold.
- Nontoxic materials: Contains no formaldehyde.
- Coverable finish: Can be covered with drywall or laminate so as not to impact aesthetics, and painted with oil or water based paints after preparation.
- Factory CNC cutting: Panels are cut at the factory with CNC water jet equipment.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Armorcore |
| Manufacturer model | UL752 |
| Sell unit | 1 ballistic fiberglass panel |
| Material | Ballistic grade fiberglass cloth impregnated with thermoset polyester resin |
| Rating | UL752 Level 3, Paragraph 4.5 |
| Fire rating | One hour fire rating per ASTM E119-98 |
| Thickness | Varies by panel (nominal thickness, tolerance +/- 1/16 in.) |

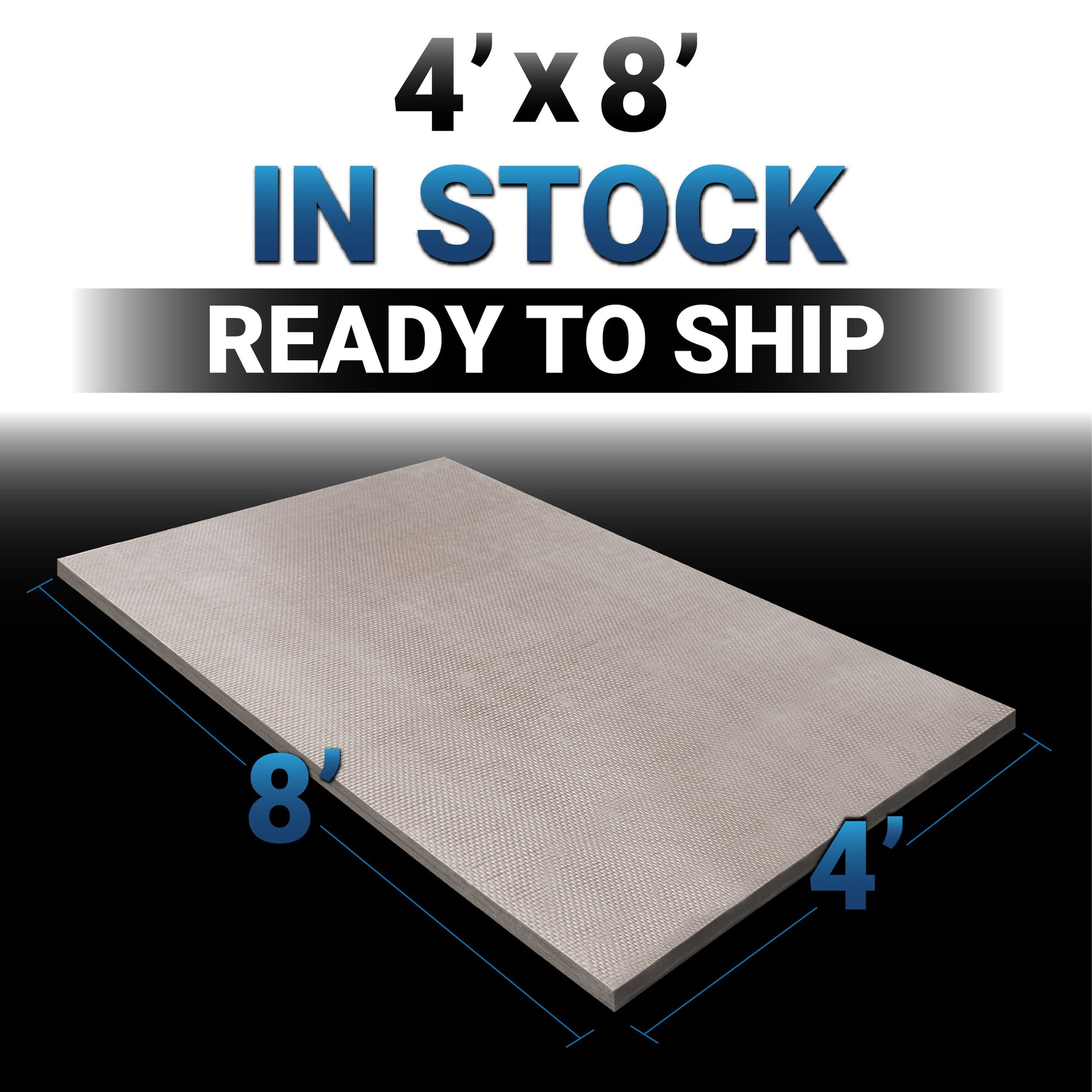

| Panel sizes | 3 ft x 8 ft, 3 ft x 9 ft, 3 ft x 10 ft, 4 ft x 8 ft, 4 ft x 9 ft, 4 ft x 10 ft, 5 ft x 8 ft, 5 ft x 9 ft, 5 ft x 10 ft; custom sizes available |
| Intended use | Walls, furniture, doors, vehicles and blast protection barriers in banks, schools, government, healthcare, safe rooms and storm shelters |
| Attachment | Self-tapping drywall screws or construction adhesive |
Coverage & How Much You Need:
One panel covers its face area; a 4 ft x 8 ft sheet covers 32 sq ft of wall. Plan the layout so seams land on framing, and order enough panels to cover the protected area with seams staggered.
Fit and Compatibility:
Armorcore panels are made at all 8 UL752 levels and NIJ0108.01 specifications; choose a lower or higher level as the threat assessment requires. Attach to framing or existing walls with self-tapping drywall screws or construction adhesive; framing, fasteners and cover materials are sold separately. Pre-drilling may be required for thicknesses of 1.125 in. or greater.
Frequently Asked Questions (FAQ):
Q: What is included with one panel?
A: One rigid ballistic fiberglass panel in the size ordered; framing, fasteners, and finishing materials are not included.
Q: What sizes are available?
A: Standard panel sizes are 3 ft x 8 ft through 5 ft x 10 ft, and custom sizes are available.
Q: Can I cut the panel myself?
A: Cutting requires a diamond-grit blade; the manufacturer suggests a 7 in. diamond-grit circular blade and offers factory CNC water jet cutting.
Q: How do I attach it to the wall?
A: Panels may be attached using self-tapping drywall screws or construction adhesive; pre-drilling may be required for thicknesses of 1.125 in. or greater.
Q: Can it be finished to match the room?
A: Yes, panels can be covered with drywall or laminate and, with proper preparation, painted with oil or water based paints.
Q: How heavy is it compared to steel?
A: The fiberglass composite is lighter in weight than steel, making it easier to handle and install.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Level 3 panels are a common choice for retail counters, schools and government offices where handgun protection and a one hour fire rating are specified. For rifle threats, step up to the appropriate higher UL752 level rather than stacking Level 3. Plan screw or adhesive fastening into framing, and let the factory water-jet cut custom openings for counters and doors to preserve ballistic integrity.
Cut only with a diamond-grit blade using proper respiratory and eye protection, and follow local building and security code requirements for ballistic installations.
Order your Armorcore UL 752 Level 3 bullet resistant fiberglass panel today and build protection into your walls.
