Arborite W491 Smoked Arcadian Oak Laminate Sheet, 48 in. x 96 in., Cashmere Finish, Vertical, Compact and Fire-Rated Grades
Regular price $847.58Orders start at $399 — combine any items to reach the minimum. Learn more
Arborite W491 Smoked Arcadian Oak Laminate Sheet, 48 in. x 96 in., Cashmere Finish, Vertical, Compact and Fire-Rated Grades

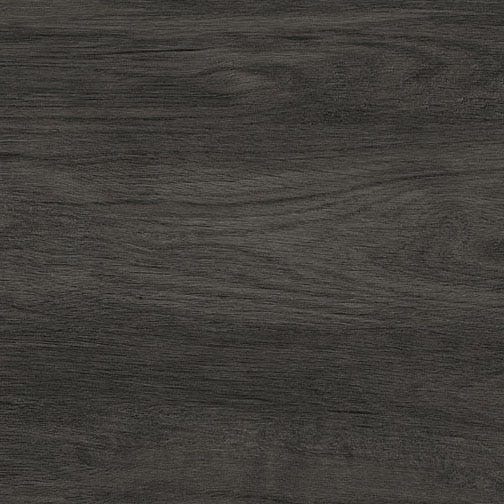

Arborite W491 Smoked Arcadian Oak is a smoked-oak woodgrain high-pressure laminate in 48 in. x 96 in. with a Cashmere finish. Choose A3 vertical grade, 1/2 in. or 3/4 in. compact laminate for self-supporting panels, or 30PL fire-rated vertical HPL for code-required interiors. One sheet or panel per order.
Key Features:
- Smoked oak look: Smoked Arcadian Oak is the W491 woodgrain design in a darker oak tone.
- Four grade options: Available as A3 Vertical HPL, 1/2 in. Compact, 3/4 in. Compact, and 30PL Fire Rated Vertical HPL.
- Self-supporting panels: The 1/2 in. and 3/4 in. compact grades are solid panels that do not require a substrate.
- Fire-rated choice: The 30PL fire-rated vertical grade is intended for interiors where code requires it.
- Cashmere finish: All listed items carry the Cashmere finish on the 48 in. x 96 in. sheet.
- Wet-area capable: Compact laminate grades are commonly used for self-supporting partitions and wet-area panels.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Arborite |
| Manufacturer model | W491 |
| Sell unit | 1 sheet (compact grades: 1 panel) |
| Design number | W491 |
| Design name | Smoked Arcadian Oak |
| Available finishes | (CA) Cashmere Finish |
| Available grades | A3 Vertical HPL; 1/2 in. Compact Laminate; 3/4 in. Compact Laminate; 30PL Fire Rated Vertical HPL |
| Available sheet sizes | 48 in. x 96 in. |
| Material | High-pressure laminate; solid compact laminate (compact grades) |
| Thickness | 1/2 in. (compact) or 3/4 in. (compact), as printed; not printed for other grades |
| Surface / pattern | Woodgrain smoked oak pattern |
| Recommended use | A3 vertical grade for vertical surfaces; compact grades for self-supporting panels; 30PL for fire-rated interiors |
| Fire rating | 30PL fire rated vertical HPL grade as printed |
Coverage & How Much You Need:
One 48 in. x 96 in. piece covers 32 sq. ft. Compact panels at 1/2 in. or 3/4 in. stand alone as partitions, locker bodies or toilet partitions, while HPL grades bond to a substrate.
Fit and Compatibility:
The A3 and 30PL vertical grades bond to particleboard or MDF with contact adhesive; the compact grades are routed, drilled and mounted with standoff hardware without a substrate. Adhesives, backer sheets and compact-panel mounting hardware are sold separately.
Frequently Asked Questions (FAQ):
Q: What are my choices on this design?
A: Four items are listed: A3 Vertical HPL, 1/2 in. Compact, 3/4 in. Compact, and 30PL Fire Rated Vertical HPL, all in Cashmere finish and 48 in. x 96 in.
Q: When should I choose compact laminate?
A: Choose the 1/2 in. or 3/4 in. compact grade when you need a self-supporting panel, such as partitions or door slabs, that can be routed and mounted without a substrate.
Q: What is the 30PL grade for?
A: The 30PL Fire Rated Vertical HPL grade is for vertical interior surfaces where a fire-rated laminate is required by code.
Q: How do I install the HPL grades?
A: Bond A3 or 30PL sheets to a flat particleboard or MDF core with contact adhesive and add a balancing backer to keep panels flat.
Q: How thick are the compact panels?
A: The compact grades print at 1/2 in. and 3/4 in.; thickness is not printed for the vertical and fire-rated grades.
Q: How much does one piece cover?
A: A 48 in. x 96 in. sheet or panel covers 32 sq. ft. before trimming and cutouts.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
For toilet partitions, lockers and wet-area cladding, go with the 1/2 in. or 3/4 in. compact panel and machine the edges clean with carbide tooling. Use A3 vertical grade for standard casework, and step up to 30PL only where the job specification calls for a fire-rated vertical laminate. Compact panels are heavy at 4 ft. x 8 ft., so plan a two-person lift and support the full sheet on the saw bed.
Compact panels are heavy and create sharp chips when routed; use two people or mechanical assistance to handle full sheets and wear eye, ear and dust protection when machining.
Choose your grade and order the Arborite W491 Smoked Arcadian Oak laminate sheet or compact panel today.
