Arborite W474 Uptown Urban Walnut High-Pressure Laminate Sheet, 48 x 96 in. and Larger, Legno Finish
Regular price $168.90Orders start at $399 — combine any items to reach the minimum. Learn more
Arborite W474 Uptown Urban Walnut High-Pressure Laminate Sheet, 48 x 96 in. and Larger, Legno Finish

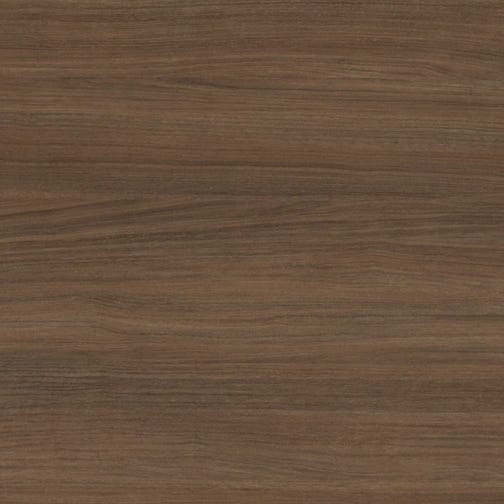

Arborite W474 Uptown Urban Walnut is a high-pressure laminate woodgrain design sold as 1 sheet in your choice of grade and sheet size. A3 Vertical HPL suits cabinet sides and wall surfaces, while A4 Postform HPL is made for horizontal surfaces with rolled edges such as countertops. Choose the finish, grade and size at ordering.
Key Features:
- Woodgrain design: Uptown Urban Walnut is a walnut-look decorative design in Arborite's high-pressure laminate line.
- Two grades: Available in A3 Vertical HPL for vertical surfaces and A4 Postform HPL for horizontal work with rolled edges.
- Two sheet sizes: Offered in 48 in. x 96 in. and 60 in. x 144 in. sheets.
- Legno Finish: All variants of this design are supplied in the (LE) Legno Finish.
- Shop fabrication: Standard HPL bonds to approved substrates with contact adhesive for countertops, cabinetry and wall panels.
- Full sheet value: Large decorative sheets let you lay out parts to minimize seams and waste.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Arborite |
| Manufacturer model | W474 |
| Sell unit | 1 sheet |
| Design number | W474 |
| Design name | Uptown Urban Walnut |
| Material | High-pressure laminate (HPL) |
| Available finishes | (LE) Legno Finish |
| Available grades | A3 Vertical HPL; A4 Postform HPL |
| Available sheet sizes | 48 in. x 96 in.; 60 in. x 144 in. |
| Surface / pattern | Woodgrain walnut decor |
| Recommended use | A3 Vertical HPL for vertical surfaces; A4 Postform HPL for horizontal surfaces with postformed edges |
Coverage & How Much You Need:
One 48 in. x 96 in. sheet covers 32 sq ft; one 60 in. x 144 in. sheet covers 60 sq ft before trimming waste. Lay out your parts on the sheet before cutting to minimize seams.
Fit and Compatibility:
Bonds to particleboard, MDF or plywood substrates using contact adhesive; a balancing backer sheet on the opposite face is recommended to reduce warping. A4 Postform grade is intended for postformed rolled edges on countertops; A3 Vertical grade is not recommended for heavy-duty horizontal surfaces.
Frequently Asked Questions (FAQ):
Q: What is included with one order?
A: One Arborite W474 Uptown Urban Walnut laminate sheet in the finish, grade and sheet size you select.
Q: Which grade should I choose for a countertop?
A: Choose A4 Postform HPL for horizontal countertop surfaces, especially where you want a rolled postformed edge; A3 Vertical HPL is intended for cabinet sides and wall surfaces.
Q: What size sheet do I need?
A: Measure your panel or countertop layout and pick 48 in. x 96 in. or 60 in. x 144 in., allowing trim margin; the larger sheet reduces seams on long runs.
Q: How is the sheet attached?
A: Standard practice is contact adhesive applied to both the substrate and the laminate back, then rolled down firmly; support the substrate with a balancing backer to limit warping.
Q: Does it come in other finishes?
A: This design is listed only in the (LE) Legno Finish across all four variants on this page.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
For countertop work, order the A4 Postform grade so the front edge can be rolled on a postforming line with the correct nose radius; for cabinet ends, wainscot and wall linings, the A3 Vertical grade is the right and more economical choice. Always pair a decorative HPL face with a balancing backer on particleboard or MDF cores to keep panels flat. Acclimate sheets in the shop for a couple of days and cut slightly oversize, trimming flush after bonding.
Laminate edges and chips are sharp when cut, so wear cut-resistant gloves and eye protection while scoring, routing or trimming sheets.
Order Arborite W474 Uptown Urban Walnut HPL in the grade and sheet size your project needs.
