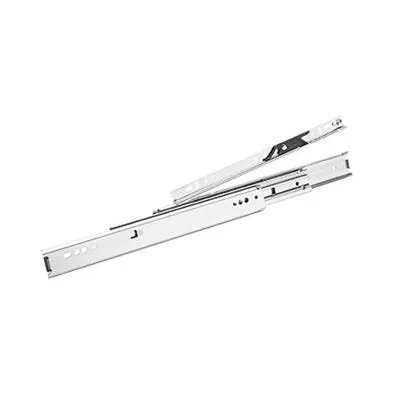

Accuride 7432 Full Extension Ball-Bearing Drawer Slide, 12 in. to 28 in., 100 lb, Side Mount, Clear Zinc or Black

$49.88

Orders start at $399 — combine any items to reach the minimum. Learn more

/
Shipping calculated at checkout.

Accuride 7432 Full Extension Ball-Bearing Drawer Slide, 12 in. to 28 in., 100 lb, Side Mount, Clear Zinc or Black

The Accuride 7432 is a light-duty side-mount ball-bearing slide with full extension and a 100 lb load rating for box and file drawers up to 24 in. wide. Slides are sold as a pair of rails with mounting screws, in lengths from 12 in. to 28 in. and in clear zinc or black. Available polybagged, in 5-packs, bulk packs or x-packs.

Key Features:

  • Full Extension: Slides travel the full rail length so the drawer opens completely clear of the cabinet.
  • 100 lb Capacity: Rated for 100 lb, suited to box and file drawers up to 24 in. wide.
  • Ball-Bearing Glide: Steel ball bearing mechanism delivers smooth drawer travel.
  • Easy Disconnect: Rail disconnect lets you lift the drawer off without tools for finishing or cleaning.
  • Nine Lengths: Offered in 12 in. through 28 in. lengths in 2 in. increments.
  • Two Finishes: Available in clear zinc and black depending on length and pack.

Specifications Table:

Specification Details
Brand Accuride
Sell unit 1 pair (left and right rails with mounting screws)
Series 7432
Material Cold rolled steel
Finish Clear Zinc; Black (select lengths/packs)
Available lengths 12", 14", 16", 18", 20", 22", 24", 26", 28"
Extension Full Extension
Load rating 100 lb
Mounting Side mount
Closing Manual (non-self-closing)
Side clearance 1/2 in per side
Glide mechanism Steel ball bearing
Overall height 1.71 in OAH
Overall width 1/2 in
Disconnect Rail disconnect
Screw size #8 or M6
Intended use Box and file drawers up to 24 in. wide
Packaging Polybagged, 5-Pack, Bulk Pack, X-Pack (5/Box example)

Fit and Compatibility:

A pair of 7432 slides serves one drawer; the 7156 mounting rail series can carry 7432 slides when rail mounting is needed. Manual-closing design will not pull drawers shut on their own.

Frequently Asked Questions (FAQ):

Q: How many slides come with one order?
A: Slides are sold per pair, one left and one right rail per drawer; 5-packs and bulk packs contain multiple pairs.

Q: What length should I use?
A: Choose a slide length close to your drawer depth; a 24 in. deep drawer box pairs well with a 22 in. or 24 in. slide.

Q: How much side space does it need?
A: Plan 1/2 in. of side clearance per side, with 1.71 in. overall height.

Q: Is it self-closing?
A: No, the 7432 is a manual-closing slide with no spring pull.

Q: What fasteners does it use?
A: Mounting screws are included, sized #8 or M6.

Q: Can I remove the drawer?
A: Yes, the rail disconnect method lets you separate the drawer from the cabinet.

Expert Verdict — Reviewed by the SuperArbor Pro Desk

The 7432 is a workhorse light-duty slide for typical case goods: file and box drawers up to 24 in. wide stay well inside its 100 lb rating. Pick a slide length about 1 in. shorter than the drawer box depth when in doubt, and check 1/2 in. side clearance against your case before ordering. For pot drawers or heavy tool storage, step up to a heavier-rated series such as the 7950.

Do not exceed the 100 lb rating, and support the drawer while engaging the disconnect to avoid dropping it.

Choose the Accuride 7432 full extension slide pair for your next box or file drawer.
