Accuride 3832ETR Touch-Release Ball-Bearing Drawer Slide, 12 in. to 28 in., Full Extension, 100 lb, Clear Zinc
Regular price $23.96Orders start at $399 — combine any items to reach the minimum. Learn more
Accuride 3832ETR Touch-Release Ball-Bearing Drawer Slide, 12 in. to 28 in., Full Extension, 100 lb, Clear Zinc

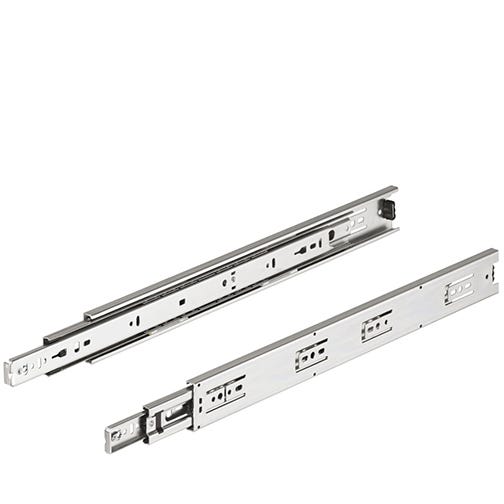

The Accuride 3832ETR is a side-mount ball-bearing slide with touch-release opening: press the drawer front and it opens, with no pull required. Rated at 100 lb, full extension, for drawers up to 24 in. wide with 1/2 in. side clearance. Sold per pair in nine lengths from 12 in. to 28 in., clear zinc, in bulk pack or polybagged packaging.
Key Features:
- Touch-Release Opening: A light press on the closed drawer front releases the slide and opens the drawer.
- Nine Lengths: Offered in 12 in. through 28 in. lengths in 2 in. increments.
- 100 lb Rating: Load capacity is rated at 100 lb per pair.
- Full Extension: The drawer extends to the full slide length; a 28 in. slide reaches 56 in. extended.
- Lever Disconnect: Lever release allows the drawer to be removed from the cabinet.
- Clear Zinc Steel: Cold rolled steel members finished in clear zinc.
- Bulk or Polybagged: Available in bulk pack or polybagged packaging.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Accuride |
| Sell unit | 1 pair |
| Series | 3832ETR |
| Available lengths | 12 in., 14 in., 16 in., 18 in., 20 in., 22 in., 24 in., 26 in., 28 in. |
| Available finishes | Clear Zinc |
| Extension | Full extension |
| Load rating | 100 lb |
| Mounting | Side mount |
| Closing | Touch-release |
| Material | Cold rolled steel |
| Finish | Clear zinc |
| Extended length | Twice the slide length (a 28 in. slide extends to 56 in.) |
| Overall height | 1.8 in. |
| Overall width | 1/2 in. |
| Side clearance | 1/2 in. per side |
| Disconnect | Lever |
| Screw size | 6 mm or #8 |
| Intended use | Drawers up to 24 in. wide |
| Packaging | Bulk pack or polybagged; bulk pack 10/Box |
Fit and Compatibility:
Accuride 3832-series side-mount slide for drawers up to 24 in. wide with 1/2 in. side clearance; mounting screws (6 mm or #8) are not specified as included. Both members on a drawer must be the same touch-release type.
Frequently Asked Questions (FAQ):
Q: What does one order include?
A: One pair of slides, left and right members; 10/Box is the bulk packaging quantity.
Q: How do I open the drawer?
A: Press the drawer front and the touch-release mechanism pops it open; press and push to return it closed.
Q: Can I use it without handles?
A: Yes, touch-release is intended for handle-free drawer fronts.
Q: What length do I need?
A: Choose the length equal to your drawer box depth, from 12 in. up to 28 in.
Q: How much clearance is required?
A: Allow 1/2 in. per side and keep drawer width at or under 24 in.
Q: What is the capacity?
A: 100 lb per pair, a light-duty rating.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
The 3832ETR gives you push-to-open function on a conventional ball-bearing slide, ideal for slab fronts and modern handleless kitchens. Match the slide length to drawer box depth and verify 1/2 in. side clearance across the cabinet run. For drawers you want to close themselves quietly, the 3832ESC self-close version is the better match.
Keep fingers clear of the release detent when pressing the front closed, and confirm both slides are securely screwed in before testing.
Order the Accuride 3832ETR touch-release slide pair and build clean, handleless drawers.
