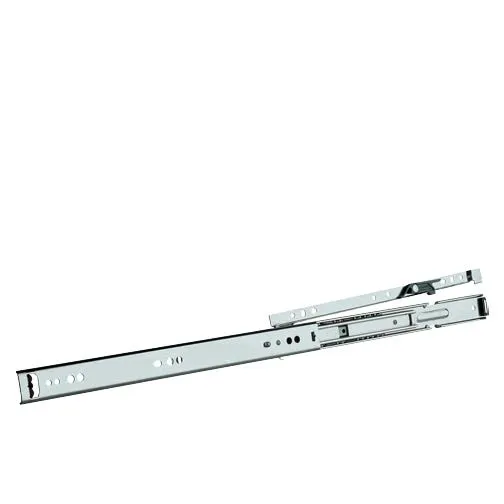

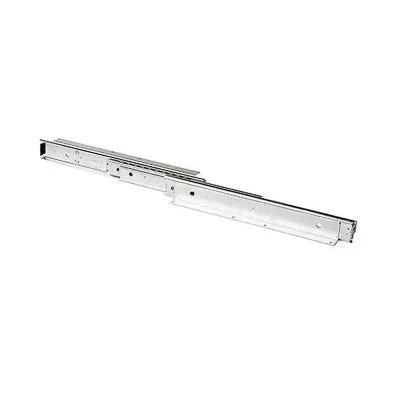

Accuride 301-2590 Undermount Ball-Bearing Drawer Slide, 12-28 in., Over-Travel, 155 lb, Clear Zinc

$86.15

Orders start at $399 — combine any items to reach the minimum. Learn more

/
Shipping calculated at checkout.

Accuride 301-2590 Undermount Ball-Bearing Drawer Slide, 12-28 in., Over-Travel, 155 lb, Clear Zinc

The Accuride 301-2590 is a medium-duty undermount drawer slide with steel ball bearings, 0.83 in. over-travel extension and a 155 lb load rating. It mounts beneath the drawer on brackets and is offered in lengths from 12 in. to 28 in., all in clear zinc. Sold per pair, polybagged or in bulk packs.

Key Features:

  • Over-travel extension: Extends 0.83 in. beyond the slide length, pulling the drawer box fully clear of the cabinet.
  • 155 lb capacity: Medium-duty 155 lb rating suits heavier utility and file drawers.
  • Concealed undermount: Bracket-mounted under the drawer, keeping the slide hidden for a clean interior look.
  • Steel ball bearings: Steel ball bearing glide mechanism gives smooth, conventional closing action.
  • Non-disconnect design: Non-disconnect members keep the drawer permanently engaged with the slide.
  • Long length range: Twelve lengths from 12 in. to 28 in. cover most cabinet depths.
  • Bulk or polybagged: Available polybagged per pair or in bulk packs.

Specifications Table:

Specification Details
Brand Accuride
Sell unit 1 pair
Series 301-2590
Available lengths 12 in., 14 in., 16 in., 18 in., 20 in., 22 in., 24 in., 26 in., 28 in.
Available finishes Clear Zinc
Extension 0.83 in. over-travel
Load rating 155 lb
Mounting Undermount (bracket)
Closing Conventional
Side clearance 3/4 in. side space
Height 1.54 in. OAH
Width 3/4 in. overall
Material Cold rolled steel
Finish Clear zinc
Glide mechanism Steel ball bearing
Disconnect Non-disconnect
Screw size #8
Intended use Drawers up to 16 in. wide
Packaging Polybagged or bulk pack

Fit and Compatibility:

Designed for bottom-mount bracket installation on drawers up to 16 in. wide; brackets are required and the drawer box should be built to 3/4 in. side space. Sold per pair; brackets and mounting screws per manufacturer description use #8 screws.

Frequently Asked Questions (FAQ):

Q: What does over-travel mean here?
A: The slide travels 0.83 in. past its closed-slide length, so the drawer box extends beyond the cabinet face for full access.

Q: How much weight can it carry?
A: It is rated at 155 lb per pair.

Q: How is it mounted?
A: It undermounts on brackets beneath the drawer, leaving the sides of the drawer visible and uncluttered.

Q: Is it soft-close?
A: No, the 301-2590 uses a conventional closing action.

Q: Can I remove the drawer easily?
A: No, this is a non-disconnect slide, so the drawer is not designed for quick removal.

Q: What packaging is available?
A: Polybagged pairs and bulk packs, depending on length.

Expert Verdict — Reviewed by the SuperArbor Pro Desk

The 301-2590's 155 lb rating and over-travel make it a good pick for deep utility, media or file drawers where you want the box to pull fully past the case. Because it undermounts, build the drawer with a bracket-ready bottom and verify cabinet interior depth against the slide length you select. Remember the 3/4 in. side space dimension when laying out the case.

Secure brackets fully to the drawer bottom before loading; an under-mounted heavy drawer can drop if brackets are loose.

Choose the Accuride 301-2590 undermount slide for concealed, over-travel movement in heavy drawers.
