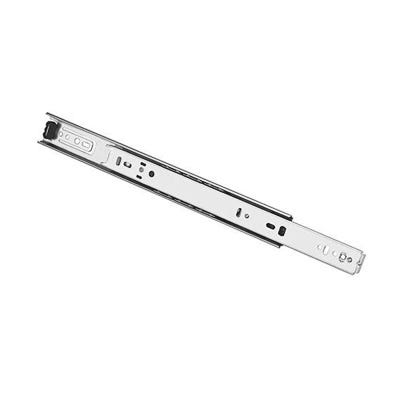

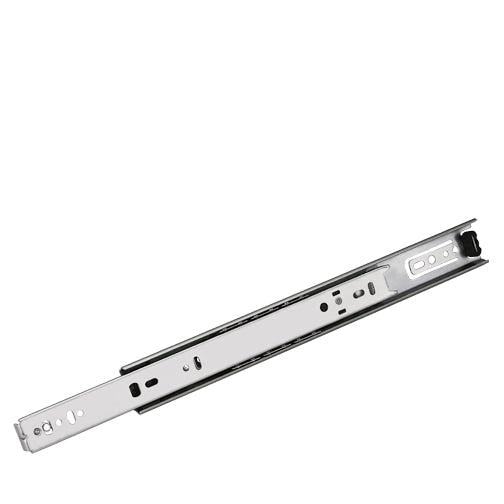

Accuride 2132 Low-Profile Ball-Bearing Drawer Slide, 3/4 Extension, 75 lb, 10-28 in., Clear Zinc or Black

$13.78

Orders start at $399 — combine any items to reach the minimum. Learn more

/
Shipping calculated at checkout.

Accuride 2132 Low-Profile Ball-Bearing Drawer Slide, 3/4 Extension, 75 lb, 10-28 in., Clear Zinc or Black

The Accuride 2132 is a low-profile, 3/4-extension side-mount ball-bearing slide rated at 75 lb for drawers up to 16 in. wide. Cold rolled steel in clear zinc or black, it spans 10 to 28 inch lengths with lever disconnect and 1/2 in. side clearance. Slides are sold per pair in polybagged or bulk-pack packaging.

Key Features:

  • Low Profile: 1.38 in. overall height keeps the slide concealed in tight drawer openings.
  • 75 lb Capacity: Handles drawers up to 16 in. wide at a 75 lb rating.
  • Ten Lengths: Available in 10 through 28 inch lengths in 2 inch increments.
  • Lever Disconnect: Lever disconnect lets the drawer lift off for cleaning and installation.
  • Slim Clearance: Needs only 1/2 in. of side space per slide.
  • Two Finishes: Clear Zinc standard, with Black bulk-pack variants on select lengths.
  • Bulk or Polybag: Offered bulk-packed or polybagged per pair.

Specifications Table:

Specification Details
Brand Accuride
Sell unit 1 pair
Series 2132
Material Cold rolled steel
Nominal size 28 in. slide, 20.7 in. travel (28 in. example variant)
Length 10 in. to 28 in.
Available lengths 10", 12", 14", 16", 18", 20", 22", 24", 26", 28"
Available finishes Black, Clear Zinc
Extension 3/4 Extension
Load rating 75 lb
Mounting Side Mount
Closing Manual closure
Side clearance 1/2 in.
Finish Clear Zinc
Packaging Bulk Pack or Polybagged
Intended use Drawers up to 16 in. wide

Fit and Compatibility:

Accuride 2132 series side-mounted slides; pair with the Accuride 2132 face frame bracket kit for face-frame cabinets. The 28 in. example extends to 48.7 in. with 1.38 in. OAH and 1/2 in. overall width.

Frequently Asked Questions (FAQ):

Q: Is this sold as a pair?
A: Yes, drawer slides are sold per pair with one left and one right member; bulk pack and polybagged are packaging options for the same slide.

Q: How do I choose length?
A: Match slide length to cabinet interior depth, staying 1 to 2 inches shorter; lengths run 10 to 28 inches.

Q: What side clearance does it need?
A: Allow 1/2 in. of side space per slide as printed.

Q: How wide a drawer does it carry?
A: It is rated for drawers up to 16 in. wide at 75 lb.

Q: Does it self close?
A: No, the 2132 uses manual closure with lever disconnect and no soft-close feature.

Q: Will it work in face-frame cabinets?
A: Yes, with the Accuride 2132 face frame bracket kit, which is sold separately.

Expert Verdict — Reviewed by the SuperArbor Pro Desk

The 2132 is my go-to when a shallow drawer box or narrow reveal rules out a full-height side-mount. Keep the 1/2 in. side clearance consistent on both walls and pick a length 1 to 2 inches under cabinet depth. Use the lever disconnect during install to seat the drawer without fighting the track, and add the 2132 bracket kit in face-frame work.

Verify the 75 lb rating suits the drawer contents and confirm lever disconnect is fully re-engaged before loading.

Pick the Accuride 2132 low-profile slide for clean, 75 lb light-duty drawer motion in tight spaces.
