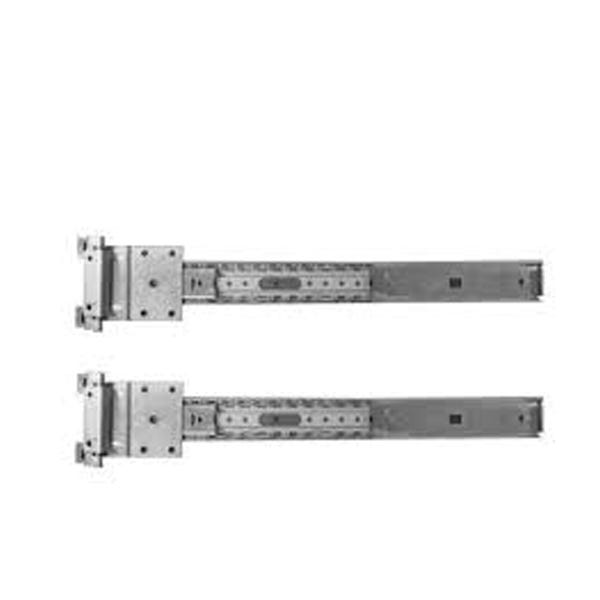

Accuride 1313 Flipper Door Slide, 12 to 26 in. Lengths, 20 lb Capacity, Clear Zinc, Under the Top
Regular price $58.77Orders start at $399 — combine any items to reach the minimum. Learn more
Accuride 1313 Flipper Door Slide, 12 to 26 in. Lengths, 20 lb Capacity, Clear Zinc, Under the Top
The Accuride 1313 is an under-the-top flipper door slide for doors up to 36 in. wide, rated at 20 lb. Each bracket-equipped set includes 2 slides, 2 front and 2 rear mounting brackets and mounting screws, in 8 lengths from 12 to 26 in. with a clear zinc finish.
Key Features:
- Under the top: Under-the-top design mounts the flipper door beneath a cabinet top.
- Brackets included: Sets include front and rear mounting brackets plus screws.
- 20 lb capacity: Rated for 20 lb flipper doors up to 36 in. wide.
- Eight lengths: Available in 12, 14, 16, 18, 20, 22, 24 and 26 in. lengths.
- Clear zinc: Clear zinc finish on steel resists corrosion.
- Slide-only option: Some variants are offered slide only without brackets for existing installations.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Accuride |
| Sell unit | 1 set of 2 slides with brackets and mounting screws |
| Series | 1313 |
| Available lengths | 12 in., 14 in., 16 in., 18 in., 20 in., 22 in., 24 in., 26 in. |
| Load rating | 20 lb |
| Mounting | Horizontal and vertical, bracket mounted |
| Material | Steel |
| Finish | Clear zinc |
| Intended use | Flipper doors up to 36 in. wide, mounted under the cabinet top |
| Packaging | Bulk pack or polybagged; slide-only bulk pack variants available |
Fit and Compatibility:
Made for Accuride 1313-series flipper door installations; replacement brackets are available separately (Accuride 4010 right-hand bracket). Slide-only variants without brackets are offered if you already have brackets.
Frequently Asked Questions (FAQ):
Q: What is included?
A: Bracket-equipped sets include 2 slides, 2 front mounting brackets, 2 rear mounting brackets and mounting screws; slide-only variants exclude brackets.
Q: What size door can it handle?
A: It is rated for 20 lb and doors up to 36 in. wide.
Q: What lengths are available?
A: 12, 14, 16, 18, 20, 22, 24 and 26 in.
Q: How does it mount?
A: It is an under-the-top slide that mounts horizontally and vertically with the included front and rear brackets.
Q: What finish is it?
A: Clear zinc on steel.
Q: Are there versions without brackets?
A: Yes, slide-only bulk pack variants are listed for those who need replacement slides.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
For flipper doors, size the slide to the cabinet depth so the door swings up and back cleanly under the top; leave the 36 in. width as a maximum rather than a target to keep the 20 lb rating comfortable. Use the bracket-equipped set for first-time installs and slide-only variants for servicing. Check bracket alignment on both sides before loading the door.
Support the flipper door until both brackets are fully secured, and keep hands out of the swing path when testing.
Order the Accuride 1313 Flipper Door Slide for smooth under-the-top door action.
