Accuride 1234 Pocket Door Slide, 12 to 28 in. Lengths, 30 lb Capacity, Cold Rolled Steel, Black
Regular price $51.30Orders start at $399 — combine any items to reach the minimum. Learn more

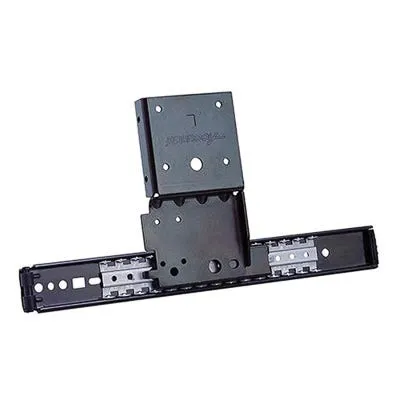

Accuride 1234 Pocket Door Slide, 12 to 28 in. Lengths, 30 lb Capacity, Cold Rolled Steel, Black
The Accuride 1234 is a light-duty pocket door slide without hinge for doors up to 24 in. W x 42 in. H (pocket) or 42 in. W x 24 in. H (flipper). Each set includes 2 slides with base plates attached, a pivot block kit and a caution sticker, in 9 lengths from 12 to 28 in. with a 30 lb capacity and black finish.
Key Features:
- 30 lb capacity: Rated for 30 lb doors, a step up for heavier pocket and flipper door panels.
- Base plate attached: Each slide ships with its base plate attached for simpler door mounting.
- Ball bearing glide: Steel ball bearing mechanism delivers smooth horizontal or vertical travel.
- Nine lengths: Offered in 12, 14, 16, 18, 20, 22, 24, 26 and 28 in. lengths.
- Black finish: Black cold rolled steel suits dark cabinet interiors.
- Complete pivot kit: Includes pivot blocks, mounting screws and a caution sticker.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Accuride |
| Sell unit | 1 set of 2 slides with pivot block kit |
| Series | 1234 |
| Available lengths | 12 in., 14 in., 16 in., 18 in., 20 in., 22 in., 24 in., 26 in., 28 in. |
| Load rating | 30 lb |
| Mounting | Horizontal, vertical |
| Glide mechanism | Steel ball bearing |
| Material | Cold rolled steel |
| Finish | Black |
| Typical travel | 23.4 in. travel on the 28 in. slide (51.4 in. extended, 5.91 in. OAH) |
| Intended use | 24 in. W x 42 in. H pocket doors or 42 in. W x 24 in. H flipper doors |
| Packaging | Polybagged |
Fit and Compatibility:
Accuride 1234-series slides are the hingeless version of the 123 pocket door line; the door attaches to the attached base plate instead of a European hinge. Hinges are not included and are not required for this version.
Frequently Asked Questions (FAQ):
Q: What is included?
A: Each set includes 2 slides with base plates attached, 1 pivot block kit (pivot blocks, mounting screws and caution sticker).
Q: Does it include a hinge?
A: No, the 1234 version is without hinge; the door mounts to the base plate attached to each slide.
Q: What door weight is supported?
A: The series is rated for 30 lb.
Q: What length should I buy?
A: Choose a slide length based on cabinet depth so the door retracts fully; lengths run 12 to 28 in.
Q: Which doors fit?
A: It is intended for 24 in. W x 42 in. H pocket doors or 42 in. W x 24 in. H flipper doors.
Q: How is it packaged?
A: Variants are polybagged, 4 sets per box.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Because the base plate is attached, setting the door height is more forgiving than hinge-mounted versions; check clearance to the cabinet face before drilling. The 30 lb rating handles taller 42 in. panels better than lighter-duty slides. Always test full travel and pivot alignment before closing up the cabinet.
Affix the included caution sticker in the visible location indicated by the manufacturer and keep hands clear of moving parts during testing.
Order the Accuride 1234 Pocket Door Slide in your required length.
