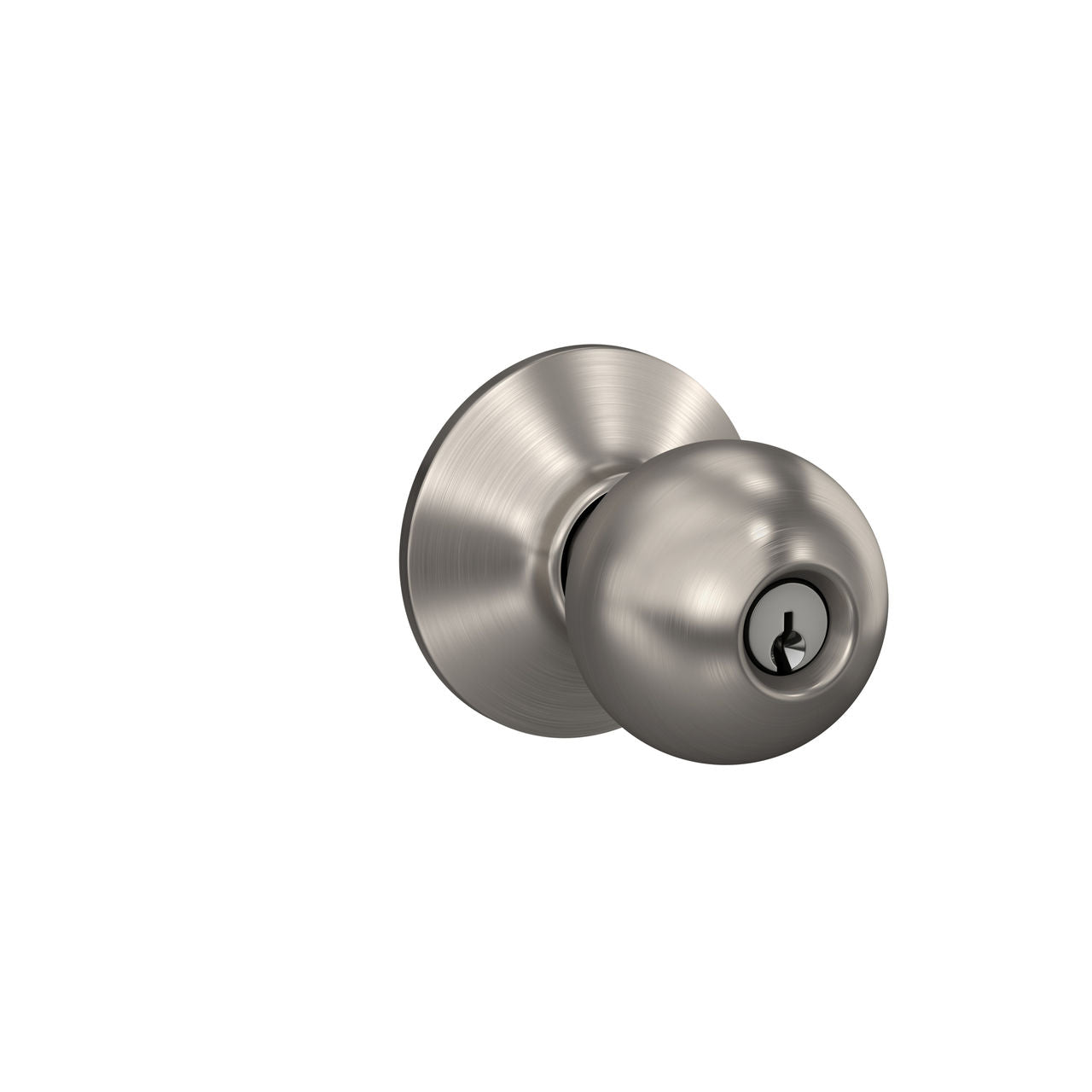

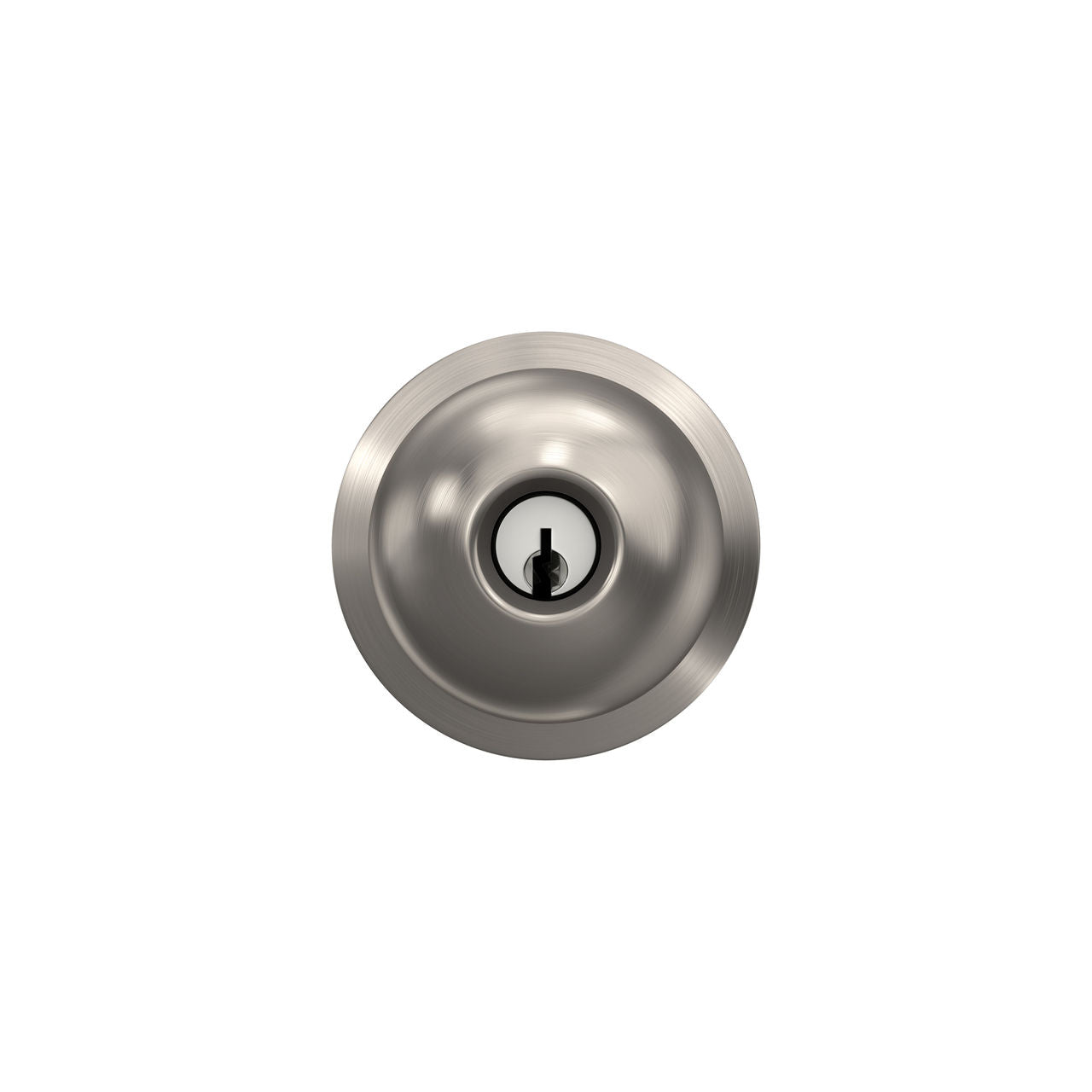

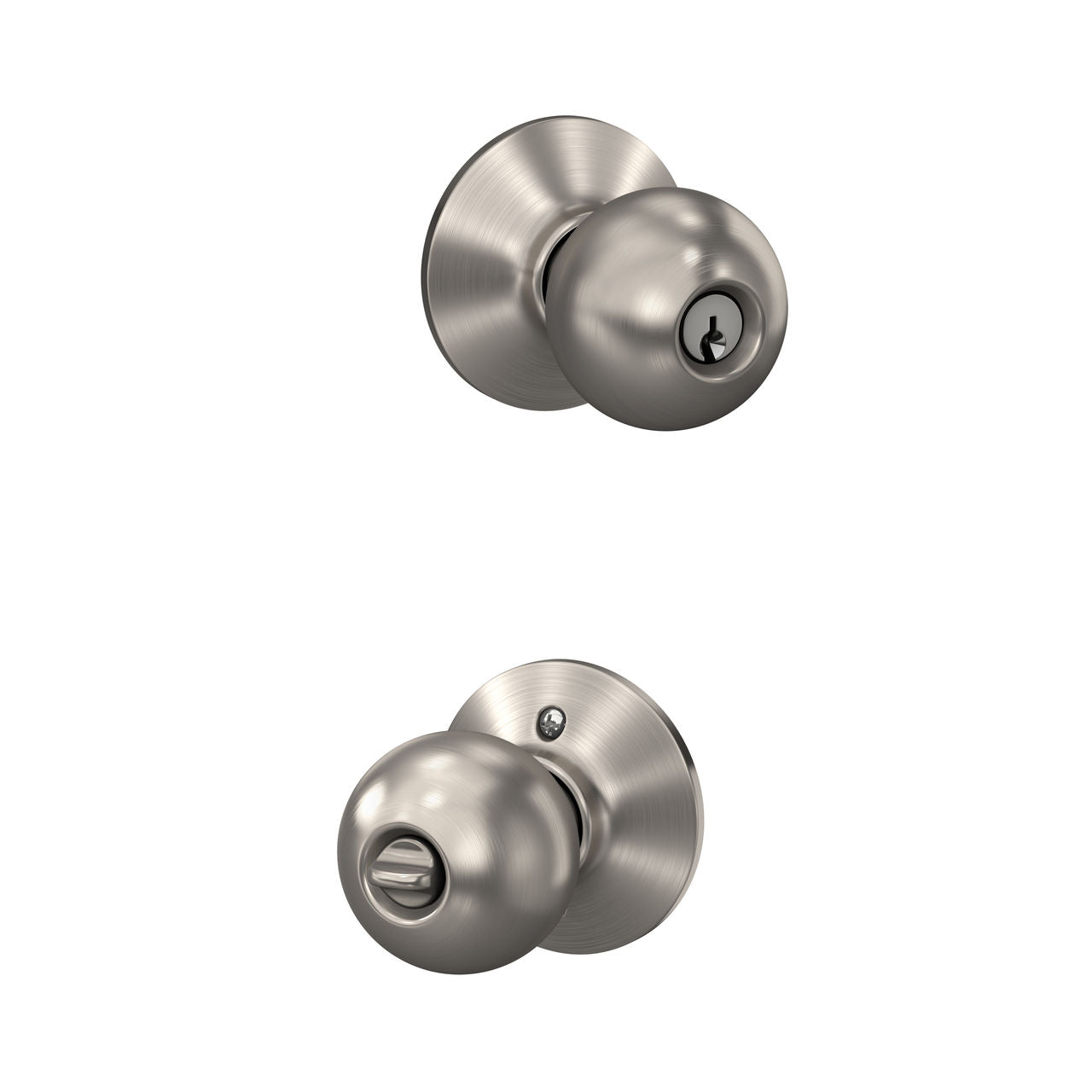

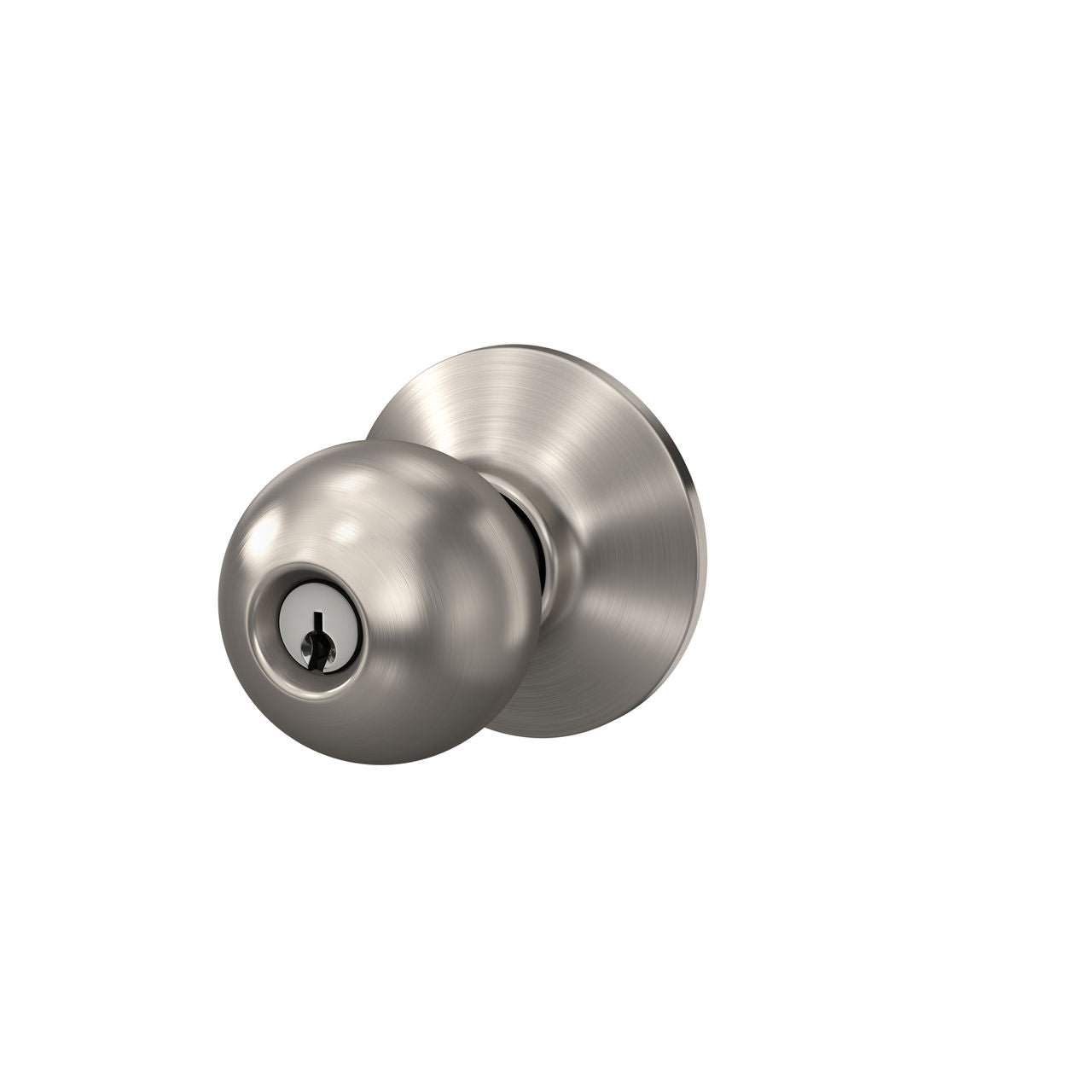

Schlage Orbit Satin Chrome Keyed Entry Knob Lockset, ANSI/BHMA Grade 2, Fits 1-3/8 in. to 1-3/4 in. Doors
Regular price $29.07Schlage Orbit Satin Chrome Keyed Entry Knob
The Schlage Orbit keyed entry knob delivers reliable security with Grade 2 performance in a sleek satin chrome finish. Designed for standard residential doors, it fits 1-3/8 in. to 1-3/4 in. thicknesses and includes a universal adjustable backset for easy install with just a screwdriver.
Key Features:
- Grade 2 Security: ANSI/BHMA certified for dependable strength, durability and finish
- Universal Fit: Adjustable latch for 2-3/8 in. or 2-3/4 in. backsets; fits 1-3/8 in. to 1-3/4 in. thick doors
- Easy Installation: Self-aligning screw holes and all hardware included; right- or left-handed doors
- Convenient Operation: Keyed exterior with interior turn-button for quick exits; includes 2 keys
- Durable Finish: Satin chrome knob built from premium metal with limited lifetime mechanical and finish warranty
Specifications Table:
| Specification | Details |
|---|---|
| Function | Keyed entry (exterior keyed; interior turn-button) |
| ANSI/BHMA Grade | A156.2-2011 Grade 2; A156.39-2015 Grade AAA (Security, Durability, Finish) |
| Finish | Satin Chrome |
| Door Thickness | 1-3/8 in. (35 mm) to 1-3/4 in. (44 mm) |
| Backset | Adjustable 2-3/8 in. (60 mm) or 2-3/4 in. (70 mm) |
| Keyway | Schlage C keyway, 5-pin tumbler |
| Handing | Universal; fits left- or right-handed doors |
| Fire Rating | Locks for up to three-hour fire doors available |
| ADA Compliance | No |
| Warranty | Limited Lifetime Mechanical and Finish Warranty |
| Included | Lockset and 2 keys; both radius and drive-in faceplates |
Frequently Asked Questions (FAQ):
Q: What door thickness will this lock fit?
A: It fits standard doors from 1-3/8 in. (35 mm) to 1-3/4 in. (44 mm).
Q: What backset does it support?
A: The universal latch adjusts to 2-3/8 in. (60 mm) or 2-3/4 in. (70 mm).
Q: Is it fire-rated?
A: Models for up to three-hour fire doors are available; check local requirements and product labeling.
Q: What keying does it use?
A: It uses a 5-pin tumbler with Schlage C keyway (standard).
Q: Is it ADA compliant?
A: No, this knob is not ADA compliant.
Sculptural Simplicity with Secure Sophistication
Orbit’s pure sphere feels timeless—its satin chrome sheen catches light like jewelry for the door. The streamlined rose keeps the profile minimal, letting the rounded form make a quiet statement. Pair it with crisp white doors or moody charcoal paint for modern contrast. A refined essential, it marries daily luxury with trustworthy security.
Upgrade your entry with dependable Grade 2 security and a sleek satin chrome finish—choose the Schlage Orbit today.
