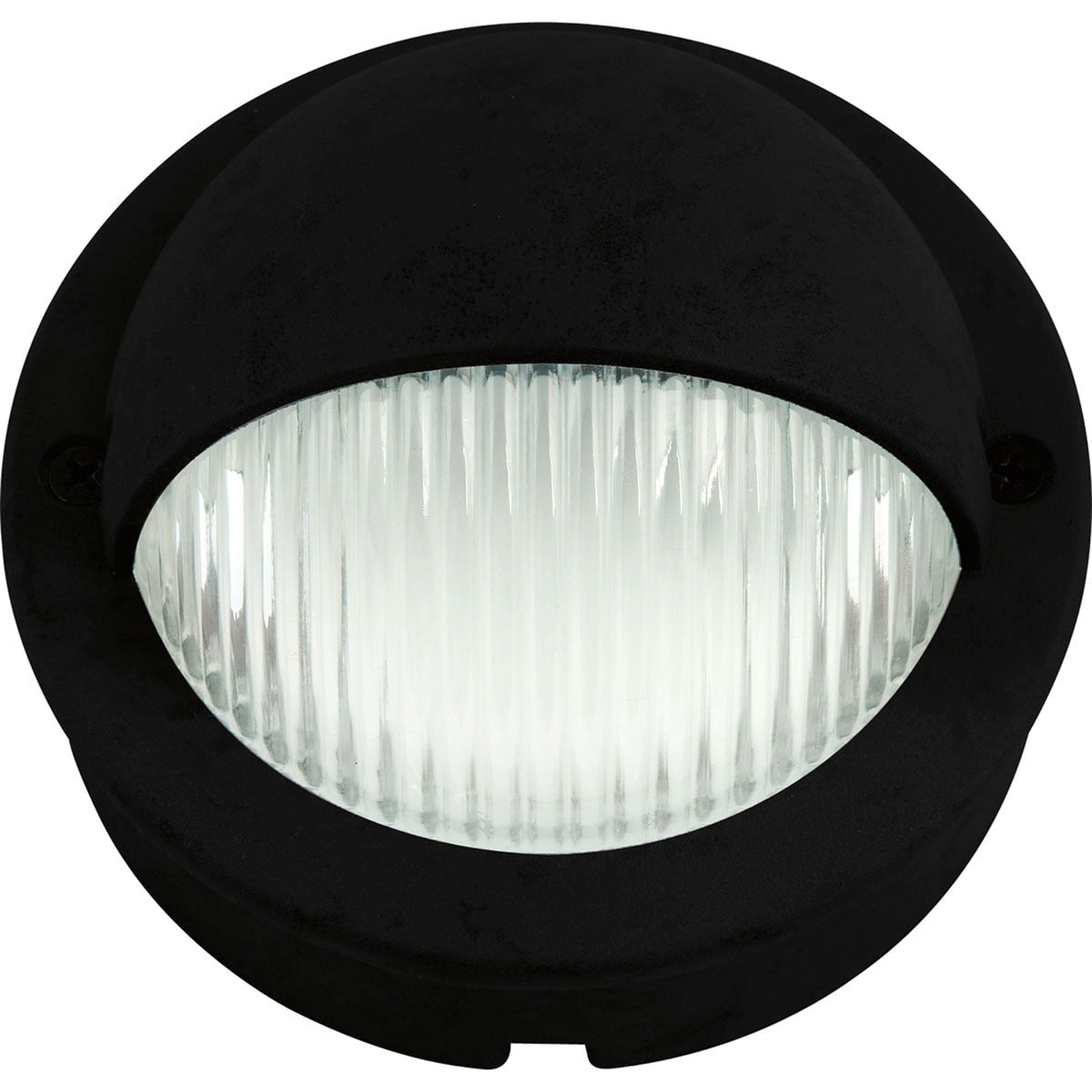

Black Low-Voltage LED Rail/Deck Light, 1.5W (3000K)

A durable, low-glare LED rail/deck light designed for 12V landscape systems. The die-cast aluminum fixture with powder-coated black finish and polycarbonate diffuser delivers 86 lumens of warm 3000K light for safety and ambiance.

---

Key Features:

• Integrated LED module: 1.5W LED included; 86 lumens, warm 3000K output
• Built for outdoors: Die-cast aluminum housing with powder-coated black finish and polycarbonate diffuser
• Low-voltage hardwired: 12V operation; surface-mount installation
• Dimmable capability: Works with compatible low-voltage dimmer/transformer setups

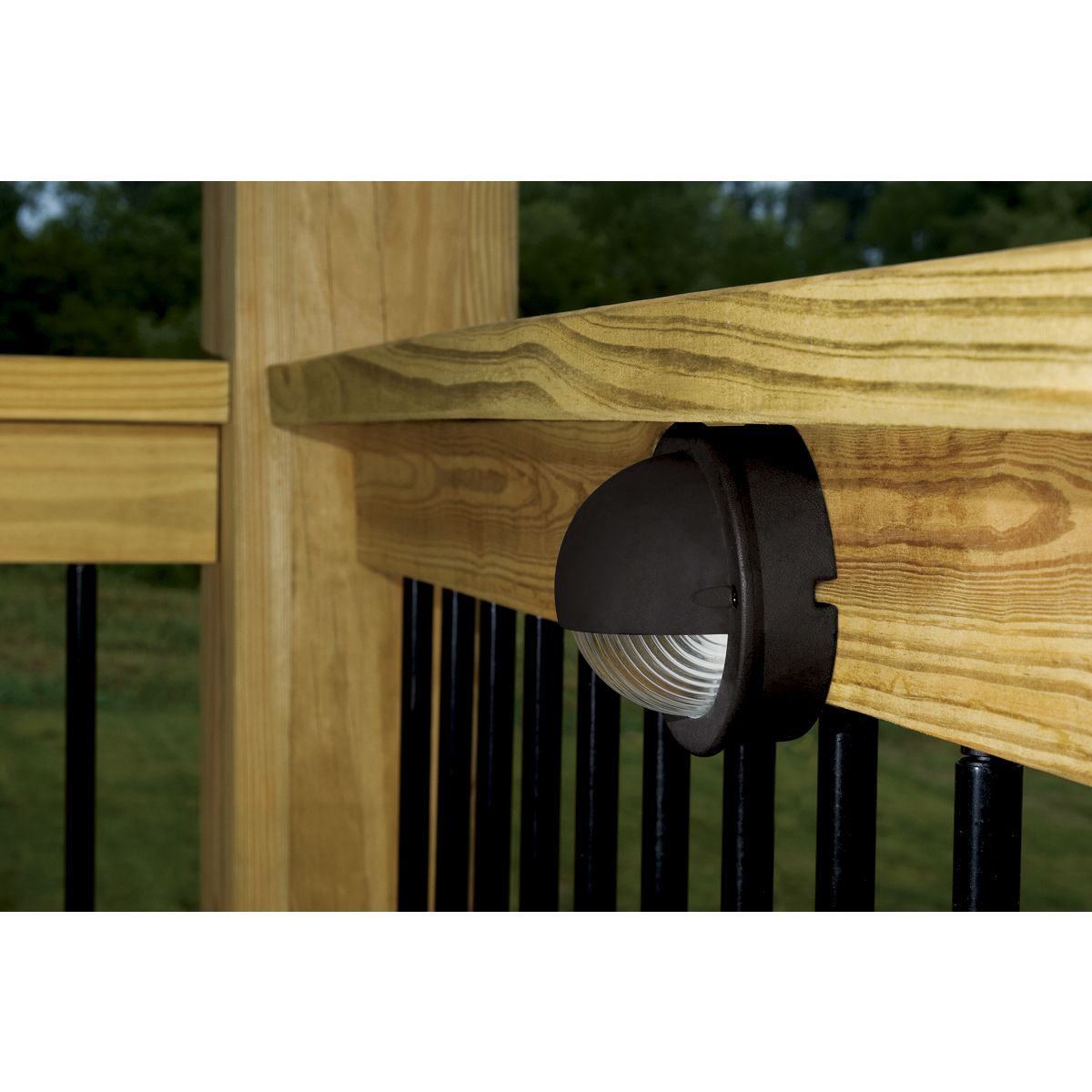

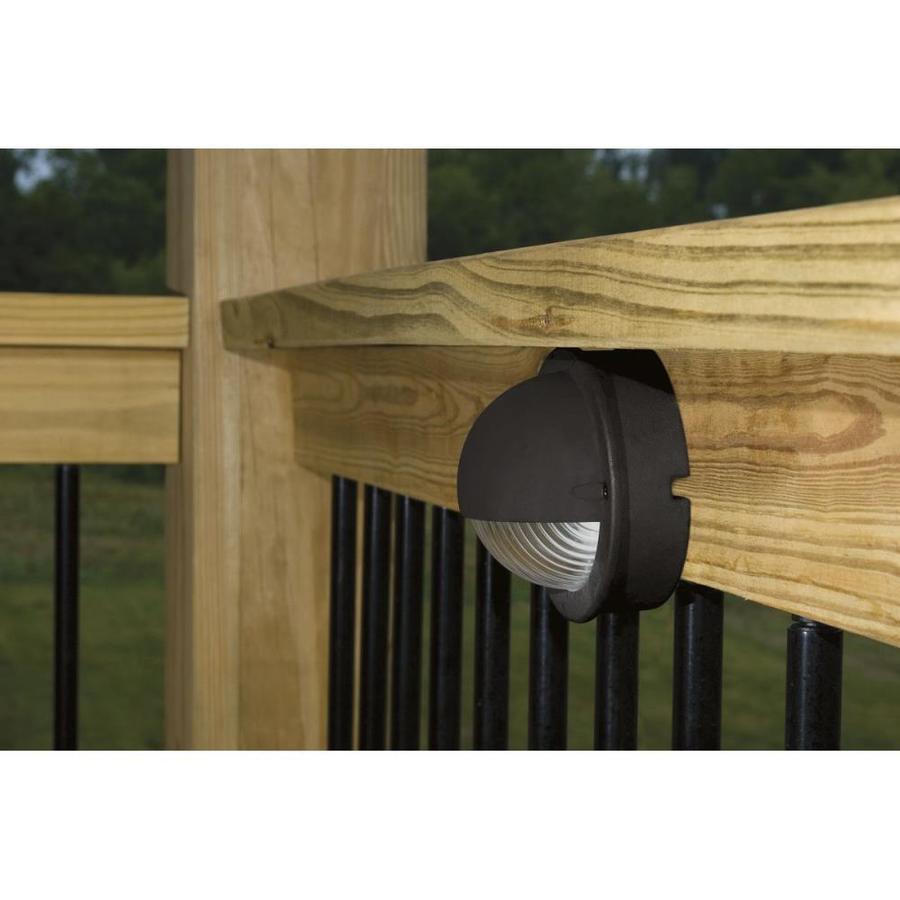

• Deck and rail lighting: Provides low-glare, indirect illumination for stairs, walkways, and perimeters

---

Specifications Table:

Specification	Details
Type	Rail light / deck light
Power Source	Hardwired low voltage
Voltage	12V
Voltage Type	Low voltage
Wattage	1.5W
Wattage Equivalent	10W
Lumens	86 lm (delivered)
Light Color	Warm White
Color Temperature	3000K

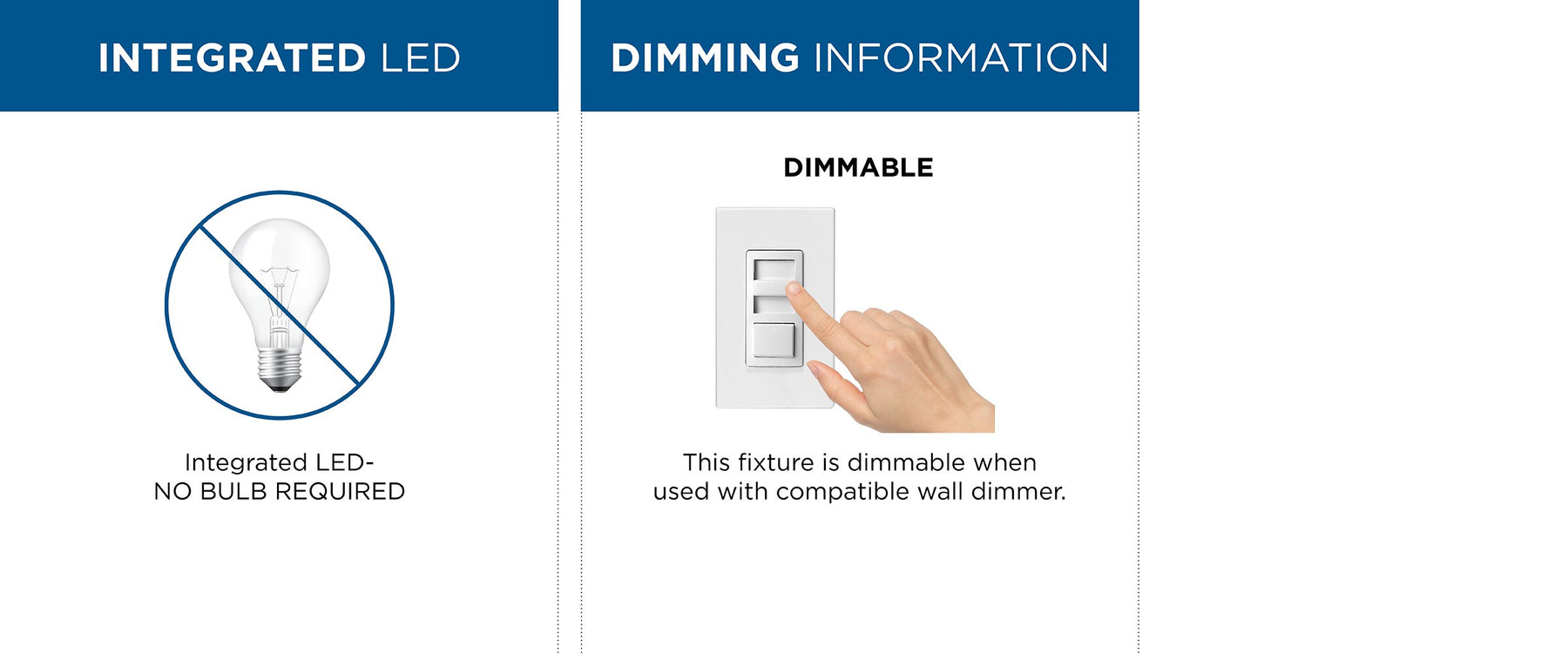

Bulb Type	Integrated LED
Bulbs Included	Yes (integrated module)
Fixture Material	Die-cast aluminum
Finish	Powder-coated black
Diffuser/Lens	Polycarbonate, clear ribbed
Mount Type	Surface mount
Dimensions	4-1/8 in. L x 4-1/8 in. W x 2-1/4 in. H
Weight	1 lb
Number of Light Fixtures	1
Package Quantity	1
Dusk-to-Dawn Sensor	No
Motion Sensor	No
IPX Rating	1 (dripping water)
Safety Listing	UL/CUL Wet Location Listed
Warranty	1-year limited
Collection Name	LED Deck Light
Recommended Accessories	Requires 12V landscape transformer; compatible with P8270-31 (sold separately)
CA Prop 65 Warning	Yes
UNSPSC	39111600

---

Frequently Asked Questions (FAQ):

Q: Does this light require a transformer?
A: Yes, it must be wired to a 12V low-voltage landscape transformer of proper capacity (e.g., P8270-31, sold separately).

---

Q: Is the LED replaceable?
A: No. It has an integrated LED module; no bulb change is required.

---

Q: Is it suitable for wet locations?
A: Yes, it is UL/CUL Wet Location Listed.

---

Q: Can it be dimmed?
A: The fixture is dimmable when used with a compatible wall dimmer and appropriate low-voltage transformer.

---

Q: What are the dimensions?
A: Approximately 4-1/8 in. length/width and 2-1/4 in. height; surface-mount.

---

Soft, Architectural Glow for Every Step

This compact rail light washes surfaces with a gentle, inviting luminance that elevates outdoor architecture. The semi-domed silhouette and ribbed diffuser create a refined play of light and shadow along decks and stairways. Cluster several along a railing or frame a pathway to sculpt the night with warm, modern clarity. It’s a small but essential detail that signals polished, luxurious outdoor living.

---

Illuminate your deck with warm, low-glare safety lighting—add this Progress LED rail light to your 12V system today.
