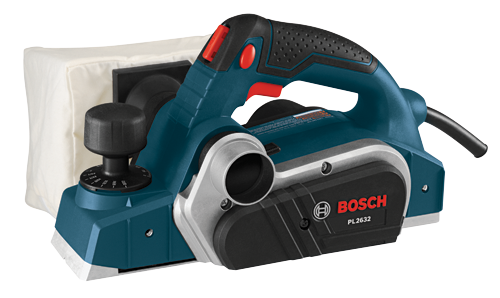

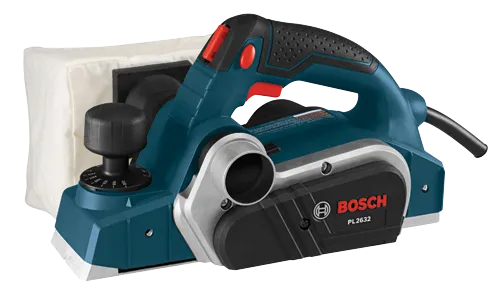

Bosch PL2632K 3-1/4 In. Corded Planer Kit, 6.5 Amp, 16,500 RPM
Regular price $180.90Bosch 3-1/4 In. Corded Hand Planer Kit

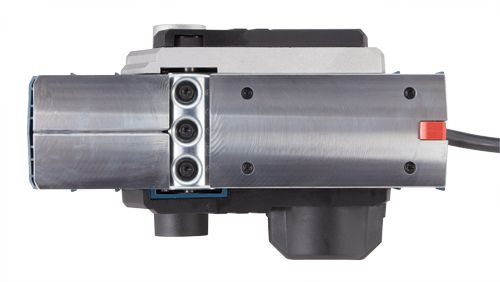

The Bosch PL2632K corded planer delivers fast, smooth stock removal with a 6.5-amp motor spinning at 16,500 RPM. Precision-machined aluminum shoes and a ratcheting depth knob provide accurate cuts up to 3/32 in., while dual-side chip ejection and a dual-mount fence enhance control and cleanliness on the job.

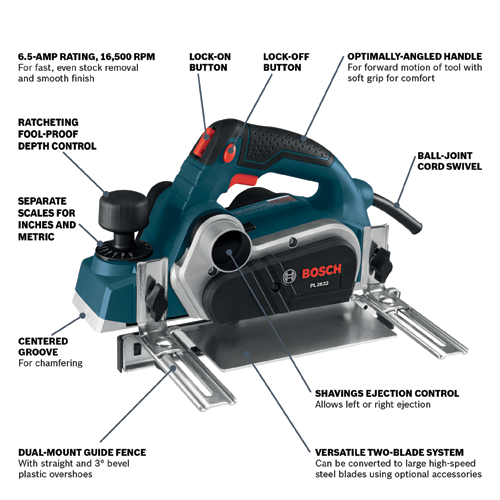

Key Features:
- Powerful Performance: 6.5-amp motor at 16,500 RPM for fast stock removal and smooth finishes
- Precision Control: Ratcheting depth knob sets 0 to 3/32 in. within one revolution; separate inch/metric scales
- Clean, Versatile Operation: Left/right chip ejection with dust ports and included shavings bag; ball-joint cord swivel
- Accurate Guidance: Dual-mount guide fence with straight and 3° no-mar overshoes; machined groove for easy chamfering
- Durable Cutting System: Reversible Bosch Woodrazor micrograin carbide blades; poly micro‑V drive belt for longevity
Specifications Table:
| Specification | Details |
|---|---|
| Model | PL2632K |
| Amperage | 6.5 A |
| No Load RPM | 16,500 RPM |
| Voltage / Rating | 120V AC |
| Variable Speed | No |
| Planing Width | 0 in. – 3-1/4 in. |
| Planing Depth | 0 in. – 3/32 in. (0 – 2.6 mm) |
| Rabbet Depth | 5/16 in. |
| Rabbet Width | 3-1/4 in. |
| Height | 6.5 in. |
| Length | 11.125 in. |
| Width | 6.5 in. |
| Weight | 6.3 lb |
| Case Type | Heavy-duty plastic |
| Color | Blue |

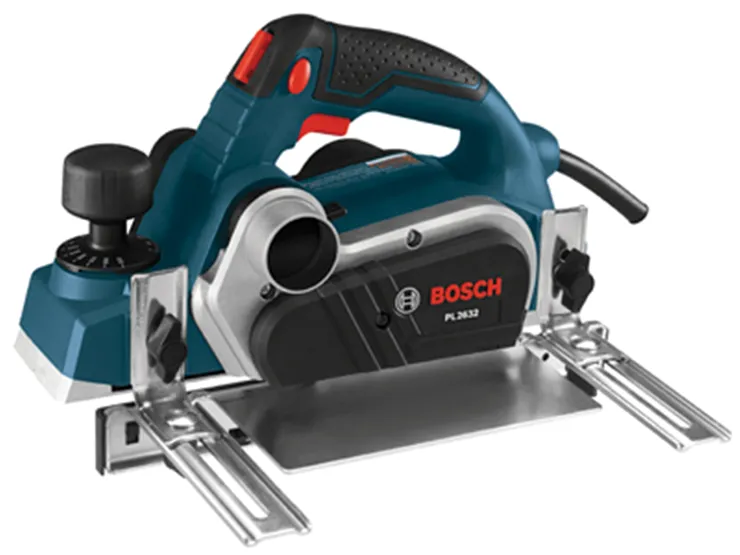

| Guide Fence | Dual-mount with straight and 3° no-mar plastic overshoes |
| Depth Adjustment | Ratcheting foolproof knob; separate inch and metric scales |
| Chip Ejection | Selectable left or right; dust ports on both sides |
| Cord Feature | Ball-joint cord swivel |
| Cutting System | Reversible Bosch Woodrazor micrograin carbide blades; versatile two-blade system (can use HSS blades with optional accessories) |
| Chamfering | Machined groove |
| Drive Belt | Poly micro‑V |
| Includes | PL2632 Planer; PA1202 Woodrazor blades (2); Dual-mount guide fence; Straight no-mar overshoe; 3° no-mar overshoe (PA209); Shavings bag; Blade wrench; Carrying case |
| Works With (Vacuum Hoses) | Anti-Static: VH1635A (with included adapter), VAC008 and most 35 mm anti-static hoses; Other: VH1035, VH1635 (with VX120 adapter), VAC005, VAC006 and most other 35 mm hoses; 1-1/4 in. & 1-1/2 in. adapter: VAC002; 2-1/2 in. adapter: VAC020 |
Frequently Asked Questions (FAQ):
Q: What is the maximum cutting depth per pass?
A: Up to 3/32 in. (2.6 mm) per pass, set via the ratcheting depth knob.
Q: What planing width does this tool support?
A: Up to 3-1/4 in. wide.
Q: Does it support dust collection?
A: Yes. It features chip ejection control to the left or right, dust ports on both sides, and includes a shavings bag. It also connects to various Bosch vacuum hoses/adapters.
Q: Are the blades replaceable?
A: Yes. It uses reversible Bosch Woodrazor micrograin carbide blades and can be converted to use large high-speed steel blades with optional accessories.
Q: What safety features are included?
A: An ambidextrous lock-off release helps prevent accidental starts, and a lock-on button supports extended operation.
Crisp, Tailored Surfaces With Pro-Level Ease
This planer brings a refined, architectural polish to woodwork, turning raw edges into sleek, intentional lines. I love the precision of the aluminum shoes and the elegant chamfer groove—details that make millwork feel couture. Pair it with a dust extractor for a clean, focused workspace and use the 3° fence overshoe to finesse door fits. It’s a quiet essential for achieving that tailored, luxurious finish throughout the home.
Upgrade your shop with the Bosch PL2632K and achieve fast, precise, and clean planing on every project.
