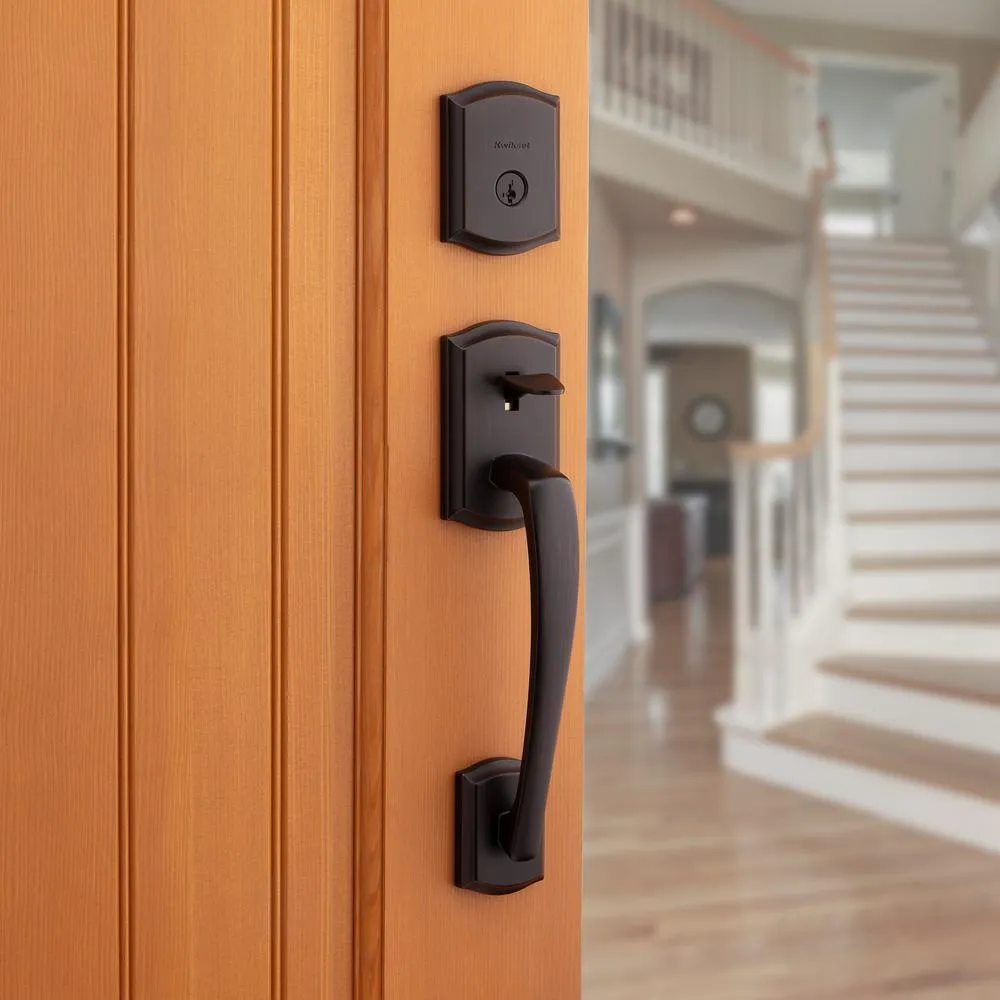

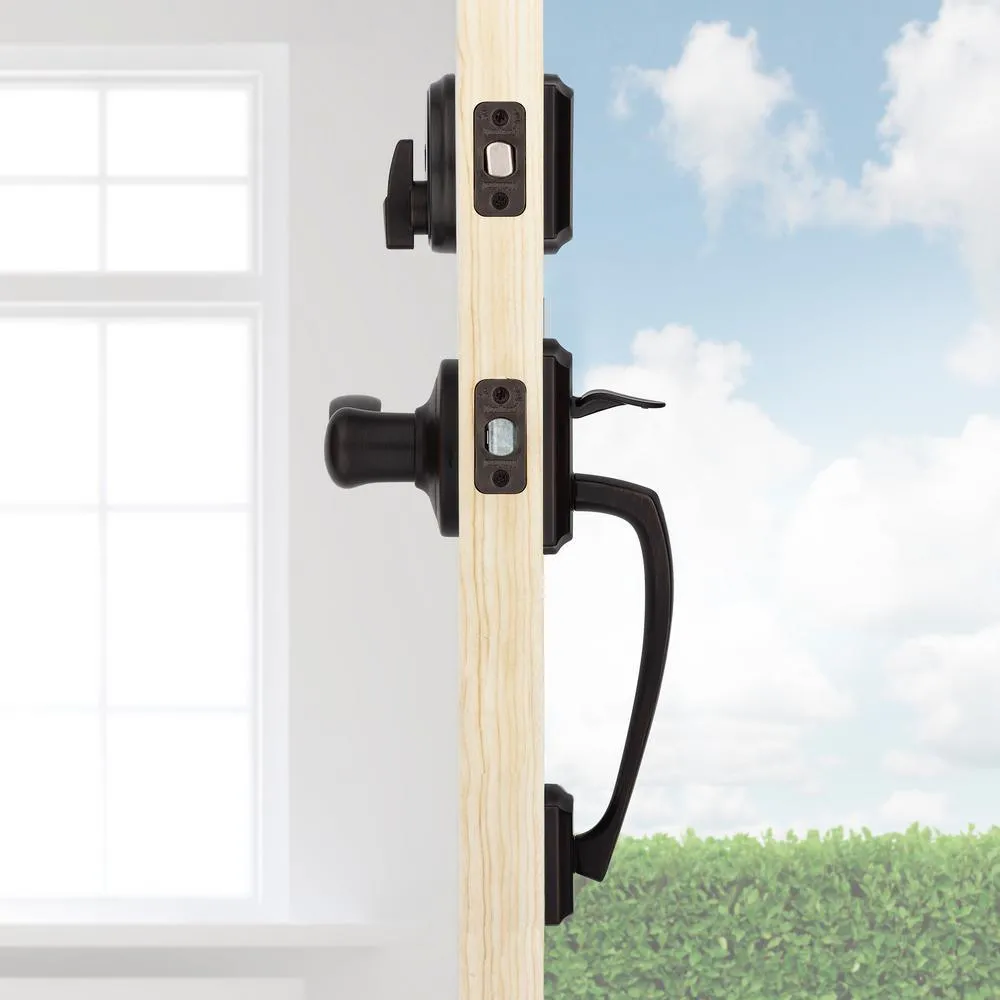

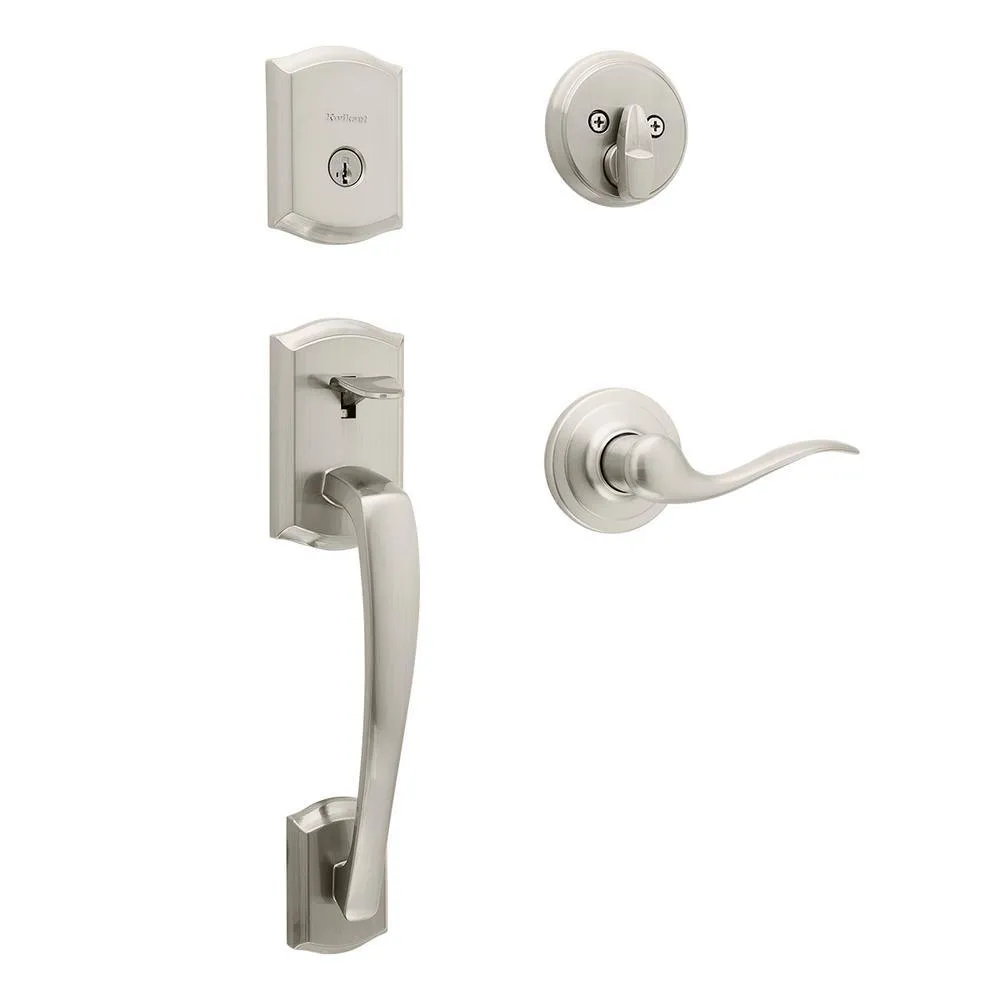

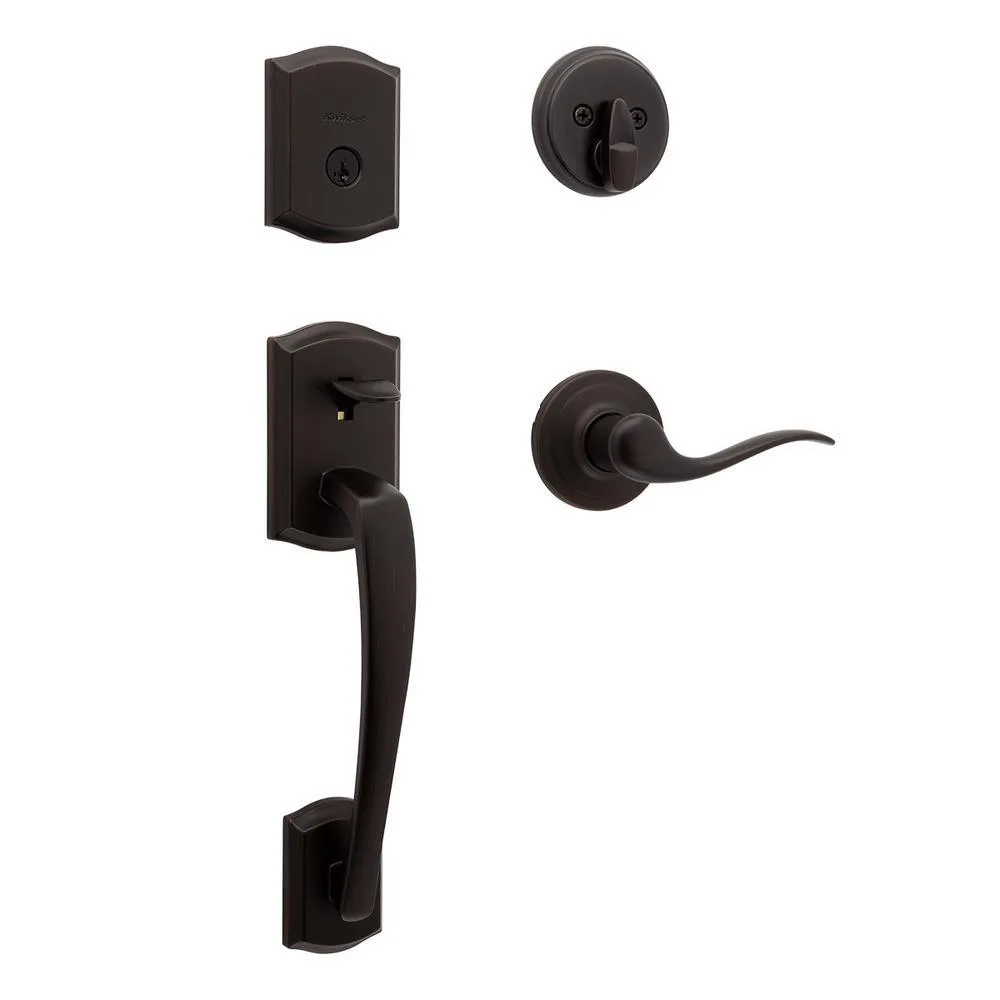

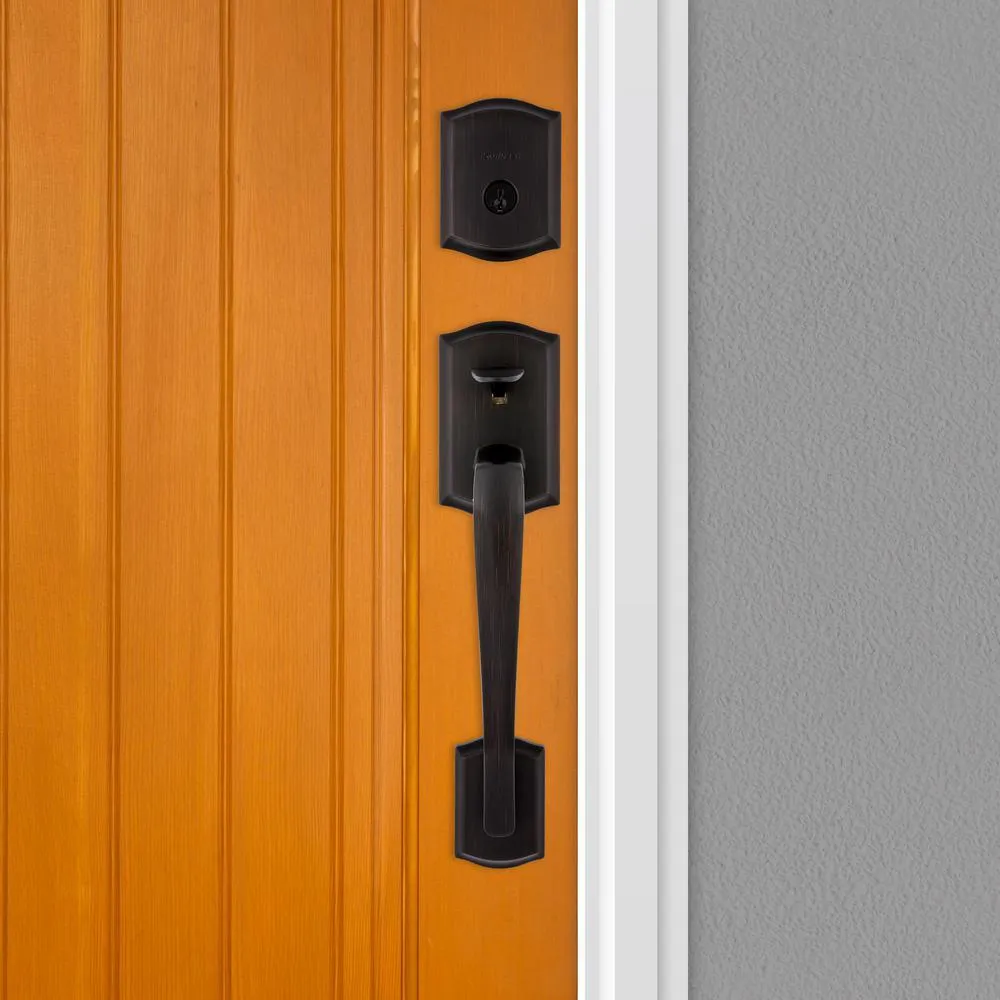

Prescott Venetian Bronze Single Cylinder Entry Door Handleset with Tustin Lever Featuring SmartKey Security

Regular price $129.00

/
Shipping calculated at checkout.

The Prescott handle set has an elegant but modest appearance that will bring charm to any home. With traditional contours that provide an attractive look and comfortable feel when entering the front door. The latch bolt is operated by the thumb piece on the outside and the grip on the inside. The deadbolt is operated by a key on the outside and a thumb turn on the inside. The Venetian Bronze finish is hand-rubbed to reveal unique bronze highlights and provides a rich and warm complement to the product's style.
  • Certified highest residential security, durability and finish - ANSI/BHMA grade AAA
  • Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
  • SmartKey Security Re-Key technology is compatible with Kwikset (KW1) keyway
  • Comes with 2 keys
  • Fully reversible interior lever, fits both right handed and left handed doors
  • Latch has round corner faceplate
  • For use on exterior doors where keyed entry and security is needed
  • Latch has adjustable backset 2-3/8 in. to 2-3/4 in. to fit all standard door preparations
  • Includes round deadbolt strike
  • 1 in. deadbolt throw
  • Locking mechanism functions with turn piece on the interior of the lock
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty


Features
Item Weight 6.44
Door Handing Universal
Hardware Finish Family Bronze
Lock Type Keyed
Door Lock Style Classic
Commercial/Residential Residential
Total Number of Keys Included 2
Keyway KW1
Finish Venetian Bronze
Deadbolt Type Single Cylinder Deadbolt

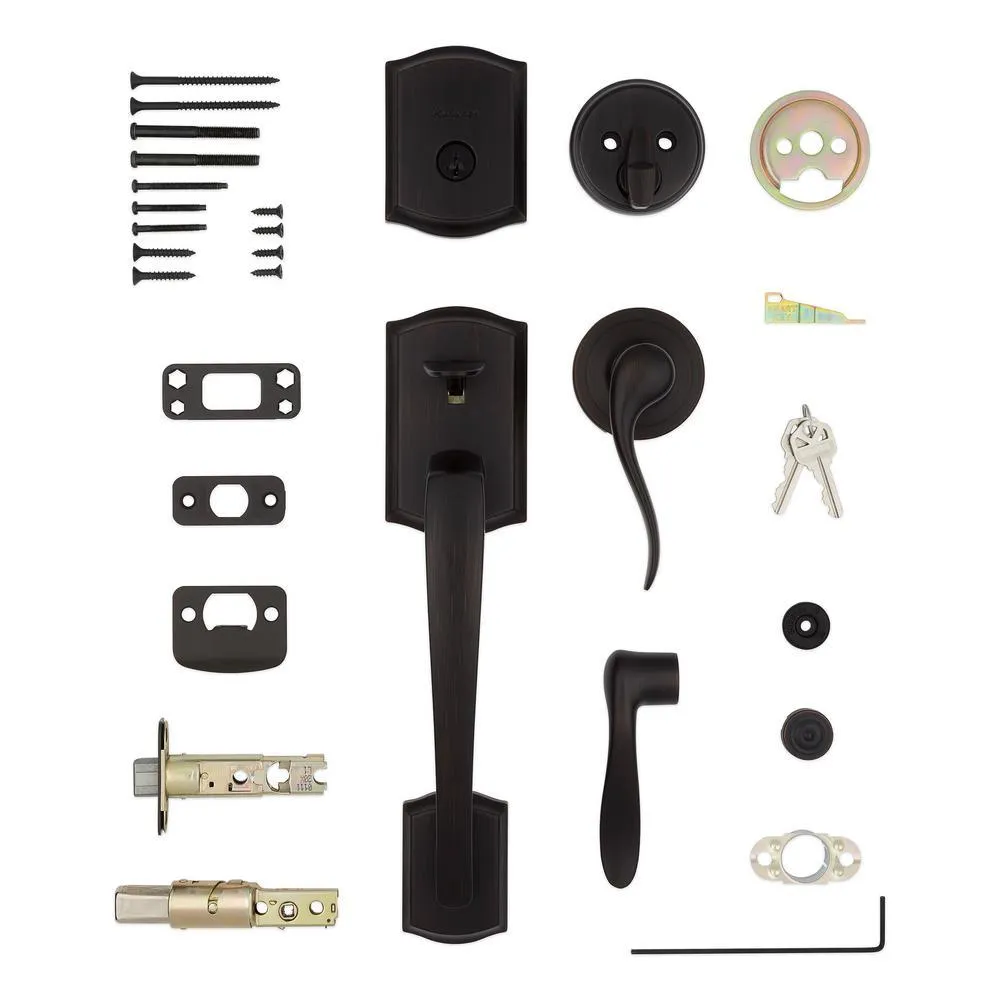

Included Drilling Template,Hardware,Installation Instructions,Mounting Hardware
Knob/lever strike Round corner
Handleset Product Type 2 Piece Front & Back
Application Type Entry
Lock Type2 Keyed Entry
Backset size (in.) Adjustable
Product Weight (lb.) 6.44
Material Metal
Security/ANSI Grade AAA
Keying Type Keyed Different
Features Adjustable Backset,Easy Installation,Kwikset SmartKey
Deadbolt strike Round corner
Returnable 180-Day
Door Locks & Knobs Product Type Keyed Handlesets
Interior/Exterior Exterior
Lever style Wave
Minimum door thickness (in.) 1.375
Electronic/Mechanical Mechanical
Outside bottom handle plate length (in.) 12.64
Deadbolt cross bore diameter (in.) 2.125
Projection (in.) 2.125
Deadbolt bore hole diameter (in.) 1
Lever grip length (in.) 4.21
Knob/lever strike height (in.) 2.25
Assembled Depth (in.) 2.125 in
Inside top plate length (in.) 2.64
Knob/lever strike width (in.) 1.75
Knob/lever housing width (in.) 2.625
Assembled Height (in.) 17.75 in
Handle grip length (in.) 12.64
Outside bottom handle plate width (in.) 2.81
Outside key plate length (in.) 2.125
Deadbolt trim ring diameter (in.) 2.625
Assembled Width (in.) 2.81 in
Deadbolt strike height (in.) 2.25
Outside top handle plate width (in.) 2.81
Maximum door thickness (in.) 1.75
Deadbolt strike width (in.) 1
Outside key plate width (in.) 12.8
Deadbolt throw length (in.) 1
Inside top plate width (in.) 7.21
Outside top handle plate length (in.) 3
Knob/lever housing height (in.) 2.625
Knob/lever throw length (in.) .5
Knob/lever bore hole diameter (in.) 1
Knob/lever cross bore diameter (in.) 2.125
Certifications and Listings ANSI Certified
Manufacturer Warranty Lifetime mechanical and finsih
