M12 FUEL 3 in. Cut-Off Saw Kit with M12 3/8 in. Ratchet

This Milwaukee M12 FUEL kit pairs a 3 in. compact cut-off tool with a 3/8 in. cordless ratchet for fast, versatile cutting and fastening. Powered by a 12V REDLITHIUM XC 4.0 battery and a POWERSTATE brushless motor, the saw delivers 20,000 RPM with tool-free guard and depth adjustments, while the ratchet provides 35 ft-lbs of torque and up to 250 RPM.

---

Key Features:

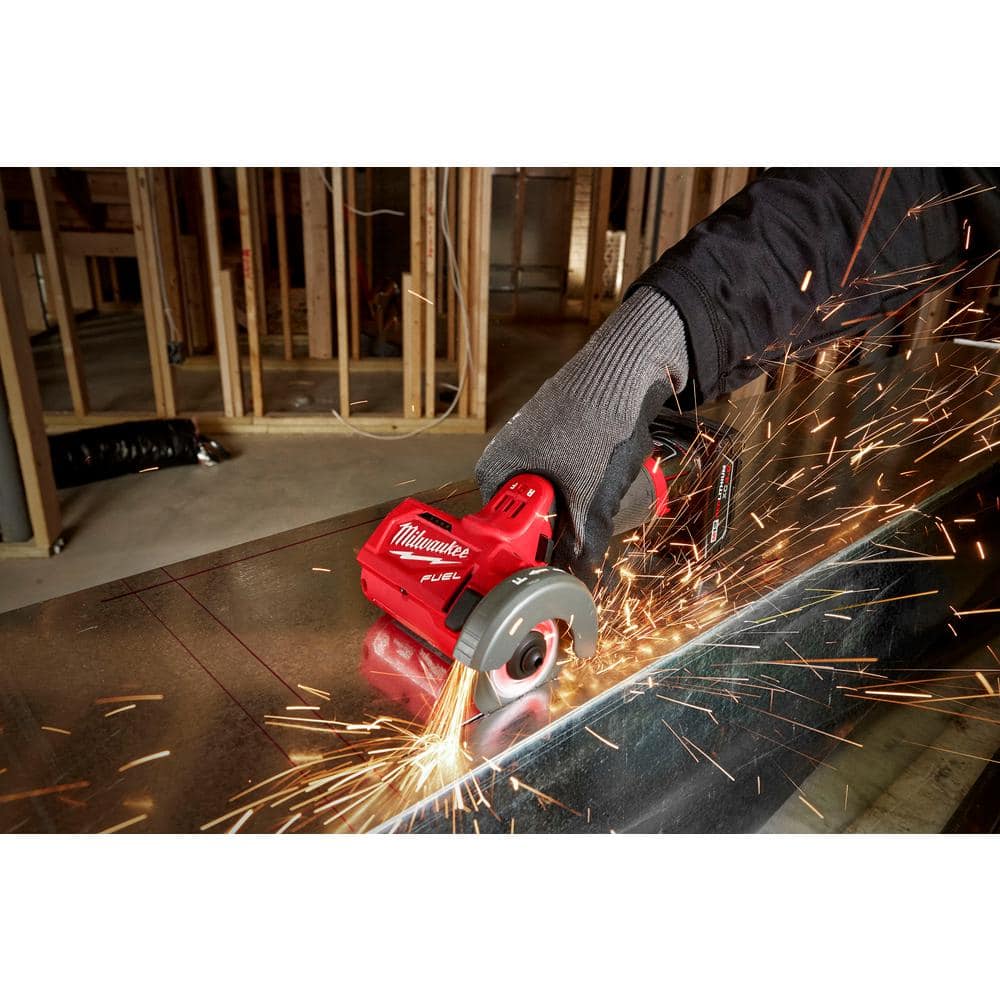

• Multi-Material Cutting: 3 in. compact cut-off tool spins at 20,000 RPM for metal, tile, and plastic
• Ultimate Control: Reversible blade rotation, tool-free guard and cut-depth adjustments, and LED work light

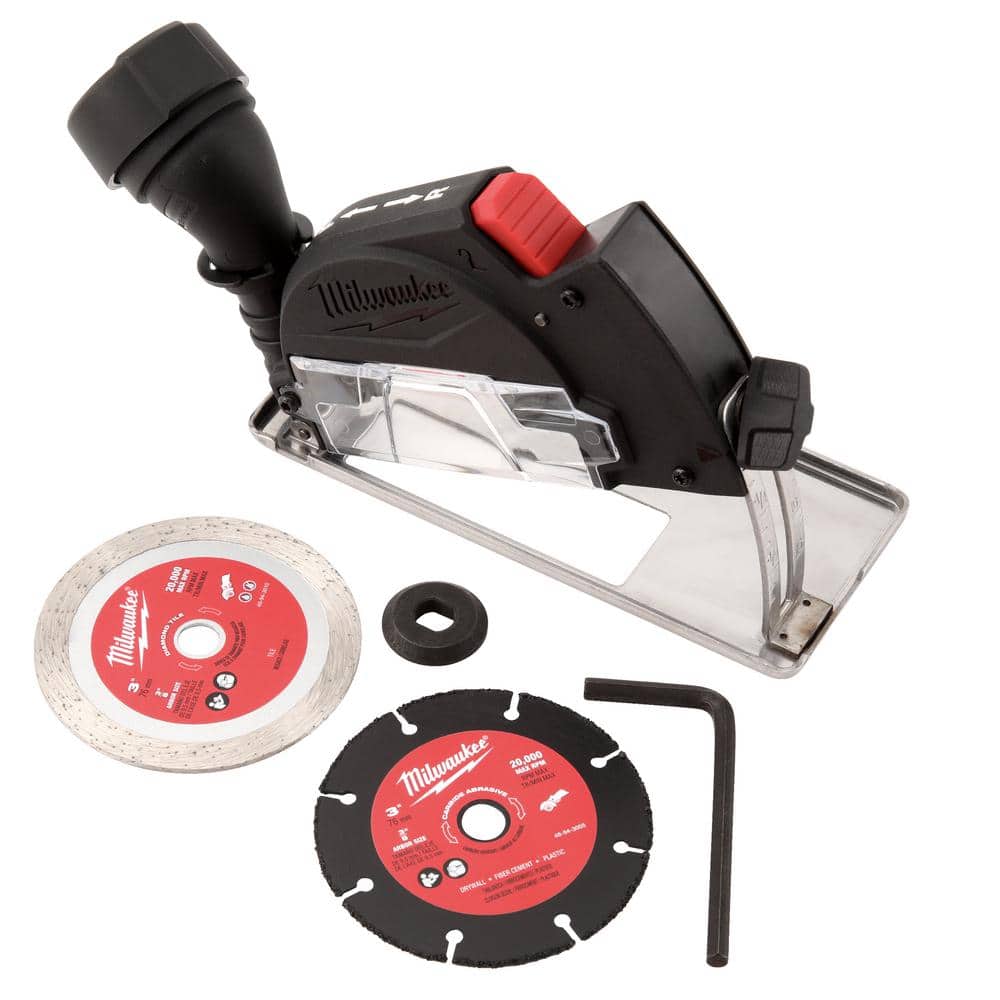

• Dust Management: Accessory guard/shoe includes vacuum adapter to help capture debris
• Complete Kit: Includes XC 4.0 battery, charger, 3 blades, guard/shoe, flange adapter, wrench, contractor bag, and M12 3/8 in. ratchet
• Durable, Efficient Power: POWERSTATE brushless motor with REDLINK PLUS intelligence for performance and protection

---

Specifications Table:

Specification	Details
Battery Amp Hours	4 Ah
Battery Power Type	Lithium Ion
Battery Size	12-volt
Battery Voltage (V)	12V
Bevel Capacity (degrees)	0°
Blade Location	Left
Charger Included	Charger Included
Color Family	Red
Cordless Tool Type	Circular Saw / Cut-Off Tool
Cordless/Corded	Cordless
Included Accessories	Attachments, Bag, Blades
Maximum Cut Depth at 45 Degrees (in.)	0.0 in
Maximum Cut Depth at 90 Degrees (in.)	0.64 in
Maximum Speed (RPM)	20000 RPM
Motor Type	Brushless
Number of Batteries Included	1
Power Tool Features	Bag Included, Brushless, Depth Adjustment, Keyed Blade Change, Spindle Lock
Product Weight (lb.)	2.43 lb
Saw Drive Type	Worm Drive
Tools Product Type	Power Tool
Blade Diameter (in.)	3 in
Product Depth (in.)	8.89 in
Product Height (in.)	3.46 in
Product Width (in.)	4.72 in
Manufacturer Warranty	5 Year Warranty on Tool and 3 Year Warranty on Batteries
Certifications and Listings	UL Listed
Ratchet Torque	35 ft-lbs
Ratchet Speed	0–250 RPM

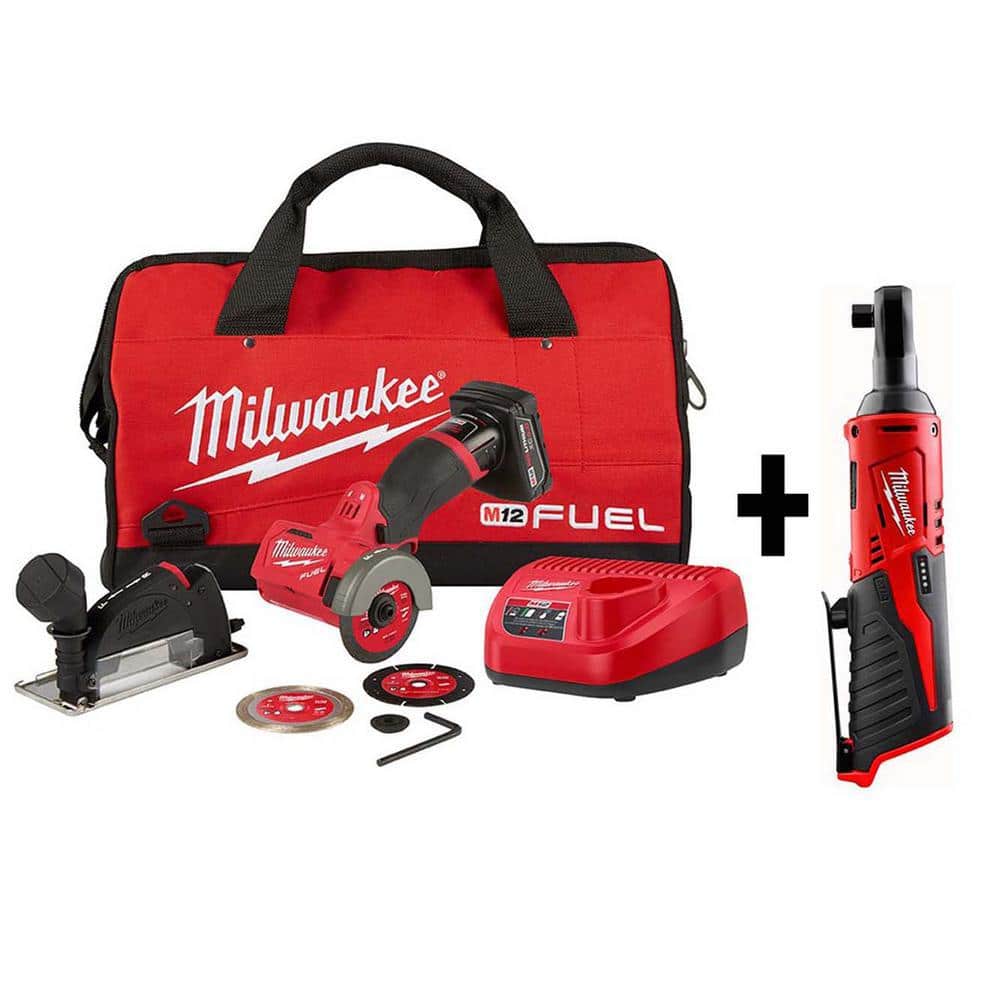

Kit Components	M12 FUEL 3 in. Compact Cut-Off Tool (2522), M12 3/8 in. Ratchet (2457-20), M12 REDLITHIUM XC 4.0 Battery, Charger, Contractor Bag, Metal Cut-Off Wheel, Diamond Tile Blade, Carbide Abrasive Blade, Accessory Shoe and Guard with Vacuum Port, Blade Wrench, 7/16 in. Flange Adapter

---

Frequently Asked Questions (FAQ):

Q: What materials can the cut-off tool handle?
A: It’s optimized for cutting metal, tile, and plastics and ships with metal, diamond tile, and carbide abrasive blades.

---

Q: Does the kit include a battery and charger?
A: Yes—one M12 REDLITHIUM XC 4.0 battery and an M12 charger are included.

---

Q: How deep can it cut?
A: Maximum cut depth is approximately 0.64 in. at 90°, with depth adjustment built in.

---

Q: Is dust control supported?
A: Yes—the accessory guard/shoe includes a vacuum adapter to connect to a dust extractor.

---

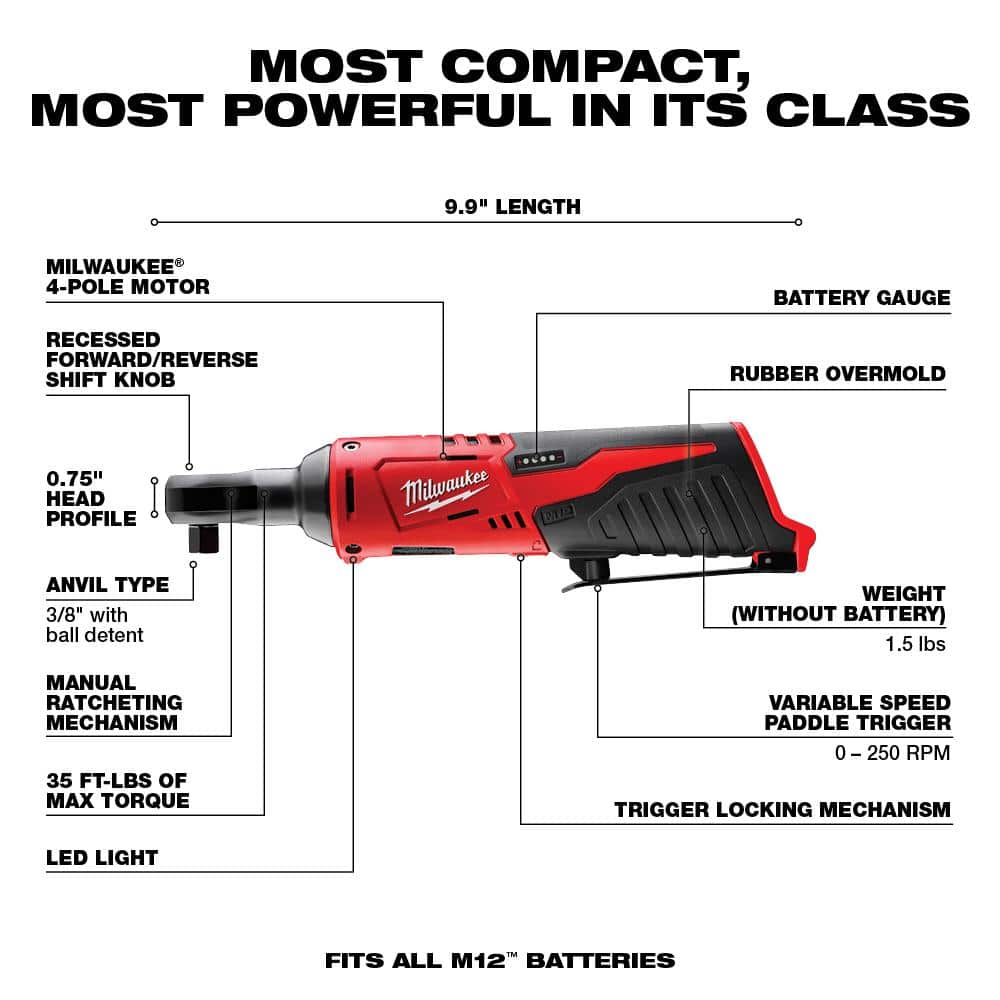

Q: What power does the ratchet deliver?
A: The M12 3/8 in. ratchet provides up to 35 ft-lbs of torque and 0–250 RPM with a variable-speed trigger.

---

Compact power that refines the workspace

Sleek and purposeful, this M12 FUEL kit brings a tailored precision to workshops and garages. The compact 3 in. cut-off tool with reversible blade rotation feels nimble and intelligent, while the matching ratchet adds crisp control to fastening tasks. Style it with a clean tool wall and a dedicated dust collection line for an elevated, efficient bay. It’s a modern essential—small in scale, big in capability, and unmistakably premium.

---

Equip your shop with compact, brushless performance—add this M12 FUEL cut-off saw and ratchet kit to your cart today.
