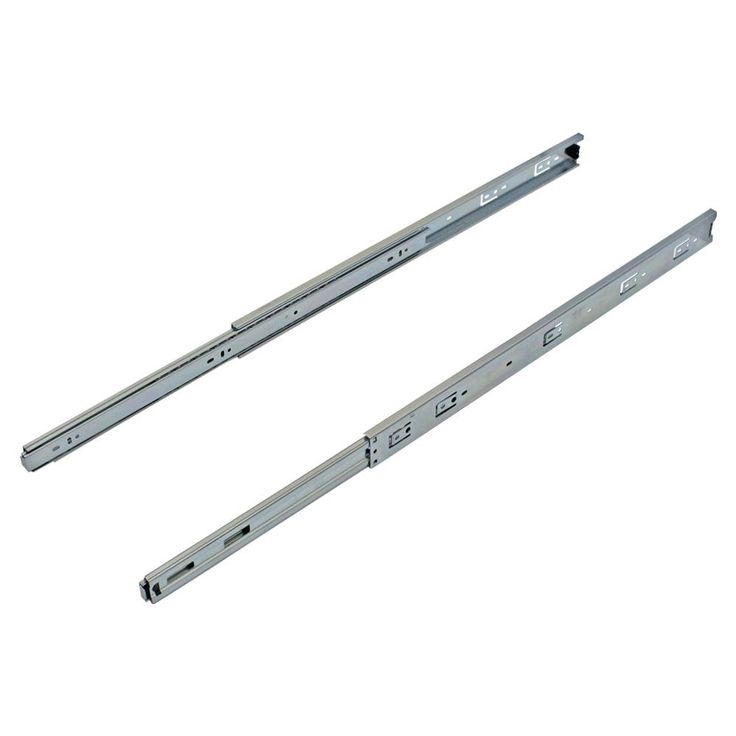

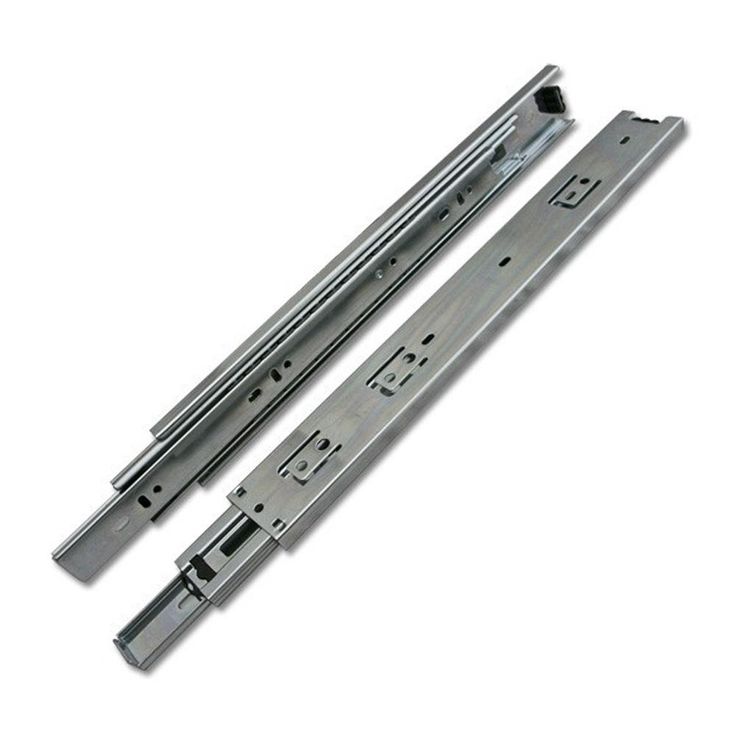

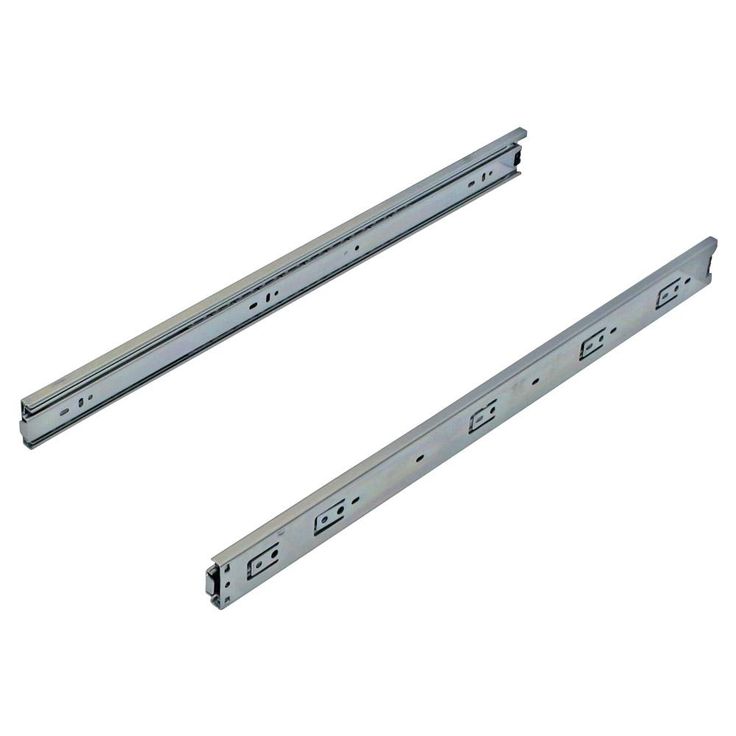

16 in. Side Mount Over Extension Ball Bearing Drawer Slides (10-Pair)
Regular price $88.13/
Shipping calculated at checkout.
The 1175 Drawer Slide Series has a bright zinc finish and a ball bearing design that operates smoothly and is sturdy enough to support up to 100 lbs. The drawer is full extension and even features over-travel, meaning that the drawer can extend past the front of the cabinet (great for drawers under counter tops). It also has a lever disconnect for easy removal.
Features
- Bulk contractor box
- Hardware fasteners not included due to application capacity and variances
- Full extension slide with 1 in. over travel
- 100 lbs. load capacity per pair
- Actual slide spec dimension 400 mm (15-3/4 in.) L x 45.7 mm (1-3/4 in.) H
- Easy lever disconnect for removing drawer box; 1/2 in. side clearance per side
- Non-handed; steel ball bearings
- Cabinet member slide features a front face frame mount screw hole for face frame-eliminates the use for a front face frame bracket
- Optional back socket for face-frame applications use model number 39.1175
Features
| Item Weight | 2.54 |
| Slide System | Full Extension |
| Features | Value Pack |
| Material | Steel |
| Package Quantity | 10 |
| Finish Family | Zinc |
| Weight load per set (lb.) | 100 |
| Mount Type | Side Mount |
| Returnable | 180-Day |
| Builders Hardware Product Type | Drawer Slides |
| Drawer Slide Type | Ball Bearing |
| Product Height (in.) | 1.75 |
| Slide Length (In.) | 15.75 |
| Maximum Expandable Length (in.) | 32.50 |
| Product Width (in.) | .5 |
| Manufacturer Warranty | N/A |
