Homeline 200 Amp 30-Space 60-Circuit Indoor Main Breaker Qwik-Grip Plug-On Neutral Panel, Wiser Energy Monitor, Surge
Regular price $0.00Shipping calculated at checkout.

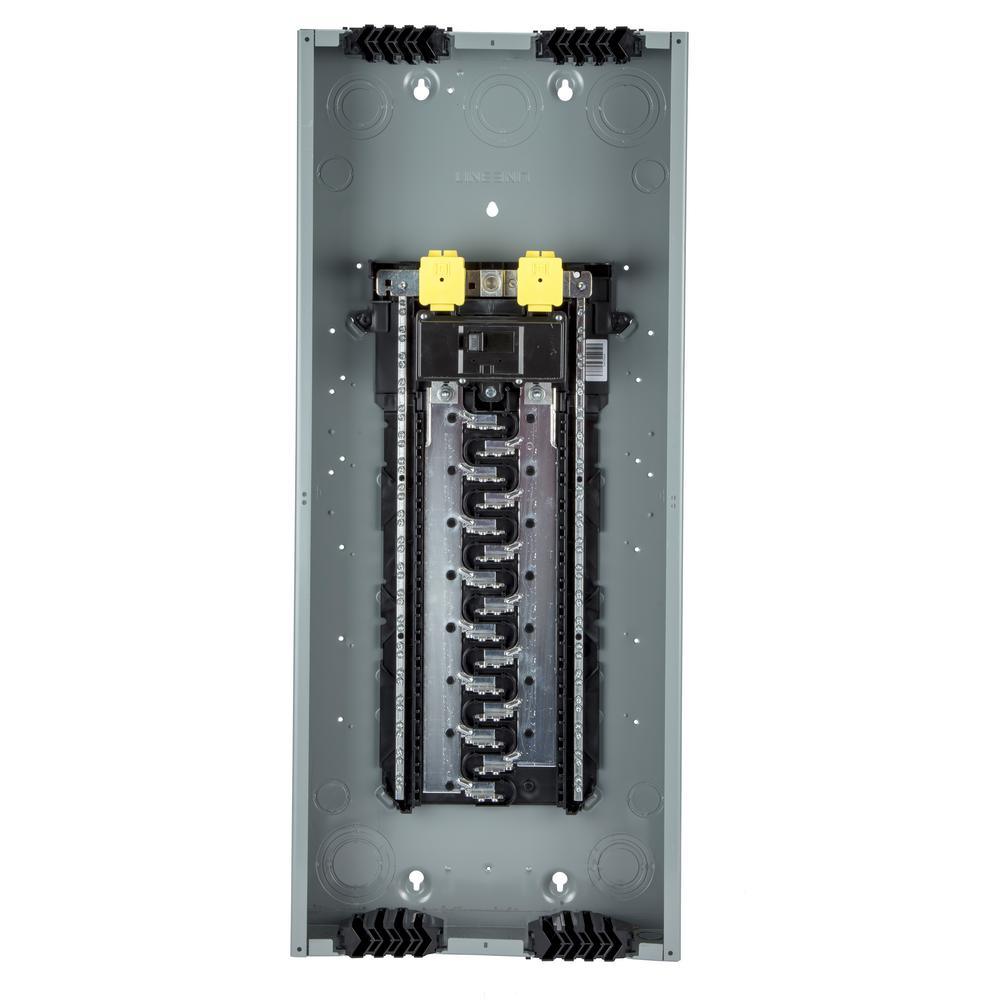

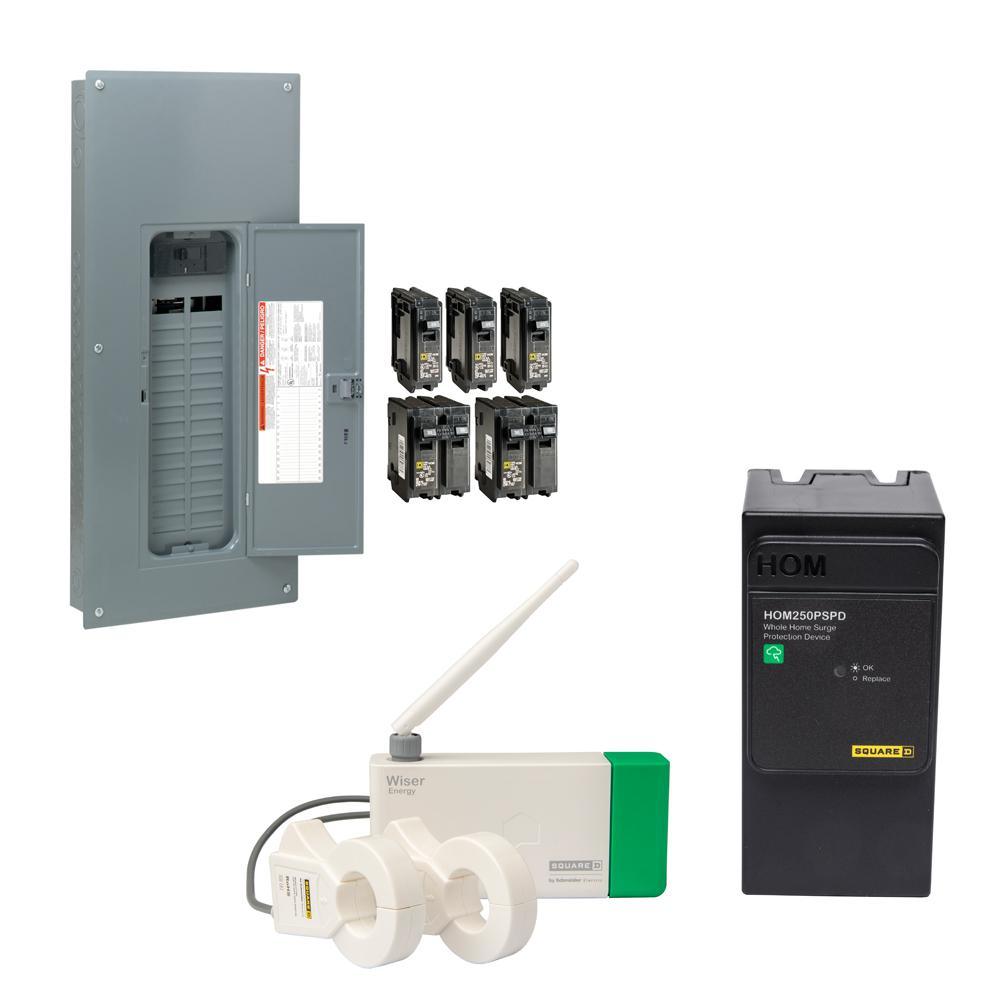

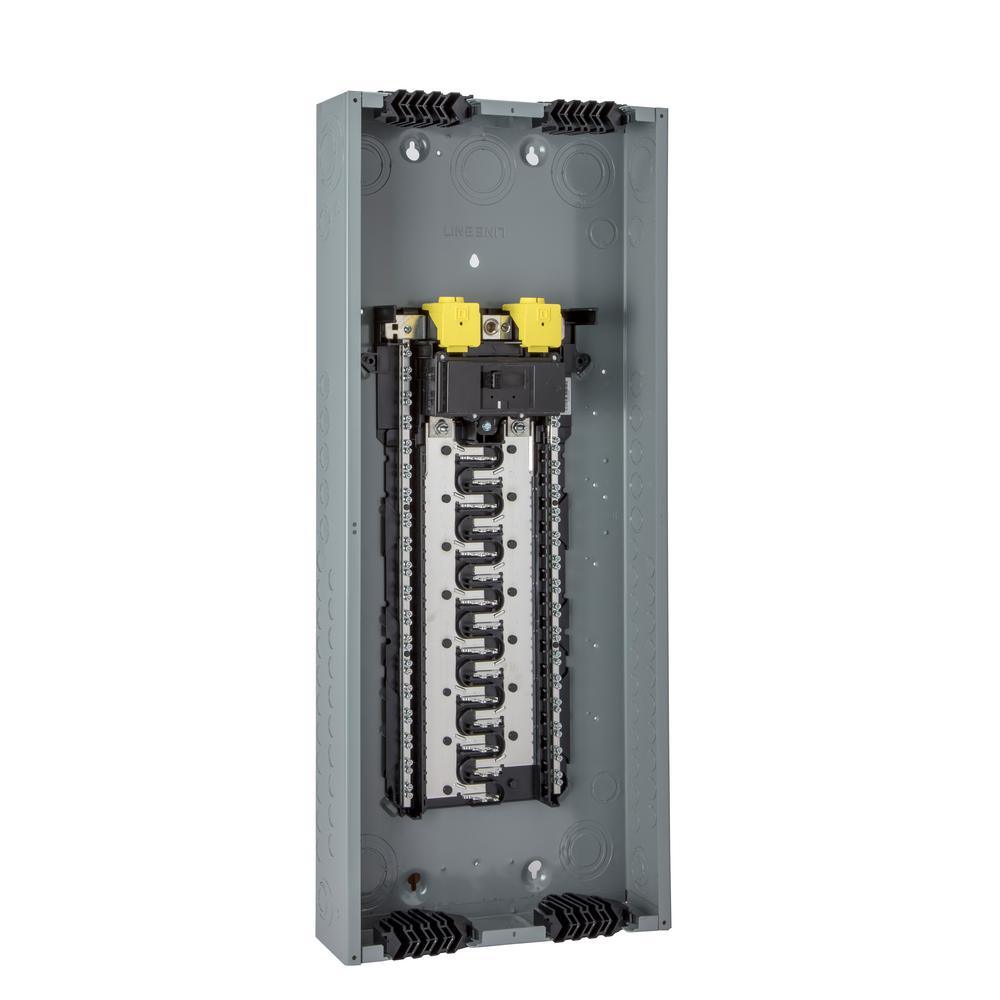

Square D's Homeline 200 Amp 30-Space 60-Circuit Indoor Main Breaker Qwik-Grip Plug-On Neutral Panel, Wiser Energy Monitor, Surge offering includes a cover, Homeline breakers, the Wiser Energy Monitor and a whole house Surge Device. The panel is UL listed for residential and commercial uses. This load center is built with a tin plated, aluminum bus bar that is tested, listed and compatible with Homeline circuit breakers. Homeline load centers are engineered for fast installation and wire savings. Manage your home's energy in real-time with the Wiser Energy Smart Home Monitor. Wiser Energy notifies you when devices are on are off tracks your home's energy sources. The Wiser Energy Monitor is compatible with any single phase 120-Volt, 240-Volt electrical panels up to 200A. The Square D Homeline Plug-on Neutral Surge Protective Device (SPD) is a compact and affordable surge suppressor designed for installation into Homeline Plug-on Neutral residential load centers and CSED's. This device reduces surges that might otherwise overwhelm plug strips and damage connected household equipment. It also provides surge suppression for important items that are not compatible with plug strips such as washers, dryers, refrigerators, stoves and lighting. It is estimated, that modern homes have up to $15,000 worth of electronics and may experience up to 100 surges per month that can degrade or damage your electronics shortening their life. Homeline Load center Plug-on Neutral SPDs.
Features
- California residents

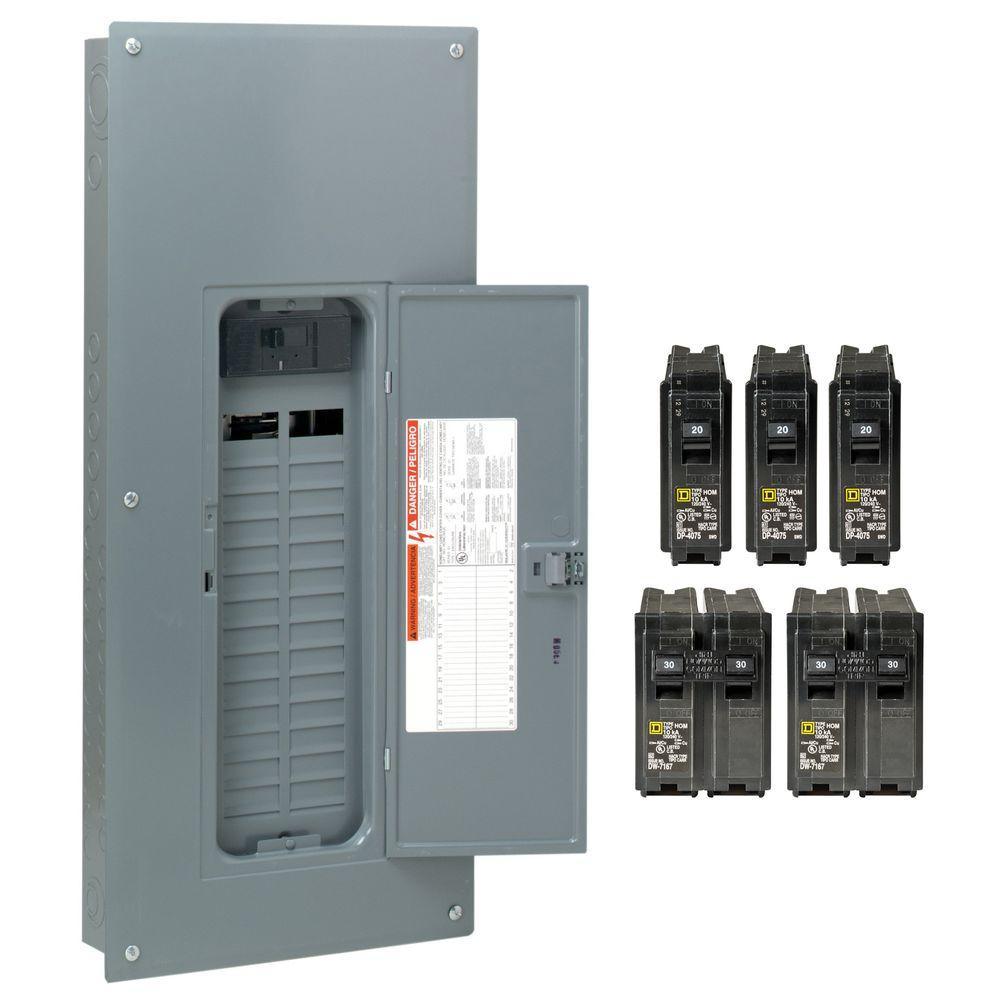

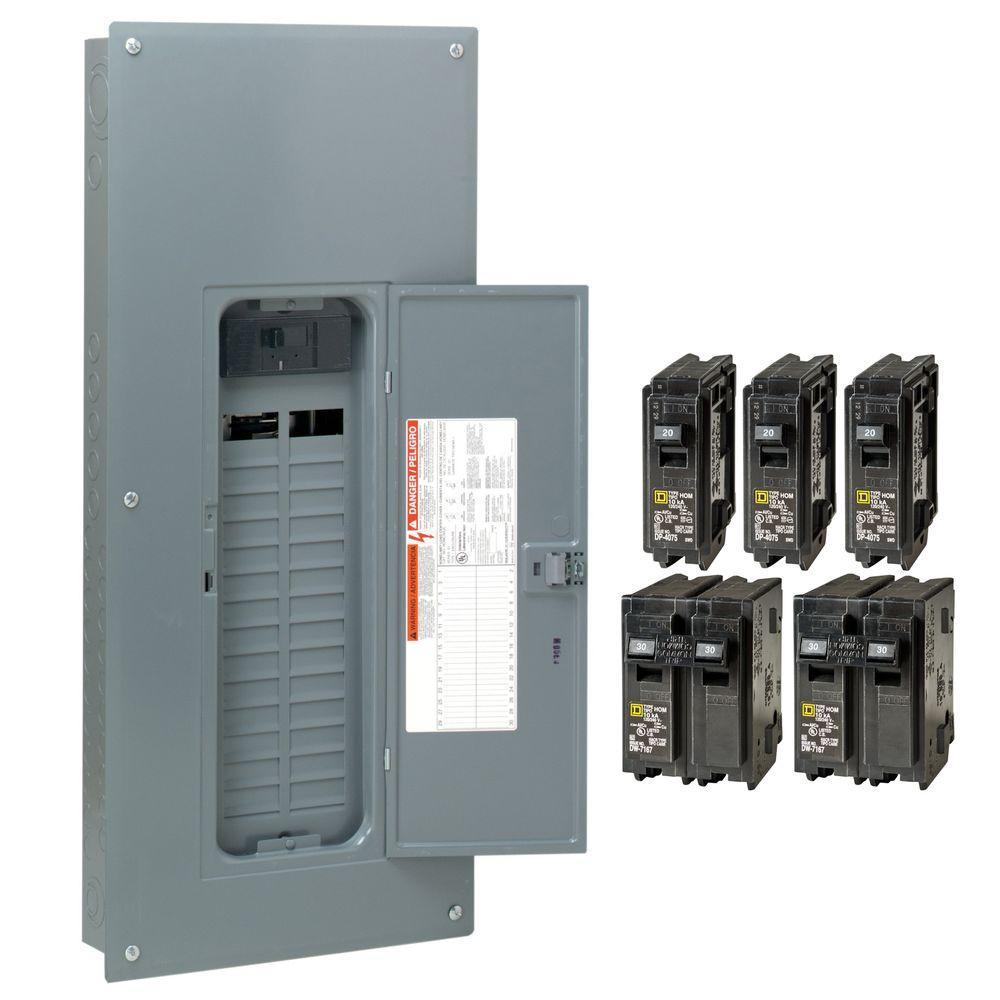

- Includes 3 HOM120 Homeline 20 Amp 1-pole plug-on neutral circuit breakers, 2 HOM230 homeline 30 Amp 2-pole plug-on neautral breakers, a combination flush/surface cover, wiser energy monitor, a whole house Surge device

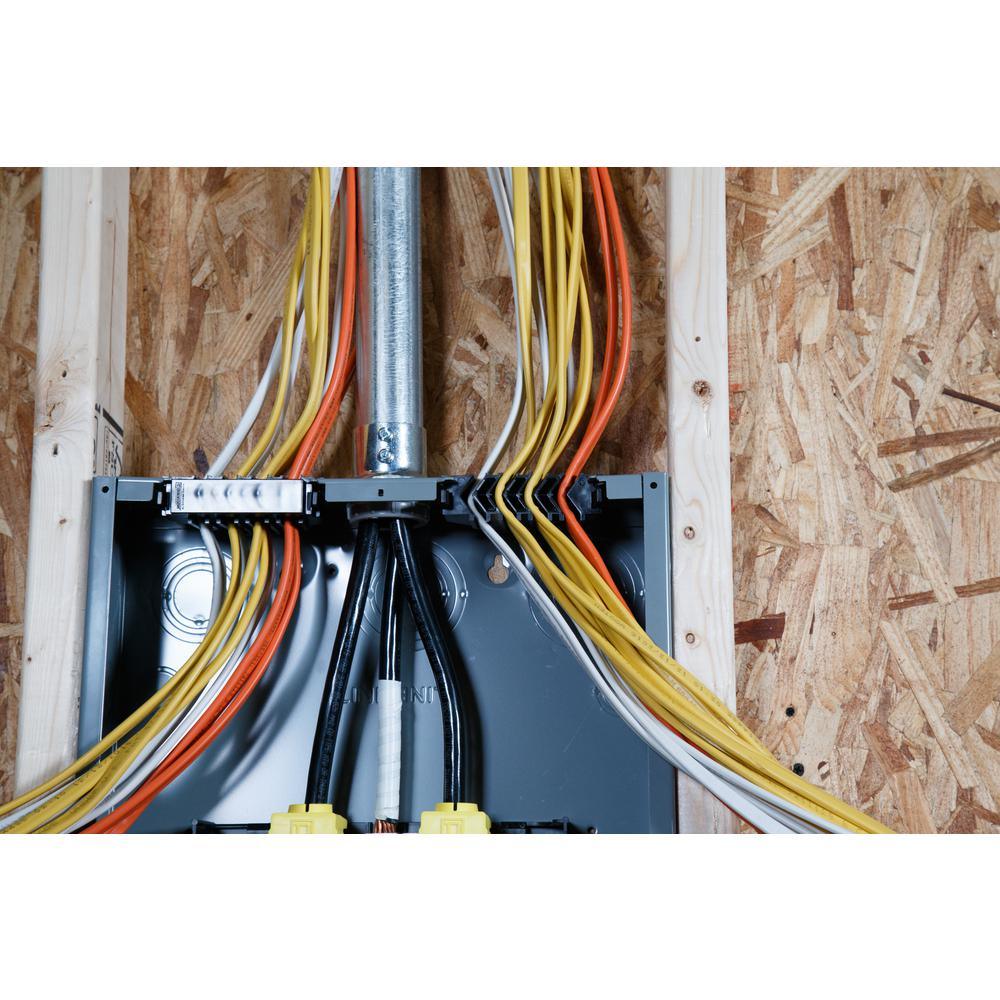

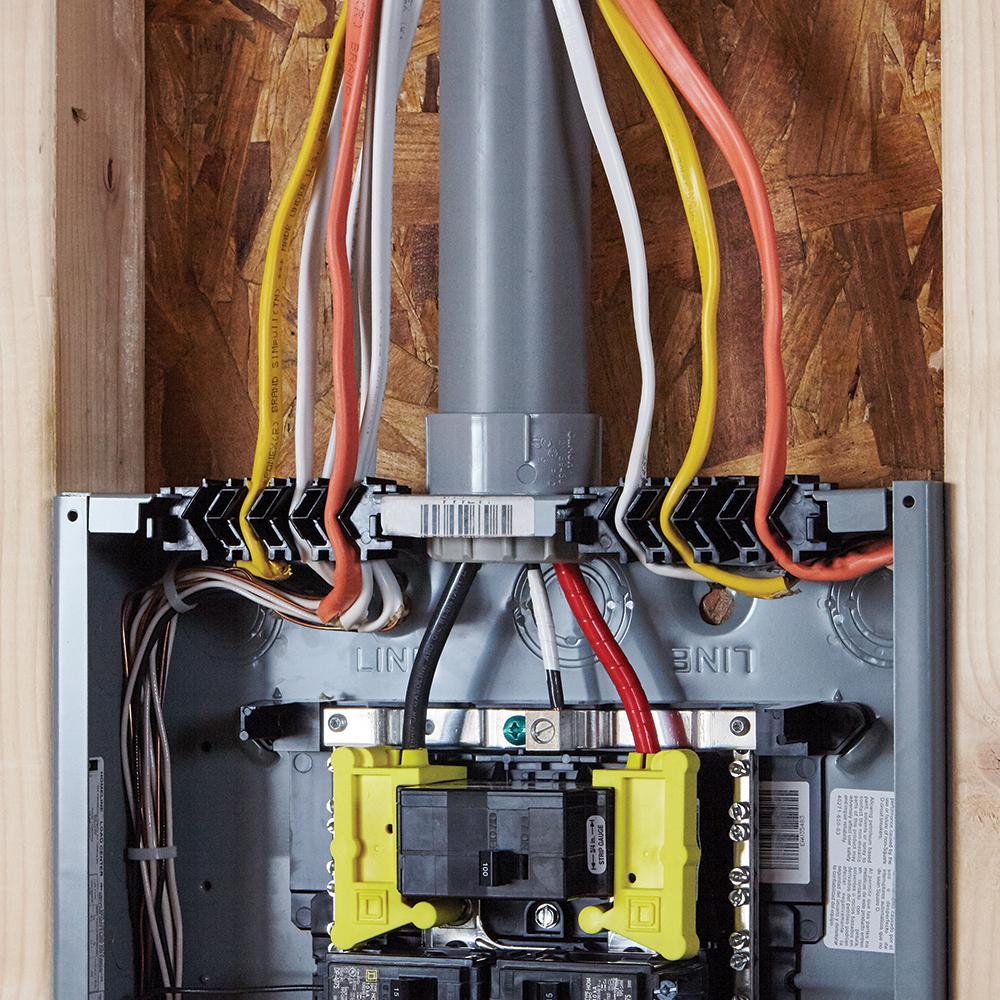

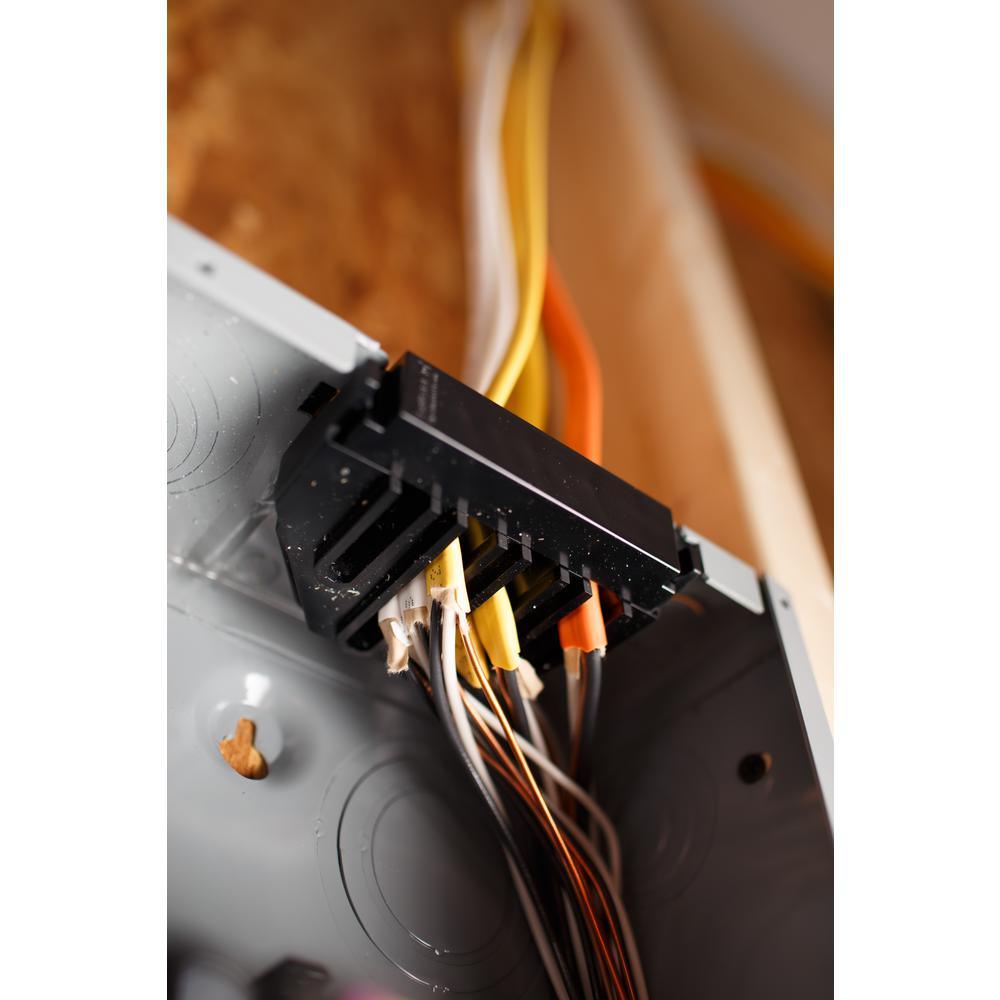

- Panel's Qwik-Grip Technology is an innovative cable entry system quickly grips the branch wires while eliminating steel knock outs and cable connectors, wiser monitor keeps tabs on your home activity from anywhere with the sense mobile app

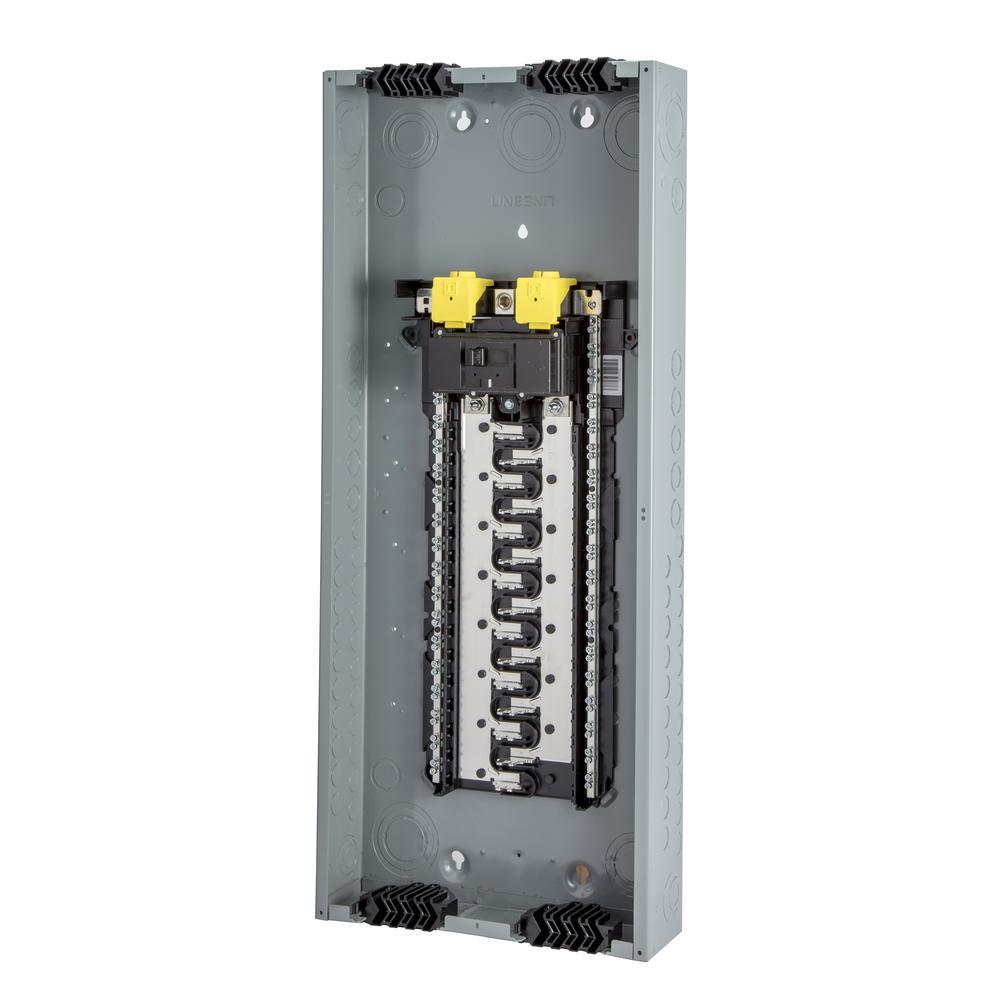

- Panel includes a fully distributed neutral bar, allowing for the installation of homeline plug-on neutral CAFCI/ CAFI breakers on any space
- Panel's ground and neutral bars accept up to (3) #10-14 equipment grounds and Surge device with LED status indicator has a 50,000 Amp/phase maximum surge current capability with a 5-year warranty - $50,000 downstream equipment protection
- Each pole space of panel accepts full-size, Homeline plug-on tandem or quad breakers and whole house surge device
- Panel accommodates plug-on secondary surge arrestor and Sense App integrates with Smart Devices: Amazon Alexa, Google Home, Phillips, Hue, PT-Link, WeMo and more
- Rotate device before installing to feed overhead/underground and install the Sense App to track detailed energy uage by appliance
- Panel is made for single phase commercial uses, surge is UL 1449 fourth edition and NEMA type 1 rated for 120/240 vac applicats, the sense app is encrypted with AES 128-bit encryption and TLS/SSL (HTTPS) to help keep data secure
- Panel is rated 120/240 VAC and 22,000 air short circuit current rating, and monitor is powered by an existing 2-pole circuit breaker with lugs rated for 2 wires, or with a dedicated 2-pole circuit breakers, please reference assembly instruction

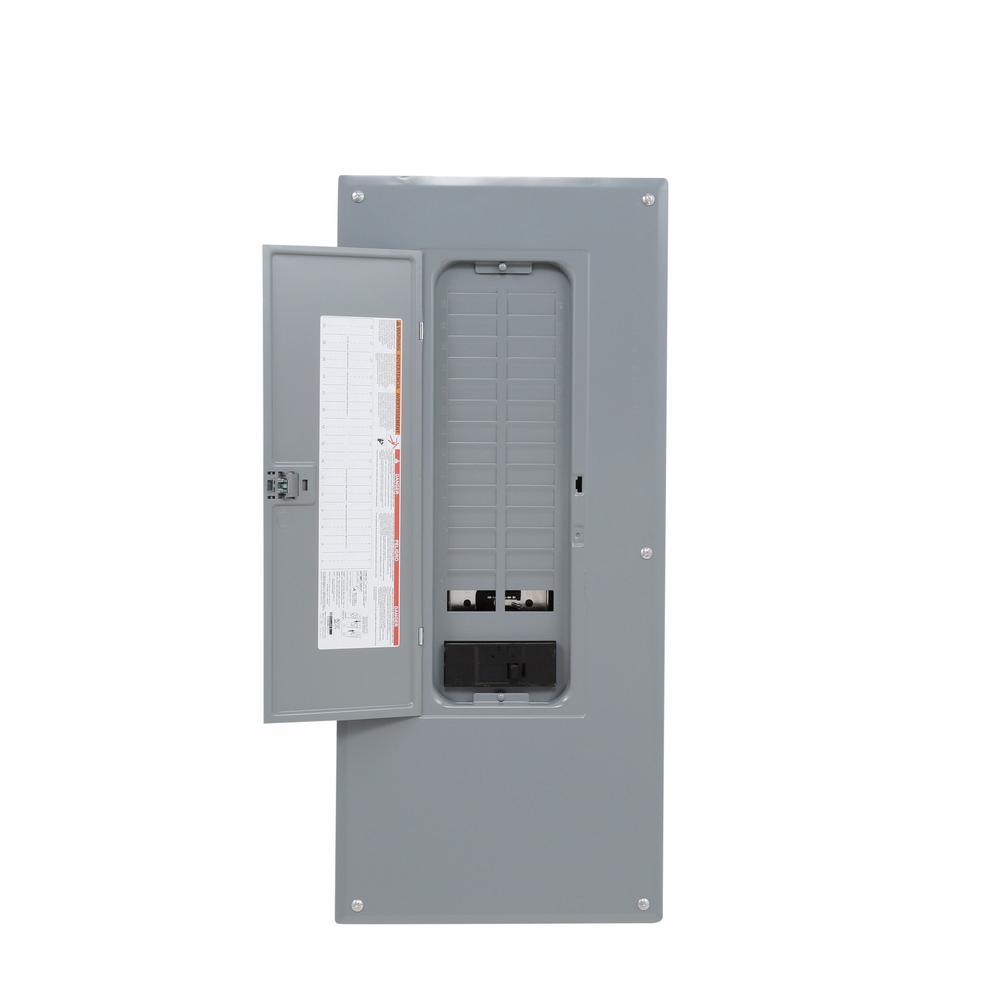

- Panel cover is flush adjusting and requires less time to complete the job, the Surge device has a 5-year warranty - $50,000 downstream equipment protection
- Designed with straight-in mains to save expensive cable and the Wiser Energy Monitor allows you to set budgets to manage your energy expenditures before you get a bill
- Panel includes distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility and Wiser Energy Monitor is cETLus listed
- Panel's thermoplastic interior assembly is among the most rugged in the industry
- Panel's slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
- Panel's 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
Features
| Item Weight | 34.83 |
| Number of Circuits | 60 |
| Electrical Product Type | Load Center and Breaker Kit |
| Voltage (volts) | 120/240 |
| Number of Spaces | 30 |
| Load Center Type | Main Breaker |
| Mounting Type | Plug-On Neutral |
| Load Center Mounting Type | Surface |
| Indoor/Outdoor | Indoor |
| Returnable | 180-Day |
| Phase Type | 1 Phase |
| Maximum Amperage (amps) | 200 |
| Product Weight (lb.) | 34.83 |

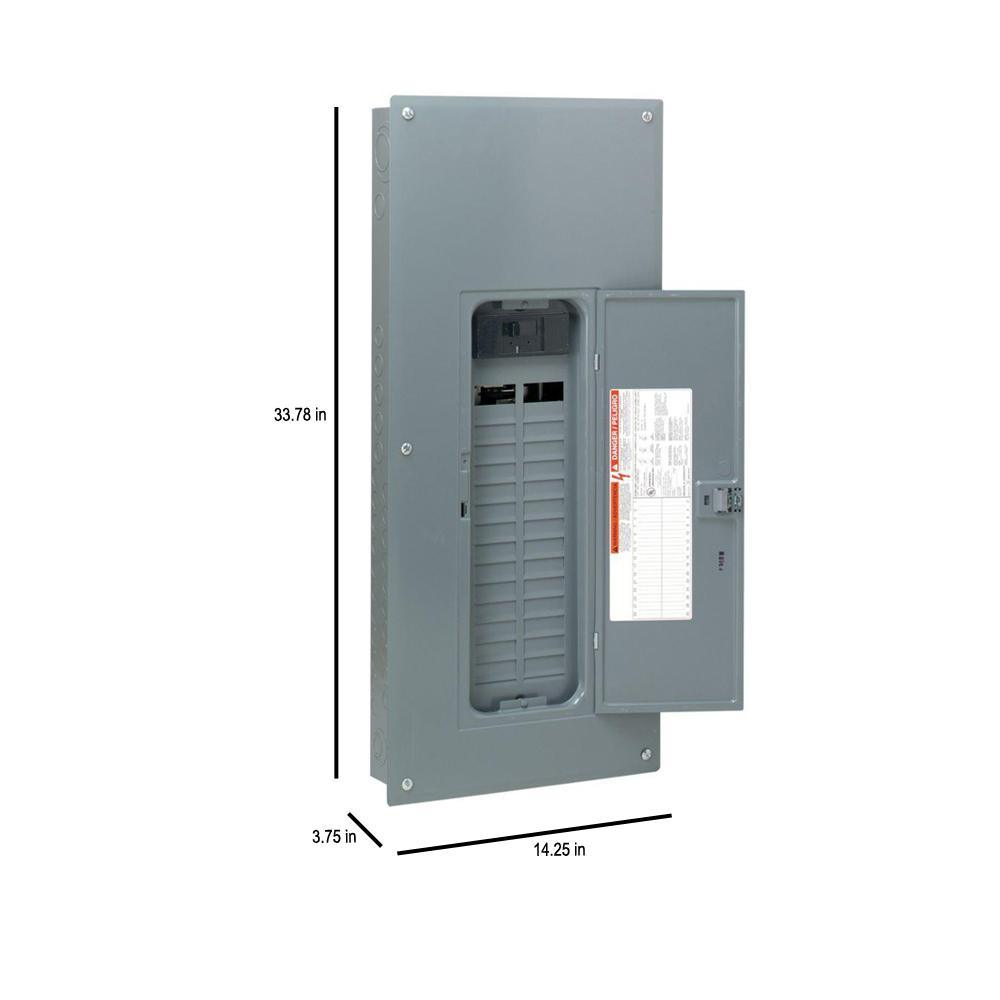

| Load center height (in.) | 33.78 |
| Load center width (in.) | 14.25 |
| Load center depth (in.) | 3.75 |
| Manufacturer Warranty | Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers. |
| Certifications and Listings | UL Listed |
