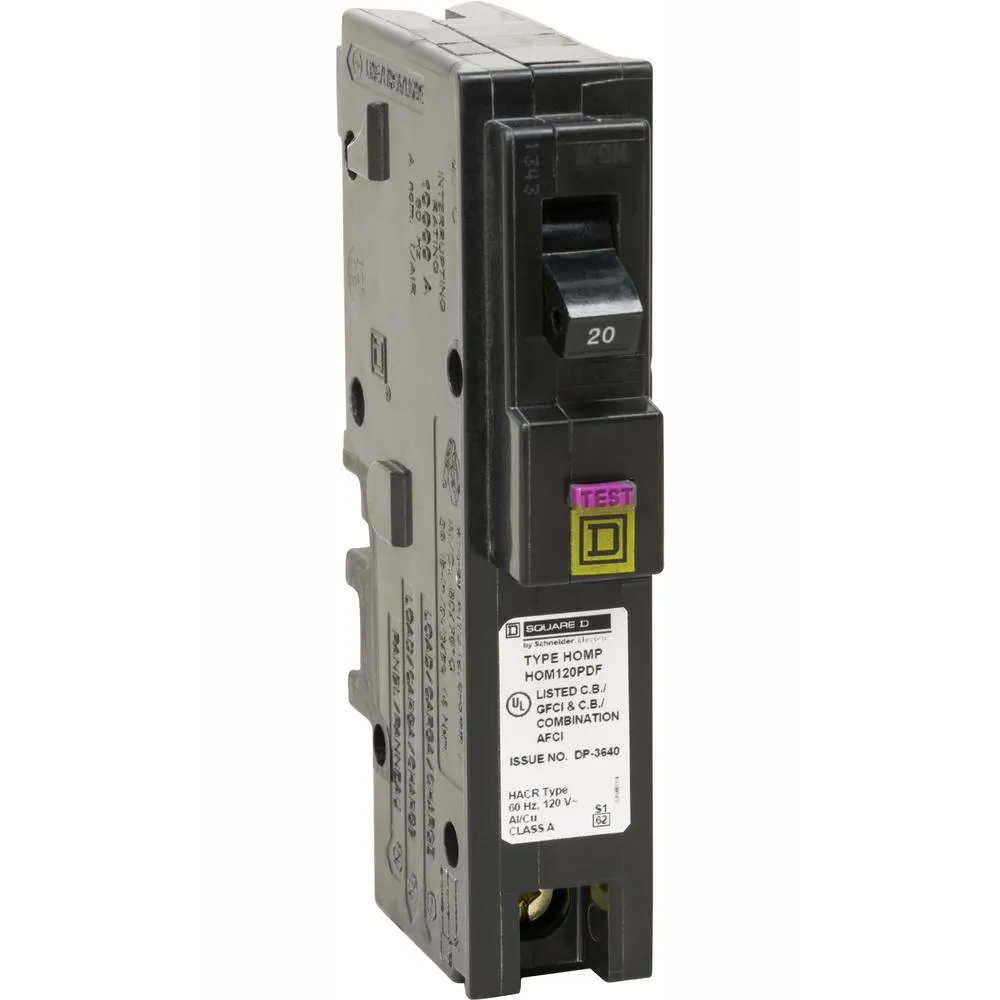

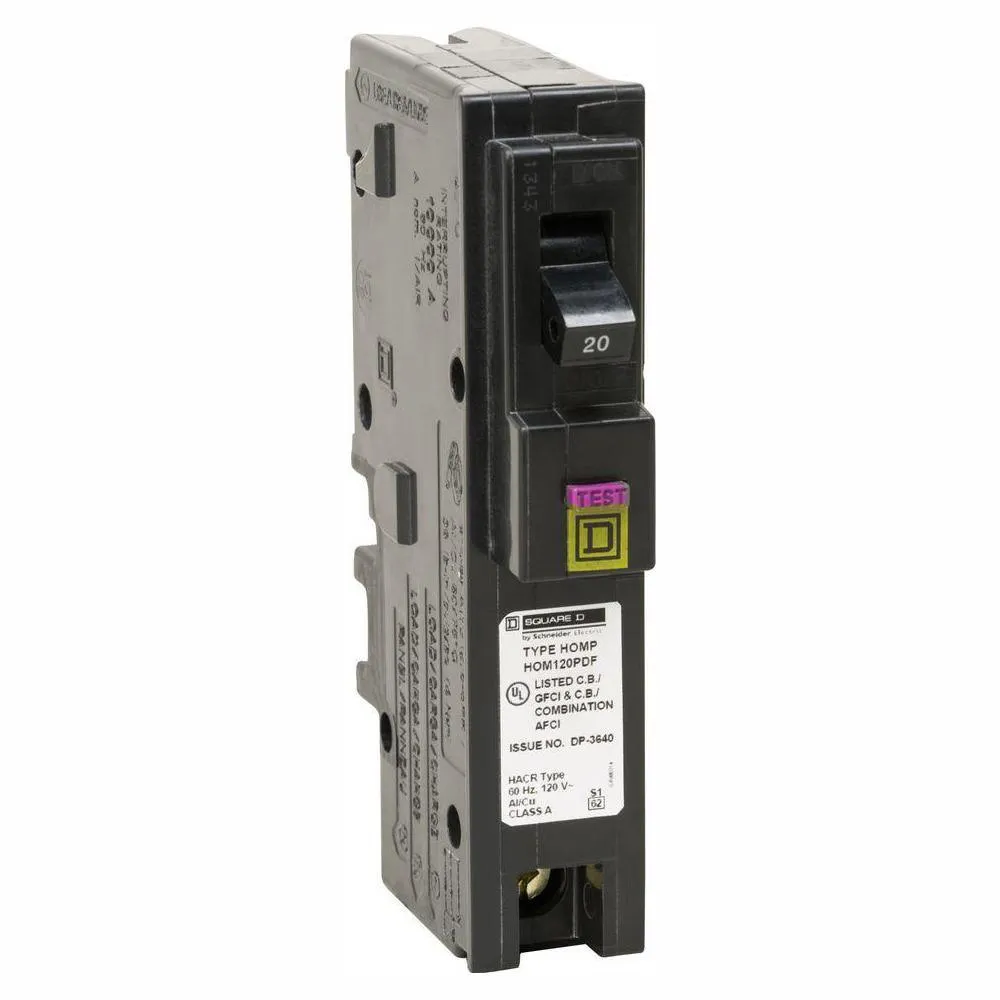

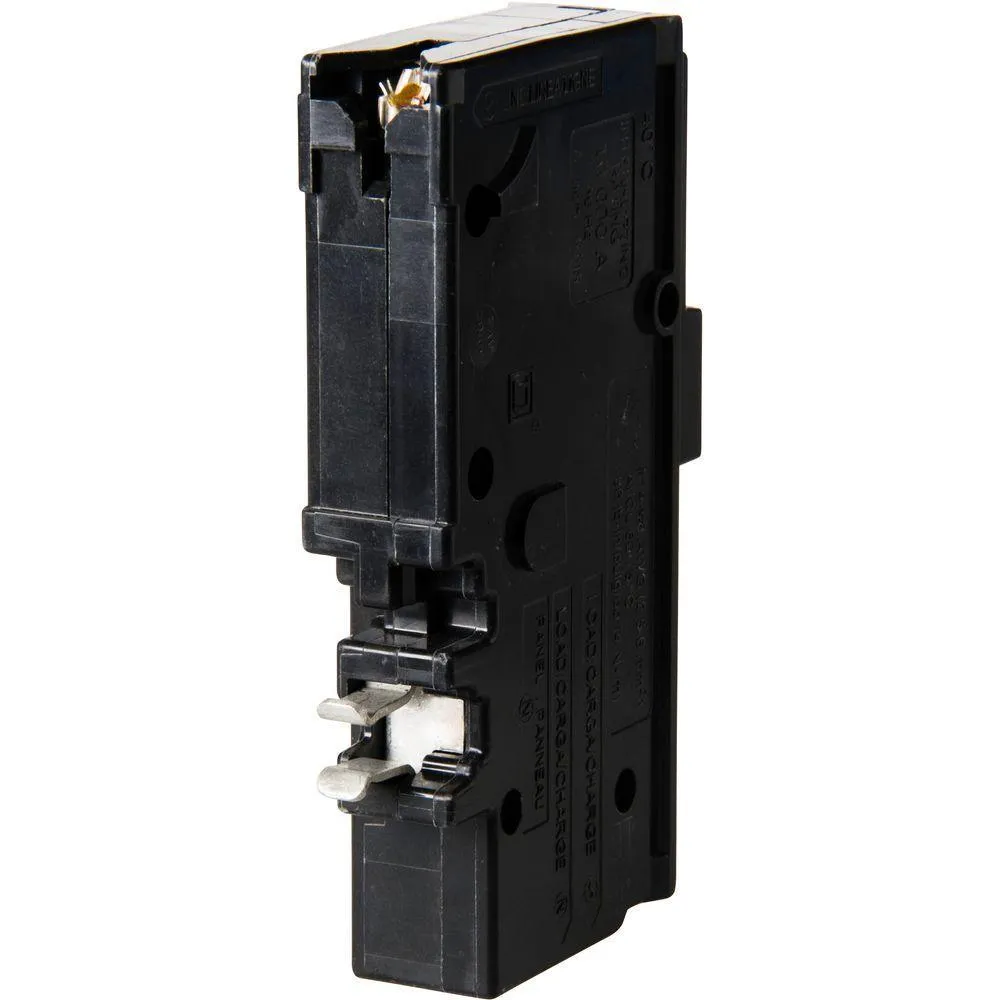

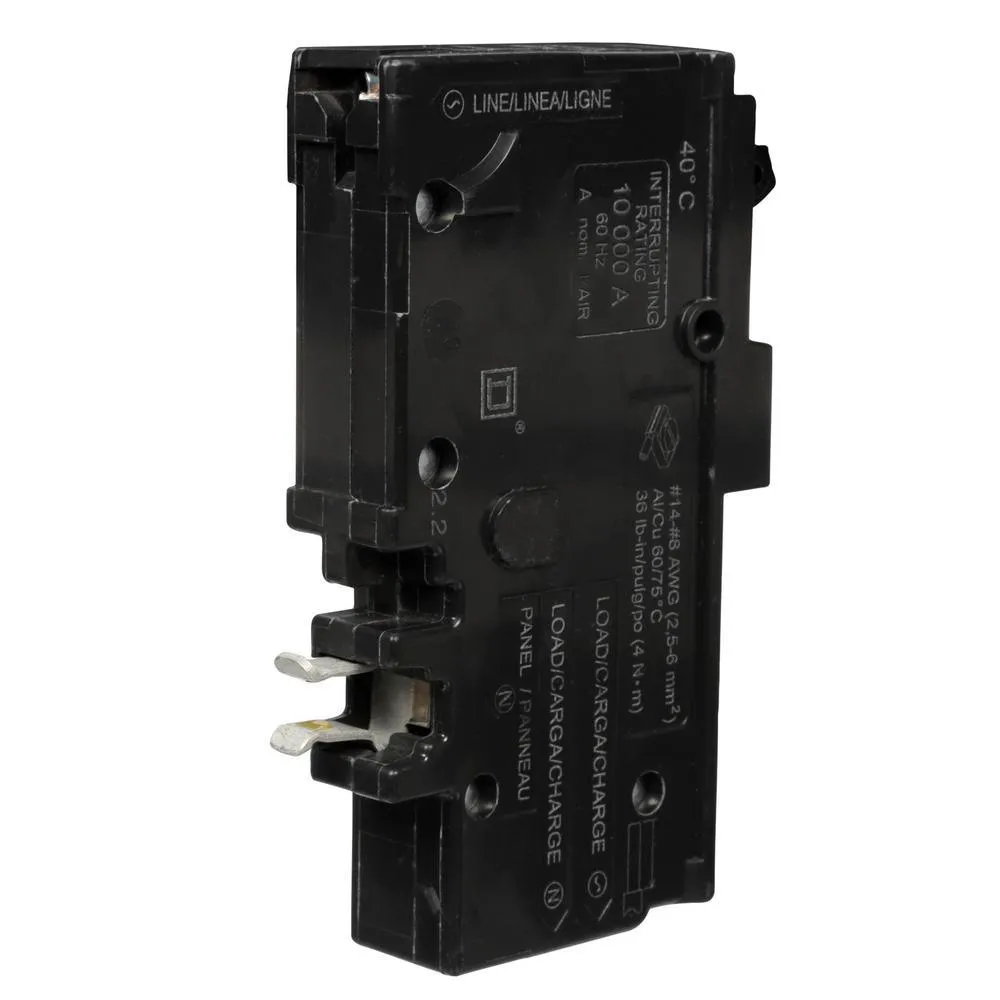

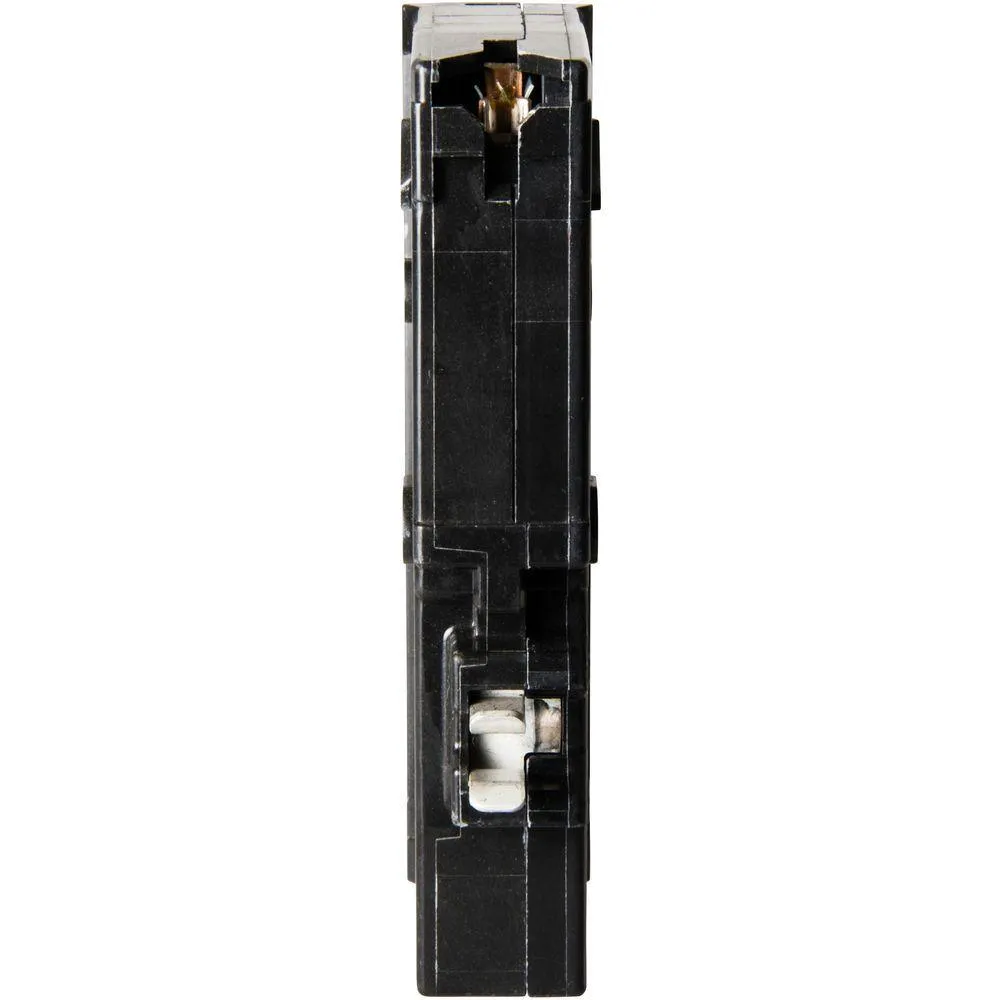

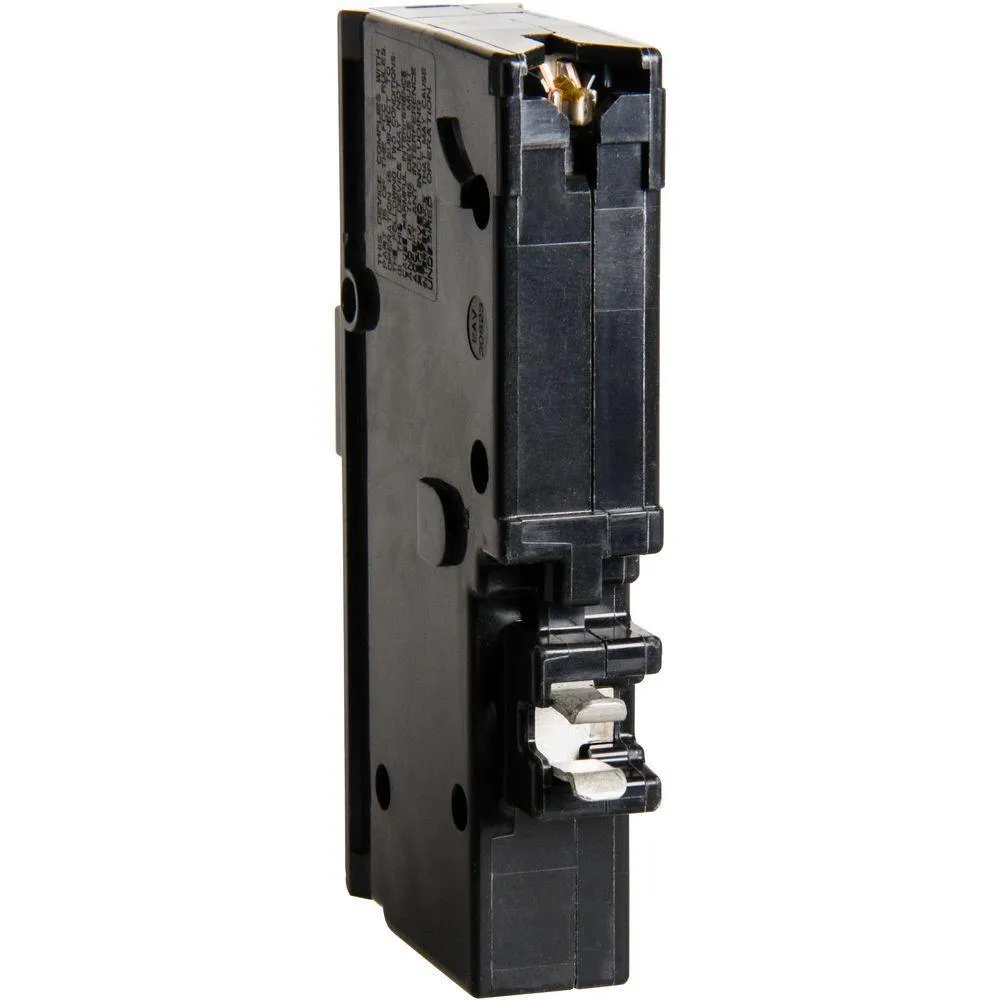

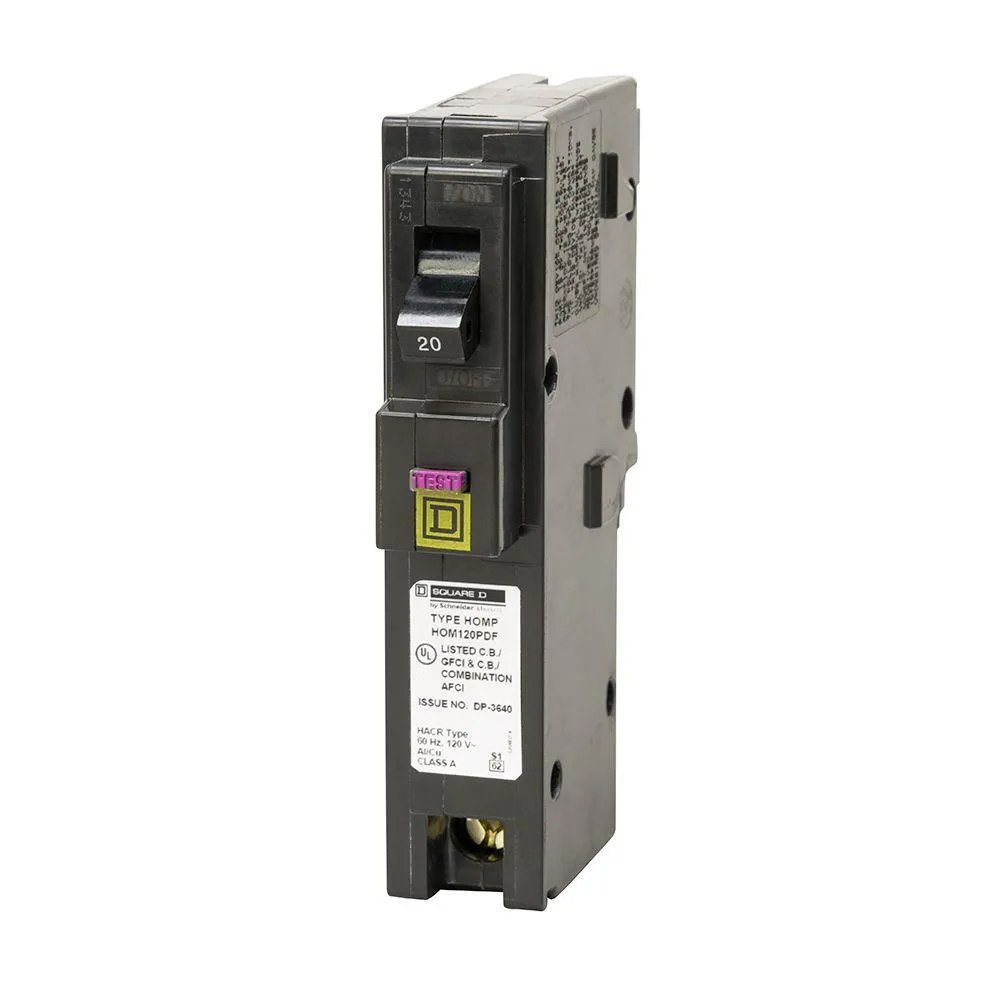

Homeline 20A Plug-On Neutral Dual-Function Breaker
1-poleAFCI/GFCI
$52.80 each
Orders start at $399. Combine any items to reach it.
- 1 breaker
- $52.80
- Standard delivery
- $49.99 per order
- Sales tax
- Added at checkout
All orders are subject to approval.
You're not charged until your order is approved and ready to ship. Cancel free before then.
Standard delivery$49.99
Per order, added in your cart. We deliver to the 48 contiguous states.
Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns
Complete the panel
Electrical
Details & specifications.
From the maker · the maker’s description
The Square D Homeline 20 Amp 1-pole Plug-On-Neutral Combination Arc Fault Circuit Interrupters (CAFCI/CAFI) helps keep people and property safe from the effects of dangerous arcing. These arcs typically occur out of sight, inside walls or electrical devices, day or night. Designed for reliability, the Homeline Plug-on Neutral CAFI Circuit Breaker connects directly to the neutral bar, providing a time and labor-saving installation. Several advantages from the Plug-on Neutral design are fewer connections which lead to faster installation and an innovative neutral clip eliminates pigtails which in turn frees gutter space. This breaker is compatible with Square D's Homeline Plug-On Neutral electrical panels with available space for a 1-pole breaker. A total of 12 spaces required for entire offering. The Square D CAFI circuit breaker uses a state-of-the-art Arc Detection Technology to continuously monitor the circuit and quickly turn-off the power (trip) when a dangerous condition is detected. Best of all, this technology is combined with Square Ds robust and reliable short circuit/overload protection systems in a small, compact package. Engineered for Value and built for Quality, the market leading Square D brand Homeline Combination Arc Fault Circuit Interrupter combine time-tested performance with state-of-the-art technology to provide one of the safest circuit breakers available today. This breaker is also designed for residential and single phase commercial uses.
- Contact your local building inspector for code adoptions and details.
- Limited lifetime warranty
- Homeline 20 Amp 1-pole plug-on-neutral combination arc fault CAFCI/CAFI circuit breaker
- Square D's brand CAFI circuit breakers are now equipped with a unique diagnostic feature known as time-saver diagnostics, this fast, easy to use Time-Saver technology indicates the type of fault that last occurred on the circuit

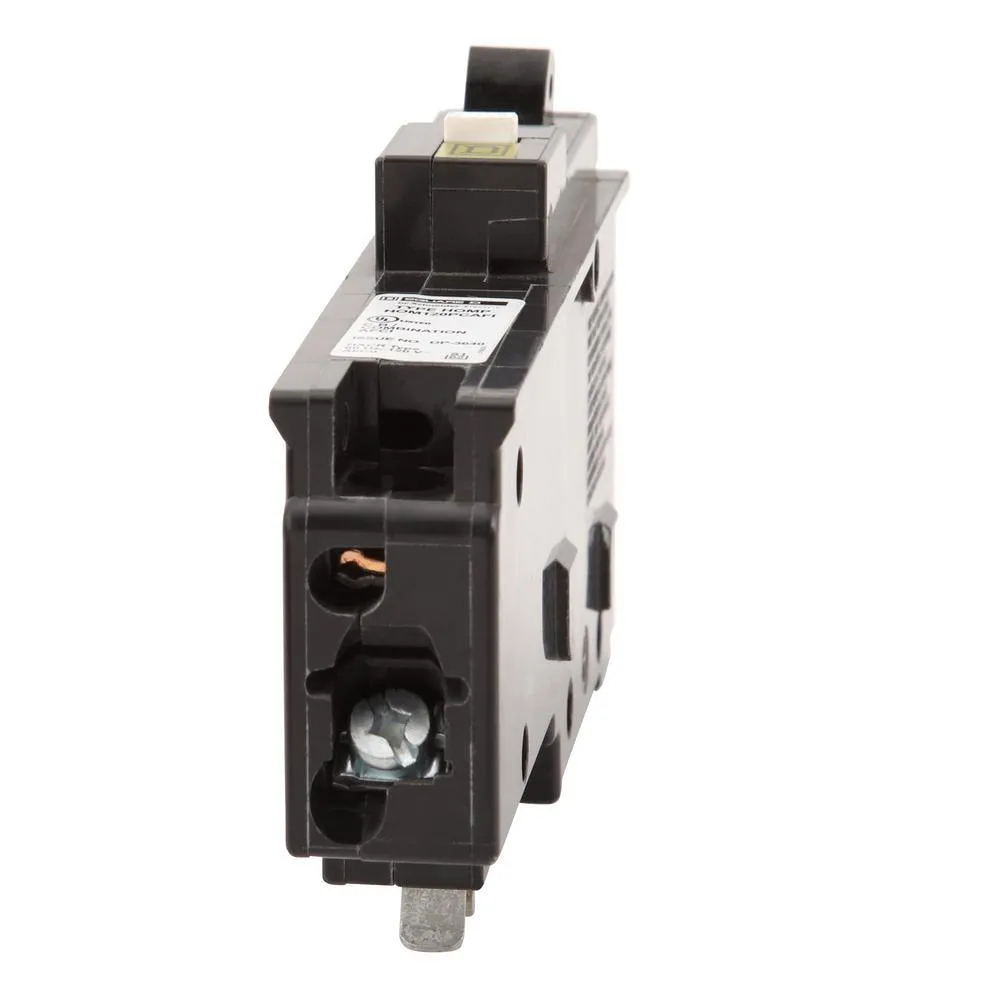

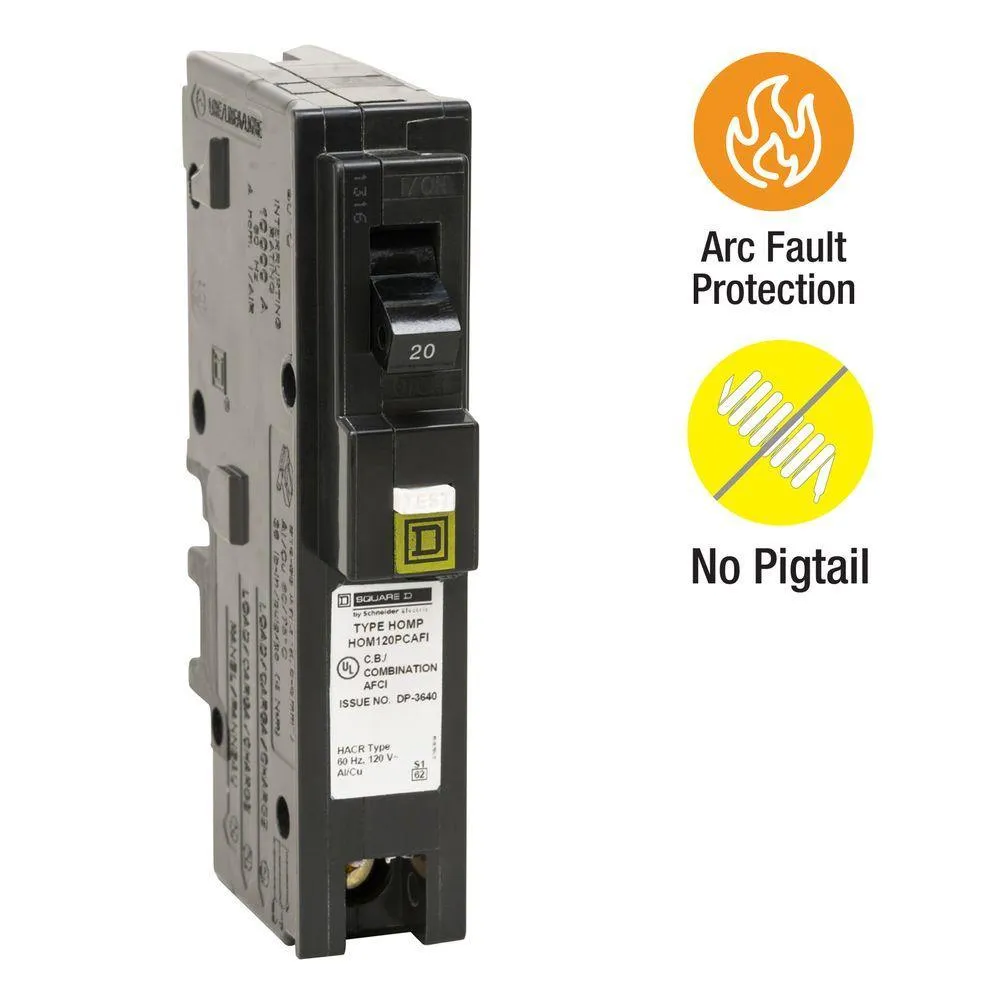

- Innovative neutral connection design leads to fewer connections and faster installation, no pigtails which frees up gutter space
- Compatible with Square D's Homeline series 4 and newer load centers only that have available space for a 1-pole breaker, a total of 12 spaces required for entire offering
- 120-Volt AC
- 10000 AIR
- ANSI certified and UL listed
For Interruption Type Dual Function (C/AFCI and GFCI).
- SKU
- 204844661
- UPC
- 785901987024
- Amps
- 20 A
- Poles
- 1-pole
- Protection
- AFCI/GFCI
- Type
- Standard, Dual Function (CAFCI + GFCI)
- Interrupt rating
- 10 kA
- Mounting
- Plug-On
- Interruption Type
- Dual Function (C/AFCI and GFCI)
- Series
- Homeline
- Maximum Amperage
- 20 A
- Spaces
- 1
- Connection Type
- Plug-On Neutral
- Trip Unit
- Electronic
- Voltage
- 120/240 V (120 VAC operation)
- AIC Rating
- 10,000
- Certifications
- UL Listed; ANSI certified
- Dimensions (H x W x D)
- 3.13 in x 1 in x 2.98 in
- Product Weight
- 0.28 lb
- Compatibility
- Homeline Plug-On Neutral load centers (Series 4 and newer)
- Diagnostics
- Time Saver Diagnostics feature
- Warranty
- Limited lifetime for the life of the Homeline load center
- Full product name
- Schneider Electric Square D Homeline 20 Amp Single-Pole Plug-On Neutral Dual Function (CAFCI & GFCI) Circuit Breaker, HOM120PDFC
Specifications are provided by the manufacturer. Brand names are trademarks of their owners.
Guide
Before you buy a breaker
- 1
Match the panel
Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.
- 2
Match the wire
The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.
- 3
Protection
Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.
- 4
Tandem and quad
Two circuits in one space, only in the slots the panel label allows.
