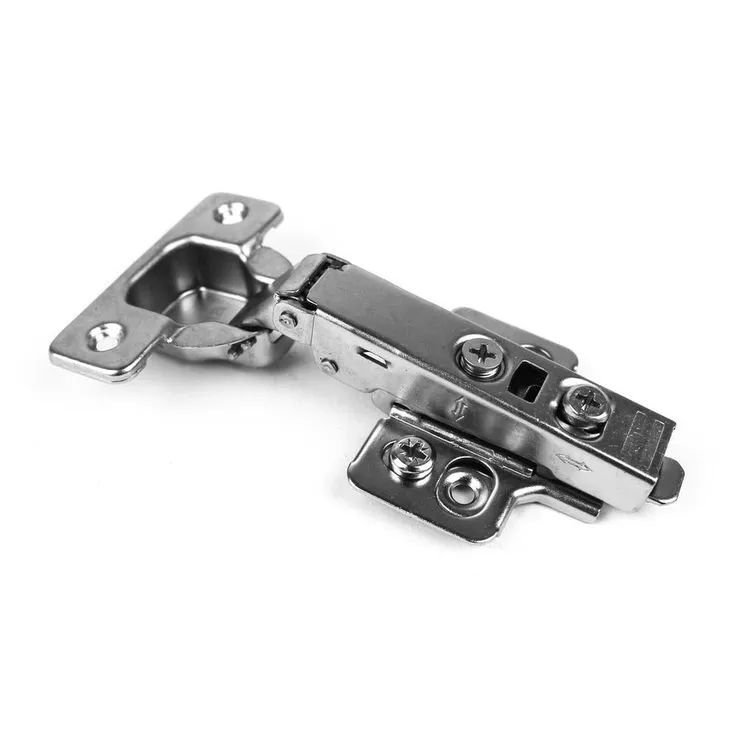

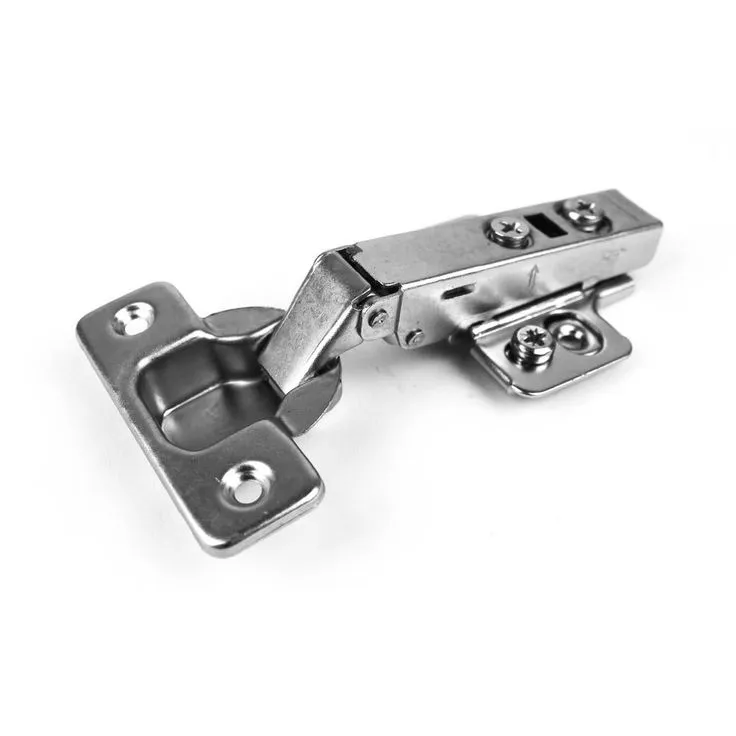

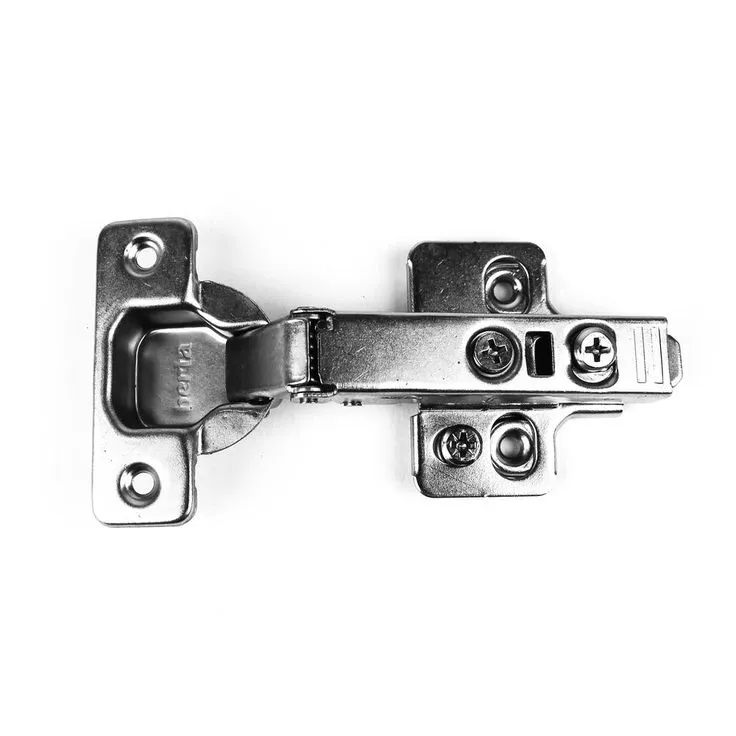

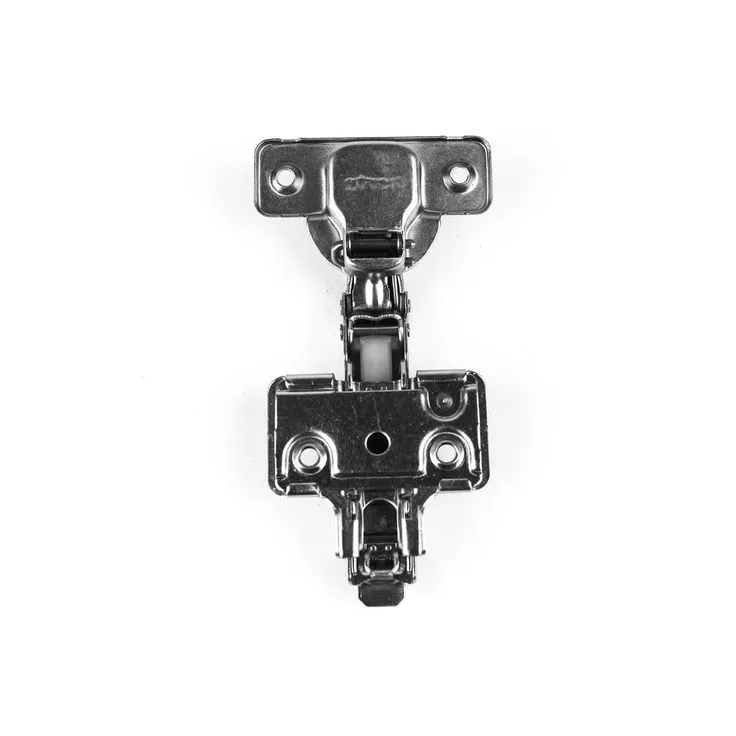

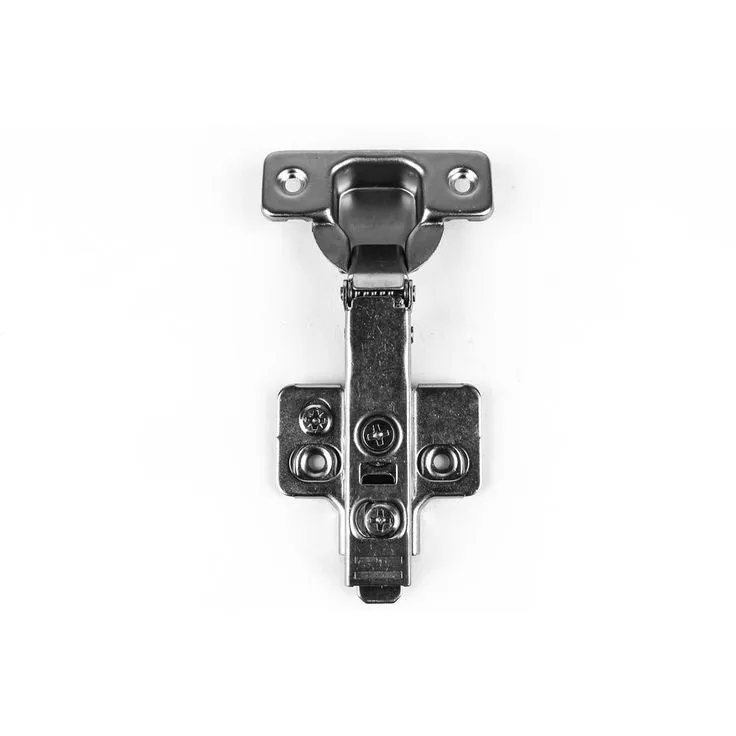

Designed for frameless cabinet doors, these small hinges help save space in otherwise tight cabinets to improve kitchen convenience. Each cabinet door hinge features a built-in damper that creates a self-closing (soft closing) motion. The clip-on plate, 3-way adjustments on the hinge and 2-way adjustments on the base allow faster and more efficient installation. The 2-way adjustment on the base allows you to adjust the door height after installation, great for DIY jobs or contractors.
All our frameless cabinet hinges comes with the installation screws, to make your project smooth and hassle-free, our high-quality hinges have built-in dampers that act as soft-close (slow-close) buffers to help reduce the noise of slamming doors, easy to install, and easy to adjust cabinet hinge for your kitchen, bathroom, or anywhere else your installing cabinet doors
Opening angle: 110°, overlay: full overlay, cup diameter: 1-2/5 in. (35 mm), cup depth: 1/2 in. (12 mm), suitable door thickness: 3/5 in. -1 in. (16 mm - 24 mm)
Screw hole center to center: 1-4/5 in. (45 mm), material: cold rolled-steel, finish: nickel plated, closing type: soft/self close
Adjustment: 3-way adjustable: side (minus 3 mm to plus 1 mm), depth (plus 3 mm to minus 1 mm) and height (plus 2 mm to minus 2 mm), cabinet type: frameless, bore distance: 1/8 in. (3 mm), note: our hinges are for frameless cabinets
