Siemens · Electrical

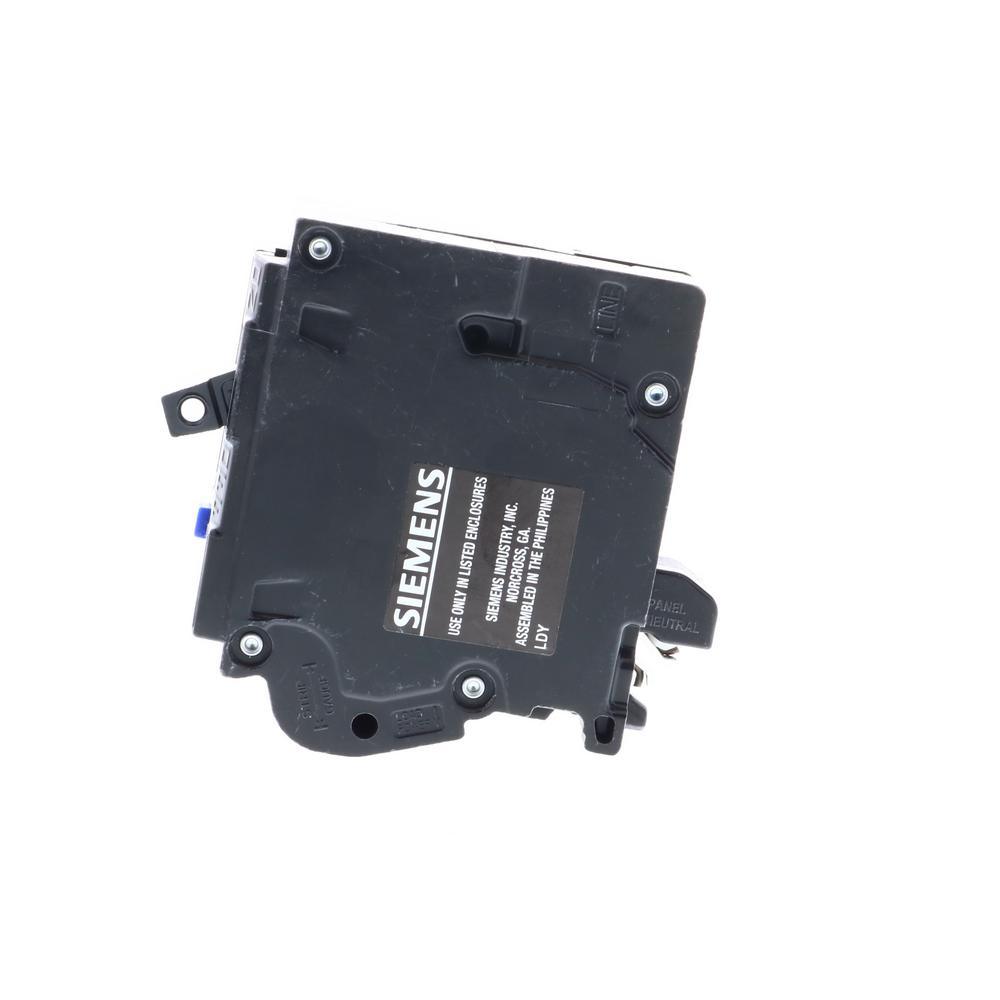

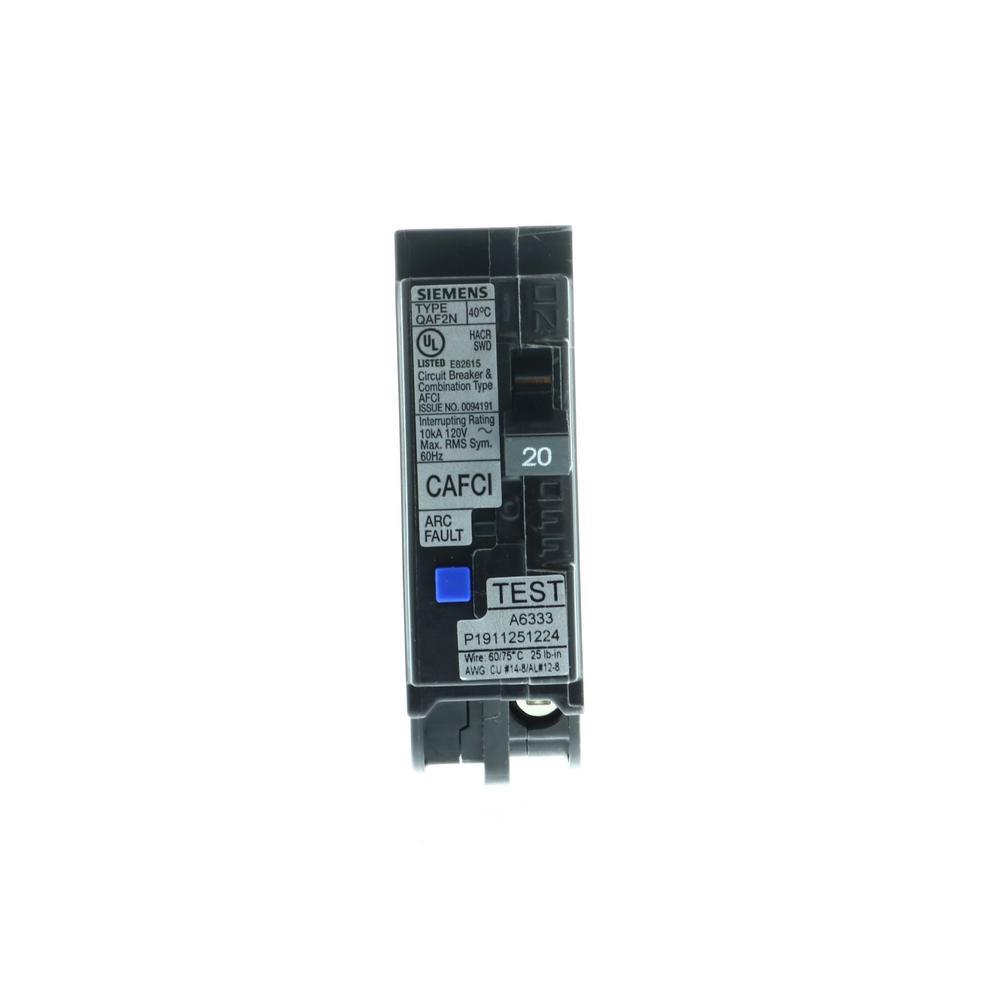

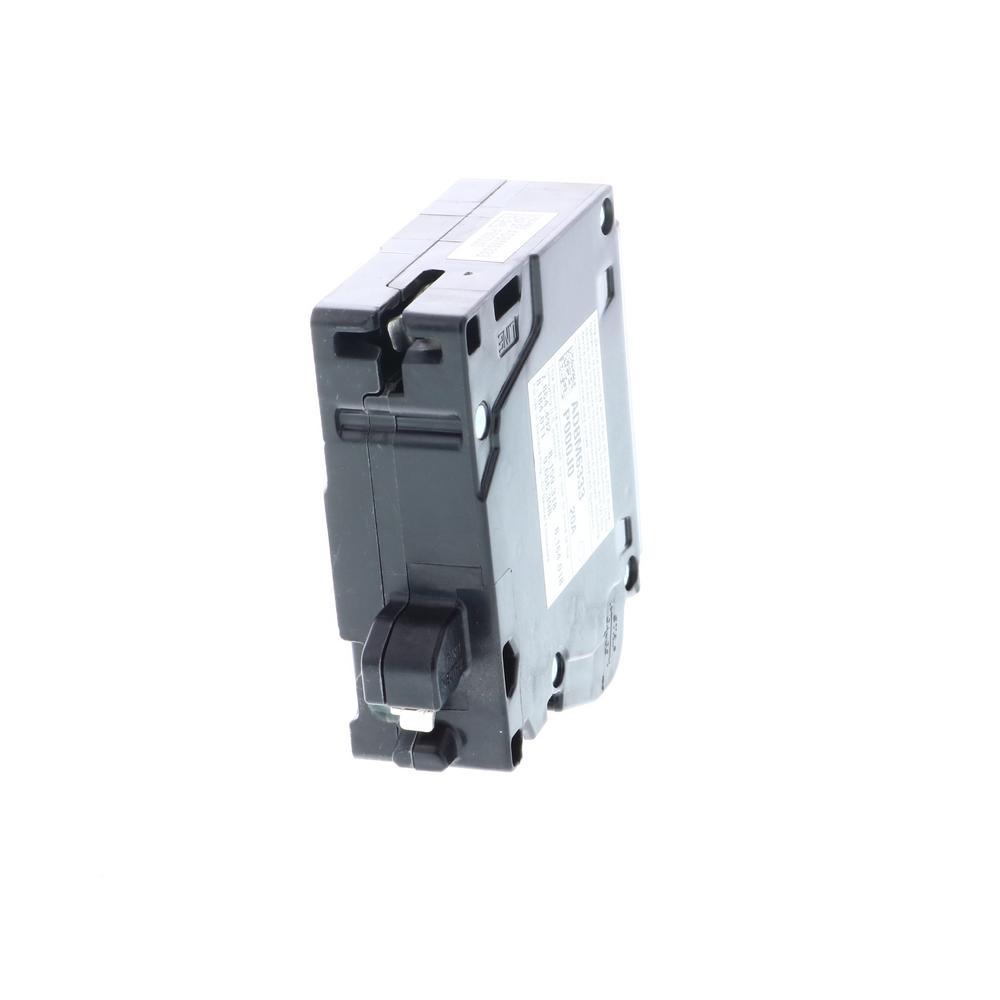

20 Amp 1-Pole Combination Type AFCI Plug-On Neutral Circuit Breaker

20 A

$41.45 each

Orders start at $399. Combine any items to reach it.

Breakers
1 breaker
$41.45
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Siemens · Electrical

Details & specifications.

From the maker · Siemens’s description

Siemens introduces the new simple, spacious and secure Plug-on neutral load centers with electronic breakers. The Siemens Plug-On Neutral Combination Type AFCI breaker detects arcing faults (an unintentional arcing condition in a circuit) that standard circuit breaker are unable to detect. This AFCI circuit breaker is the same, reliable design, without the pigtail, specifically design for the Plug-On Neutral Load Centers. These breakers now only have a single load lug. The branch neutral conductor is returned to the neutral terminal bar for simpler and quicker wiring.

  • Simply installs like any other breaker, now without the pigtail
  • 10,000 AIC
  • UL Listed
  • HACR and SWD rated
SKU
1898210099
Amps
20 A
Poles
1-pole
Protection
AFCI
Type
Single Pole
Mounting
Plug-On
Brand
Siemens
Item Weight
0.55
Voltage (volts)
120
Power Distribution Features
Trip Indicator
Product Weight (lb.)
0.55
Pack Size
5
Interruption Type
AFCI
Electrical Product Type
Breaker
Product Height (in.)
6.5
Product Width (in.)
1.5
Product Depth (in.)
6
Manufacturer Warranty
1 Year
Certifications and Listings
UL Listed

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Before you buy a breaker

  1. 1

    Match the panel

    Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.

  2. 2

    Match the wire

    The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.

  3. 3

    Protection

    Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.

  4. 4

    Tandem and quad

    Two circuits in one space, only in the slots the panel label allows.
