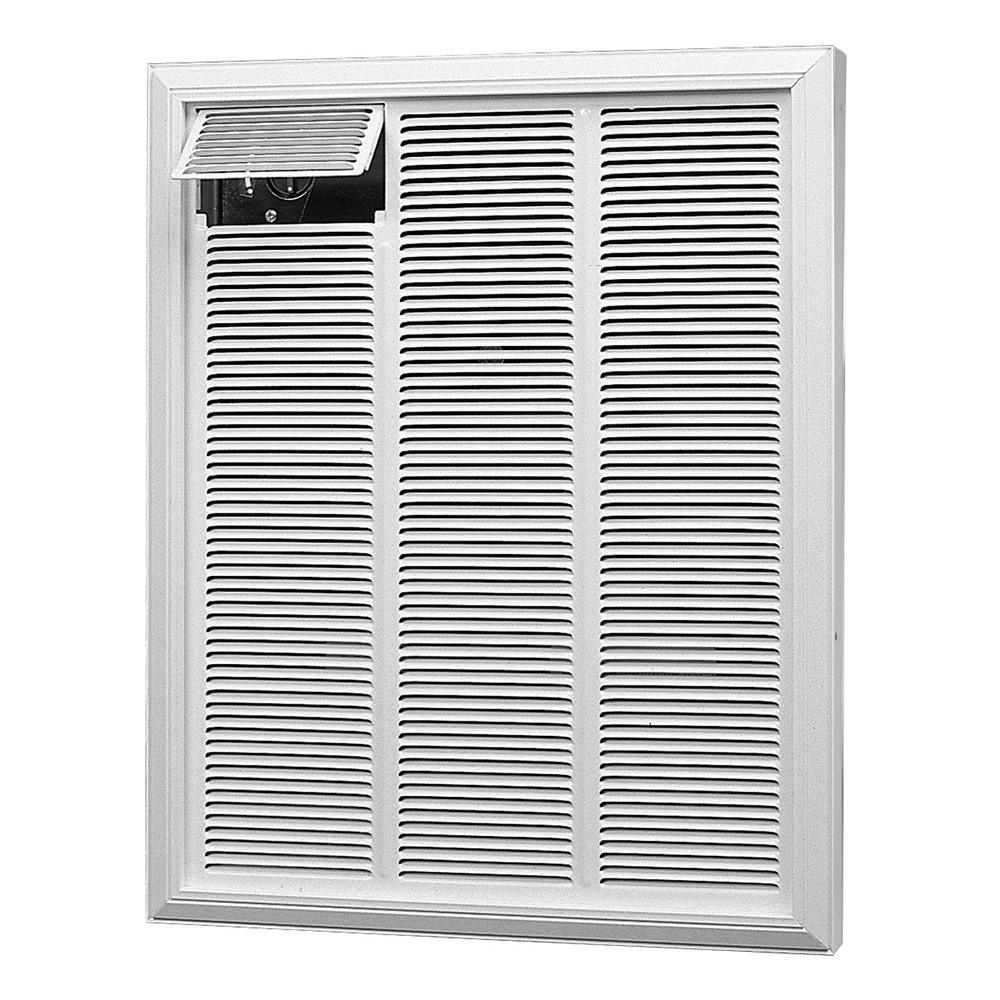

RFI Commercial 16378 BTU 240-Volt 4800-Watt/3600-Watt Fan-Forced Electric Heater
Regular price $275.68/
Shipping calculated at checkout.

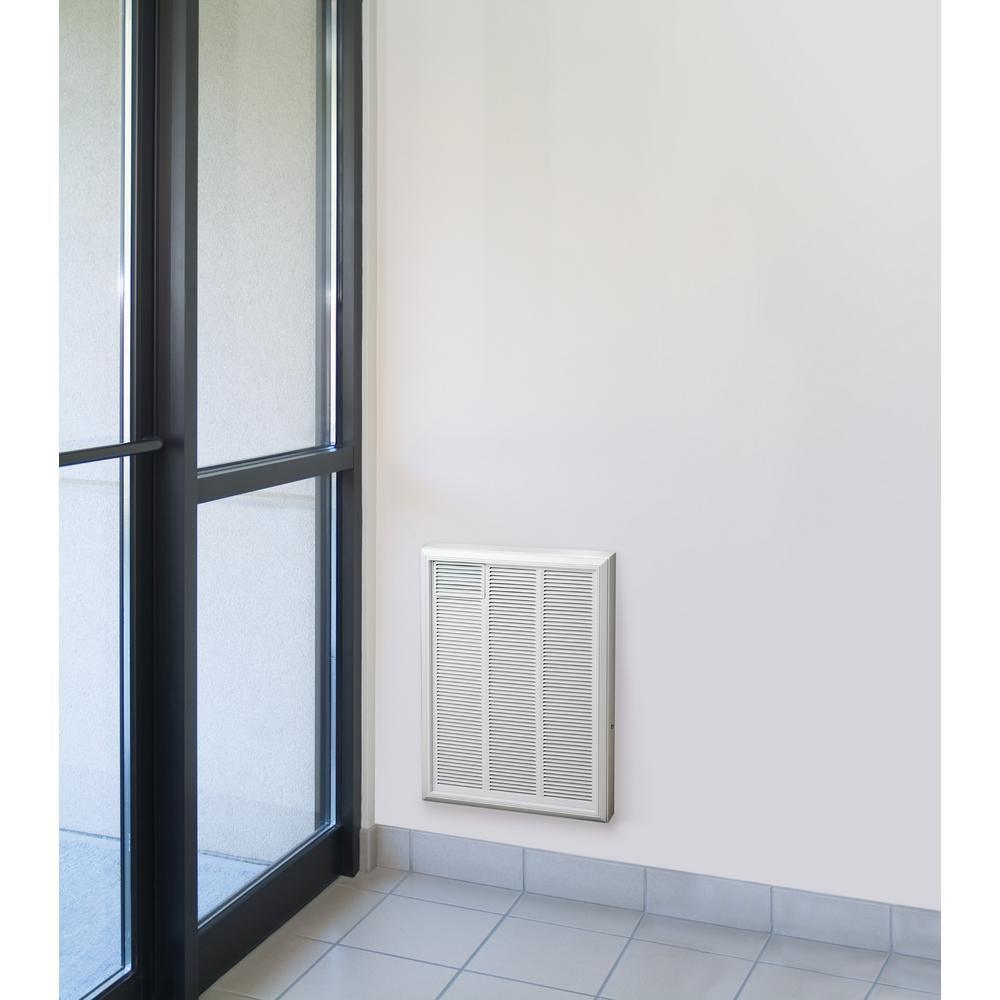

The Dimplex Commercial Fan Forced Heater is a solution for maintaining comfort in areas subject to cold drafts, such as vestibules, stairwells and more. The stylish front panel makes this heater perfect for entryways, mudrooms and laundry rooms too. The powder coating helps resists fading and abrasion.
Features
- California residents
- Quick response, high output fan-forced heat
- Automatic fan delay utilizes residual heat when unit cycles off
- All models offer recessed or surface mounting, ceiling or wall
- Includes built-in, double-pole thermostat
- Access door can be locked for tamperproof applications
- Finish: powder coating resists fading and abrasion
- Front panel is constructed of 20-Gauge steel, the recess box (sold separately) is designed for recessing into either frame or masonry walls or ceilings and contains knockouts for wiring connections
- RFI/RFV/RFF wall heater has a nickel chromium resistance wire heating element within a steel sheath, spiral steel fins are firmly brazed to the surface to provide excellent heat transfer
- Motor and fan: the fan motor is totally enclosed, and factory lubricated complete with a black anodized 5-blade mixed flow aluminum fan, the fan delay is a bi-metallic snap action type
- Controls and installation: 208-Volt, 240-Volt and 277-Volt units have a standard double pole built-in thermostat with provision for a remote wall stat if required 347-Volt and 600-Volt units have a built-in thermostat, use low voltage relay kits and suitable wall mount thermostat for remote temperature control
Features
| Item Weight | 25 |
| Indoor/Outdoor | Indoor |
| Accessories Included | No |
| Anti-freeze setting | No |
| Style | Industrial |
| Heating Product Type | Electric Wall Heater |
| Color Family | Whites |
| Heater Type | Fan Heaters |
| Room Size (sq. ft.) | Greater than 1000 |
| Fuel Type | Electric |
| ACLI Safety Plug | No |
| Automatic shutoff | Yes |
| Remote Control | No |
| Voltage (volts) | 240 |
| Number of Heat Settings | Variable |
| Thermostat | Yes |
| Area Heated (Sq. Ft.) | 500 ft² |
| Oscillation | No |
| Timer Included | No |
| Returnable | 180-Day |
| Product Weight (lb.) | 25 lb |
| Heat Output (BTU/hour) | 16378 |
| Wattage (watts) | 4800 W |
| Amperage (amps) | 20 A |
| Installation | Recessed/Surface Mounted |
| Heater Controls | Thermostat |
| Heating Technology Type | Forced Air |
| Color | White |
| Product Depth (in.) | 5.25 in |
| Product Height (in.) | 21.50 in |
| Product Width (in.) | 16.75 in |
| Certifications and Listings | cULus Listed |
| Manufacturer Warranty | 1-year |
