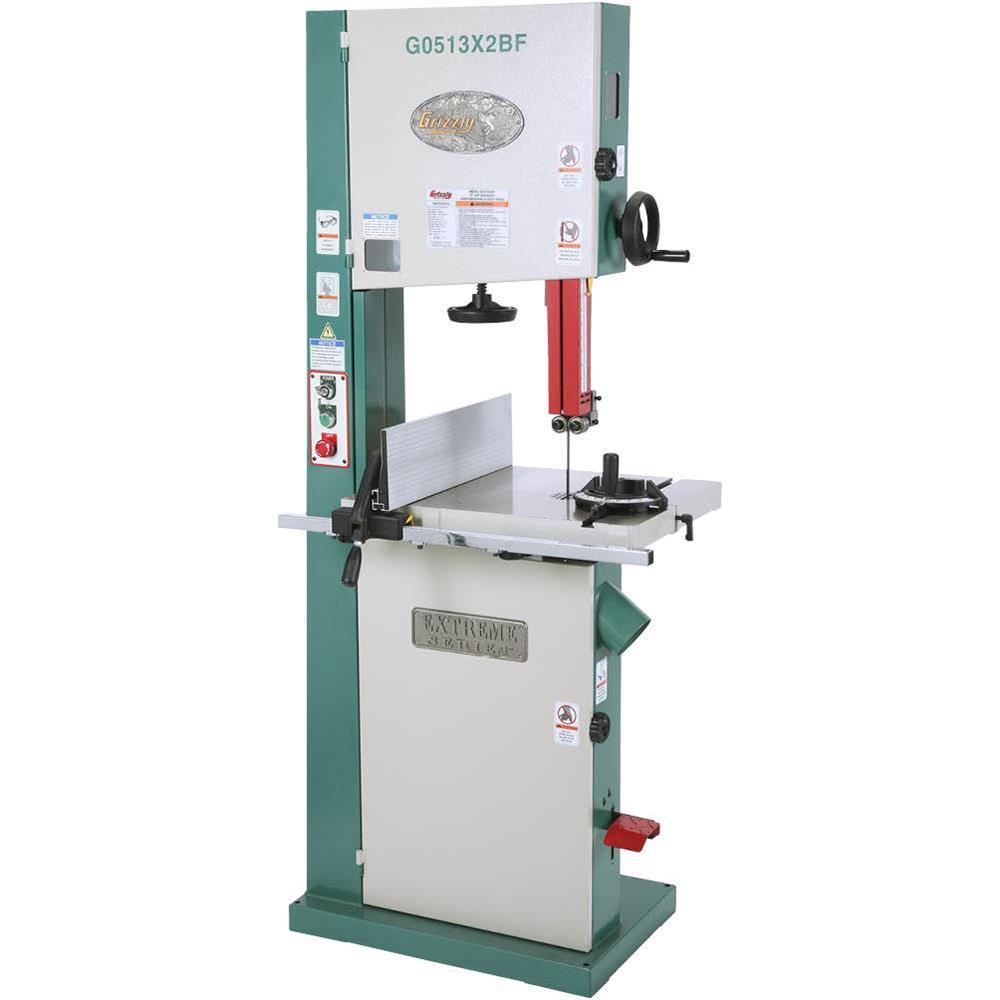

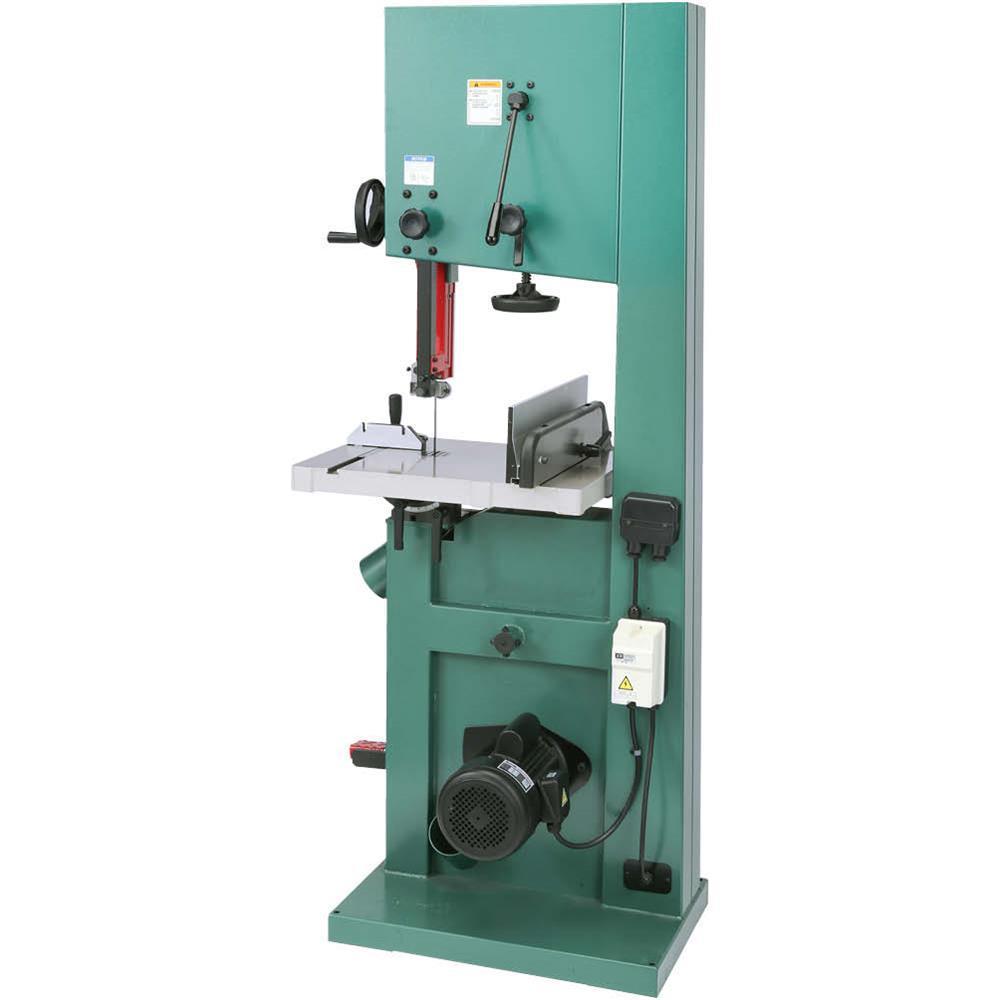

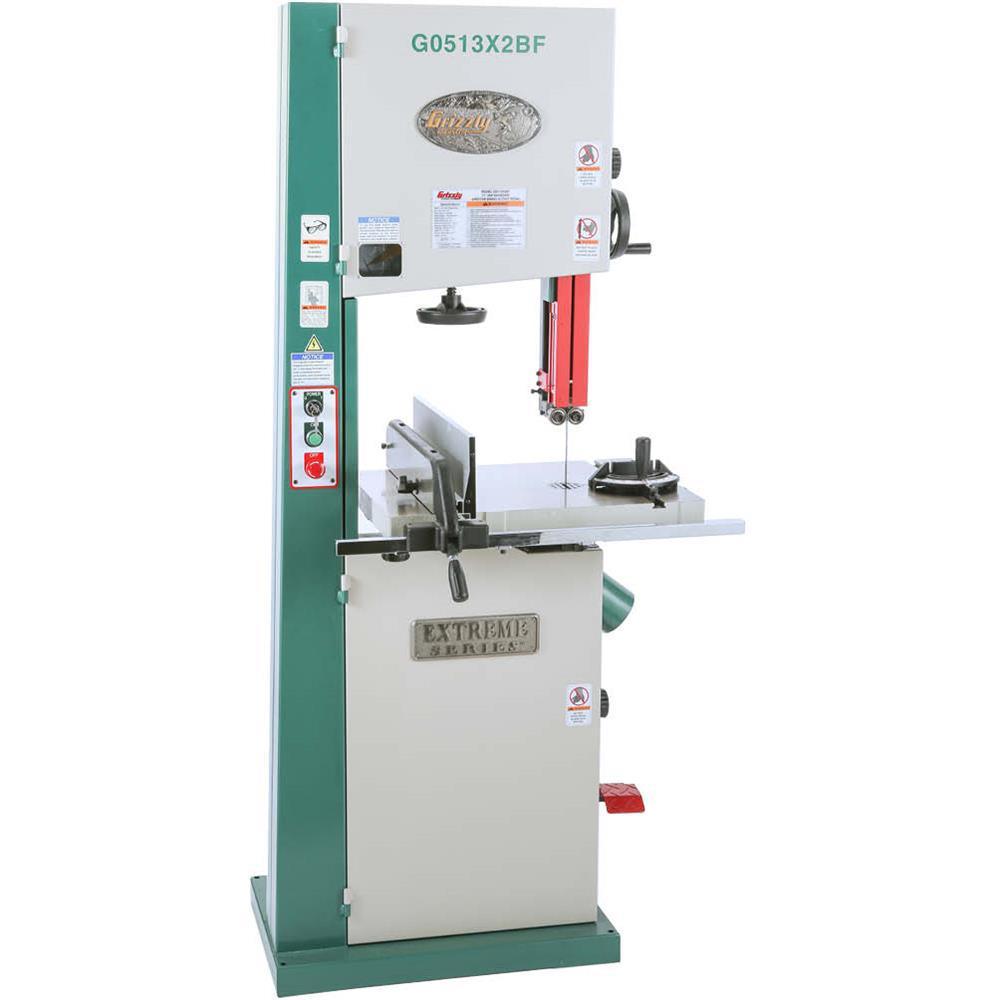

17" 2 HP Extreme-Series Bandsaw with Cast-Iron Trunnion & Foot Brake Micro-Switch
Regular price $1,815.16/
Shipping calculated at checkout.
Grizzly is proud to offer these full-featured Extreme 17 in. Heavy-duty Bandsaws with cast iron wheels. The 2 HP motor powers through wood at a maximum 12 in. cutting capacity and the 16-1/4 in. throat is plenty for most applications. Features like the deluxe fence, extra-wide cast iron table, heavy-duty miter gauge, dual 4 in. dust ports, micro-adjusting geared table, and double ball-bearing blade guides are usually found on machines costing much more. And, the ISO 9001 factory designation assures high quality standards. The motor brake on the G0513X2BF stops the blade in 3 seconds and ensures greater safety and faster production times. The foot pedal activates the electronic motor brake and the manual brake so that you can have both of your hands on the workpiece when bringing the blade to a stop.
Features
- California residents
- Motor: 2 HP, 220-Volt, single-phase, TEFC capacitor-start induction, 60 Hz, 1720 RPM, 8.7 Amp
- Table size: 23-5/8 in. x 17-1/4 in. x 1-1/2 in. thick
- Table tilt: 5° left, 45° right
- Floor to table height: 37-1/2 in.
- Cutting capacity/throat: 16-1/4 in. left of blade
- Maximum cutting height: 12 in.
Features
| Item Weight | 357 |
| Portability | Stationary |
| Minimum Blade Length | 130 |
| Cuts Through | Wood |
| Product Weight (lb.) | 357 |
| Maximum Speed (rpm) | 1720 |
| Amperage (amps) | 10 |
| Returnable | 180-Day |
| Dust Collection Method | 4 in. Dust Port |
| Included Accessories | Stand |
| Cordless/ Corded | Corded |
| PT Horsepower (Hp) | 2 |
| Construction Material | Steel |
| Table-Top Material | Cast-Iron |
| Tools Product Type | Power Tool |
| Table Tilt Right Max (degrees) | 45 |
| Bench & Stationary Tool Type | Band Saw |
| Cord Length (ft.) | 0 |
| Color Family | Multi-Colored |
| Condition | New |
| Voltage (volts) | 220 |
| Table Tilt Left Max (degrees) | 5 |
| Cutting Capacity Width / Depth Of Throat(In.) | 16-1/4 |
| Band Saw Type | Vertical |
| Power Tool Features | Lockout Power Switch,No Tool Blade Change,Quick-Release Tension,Stand Included |
| Product Width (in.) | 32 |
| Cutting Capacity Height / Height under Guide (In.) | 12 |
| Table Length (in.) | 23.052 |
| Product Depth (in.) | 32 |
| Maximum Blade Width | 1 |
| Minimum Blade Width | 1/8 |
| Table Width (in.) | 17.25 |
| Work Table Surface | 23.052 in. x 17.25 in. |
| Product Height (in.) | 73 |
| Maximum Blade Length | 131-1/2 |
| Dust Port Size (In.) | 4 |
| Manufacturer Warranty | 1 Year |
