Eaton · Electrical

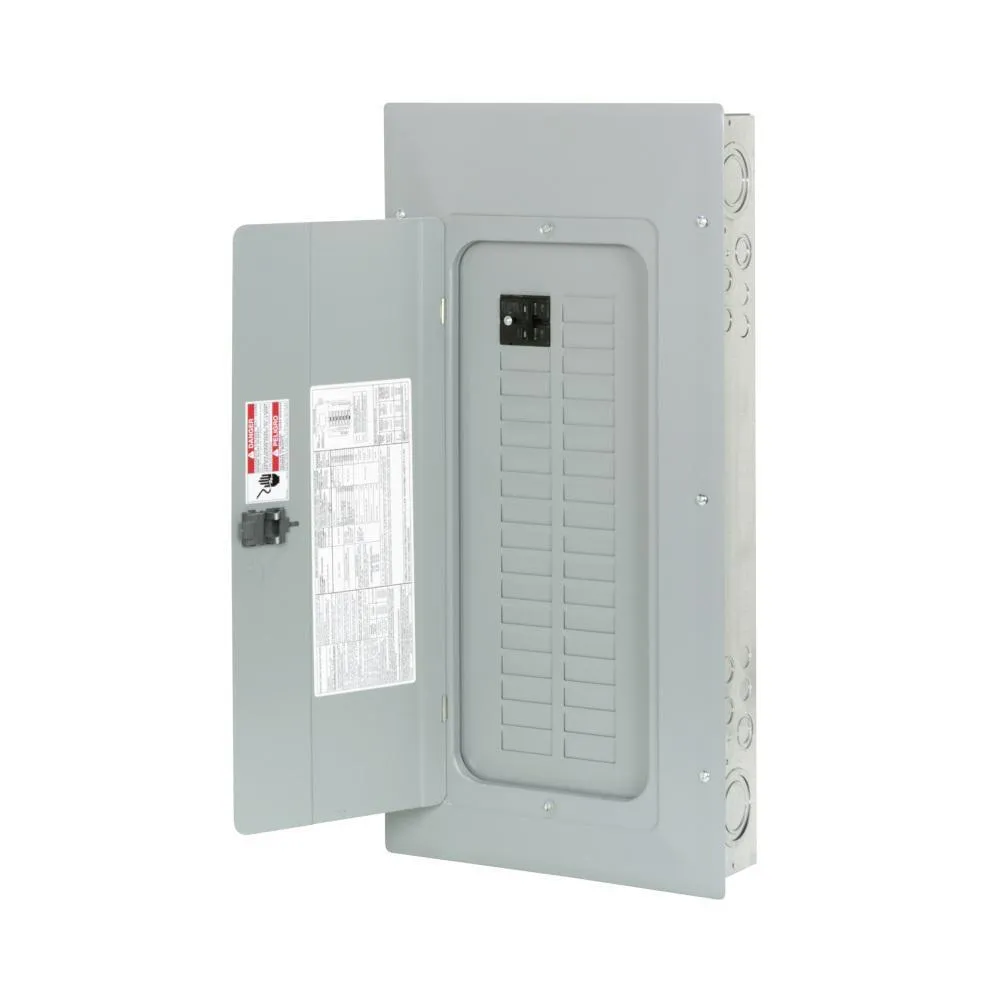

BR 100 Amp 60-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Copper Bus

30 spaces

$87.66 each

Orders start at $399. Combine any items to reach it.

Maximum Amperage: 100 A
Number of Circuits: 60
Quantity
1 item
$87.66
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Eaton · Electrical

Details & specifications.

From the maker · Eaton’s description

Quick, easy and clean describe the new plug-on neutral design attributes offered by Eaton. Time saving features offer a quick installation equating to less time on the job. Designed to maximize installation efficiency and to provide additional convenience allowing for an easy installation. New features that help ensure an aesthetically clean and professional installation.

  • Amperage rating: 100 Amp

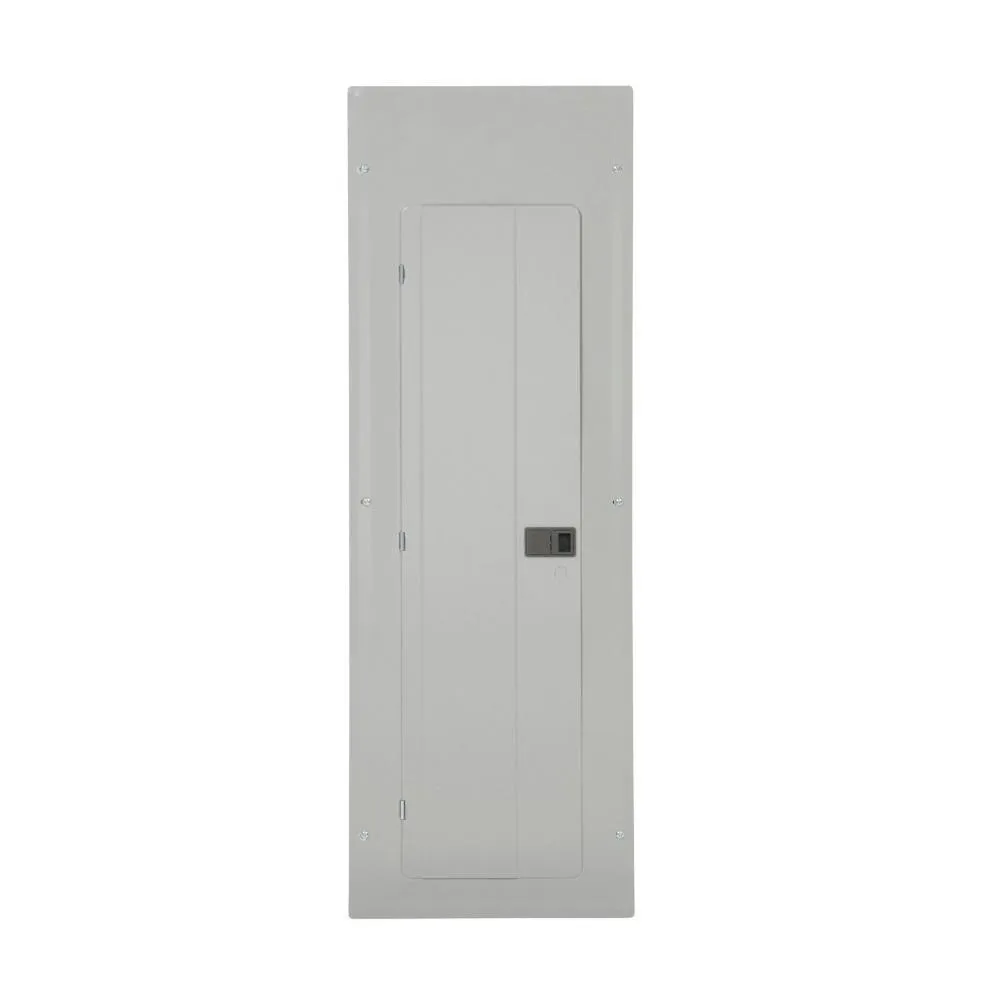

  • Cover: cover included
  • Enclosure: NEMA 1
  • Interrupt rating: 10 kAIC
  • Bus material: copper
  • Used with: type BR 1 in. breakers
  • BR type plug-on neutral breaker box eliminates the pigtail connection providing time and labor savings

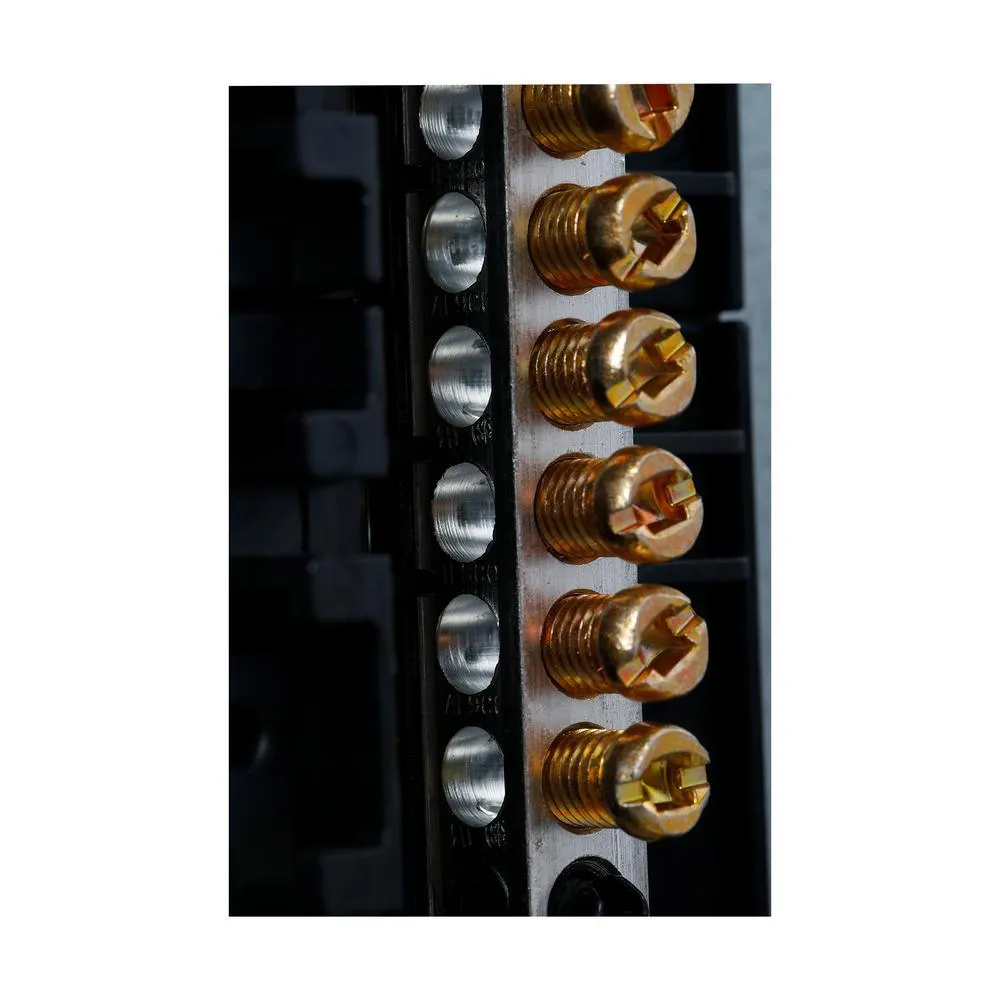

  • Dedicated neutral bus for breaker connection
  • In-board neutral bar increases gutter space to allow for professional installation of conductors
  • Backed out neutral screws allows for quick connection of neutral and ground conductors

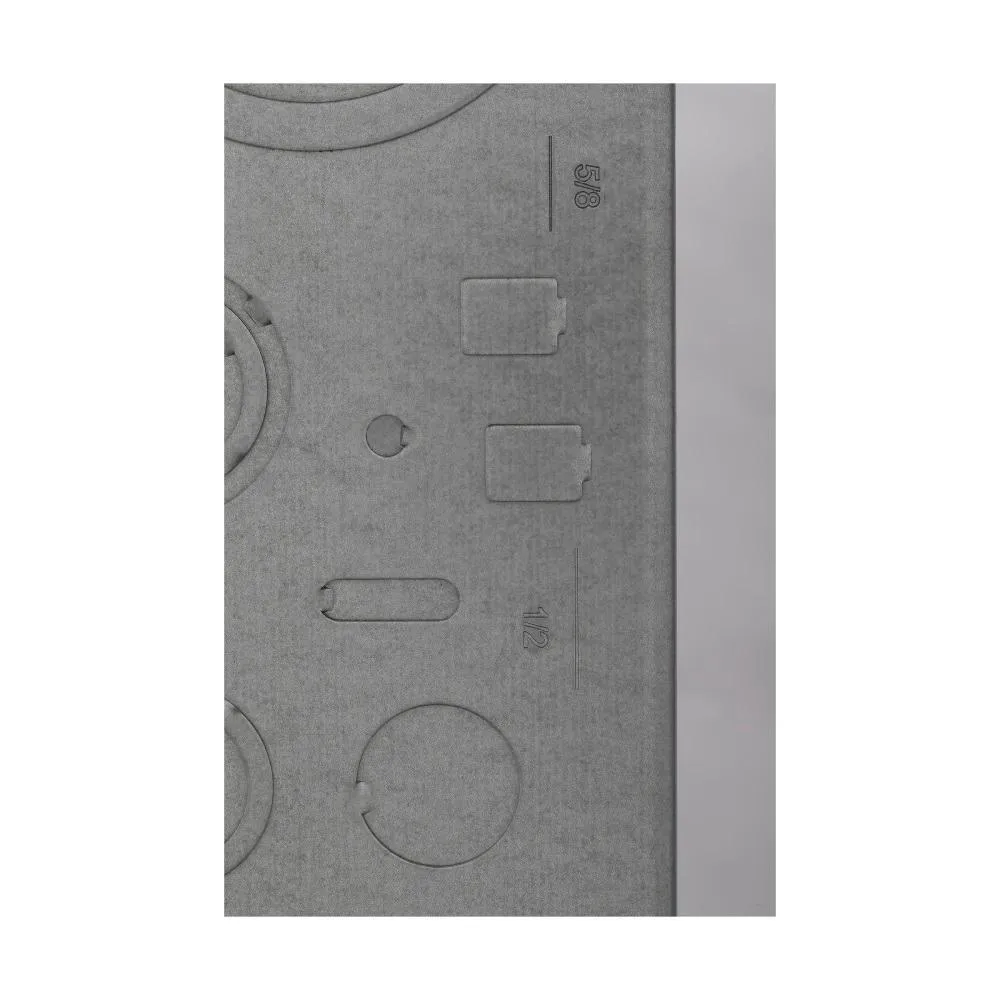

  • Optimized knockout locations for additional access and easier to remove
  • Self-leveling tabs allow for quick drywall offset and helps simplify installation
  • Keyhole hanging feature allows for ease of cover installation for both top and bottom feed applications

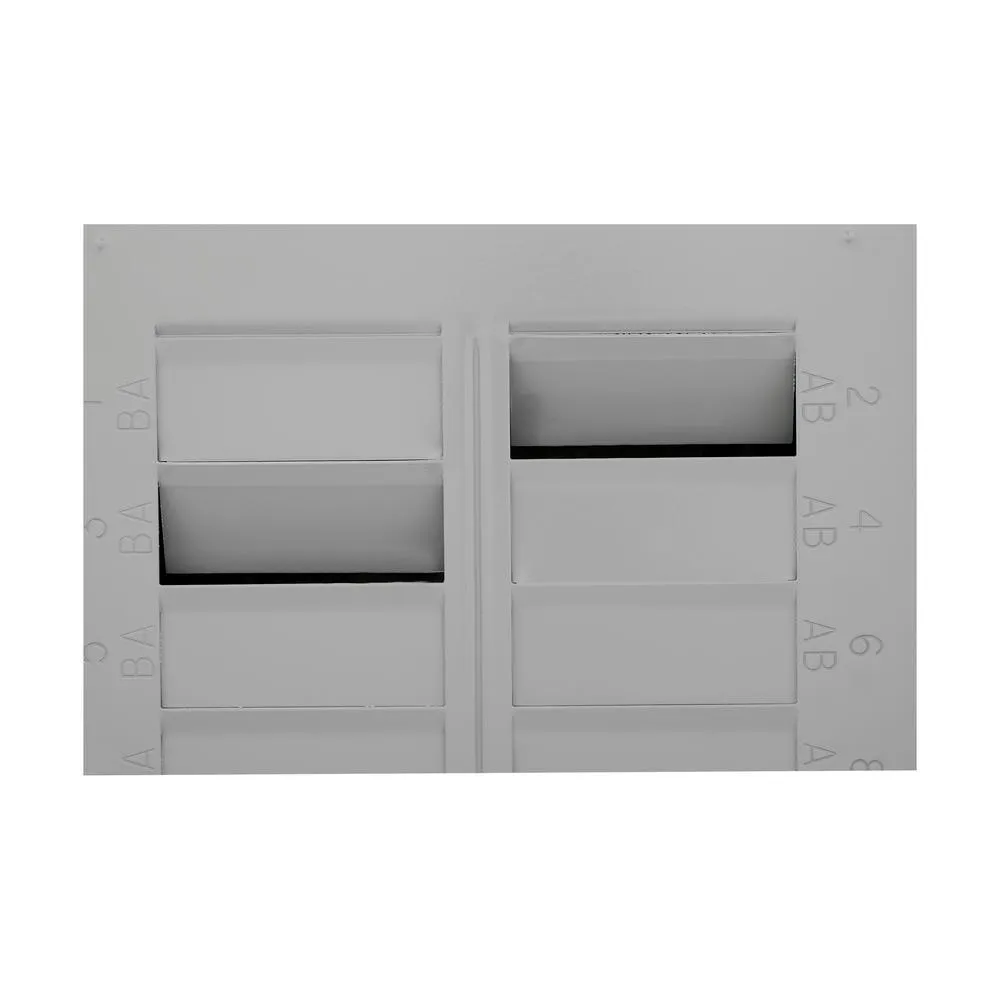

  • Rigid cover spine provides strength when twist outs are removed allowing for easier removal
  • Eaton offers a full line of circuit breakers to meet all your protection needs including arc fault, ground fault, dual function and surge protection
SKU
307648487
UPC
786689052829
Spaces
30
Mounting
Bolt On
Location
Indoor
Circuits
60
Brand
Eaton
Maximum Amperage (amps)
100
Item Weight
34.87
Load Center Type
Main Breaker
Product Weight (lb.)
34.87
Indoor/Outdoor
Indoor
Voltage (volts)
120/240
Electrical Product Type
Load Center
Indoor/Outdoor2
Indoor
Number of Phases
1
Phase Type
1 Phase
Load center width (in.)
16
Load center depth (in.)
36.5
Load center height (in.)
4.5
Manufacturer Warranty
10 Year Per Warranty Statement
Certifications and Listings
UL Listed

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Before you buy a breaker

  1. 1

    Match the panel

    Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.

  2. 2

    Match the wire

    The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.

  3. 3

    Protection

    Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.

  4. 4

    Tandem and quad

    Two circuits in one space, only in the slots the panel label allows.
