QO 200A 42-Space Indoor Main Breaker Load Center, Qwik-Grip Plug-On Neutral

Heavy-duty Square D by Schneider Electric QO load center designed for fast, clean installs. Features Qwik-Grip wire entry and Plug-On Neutral for fewer connections and more gutter space, with a copper bus and included breakers for a complete value pack.

---

Key Features:

• Fast Installation: Qwik-Grip cable entry and Plug-On Neutral reduce connections and save time
• High Capacity: 200A main breaker with 42 spaces for up to 42 circuits
• Durable Build: Shielded copper bus and rugged thermoplastic interior for reliability
• Flexible Mounting: Indoor NEMA 1 enclosure supports flush or surface mount
• Complete Value Pack: Includes cover and a selection of QO breakers

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Series	QO
Breaker Box Type	Main Breaker Panel
Indoor/Outdoor	Indoor (NEMA 1)
Maximum Amperage	200 A
Voltage	120/240 V AC, 1-Phase, 50/60 Hz
Number of Spaces	42
Number of Circuits	42 (value pack variant); some listings note up to 52 circuits
Mounting Type	Flush or Surface
Connection Type	Plug-On Neutral
Included	Cover and selection of QO breakers

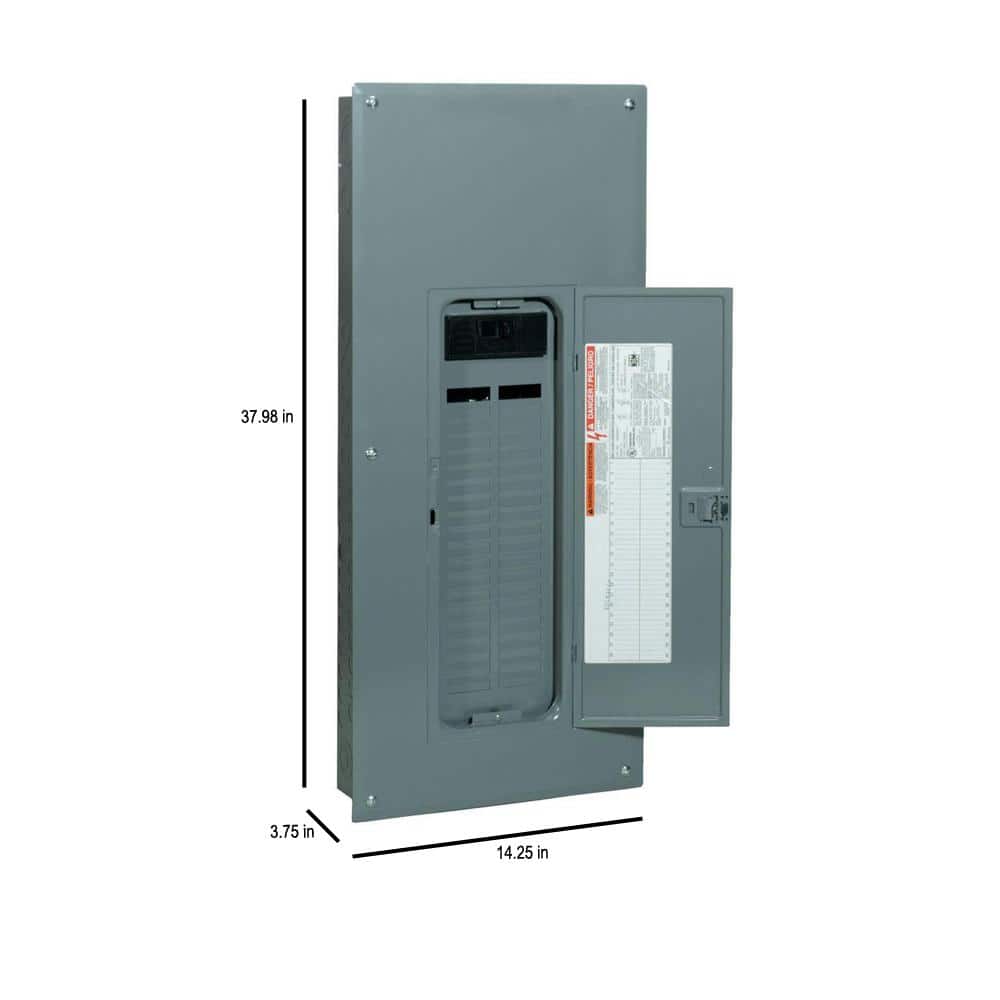

Product Dimensions	Height 37.98 in x Width 14.25 in x Depth 3.75 in
Product Weight	37.5 lb
Bus Bar Material	Shielded copper, plated
Certifications	UL Listed

---

Frequently Asked Questions (FAQ):

Q: Is this panel rated for indoor use only?
A: Yes, it is an indoor (NEMA 1) enclosure.

---

Q: What voltage systems does it support?
A: Rated for 120/240 VAC, single-phase.

---

Q: Can it be surface or flush mounted?
A: Yes, it supports both flush and surface mounting.

---

Q: What breakers are included?
A: Includes QO breakers as part of the value pack (commonly 3x QO120 and 2x QO230).

---

Q: Does it support plug-on neutral AFCI/GFCI breakers?
A: Yes, it is designed for Plug-On Neutral breakers for simplified wiring.

---

Streamlined Power, Clean Aesthetics

This sleek, graphite-gray panel becomes an understated architectural element, organizing the lifeblood of your home with quiet confidence. The refined door and linear grille feel modern and purposeful, while Qwik-Grip keeps interiors tidy and composed. Tuck it into a utility gallery or finished garage wall with a painted surround for a bespoke, built-in look. It’s the elegant, essential backbone of a well-appointed, high-performance home.

---

Upgrade to faster, cleaner installs and dependable power—choose this QO 200A value pack today.
