Industrial Plus 80 Gal. 10 HP 230-Volt 3-Phase 2-Stage Silent Air Electric Air Compressor with 58 CFM Dryer Bundle

$4,999.00

/
Shipping calculated at checkout.
EMAX Compressor Tools and Equipment delivers overwhelming performance to ensure that they meet even the most demanding environments needs. Our products are designed with the highest standards to be deliver all the power you need at the Jobsite, Garage or Shop. All EMAX piston pumps deliver big air and include steel connecting rods and removable disc valves. Air Stream Technology ensures the coolest, quietest air compressor in the industry. It includes an air compressor silencer designed to suppress operating noise level and offers super-quiet low RPMs with a solid cast iron construction for extended life. The compact Whisper 100 is located conveniently on the back of the tank and affordably dissipates compressor intake noise by channeling the intake air through a series of baffle plates and pre-filter media, which traps and dissipates intake noise. This bundle is equipped with a dryer specifically designed for this model and is the only energy efficient dryer system with an aluminum refrigerated air inner cooler. It filters all solid particles 0.01 microns and larger, so only clean, dry compressed air leaves the dryer, which minimizes maintenance and repair, as well as reducing internal dryer contamination. It features a stainless steel heat exchanger for maximum life, as well as adjustable hot bypass to prevent the dryer from freezing up in low and high CFM flow. We also include a full 5-Year Warranty to ensure confidence in our product and service.
  • California residents
  • All of our motors are low RPM (1750 RPM), which runs cooler, yields low harmonic distortion and provides higher torque in cold weather
  • Automatic tank drain with integrated dual timer automatically provides maintenance at a set time interval
  • Premium 5 layer filtration system prevents foreign matter from entering intake and extends pump life

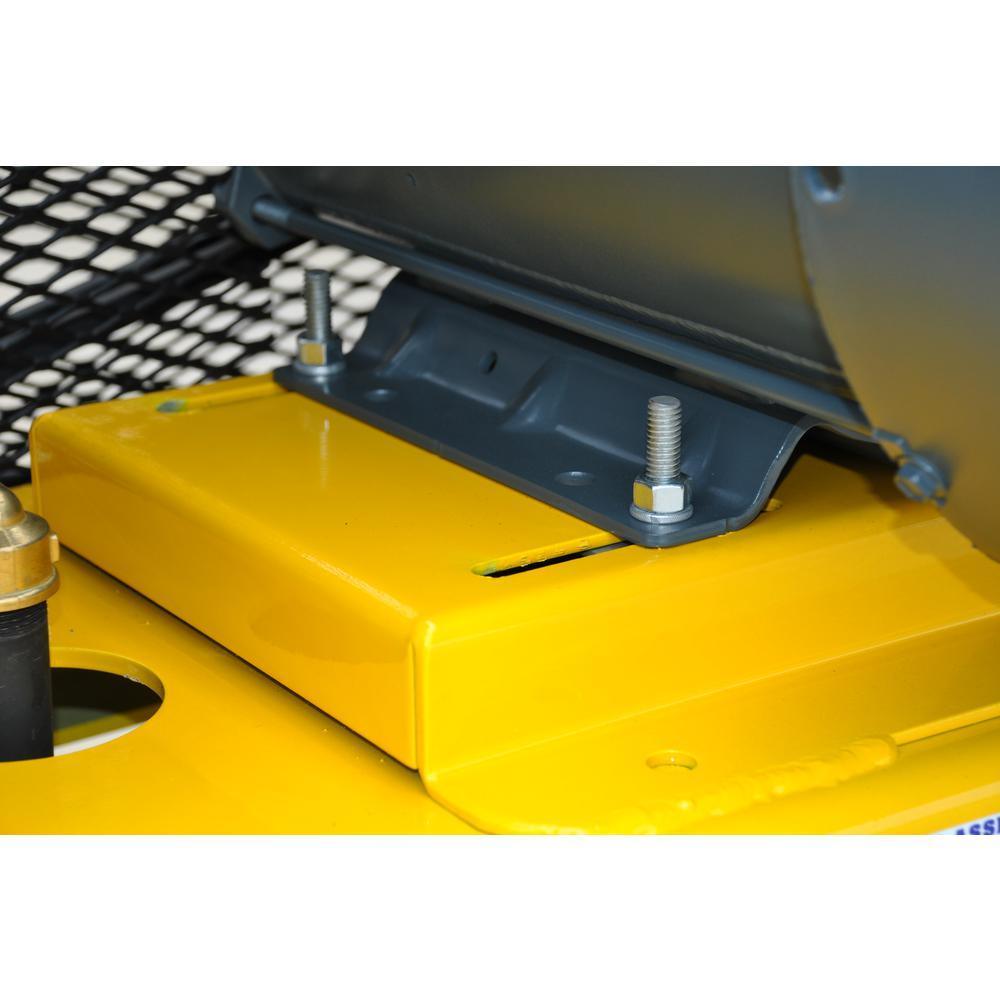

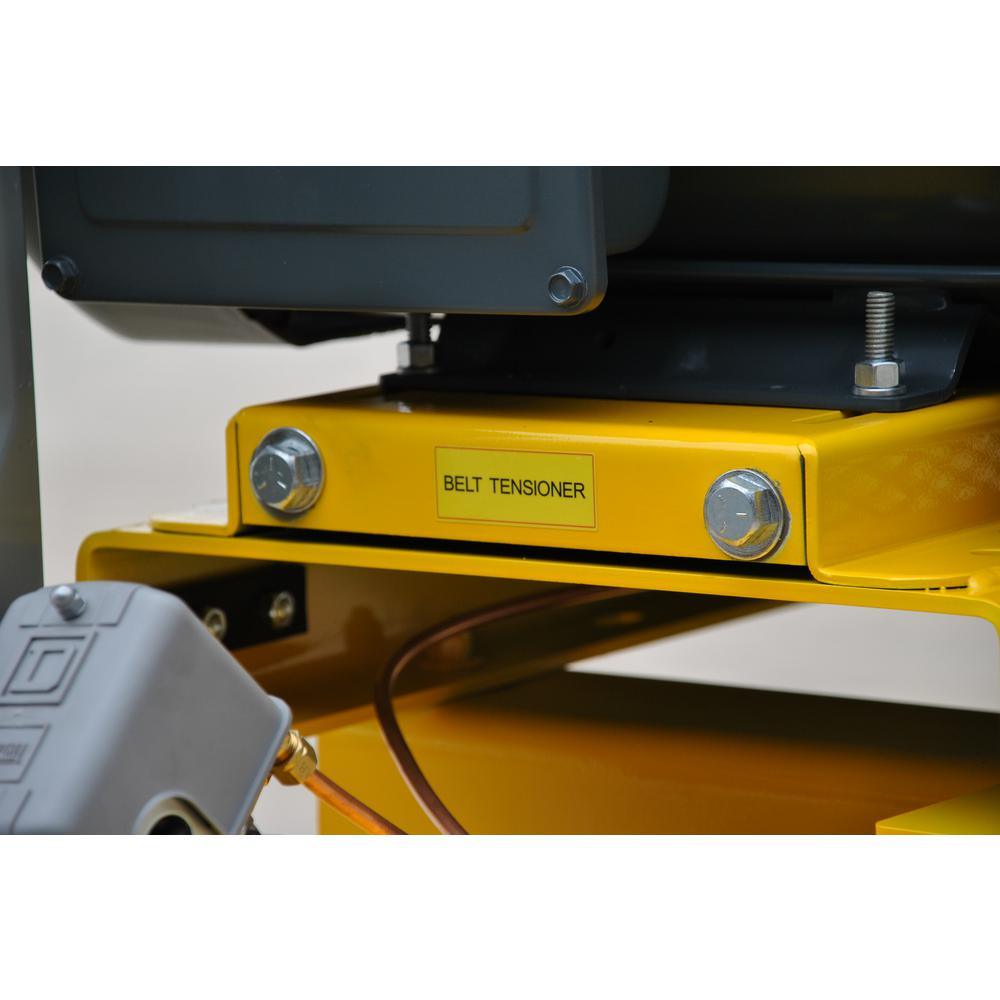

  • Automatic belt tensioner adjusts the tension and alignment of your belts easily and in just minutes

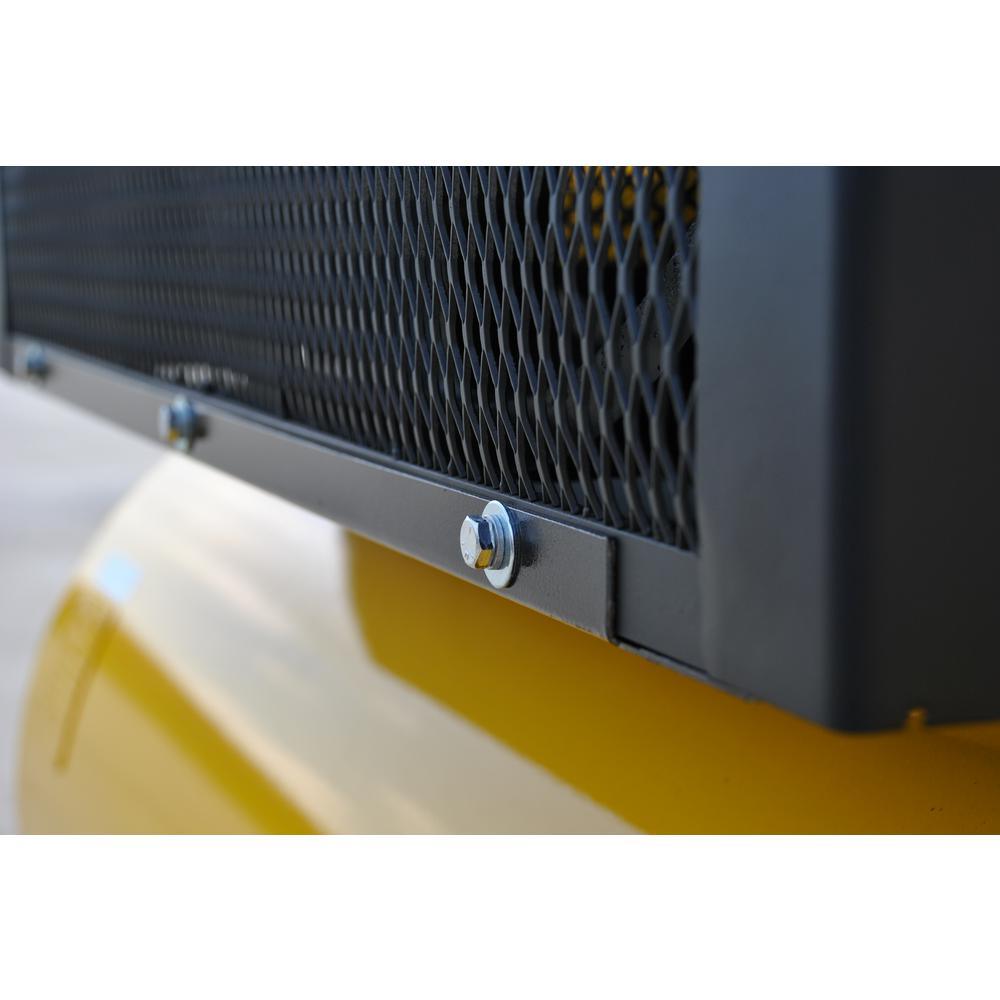

  • Belt guards built with 13G steel to be tougher than anything else in the industry
  • Designed for up to 50,000-hours of commercial or industrial use with proper maintenance
  • Ram-tek solid steel, heavy gauge rods are built for maximum performance and durability
  • We use 100% brass valves with Teflon seating and all safety valves comply to ASME code

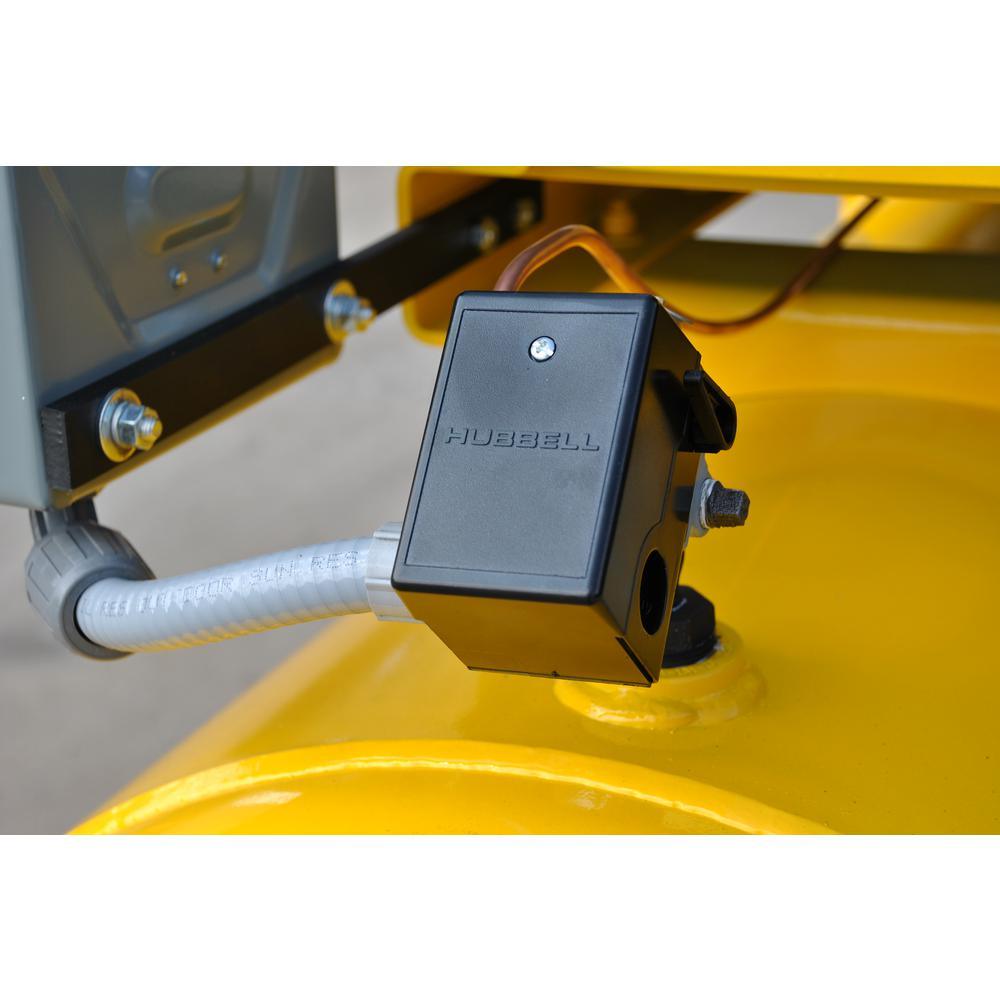

  • Has a pre-wired condor starter/pressure switch, featuring an actuation-type diaphragm

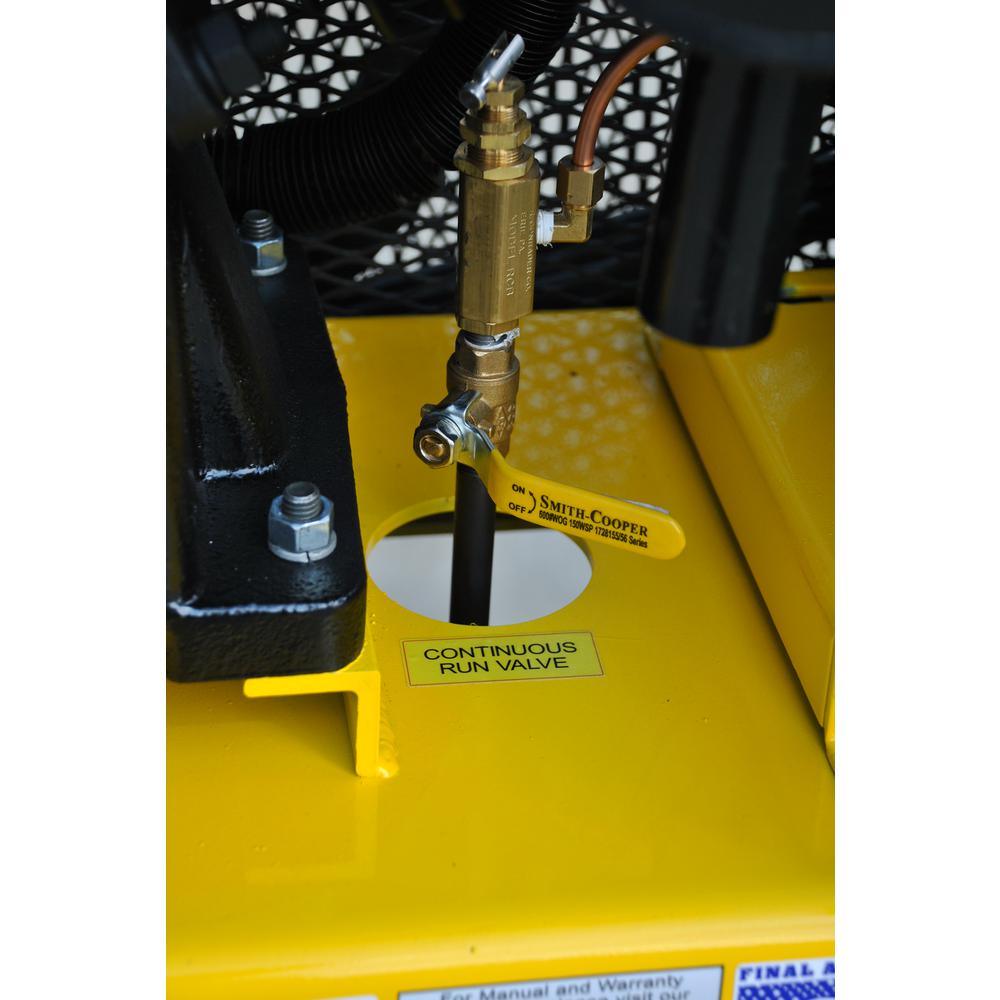

  • Continuous run prevents constant cycling, which causes wear on the magnetic contacts
  • Flow-tek concentric disc valves deliver maximum performance and longevity

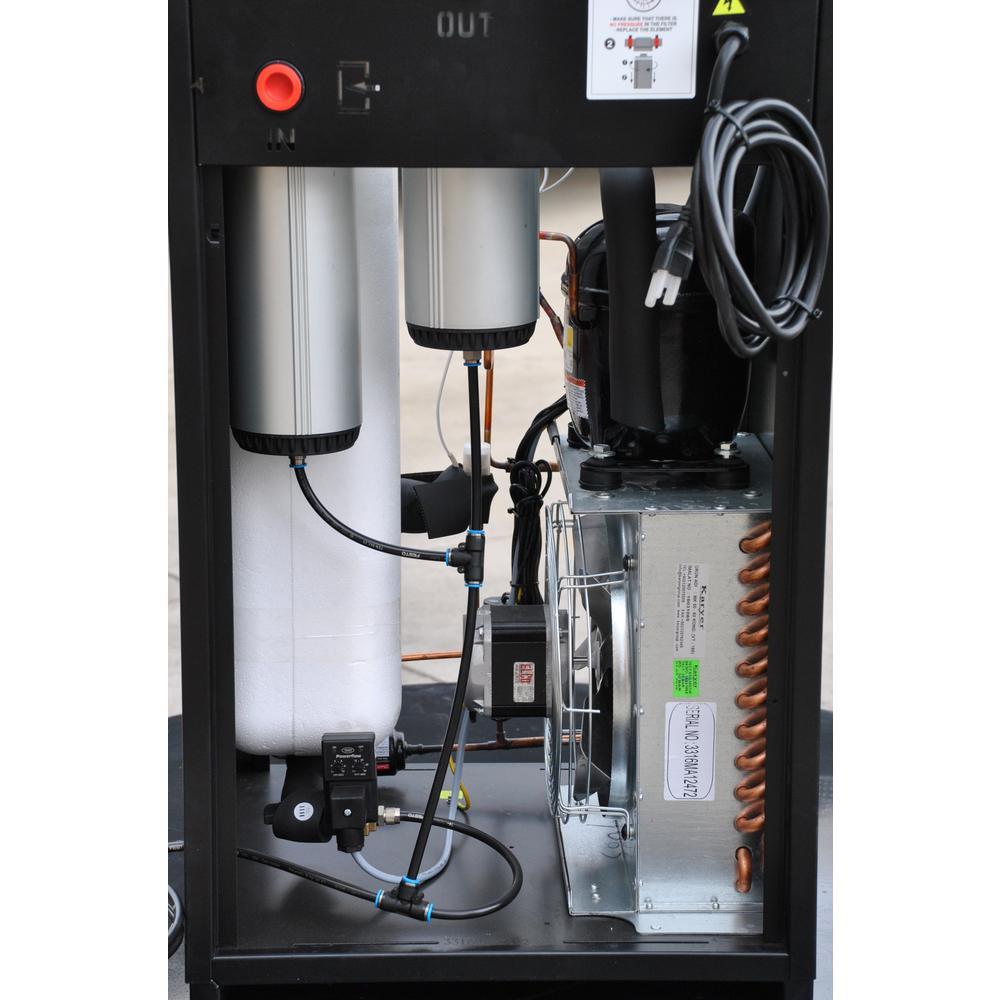

  • Refrigerated air dryer keeps water, oil and dirt out of your compressed air
  • Top quality compression and oil rings to ensure low oil carry over (1 PPM to 5 PPM)
  • Air dryer ensures less corrosion of pipes and tools for less down time
  • Air dryer uses 120-Volt single-phase power, no special wiring needed
  • Raised pump platform keeps your oil cool within the pump
  • Air dryer uses environmentally friendly R134 refrigerant
  • Note: this package does not come with a hydraulic hose or connection line


Features
Item Weight 920
Air Delivery SCFM @ 90PSI 41.0
Tank Material Cast Iron
Decibel Rating (Outdoor) 70 dBA
Power Type Corded Electric
Air Delivery SCFM @ 40PSI 45.0
Compressor/Air Tool Features Tank Pressure Gauge,With Dryer
Number of Total Batteries Included 0
Voltage (volts) 230
Compressor Tank Capacity (Gallons) 80
Product Weight (lb.) 752
Included No additional components or accessories are included
Amperage (amps) 24 A
Condition New
Voltage (v) 230v
Application Use Air Brushing,Blow Cleaning,Bolting/Wrenching,Brad Nailing/Stapling,Cutting,Drilling,Finish Nailing,Framing Nailing,Grinding,HVLP Painting,Hobby Nailing,Hobby Painting,Inflation,Roof Nailing,Sanding,Spraying,Surface Prep
Tank Style Vertical
Tools Product Type Air Compressor Kit
Maximum Pressure (psi) 175
Portable No
Compressor Volume Rating Quiet
Compressor Tank Capacity (Gal.) 80 Gal.
Horsepower (hp) 10 hp
Lubrication Type Oil-Lubricated
Returnable 180-Day
Compressor Type Garage & Industrial
Charger Included Charger Not Included
Reconditioned No
Battery Amp Hours No Battery
Battery/Charger Tool Only
Stage Count Two Stage
Power Source Electric
Product Height (in.) 72
Product Width (in.) 42
Product Depth (in.) 28
Certifications and Listings CSA Certified,ETL Classified,UL Certified
Manufacturer Warranty 5 Year Full Parts Warranty
