Eaton · Electrical

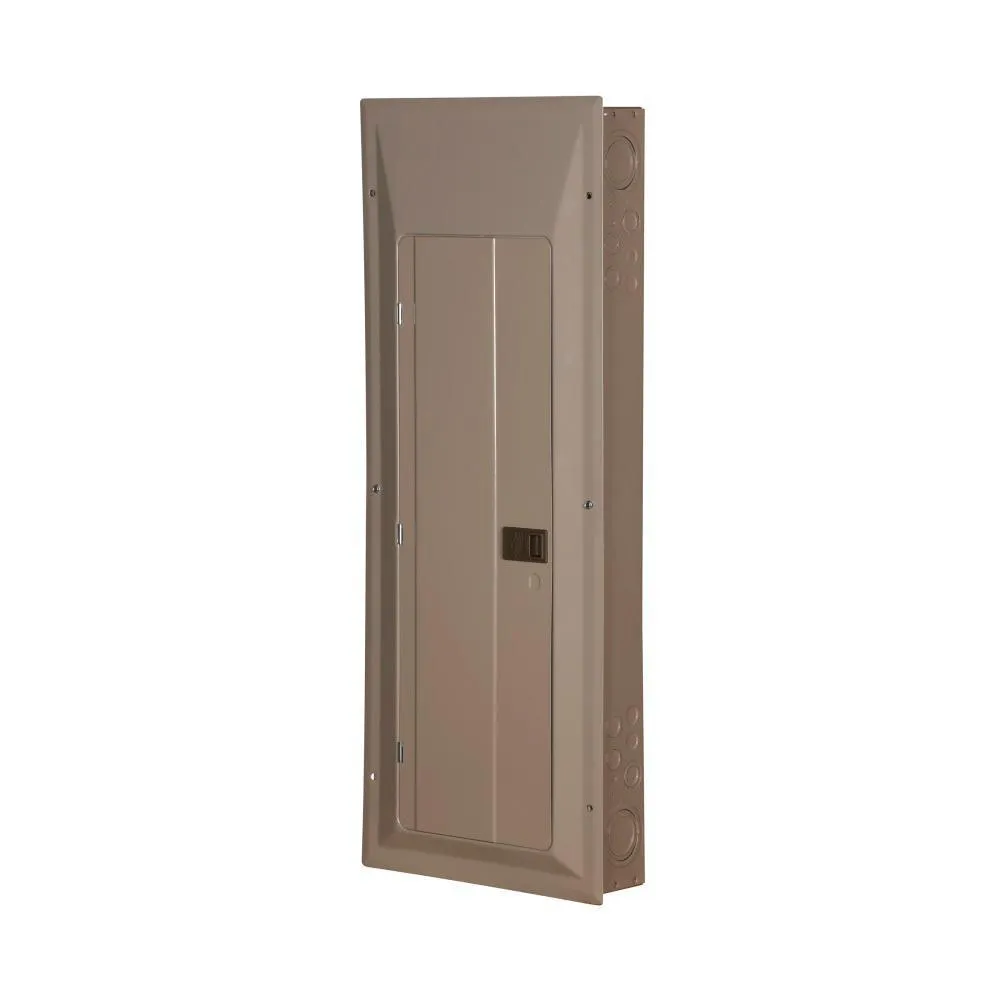

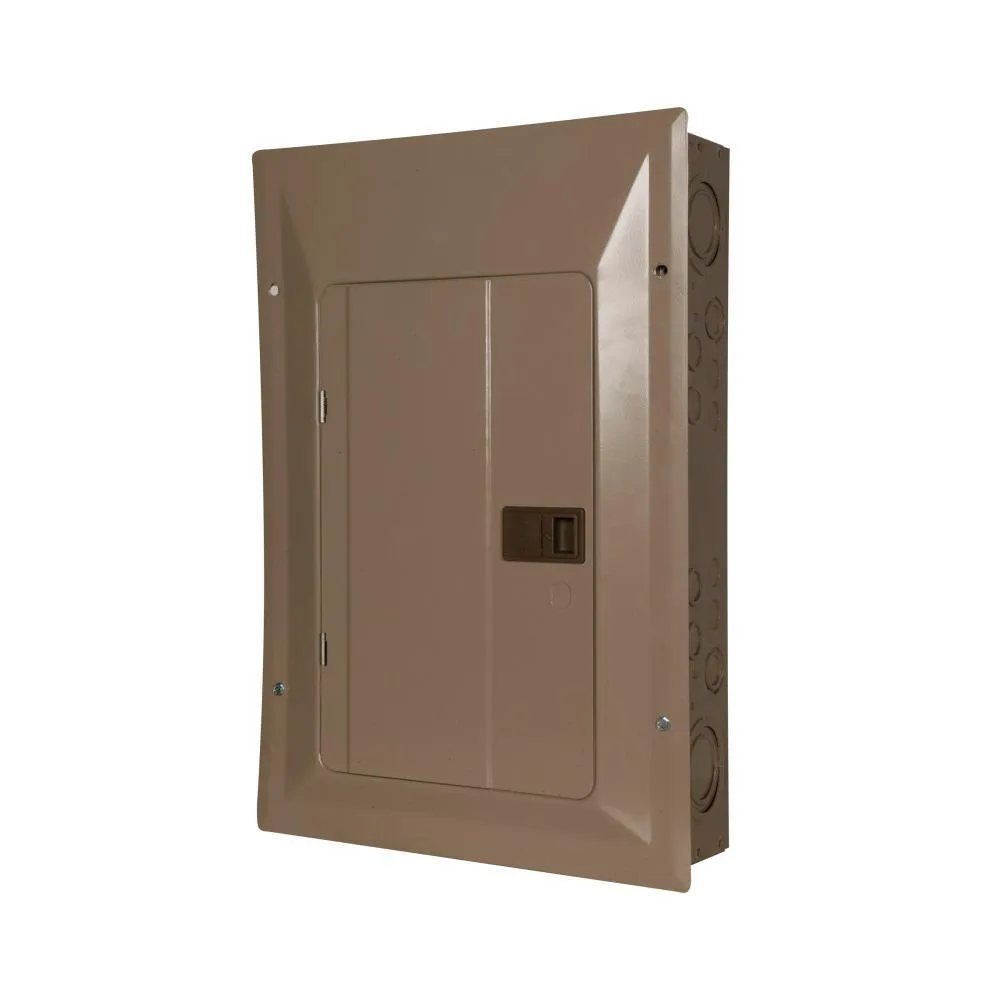

CH 200 Amp 84-Circuit Main Breaker Indoor Plug On Neutral Load Center Contractor Kit

42 spaces

$198.00 each

Orders start at $399. Combine any items to reach it.

Maximum Amperage: 200 A
Quantity
1 item
$198.00
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Eaton · Electrical

Details & specifications.

From the maker · Eaton’s description

Quick, easy and clean describe the new plug-on neutral design attributes offered by Eaton. Time saving features offer a quick installation equating to less time on the job. Designed to maximize installation efficiency and to provide additional convenience allowing for an easy installation. New features that help ensure an aesthetically clean and professional installation.

  • CH type plug-on neutral breaker box comes with 1-piece silver flashed copper bus providing superior conductivity, corrosion resistance and durability

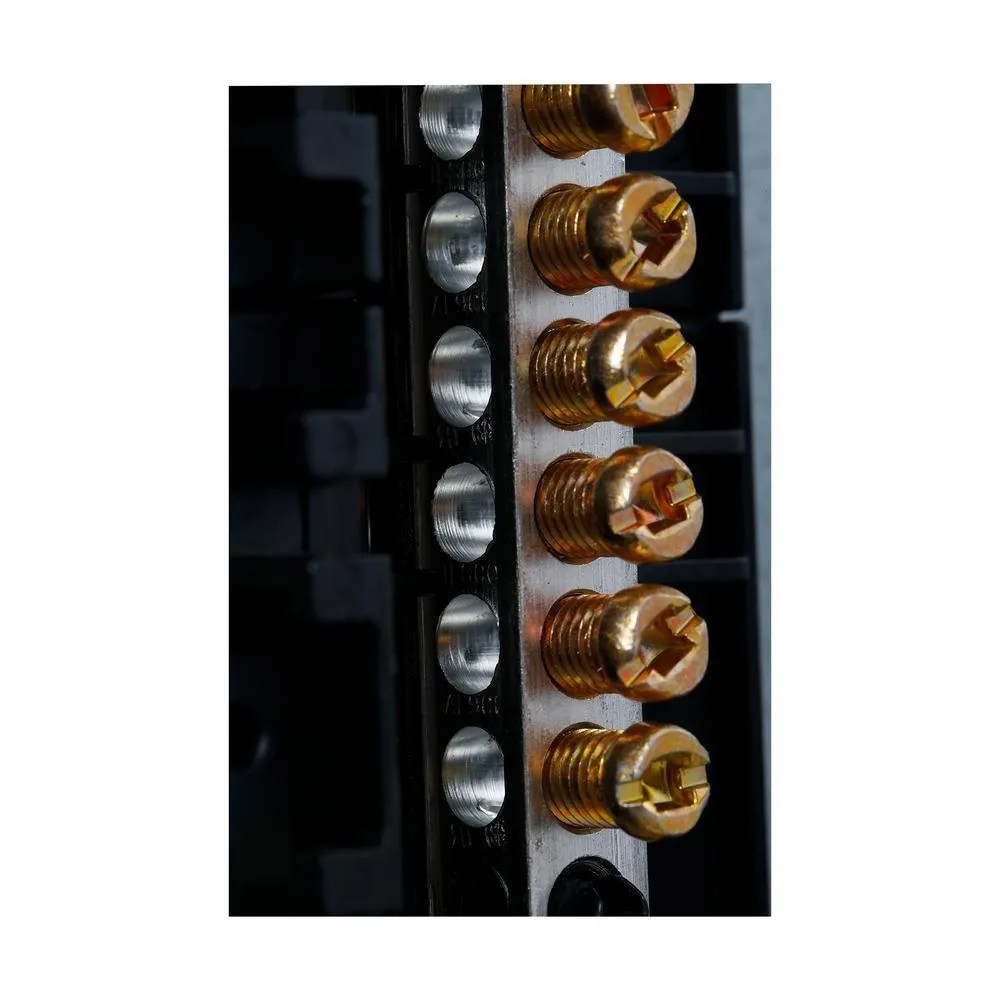

  • Full length neutral bars offer additional terminations to land the neutral and ground conductors
  • 2/0 lug is easily removable and can be installed in any location on the neutral bar
  • Backed out neutral screws allows for quick connection of neutral and ground conductors
  • Optimized knockout locations for additional access and easier to remove
  • Self-leveling tabs allow for quick drywall offset and helps simplify installation
  • Keyhole hanging feature allows for ease of cover installation for both top and bottom feed applications
  • Rigid cover spine provides strength when twist outs are removed allowing for easier removal
  • Amperage rating: 200 Amp
  • Cover: cover included
  • Enclosure: NEMA 1
  • Interrupt rating: 25kAIC
  • Wire size: #6-1/0 AWG
  • Used with: type CH 3/4 in. breakers
  • Eaton offers a full line of circuit breakers to meet all your protection needs including arc fault, ground fault, dual function and surge protection
SKU
306343889
UPC
786689058401
Spaces
42
Mounting
Bolt On
Location
Indoor
Circuits
84
Brand
Eaton
Maximum Amperage (amps)
200
Item Weight
41.18
Electrical Product Type
Load Center and Breaker Kit
Voltage (volts)
120/240
Load Center Type
Main Breaker
Indoor/Outdoor
Indoor
Product Weight (lb.)
41.18
Phase Type
1 Phase
Load Center Mounting Type
Flush
Load center width (in.)
15.75
Load center depth (in.)
38.8
Load center height (in.)
4.5
Manufacturer Warranty
Limited Lifetime Per Warranty Statement
Certifications and Listings
UL Listed
Full product name

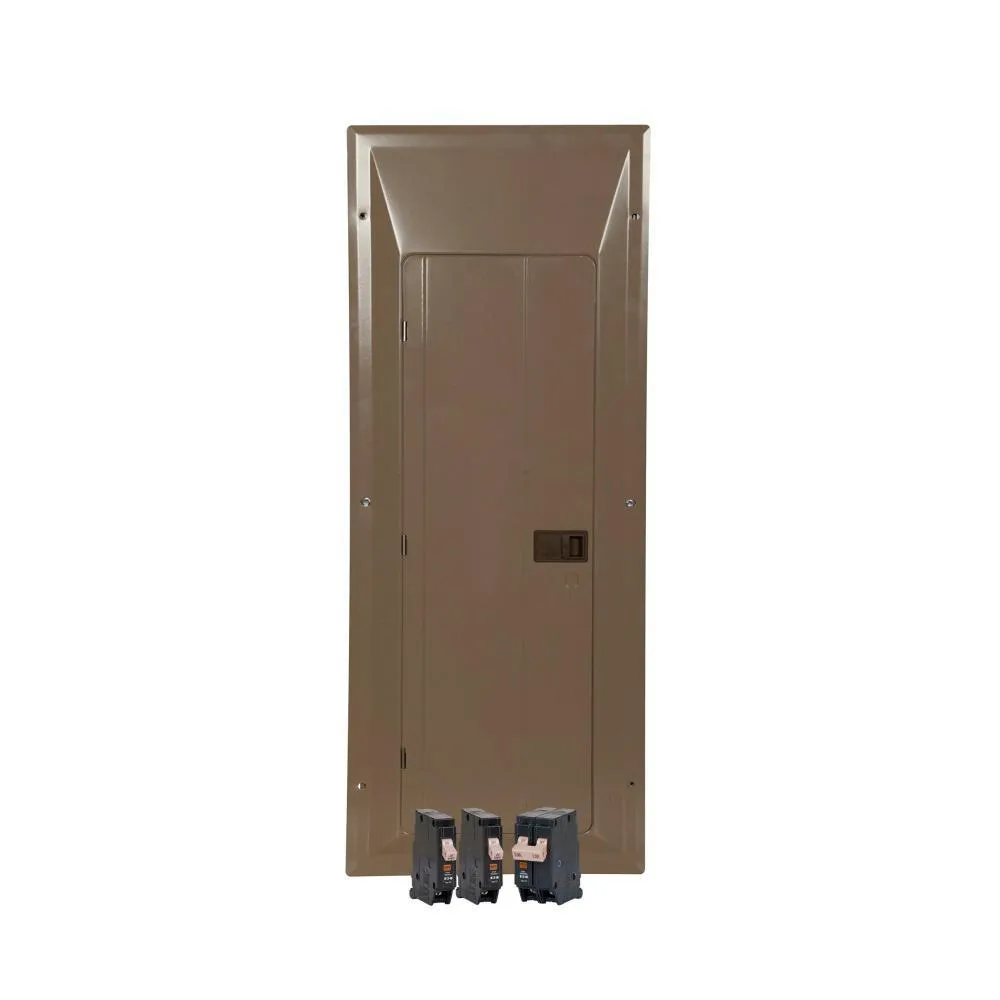

Eaton CH 200 Amp 84-Circuit Main Breaker Indoor Plug On Neutral Load Center Contractor Kit ((2) CHF120 and (1) CHF230)

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Before you buy a breaker

  1. 1

    Match the panel

    Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.

  2. 2

    Match the wire

    The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.

  3. 3

    Protection

    Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.

  4. 4

    Tandem and quad

    Two circuits in one space, only in the slots the panel label allows.
