Plumbing

Medium Duty 100 gal. 76K BTU Low NOx

100 gal tankGas69.625 in tall

$2,681.16 each

BTU Rating: 76000
Nominal Tank Capacity: 100 gal
Quantity
1 item
$2,681.16
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Plumbing

Details & specifications.

From the maker · the maker’s description

The Rheem Medium Duty Gas water heaters short heights and small jacket diameters result in greater installation flexibility and makes this unit ideal for easy replacements. Typical applications include large residences, small restaurants, apartments up to 6 units and small office buildings. 160 maximum operating temperatures. Factory installed CSA/ASME temperature and pressure relief valve reduces installation time.

  • California residents
  • California and Utah residents (Utah effective 7/1/18): this water heater does not meet Ultra Low NOx (ULN) emissions requirements, regulations prohibit the sale, shipment or installation of this water heater in any air quality district that requires ULN water heaters
  • Texas residents: this water heater does not meet Low NOx (LN) emissions requirements, regulations prohibit the sale, shipment or installation of this water heater in any air quality district that requires Low NOx water heaters
  • Space saving design: short heights and narrow jacket diameters offer the ultimate in installation flexibility
  • Strong tank design: proprietary steel formulation with a unique coat of high temperature porcelain enamel to maximize corrosion resistance resulting in a superior tank design
  • Built-in corrosion resistance: patented magnesium anode rods are used to ensure corrosion resistance for a long tank life
  • Direct spark to pilot ignition system: saves energy by igniting only when there is a call for heat
  • Automatic controls: control system is designed to shut off gas if the pilot flame is extinguished and relighting is a safe, easy procedure, and a built-in gas pressure regulator assures even gas flow
  • Thermostat: easy to set with settings up to 160°F
  • Built-in features: CSA/ASME rated factory-installed T and P relief valve
  • Easy to service: factory installed full port, full flow brass drain valve allows for faster draining and servicing
  • Need a different configuration, no problem; our medium duty line offers water heaters in 75 gal. and 98 gal. models available in natural gas and Ultra Low NOx
  • Call 1-855-400-2552 before noon for same-day installation service in most areas, or
SKU
304684290
UPC
020352562117
Tank
100 gal
Fuel
Gas

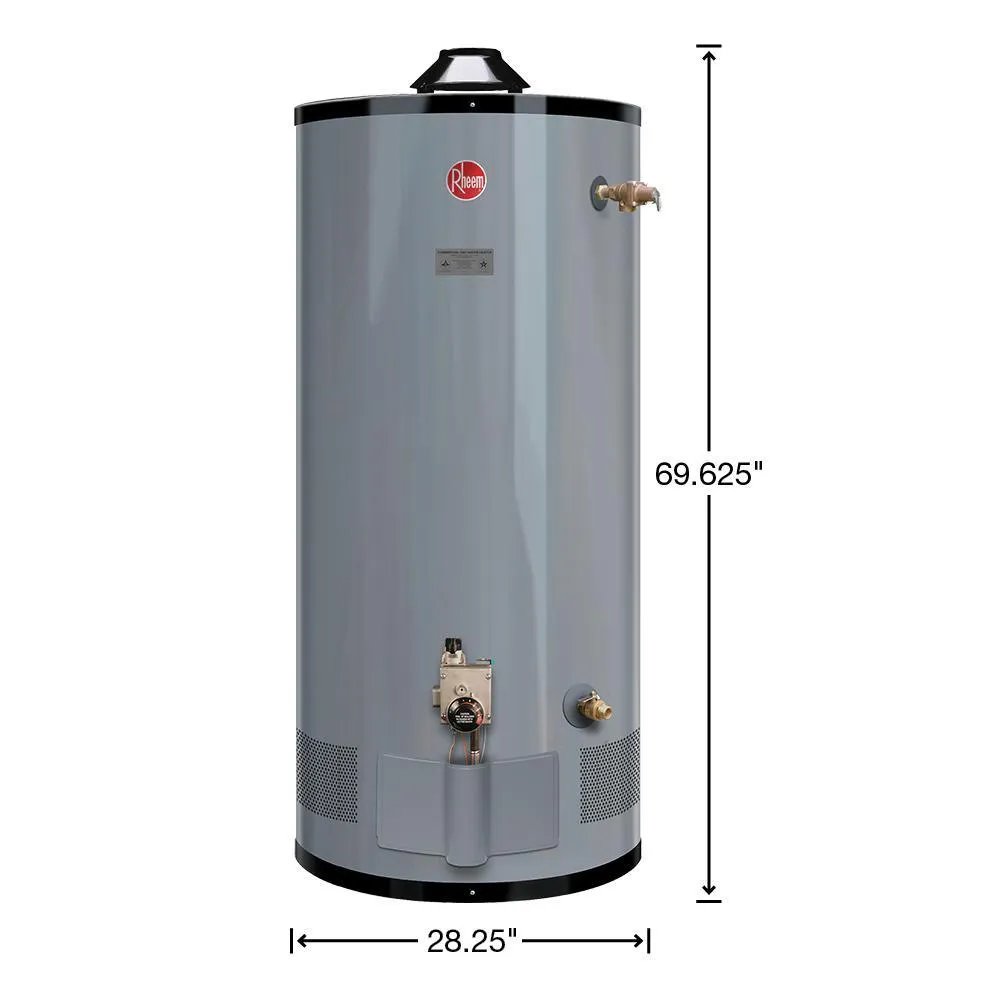

Height
69.625 in
Recovery rate
78 gal/h
Width
28.25 in
BTU Rating
76000
Item Weight
405
Uniform Energy Factor
0
Tank Lining Material
Glass
Commercial/Residential
Commercial
Application Type
Commercial
Water Heater Features
LoNox, Overheat Protection, Temperature Pressure Relief Valve
Tank Warranty
3 Year
Wattage (watts)
0
Maximum Temperature (F)
180
Water Heater Profile
Tall
Finish Family
Gray
Minimum Temperature (F)
70 °F
Indoor/Outdoor
Indoor
Product Weight (lb.)
405 lb
Pack Size
1
Vent Type
Atmospheric
Household Size
5+
Product Depth (in.)
28.25 in
Water Connection Size (in.)
1.5
Tank Valve Size (in.)
0.75
Part Warranty
1 Year
Labor Warranty
No Warranty
Certifications and Listings
CSA Listed, UL Listed
Full product name
Medium Duty 100 gal. 76K BTU Low NOx (LN) Commercial Natural Gas Tank Water Heater

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.
