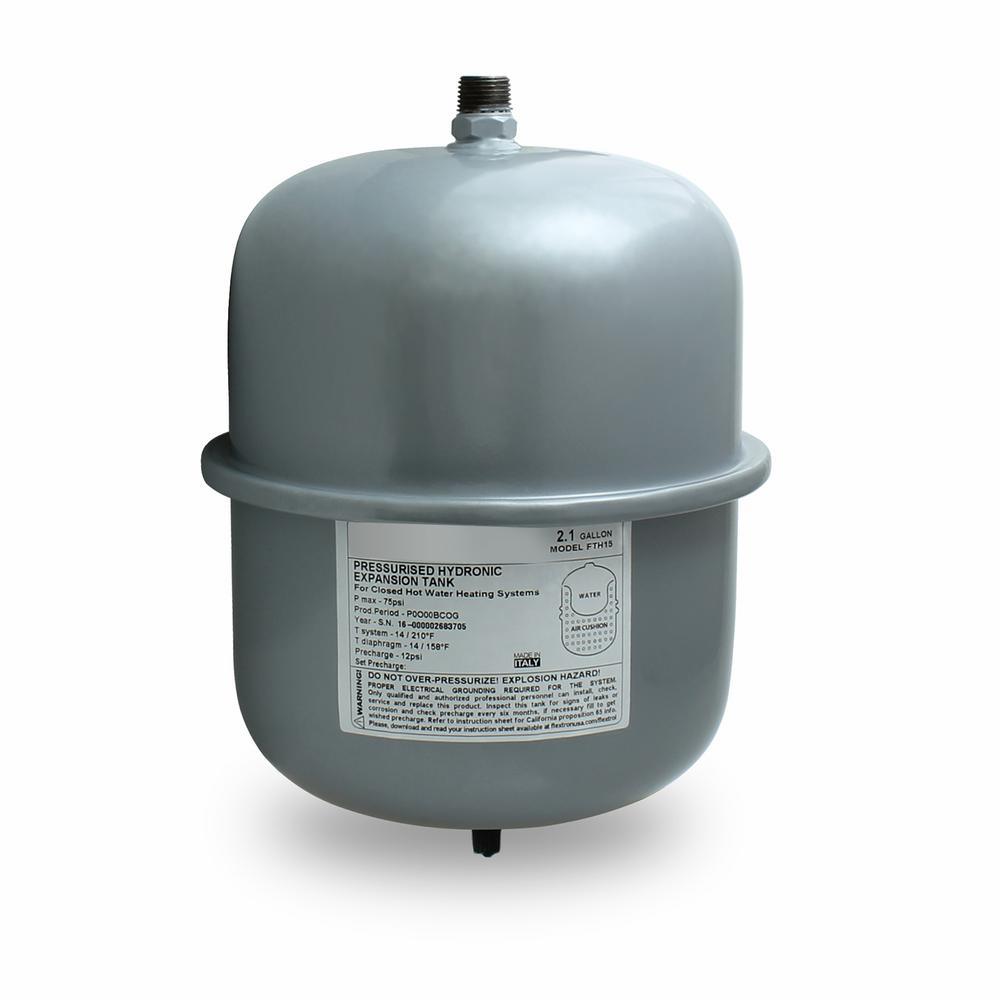

2.1 Gal. Non-Potable Hot Water Hydronic Expansion Tank
Regular price $29.99/
Shipping calculated at checkout.

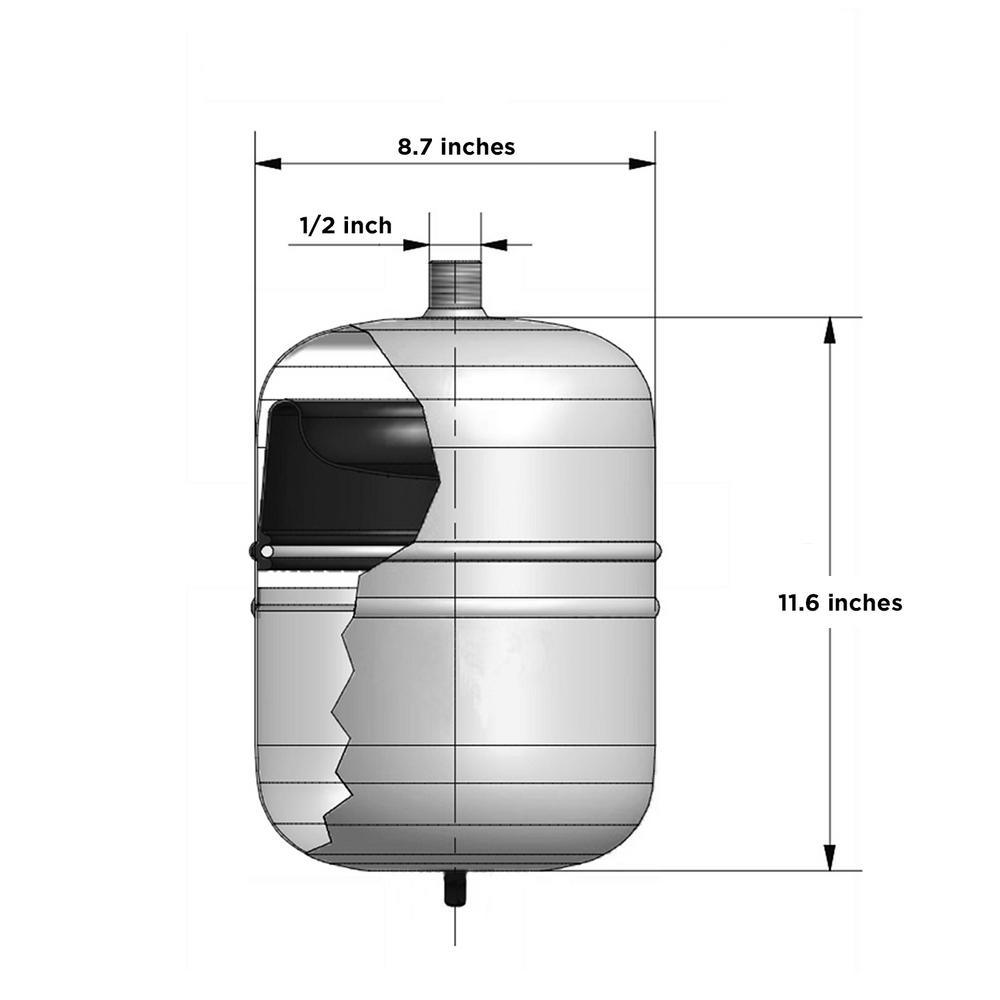

Hydronic Expansion Tanks are designed to keep system pressures below relief valve settings. Low profile tank design with full membrane depth which eliminates stretching of diaphragm and providing increased life cycle. It absorbs all the expansions of water in residential and commercial hydronic heating and cooling systems. Protects safety valves from failing or wearing out quickly. Avoids valve stem and ball seal leaks which prevents from wasted BTUs and vastly extends water heater life. Measures 11.6 in. L x 8.7 in. W x 11.6 in. H, tank size 2.1 Gal. and tank weight 4.6 lbs.
Features
- All diaphragms designed to maximize drawdown
- Low profile tank design with full membrane depth eliminates stretching of diaphragm, providing increased life cycle
- Protected pre charge valve eliminates potential leak path
- External baked epoxy-polyester coating provides a durable appliance finish
- MIG welding eliminates interior rough spots and sharp edges
- Certified synthetic SBR rubber diaphragm
- Each tank is factory leak tested to ensure tank integrity
- Welded side outlet allows easy and quick installation
- Maximum operating pressure 2.1 Gal. 75 psi
- Operating temperature: 210°F
- Factory pre-charge: 12 psi
- Shell: carbon steel
- Connection: carbon steel
- Diaphragm: SBR synthetic rubber
- Color: gray
- 1 Year Warranty
Features
| Item Weight | 4.6 |
| Material | Shell made of carbon steel, Connection with Stainless steel |
| Product Weight (lb.) | 4.6 |
| Finish Family | Gray |
| Pack Size | 1 |
| Compatible Brand/Model | The Plumber's Choice |
| Returnable | 180-Day |
| Product Height (in.) | 11.6 |
| Product Width (in.) | 8.7 |
| Product Depth (in.) | 11.6 |
| Manufacturer Warranty | 1 Year Warranty |
