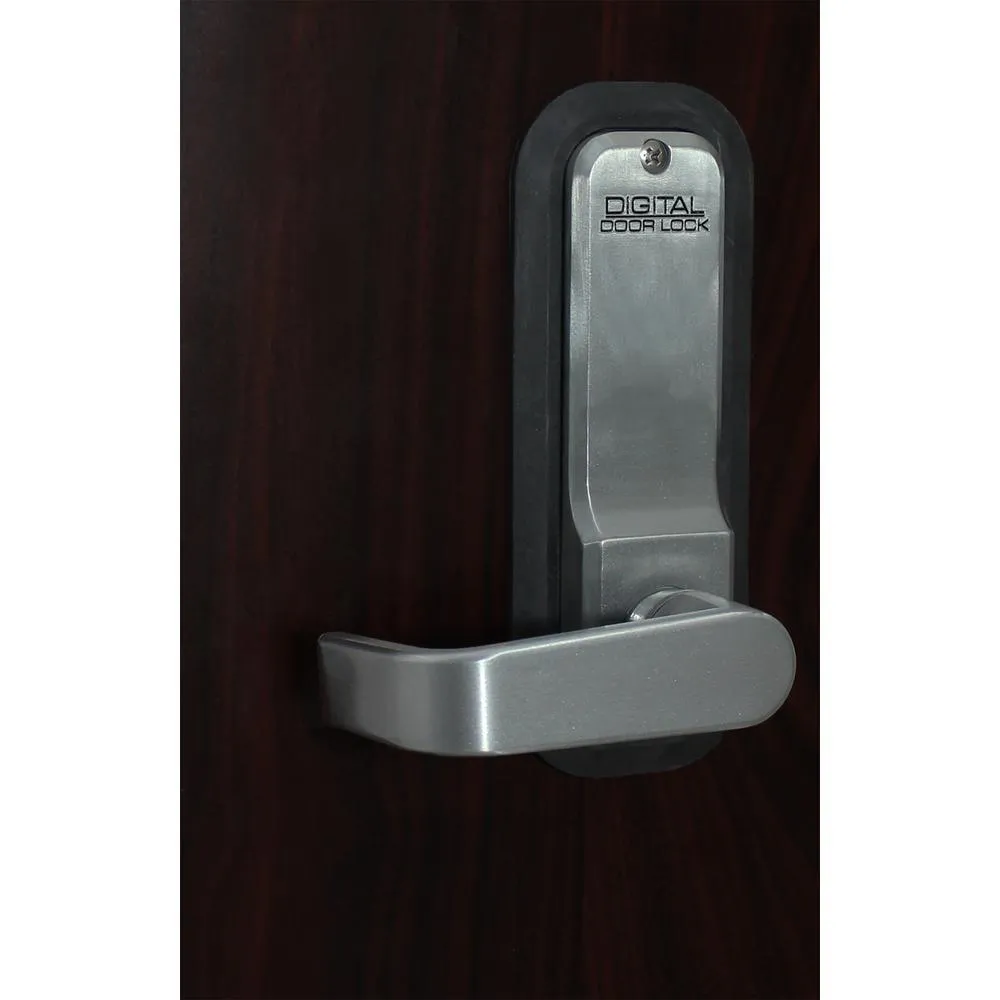

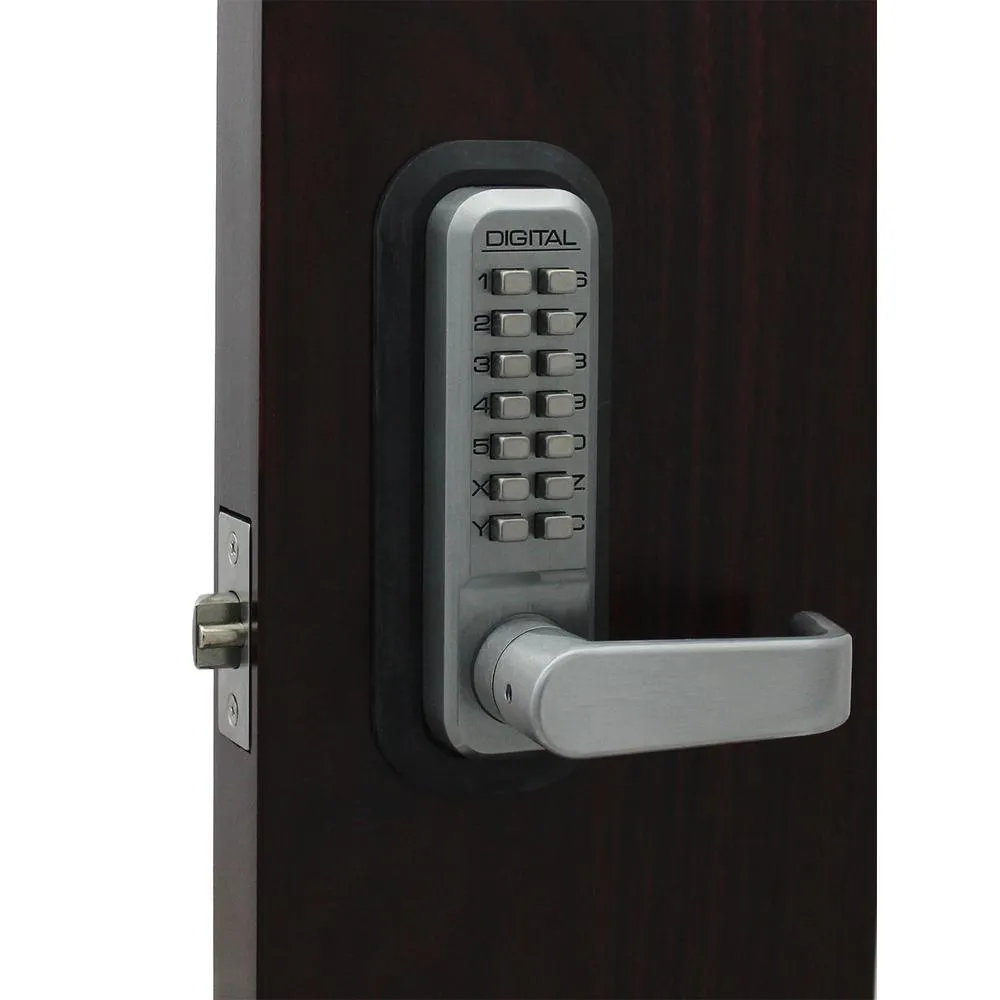

2835 Marine Grade Keyless Mechanical Passage Handleset Door Lever Lock

Keypad or smartAdjustable

$176.05 each

Orders start at $399. Combine any items to reach it.

  • Handing Universal
Quantity
1 item
$176.05
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Hardware

Details & specifications.

From the maker · the maker’s description

LockeyUSA 2835 Marine Grade Digital Door Lock is a 100% mechanical door lock with a programmable passcode that gives you ultimate control and peace-of-mind security. From the tumbler pins, internal plate screws, push buttons, and craftsmanship of the front and back lock housing, this lock is all about safety and performance. This auto-locking mechanical door lock can be used for residential doors, office entry, interior doors, gates, and any vulnerable points throughout your property where you want to restrict access. The ADA-compliant levers are full-size with a weather-resistant finish for lasting wear. The 2835 Digital Door Lock offers a built-in passage feature for occasions where you want to enter and exit freely without entering a punch code. On the keypad housing of the lock you can quickly change the function from normal to passage mode for convenient access. In passage mode, the door will latch shut, but not lock. This comes in handy for office spaces and small businesses where you want to give clients or customers easy access during the day.

  • Mechanical, keyless lever lock
  • One user code with thousands of possible combinations
  • Lever handle on exterior and interior
  • Auto-locking with passage function
  • Reversible handing
  • ADA Compliant
  • Adjustable latch
  • Dimensions: 5 5/8″ L x 1 5/8″ W x 2 1/4″ D
  • Total Coverage with Trim Plates: 6 1/2″ H x 2 1/2″ W
  • ADA Lever Size: 4″ W x 1″ H
  • Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
  • Material: Zinc-plated steel Teflon coated stainless steel interior components
  • For Exterior & Interior Use
  • Weather Resistant
SKU
303141912
Function
Keypad or smart
Finish
Silver
Backset
Adjustable
Style
Modern
Item Weight
3
Lock Type
Keypad, Latch, Push Button
Minimum door thickness (in.)
1.38
Lock Type2
Unkeyed
Door Handing
Universal
Commercial/Residential
Commercial, Residential
Keying Type
Keyed Different
Handleset Product Type
1 Piece Front & Back
Keyway
No Keyway
Lever style
Straight
Interior/Exterior
Interior/Exterior
Material
Zinc
Door Locks & Knobs Product Type
Unkeyed Handlesets
Features
Adjustable Backset, Automatic Relocking, Combination, Easy Installation
Electronic/Mechanical
Mechanical
Knob/lever strike
Square corner
Application Type
Entry, Passage
Included
Hardware, Installation Instructions
Product Weight (lb.)
3 lb
Assembled Depth (in.)
2.25 in
Lever grip length (in.)
4
Outside handle and key plate length (in.)
5.625
Knob/lever bore hole diameter (in.)
2.125
Maximum door thickness (in.)
2
Assembled Height (in.)
5.5 in
Inside plate length (in.)
5.625
Inside plate width (in.)
1.625
Knob/lever strike height (in.)
2
Projection (in.)
3
Knob/lever strike width (in.)
1
Knob/lever housing height (in.)
6.5
Knob/lever housing width (in.)
2.5
Knob/lever cross bore diameter (in.)
1
Assembled Width (in.)
1.63 in
Outside handle and key plate width (in.)
2.625
Outside handle plate on-center measurement (in.)
4
Knob/lever throw length (in.)
2
Handle grip length (in.)
1
Manufacturer Warranty
Lifetime Mechanical Warranty, must be sent in for warranty
Certifications and Listings
No Certifications or Listings
