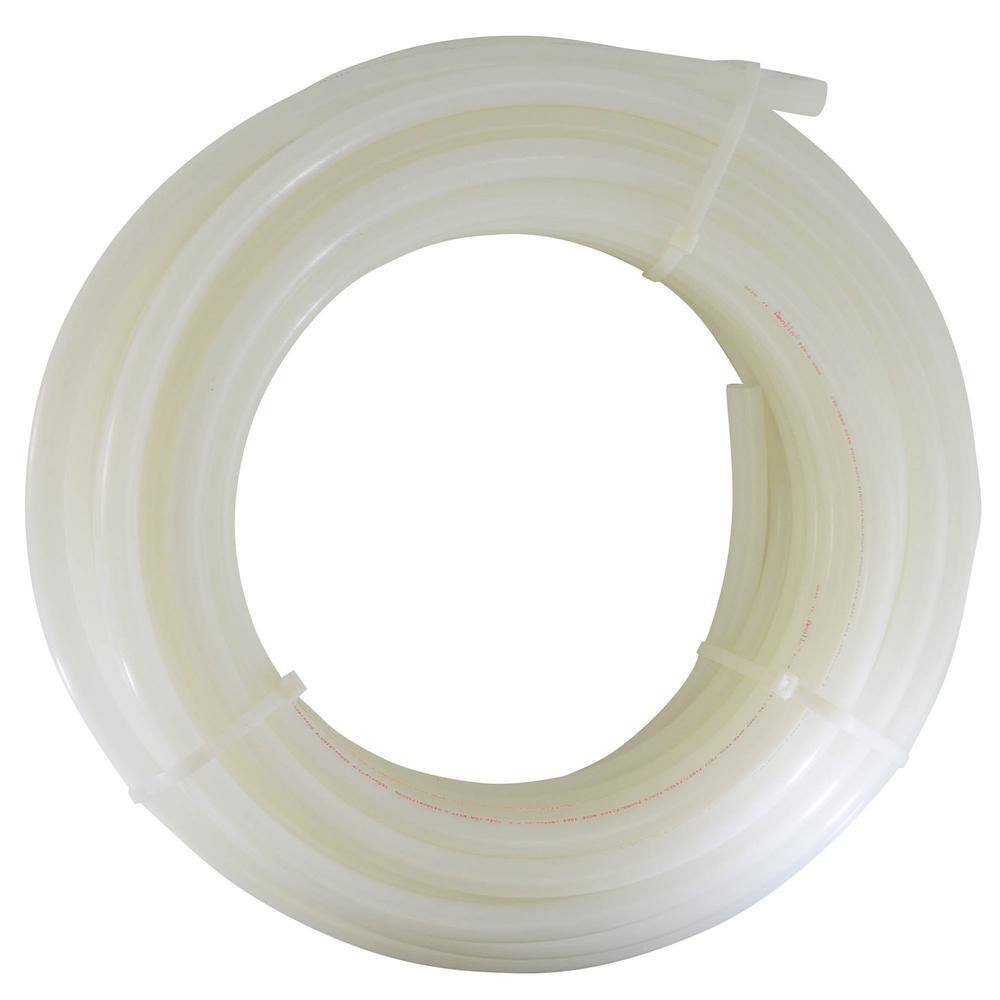

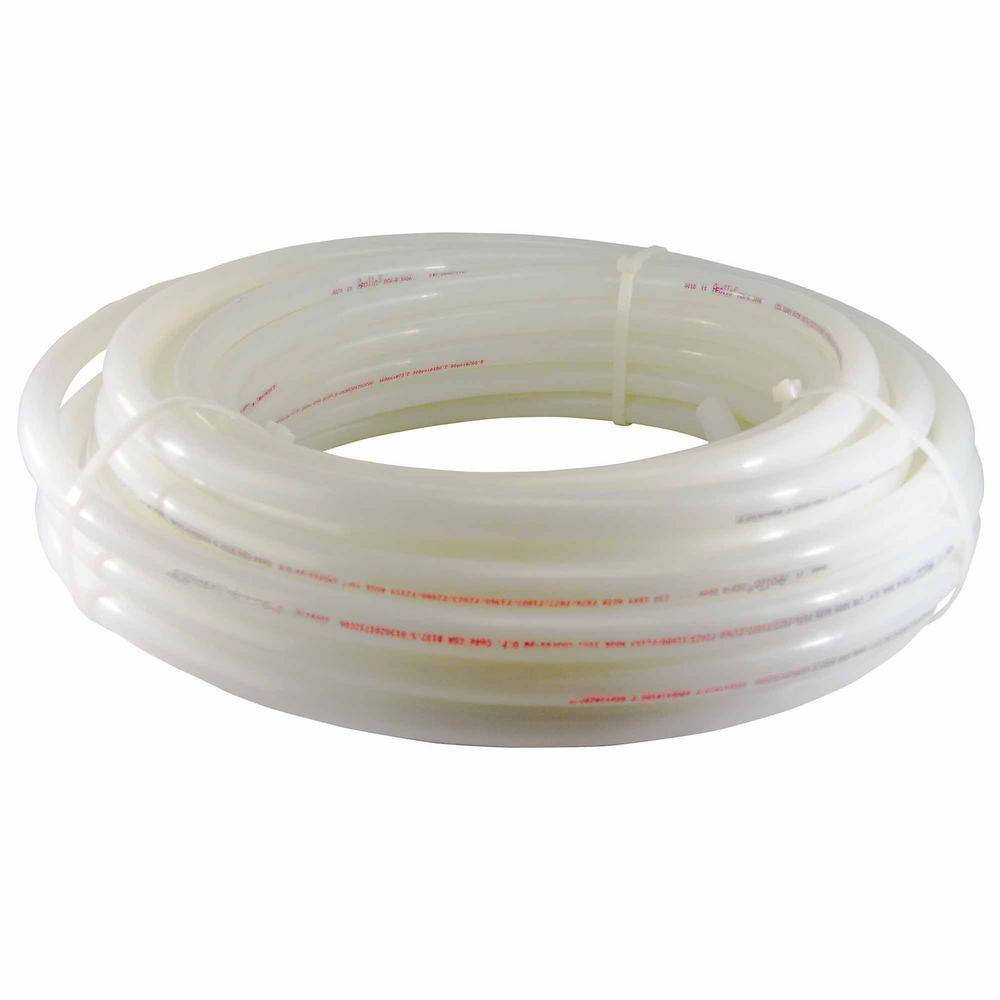

Apollo 1 in. x 100 ft. Red PEX-A Expansion Pipe
Regular price $123.141" x 100' Red PEX-A Expansion Pipe
Durable, flexible PEX-A tubing for potable hot-water lines and high-demand plumbing runs. Designed for expansion fittings to deliver full-flow performance with fewer joints and reduced leak points.
Key Features:
- Flexible PEX-A Construction: Resists kinks and coil memory for easier routing and fewer fittings

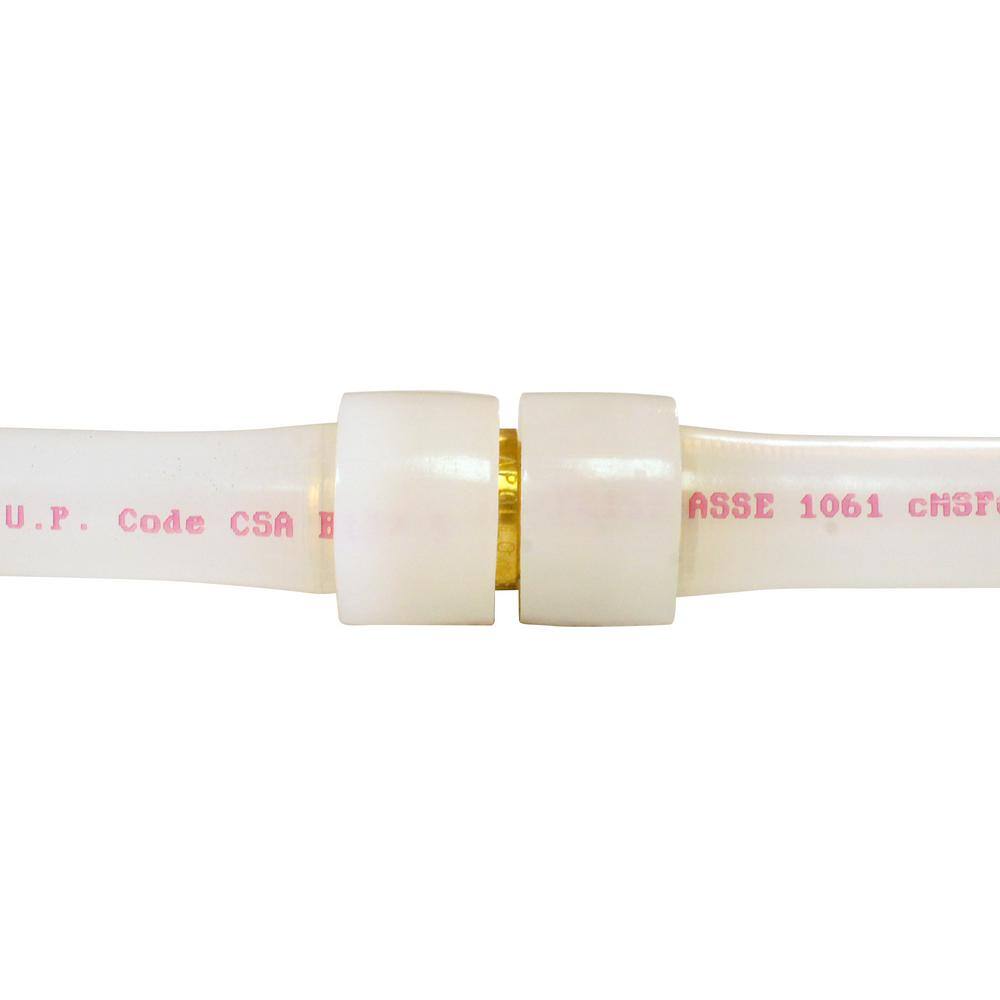

- Full-Flow Expansion System: Shape-memory tubing shrinks onto ASTM F1960 fittings for strong, reliable connections

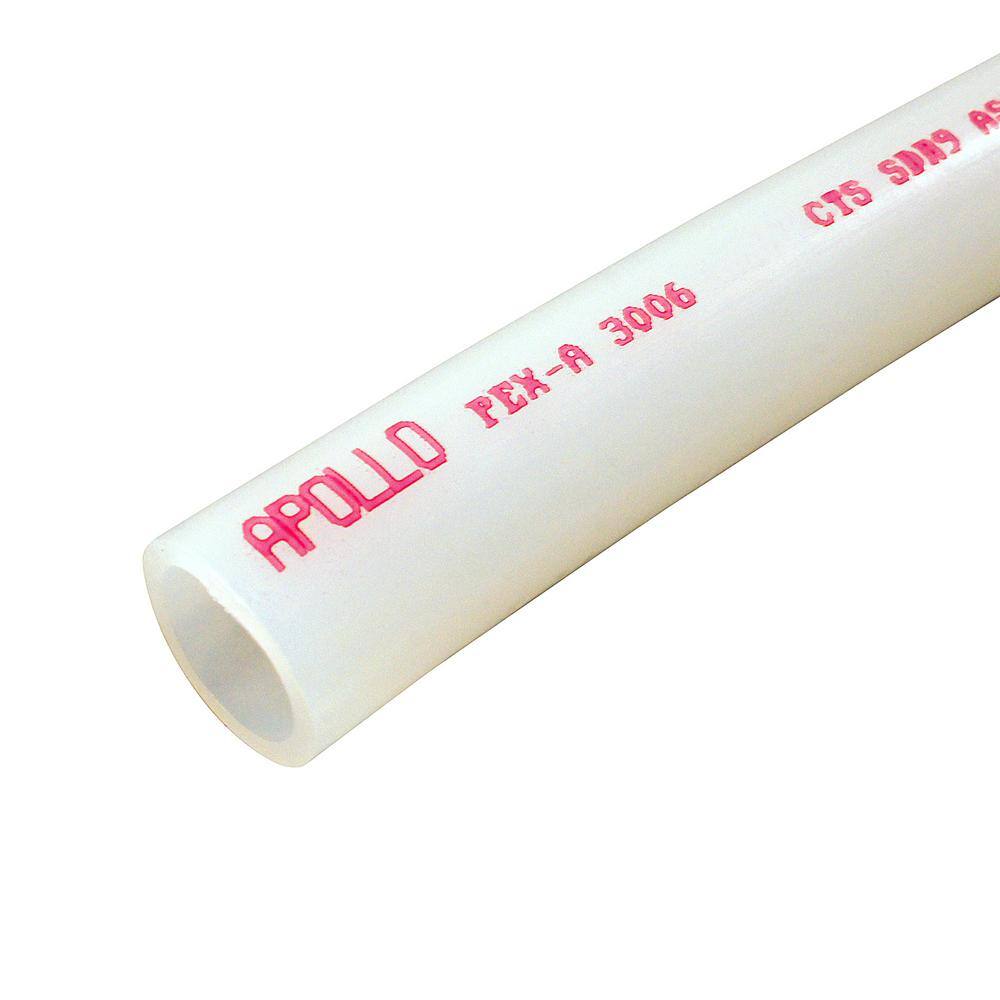

- Hot-Water Identification: Opaque pipe with red print line clearly marks hot-water distribution
- High Performance Ratings: Up to 160 psi at 73.4°F and 200°F max working temperature
- Broad Compatibility: Works with expansion, crimp, clamp, sleeve, and select push-to-connect systems
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Application | Potable Water |
| Color Family | Red |
| Color/Finish | Red with red print line (opaque pipe) |
| Connectivity | Barb; Expansion; Crimp/Clamp/Sleeve compatible |
| Material | Cross-Linked Polyethylene (PEX) |
| Maximum Flow Rate | 7.5 gpm |
| Maximum Working Temperature (F) | 200 |
| Maximum Working Pressure (psi) | 160 |
| Minimum Working Temperature (F) | 32 |
| PEX Type | A |
| Pack Size | 1 |
| Pipe Features | Corrosion Resistant, Flexible, Heat-reparable if kinked |
| Pipe or Fitting Product Type | Pipe & Tubing |
| Product Weight (lb.) | 17.2 |
| Actual Inside Diameter (in.) | 0.863 |
| Actual Outside Diameter (in.) | 1.125 |
| Nominal Inside Pipe Diameter (in.) | 1 |
| Pipe Wall Thickness (in.) | 0.131 |
| Product Length (ft.) | 100 |
| Standards | ASTM F876, F877, F1807, F1960, F2023, F2080, F2159; CSA B137.18; cNSFus-pw |
| Compatibility Notes | Compatible with Uponor and Wirsbo systems; Tectite by Apollo push-to-connect |
| Installation Environments | Concrete, gypsum-based lightweight concrete, sand, asphalt, under wood flooring, behind wallboard or plaster |
| Pressure/Temperature Ratings | 160 psi @ 73.4°F; 100 psi @ 180°F; 80 psi @ 200°F |
| Certifications and Listings | ASTM Compliant, NSF Listed |
| Manufacturer Warranty | 25 Years (exclusive use with ASTM F1960 fittings) |
Frequently Asked Questions (FAQ):
Q: What fittings are compatible?
A: Supports ASTM F1960 expansion fittings and is also compatible with crimp, clamp/sleeve methods and Tectite by Apollo push-to-connect fittings.
Q: Is this safe for potable water?
A: Yes, it is NSF listed and designed for potable water applications.
Q: What are the temperature and pressure ratings?
A: Maximum 160 psi at 73.4°F, 100 psi at 180°F, and 80 psi at 200°F.
Q: Can it be installed in concrete or under flooring?
A: Yes, it may be installed in concrete, lightweight gypsum concrete, sand, asphalt, in/under wood flooring, or behind wallboard or plaster.
Q: How long is the warranty?
A: 25-year manufacturer warranty when used exclusively with ASTM F1960 fittings.
Streamlined Warmth for Modern Plumbing Lines
This PEX-A expansion pipe brings a clean, minimal presence to utility runs, tracing sculptural curves through mechanical rooms and under floors. The subtle red print line nods to hot-water functionality while keeping the look crisp and unobtrusive. Pair it with brass expansion fittings for a refined, efficient installation that feels intentional. It’s a smart essential that elevates everyday performance to a quietly luxurious standard.
Upgrade your hot-water lines with flexible, full-flow PEX-A that installs fast and lasts—add to cart now.
