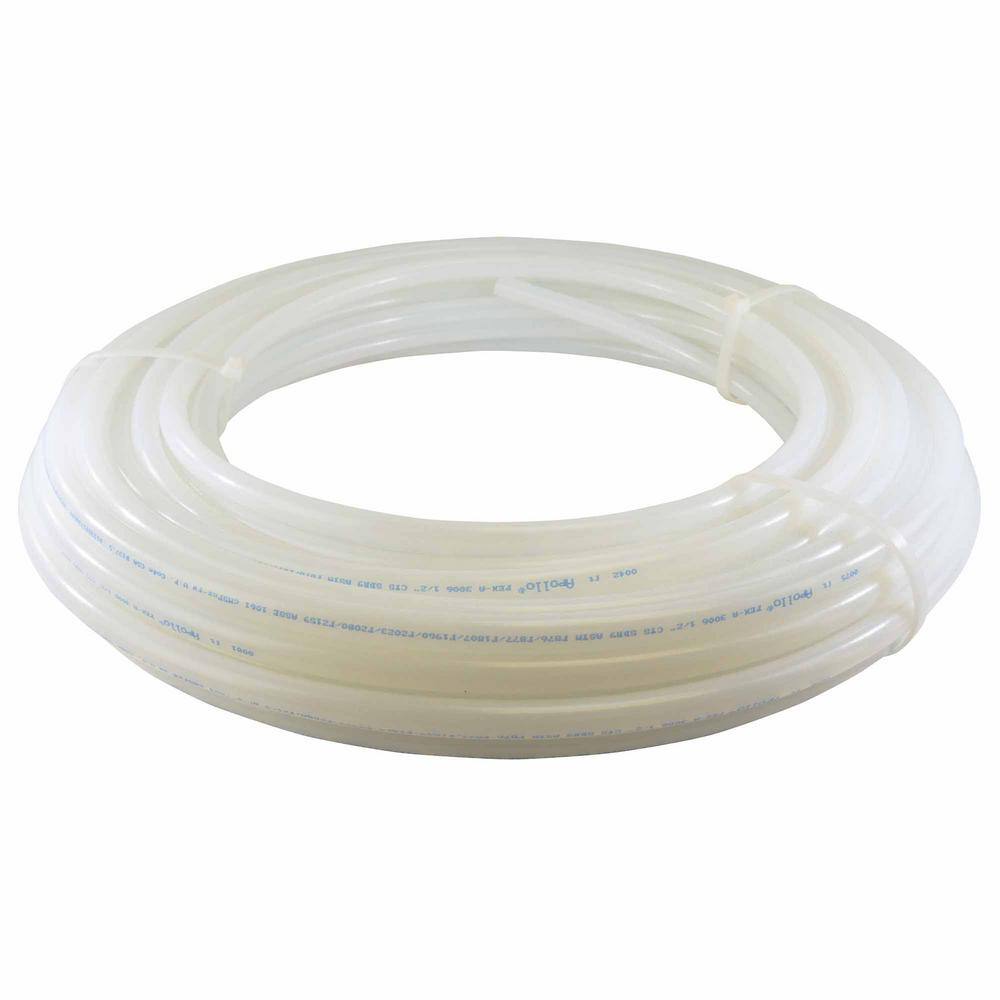

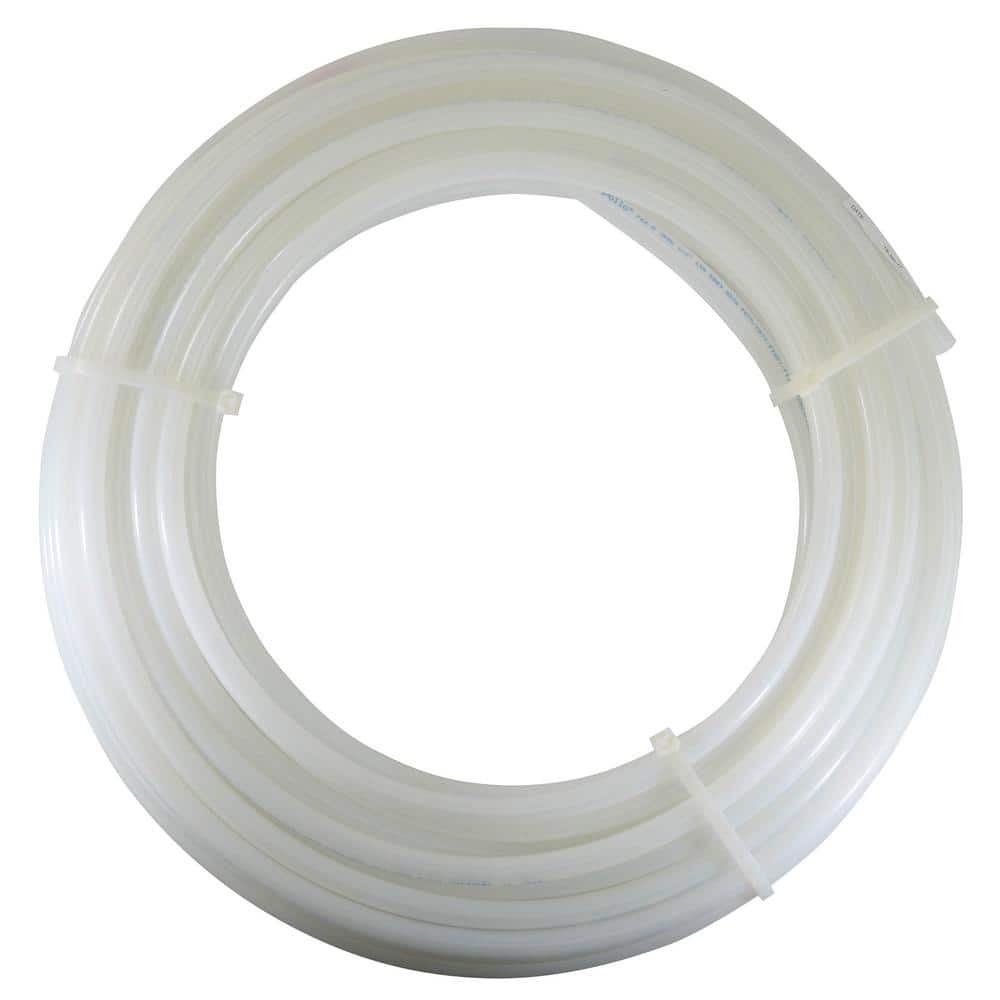

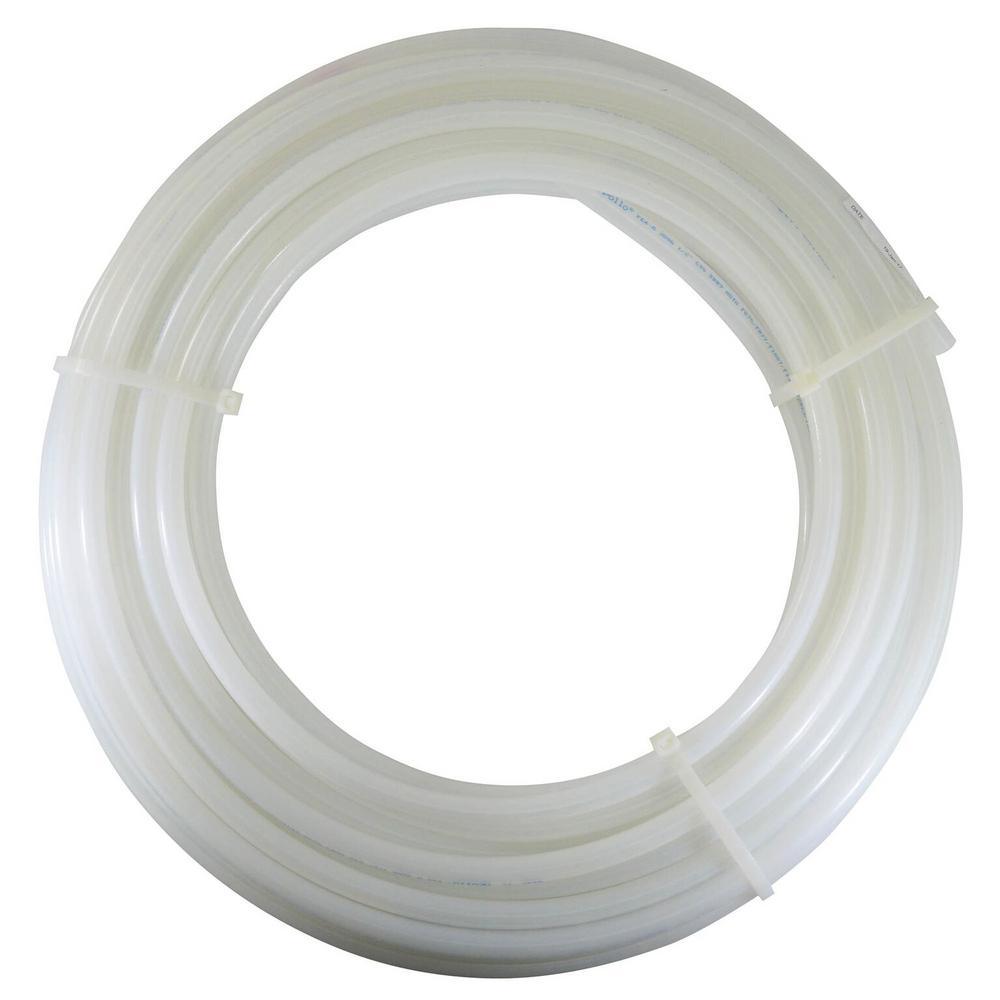

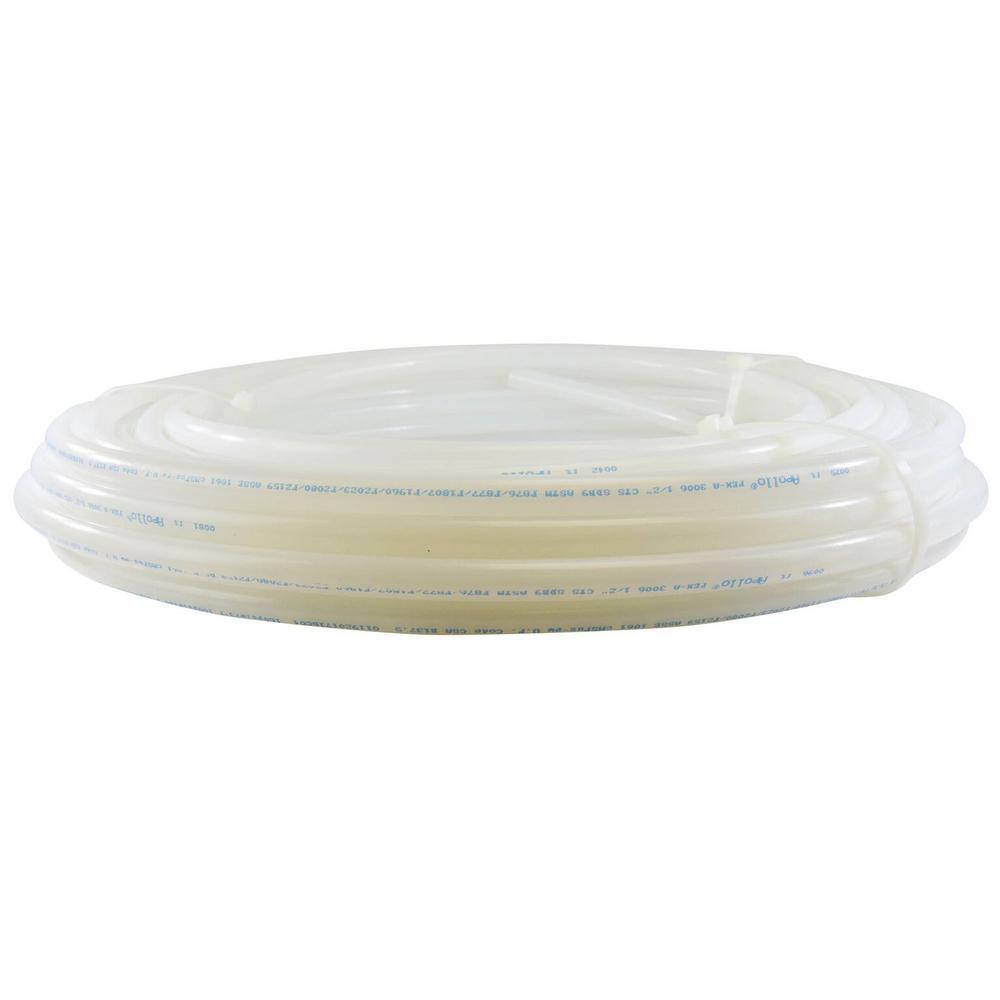

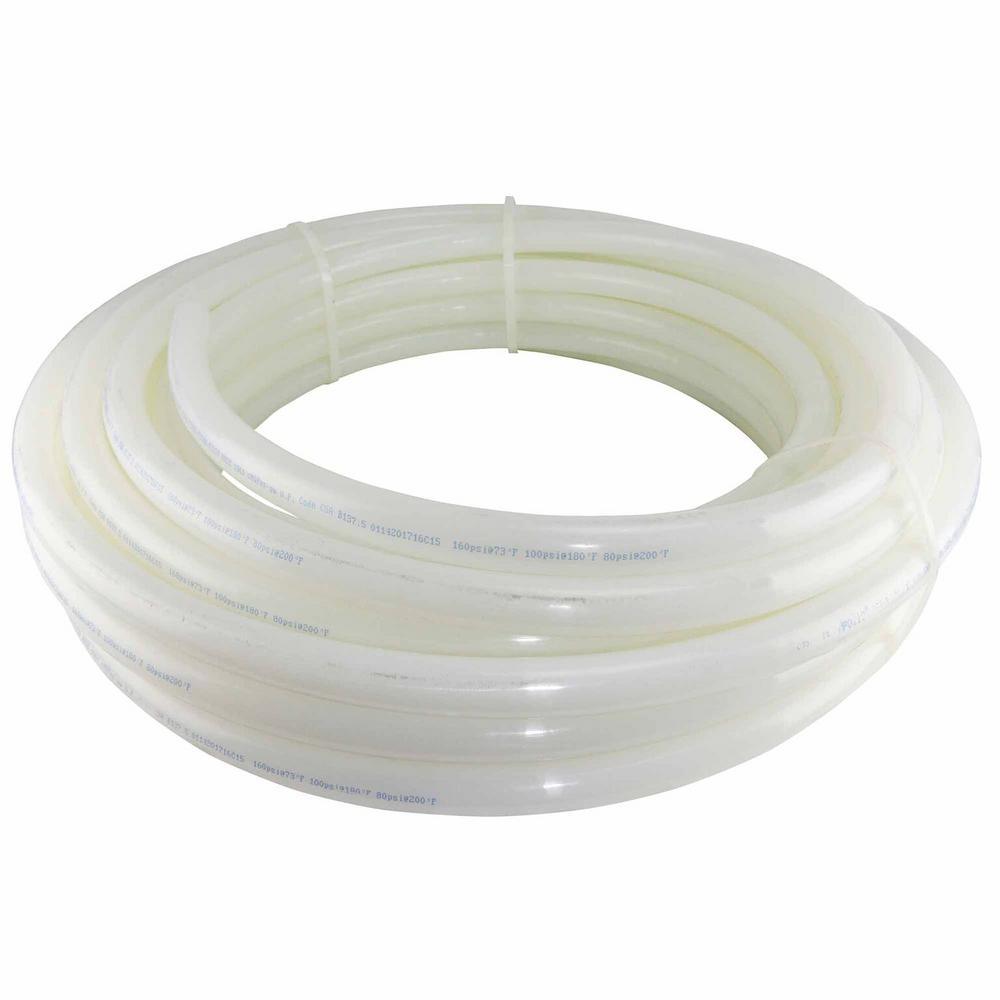

1/2 in. Blue PEX-A Expansion Pipe, 100 ft Coil

Flexible, cross-linked polyethylene (PEX-A) tubing for potable water systems. Designed for expansion connections to deliver full-flow performance with fewer joints and superior corrosion resistance.

---

Key Features:

• PEX-A Flexibility: Bends easily to reduce fittings, joints, and potential leak points

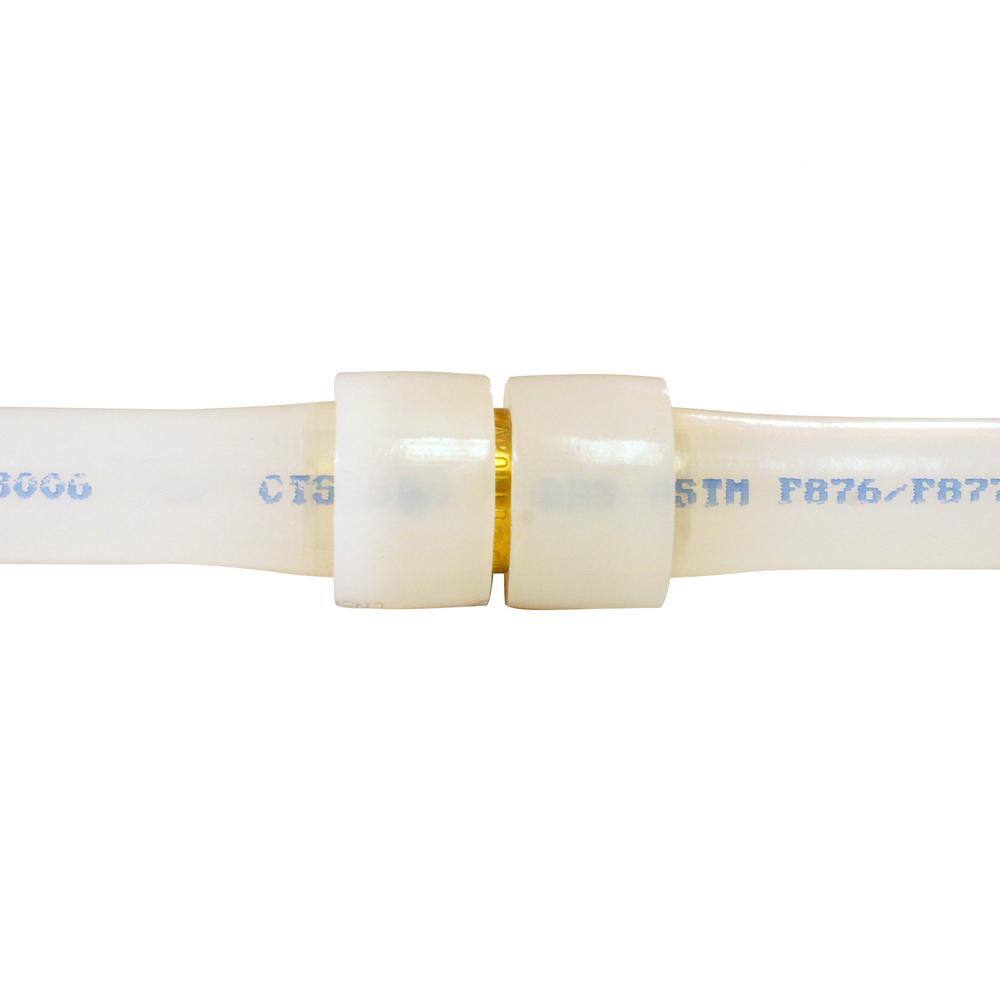

• Full-Flow Expansion Design: Shrinks to form strong ASTM F1960 connections for maximum water output
• Durable & Corrosion-Resistant: Cross-linked polyethylene withstands demanding environments
• Wide Compatibility: Works with expansion, crimp, clamp/sleeve, and push-to-connect systems
• High Temp/Pressure Ratings: Up to 200°F and 160 psi; kink heat-repairable for easier installs

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Application	Potable Water
Color Family	Blue

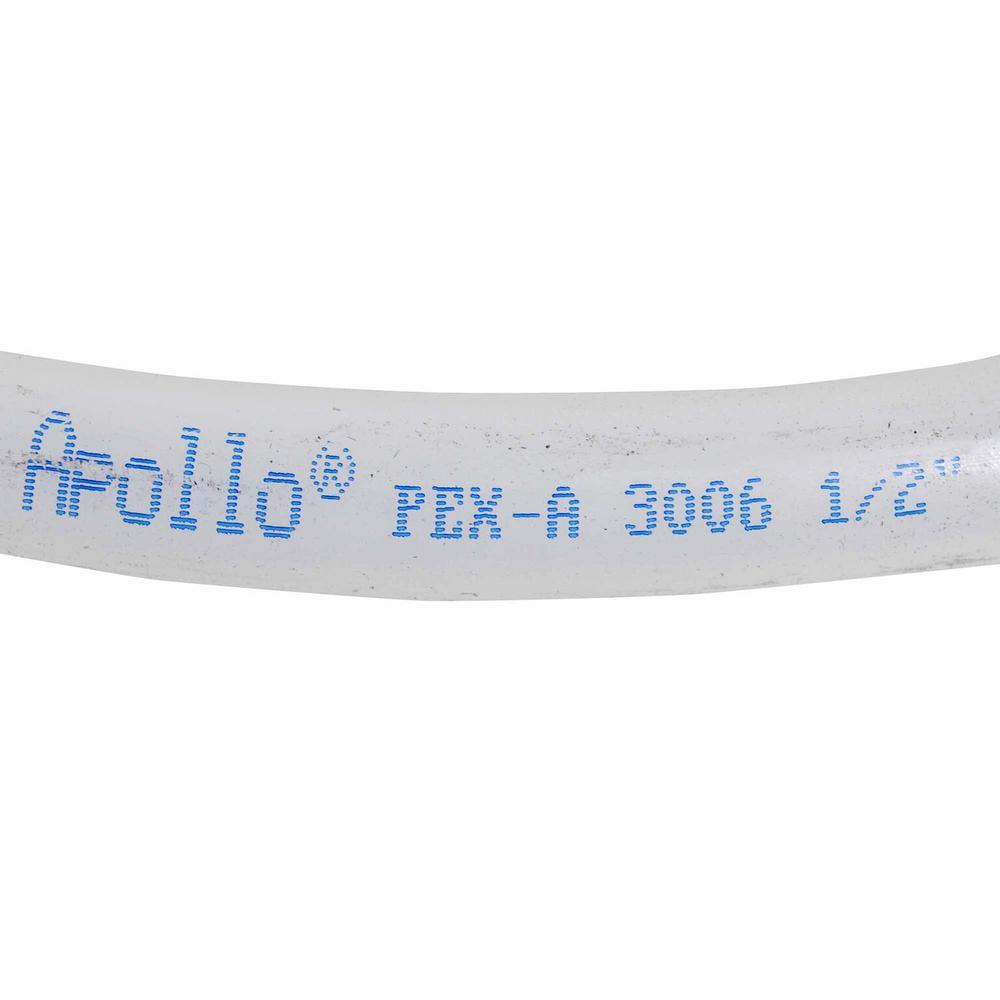

Color/Finish	Opaque with blue print line
Connectivity	Barb; compatible with expansion, crimp, clamp/sleeve, push-to-connect
Material	Cross-Linked Polyethylene (PEX)
Maximum Flow Rate	2.3 GPM
Maximum Working Temperature (F)	200
Maximum Working Pressure (psi)	160
Minimum Working Temperature (F)	32
PEX Type	A
Pack Size	1
Pipe Features	Corrosion Resistant, Ductile, Flexible; heat-reparable if kinked
Pipe or Fitting Product Type	Pipe & Tubing
Product Weight (lb.)	5.45
Actual Inside Diameter (in.)	0.475
Actual Outside Diameter (in.)	0.625
Nominal Inside Pipe Diameter (in.)	1/2
Pipe Wall Thickness (in.)	0.075
Product Length (ft.)	100
Certifications and Listings	ASTM Compliant, NSF Listed; cNSFus-pw; CSA B137.7
Manufacturer Warranty	25 Years (for exclusive use with ASTM F1960 fittings)
Pressure & Temperature Ratings	160 psi @ 73.4°F, 100 psi @ 180°F, 80 psi @ 200°F
Compatibility Notes	Compatible with Uponor and Wirsbo systems; Tectite push-to-connect
Installation Environments	May be installed in concrete, gypsum-based lightweight concrete, sand, asphalt, under wood flooring, or behind wallboard/plaster

---

Frequently Asked Questions (FAQ):

Q: Can this pipe be used for potable water?
A: Yes. It is NSF listed for potable water applications.

---

Q: What fittings are compatible?
A: Compatible with ASTM F1960 expansion fittings and can also be used with crimp, clamp/sleeve, and push-to-connect fittings like Tectite.

---

Q: Is the pipe color truly blue?
A: The pipe is opaque with a blue print line to identify cold-water lines.

---

Q: What are the operating temperature and pressure limits?
A: 160 psi at 73.4°F, 100 psi at 180°F, and 80 psi at 200°F.

---

Q: Can kinks be repaired?
A: Yes. PEX-A can be heat-repaired if kinked during installation.

---

Streamlined Utility with Sleek, Modern Ease

This PEX-A coil brings a clean, minimalist sensibility to behind-the-scenes plumbing, elevating everyday function with quiet sophistication. Its supple, high-flex design glides through framing for an uncluttered installation, while the crisp blue print line adds a subtle, purposeful accent. Use it to craft neat, efficient runs that keep mechanical spaces refined and orderly. It’s the elegant foundation of luxurious, reliable living.

---

Upgrade your water lines with flexible, full-flow Apollo PEX-A—order the 100 ft coil today for a faster, cleaner install.
