Eaton · Electrical

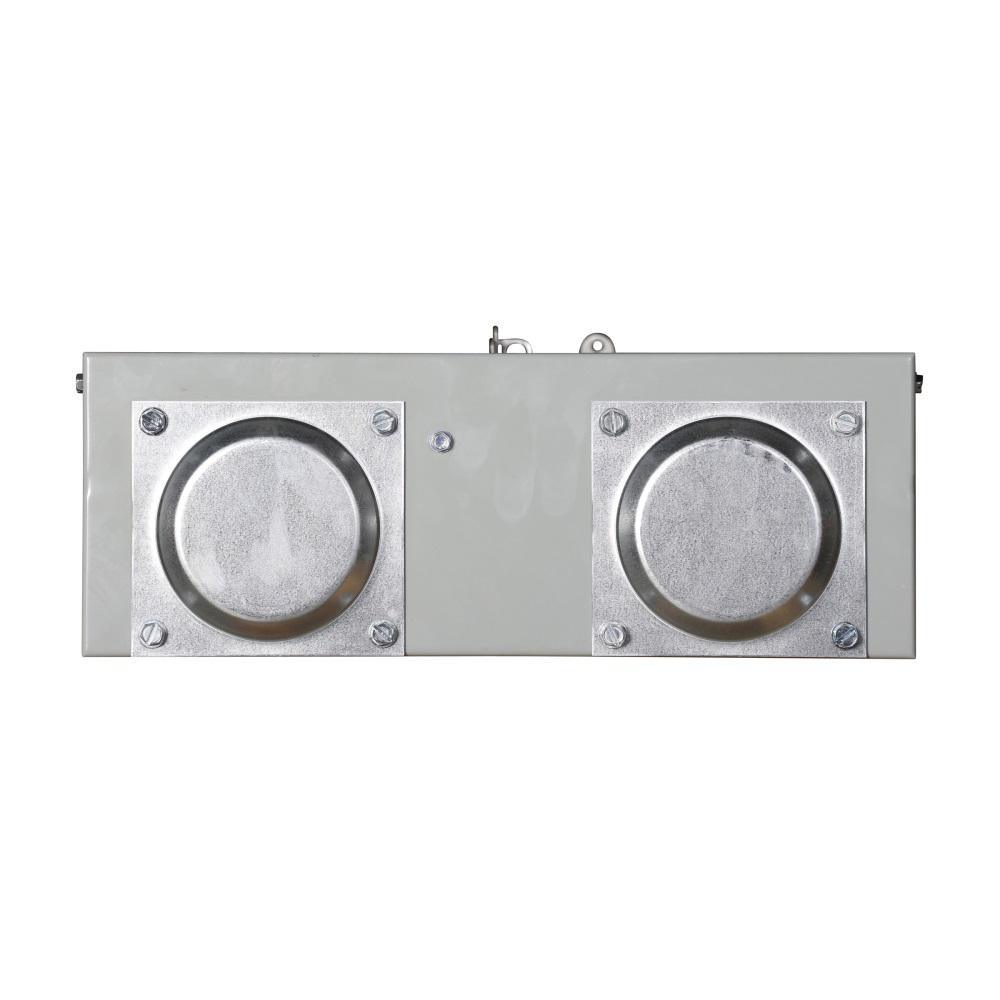

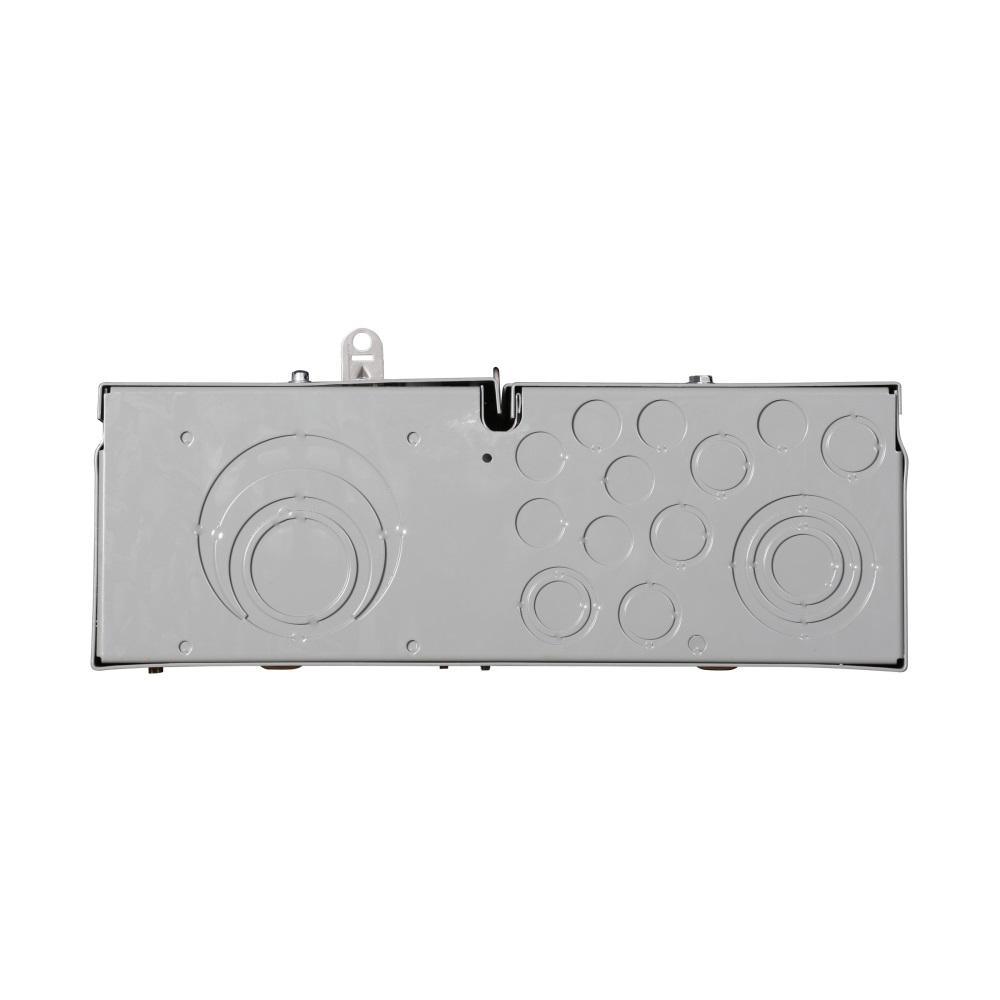

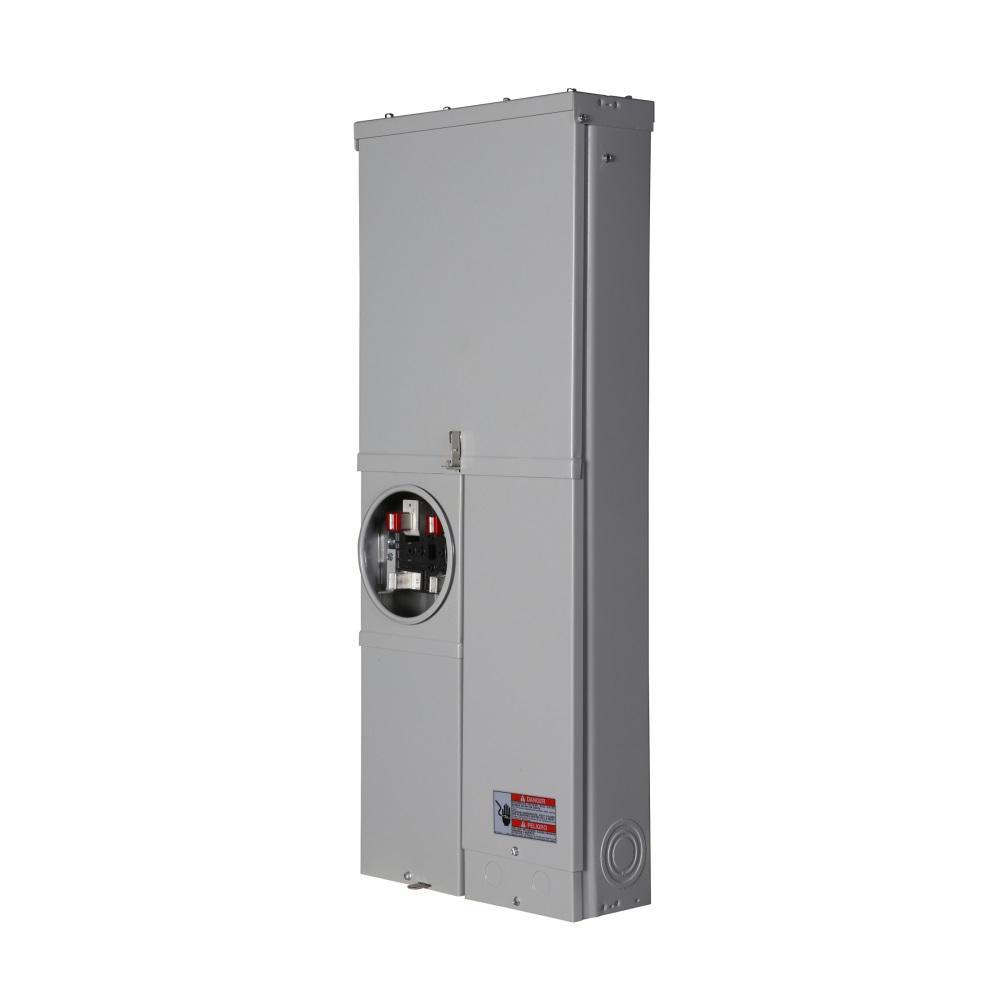

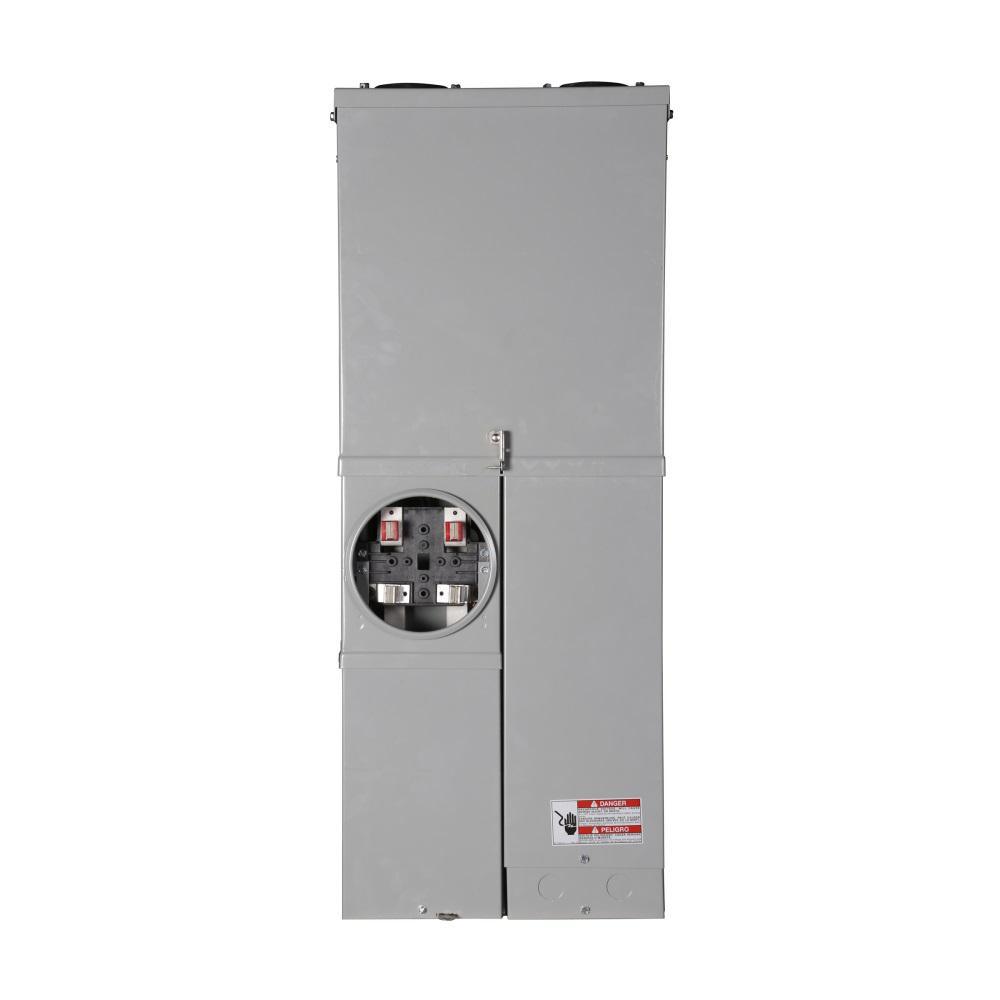

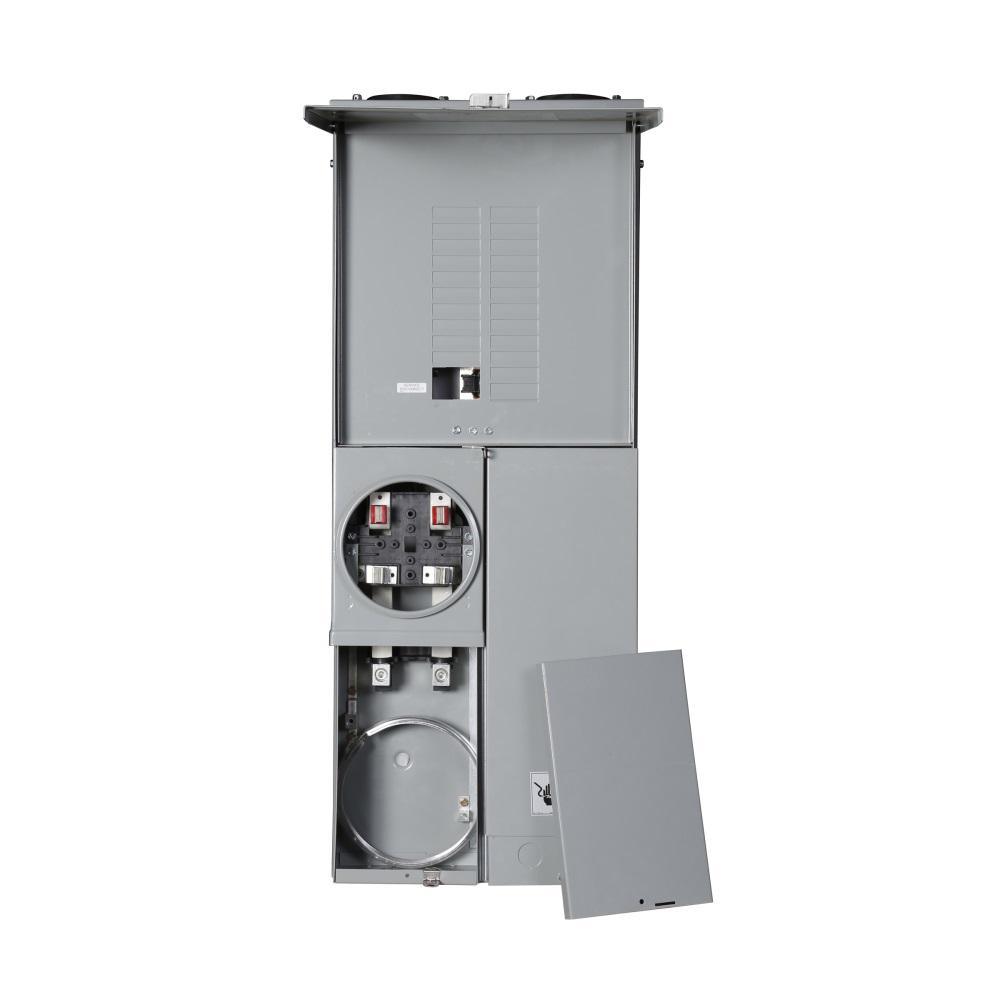

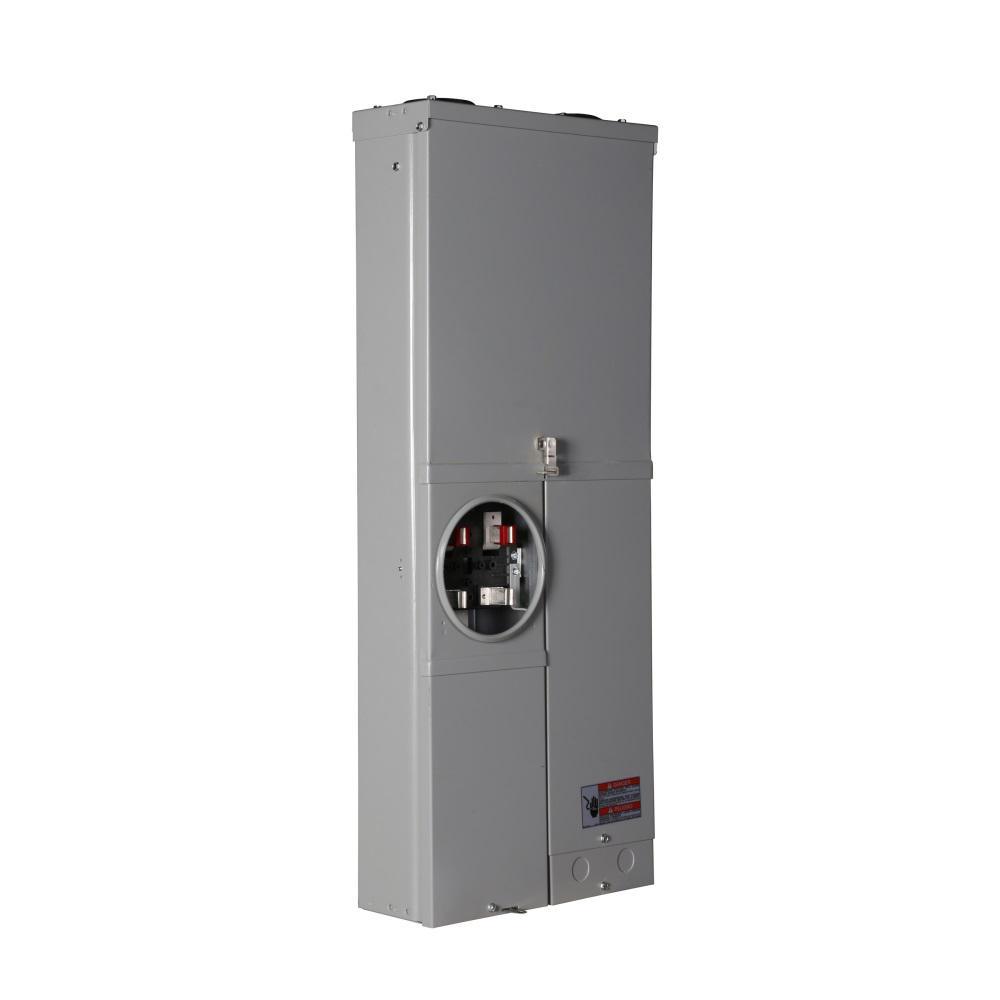

CH 125 Amp 22-Space 22-Circuit Retro Fit Meter Breaker Panel

22 spaces

$579.80 each

Quantity
1 item
$579.80
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Eaton · Electrical

Details & specifications.

From the maker · Eaton’s description

Eaton's residential meter breakers are service entrance equipment systems that consist of a single meter socket and load center distribution section. This type of configuration is also known as All-in Ones. This design provides the contractor with labor and material savings. This is a retrofit meter breaker panel.

  • Type CH EUSERC residential meter breaker
  • Amperage rating: 125 Amp
  • Bus material: aluminum
  • Rated NEMA 3R for outdoor use
  • Feed type: overhead/underground
  • Main circuit breaker: CSR2200
  • Mounting: surface mounting
  • Number of spaces: 22
  • Number of circuits: 22
  • Number of jaws: 4-jaws
  • Number of sockets: 1
  • Phase: single-phase
  • Security: Ring
  • Voltage rating: 120/240-Volt
  • Retrofit meter breaker panel
  • Used with: Type CH breakers
SKU
1279936121
Spaces
22
Mounting
Bolt On
Location
Outdoor
Brand
Eaton
Item Weight
55
Number of Circuits
22
Voltage (volts)
120/240
Product Weight (lb.)
55
Load Center Type
Main Breaker
Load Center Mounting Type
Surface
Electrical Product Type
Load Center
Phase Type
3 Phase
Indoor/Outdoor
Outdoor
Maximum Amperage (amps)
125
Load center width (in.)
15
Load center height (in.)
7.5
Load center depth (in.)
37
Certifications and Listings
ANSI Certified, UL Listed
Manufacturer Warranty
Limited Lifetime

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Before you buy a breaker

  1. 1

    Match the panel

    Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.

  2. 2

    Match the wire

    The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.

  3. 3

    Protection

    Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.

  4. 4

    Tandem and quad

    Two circuits in one space, only in the slots the panel label allows.
