Eaton · Electrical

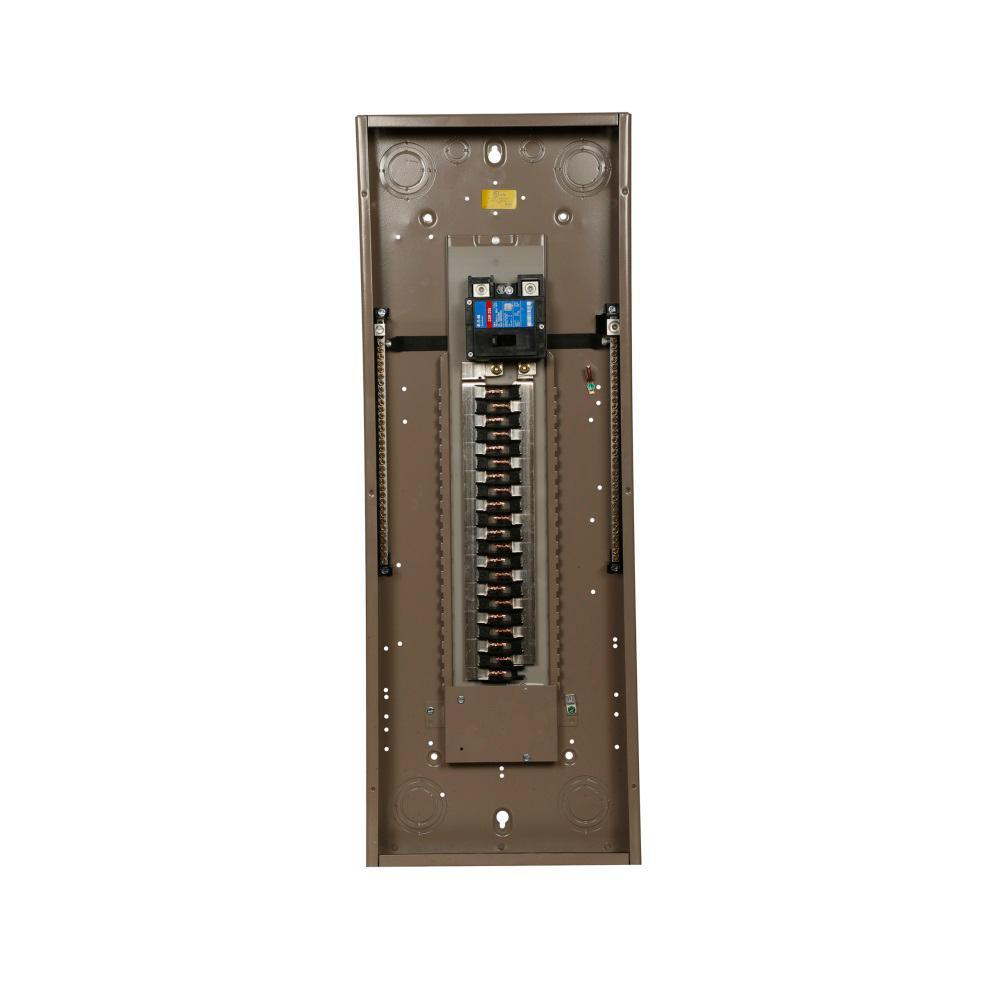

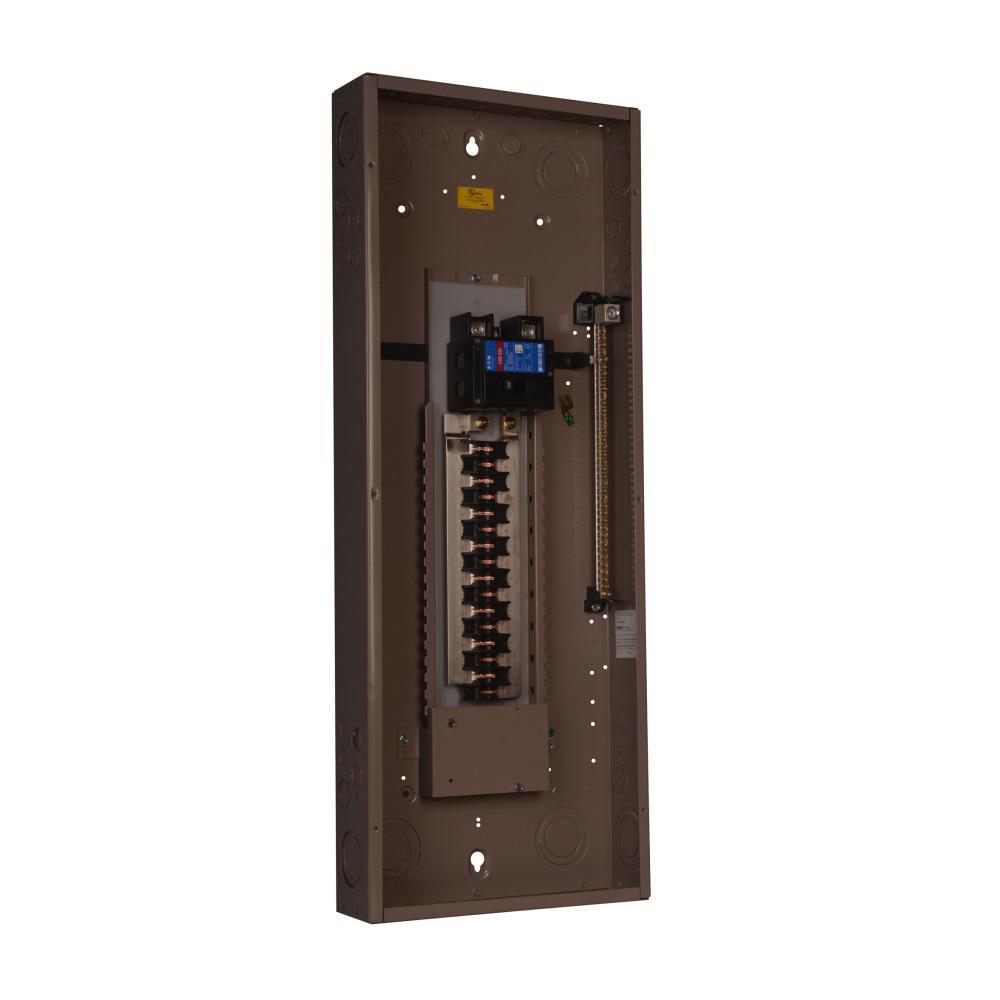

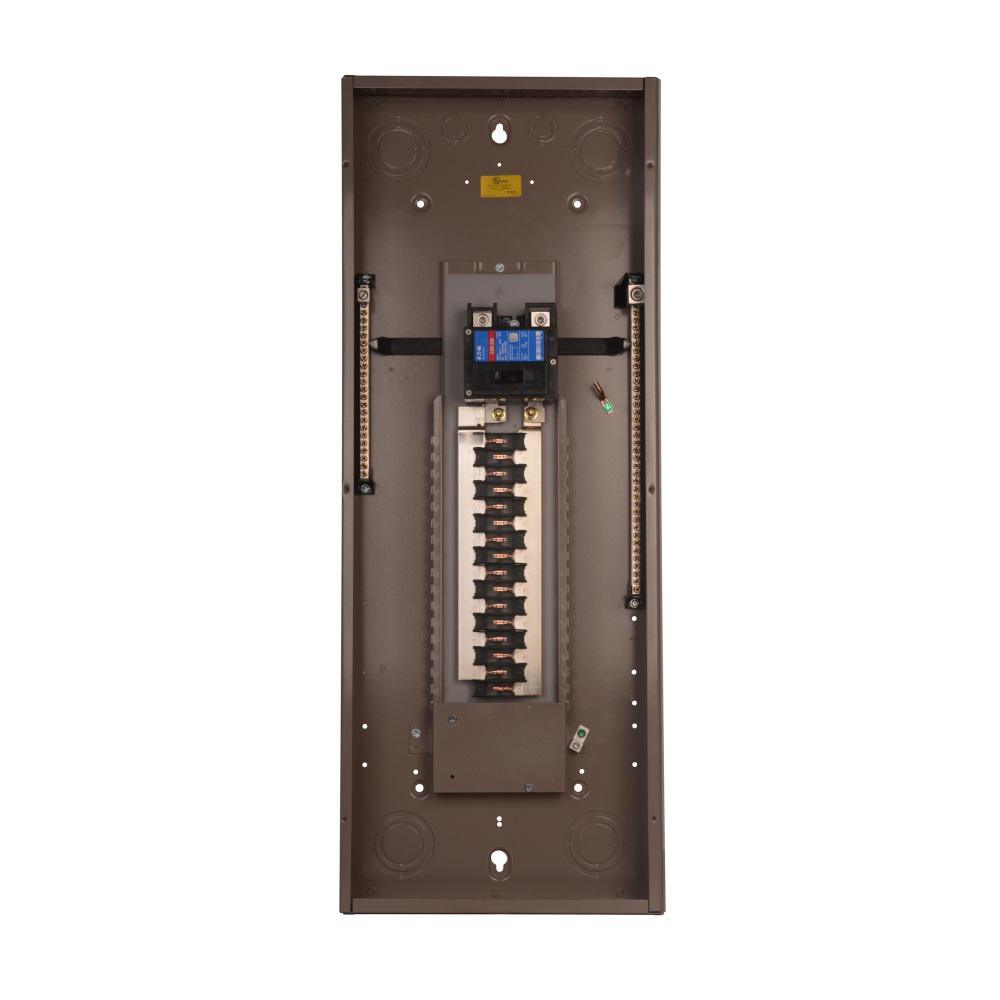

CH 200 Amp 32-Spaces 32-Circuits Indoor Main Breaker Surge Ready Loadcenter

200 A

$269.88 each

Orders start at $399. Combine any items to reach it.

Breakers
1 breaker
$269.88
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Eaton · Electrical

Details & specifications.

From the maker · Eaton’s description

Eatons Type CH Surge ready Loadcenter provides a mounting provision for the CHSPT2Ultra (sold separately). Once the CHSPT2Ultra is installed in the surge ready loadcenter, it reduces the surge current, helping to protect sensitive home electronic equipment. A modified dead front cover (sold separately) allows for easy viewing of indicating lights.

  • Amperage rating: 200 Amp
  • Bus material: copper
  • Rated nema 1 for indoor use
  • Feed type: overhead or underground
  • Number of circuits: 32
  • Number of spaces: 32
  • Phase: single-phase
  • Voltage rating: 120/240-Volt

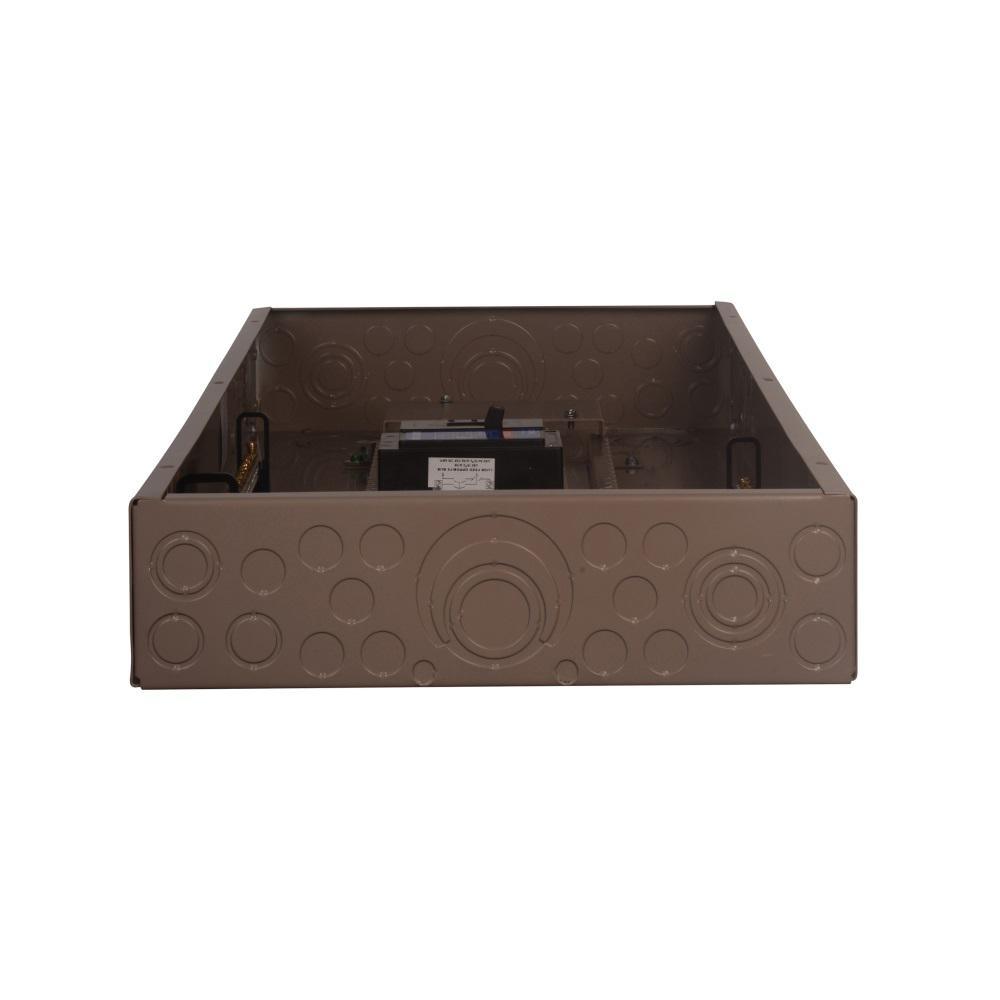

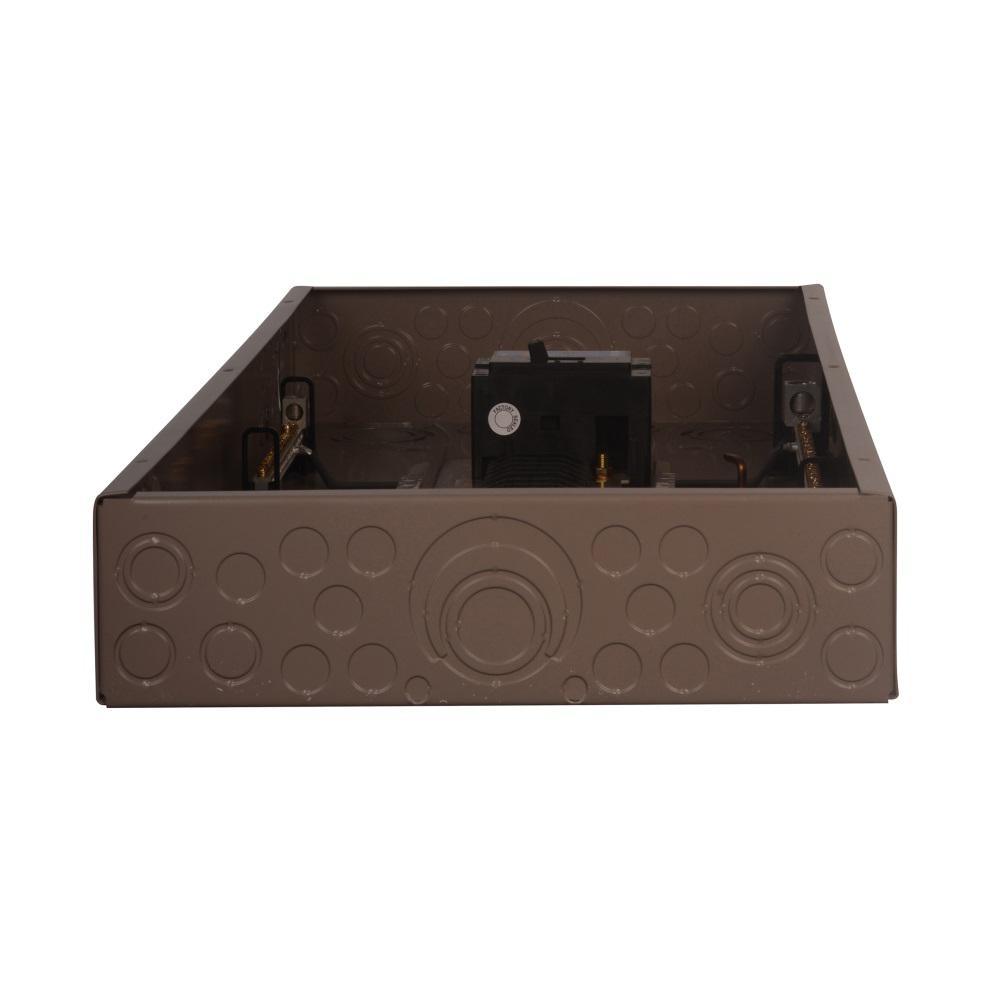

  • Tangential center knockout easier installation for conduit applications
  • Steel back pan provides solid and reliable breaker mountingsingle piece design for stability and durability
  • Single keyhole mounting -one keyhole at the top provides easier mounting and leveling
  • Drywall marking on enclosure - indicates proper mounting depth for flush applications
  • CHSPT2 ultra, surge suppressor is sold separately
  • CHSUR8KF combination cover is sold separately
  • Used with: type CH breakers
SKU
302545792
UPC
782116200252
Amps
200 A
Mounting
Bolt On
Brand
Eaton
Item Weight
27
Number of Spaces
32
Voltage (volts)
120/240
Load Center Type
Main Breaker
Electrical Product Type
Load Center
Product Weight (lb.)
27
Indoor/Outdoor
Indoor
Number of Circuits
32
Phase Type
1 Phase
Load Center Mounting Type
Flush
Load center height (in.)
3
Load center depth (in.)
32
Load center width (in.)
10
Certifications and Listings
ANSI Certified, UL Listed
Manufacturer Warranty
Limited Lifetime

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Before you buy a breaker

  1. 1

    Match the panel

    Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.

  2. 2

    Match the wire

    The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.

  3. 3

    Protection

    Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.

  4. 4

    Tandem and quad

    Two circuits in one space, only in the slots the panel label allows.
