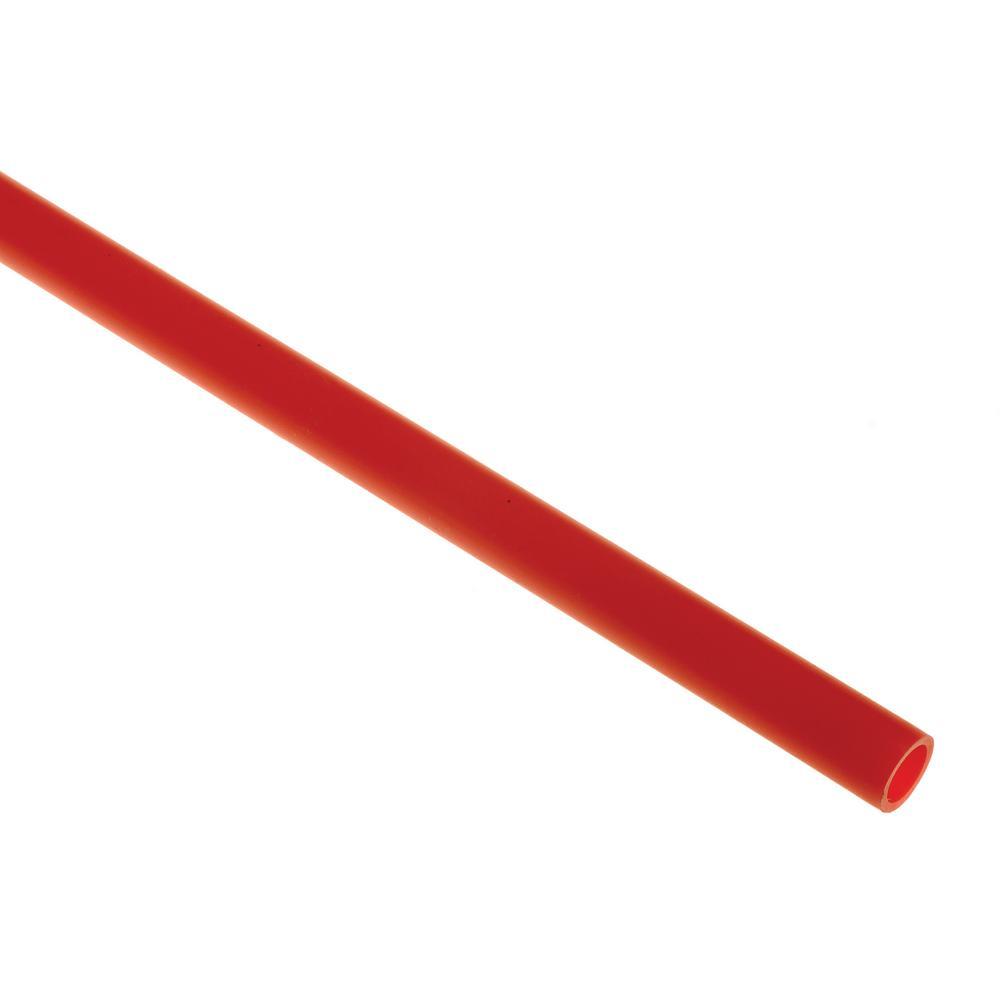

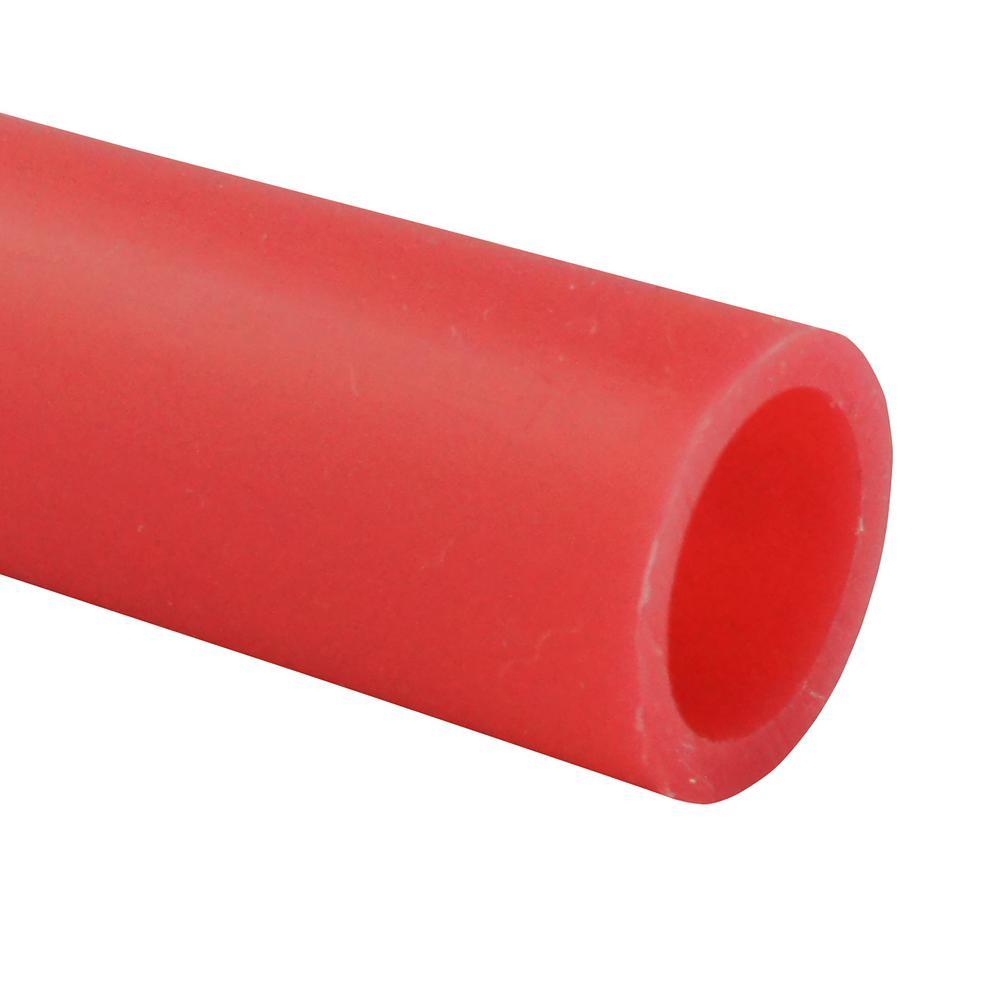

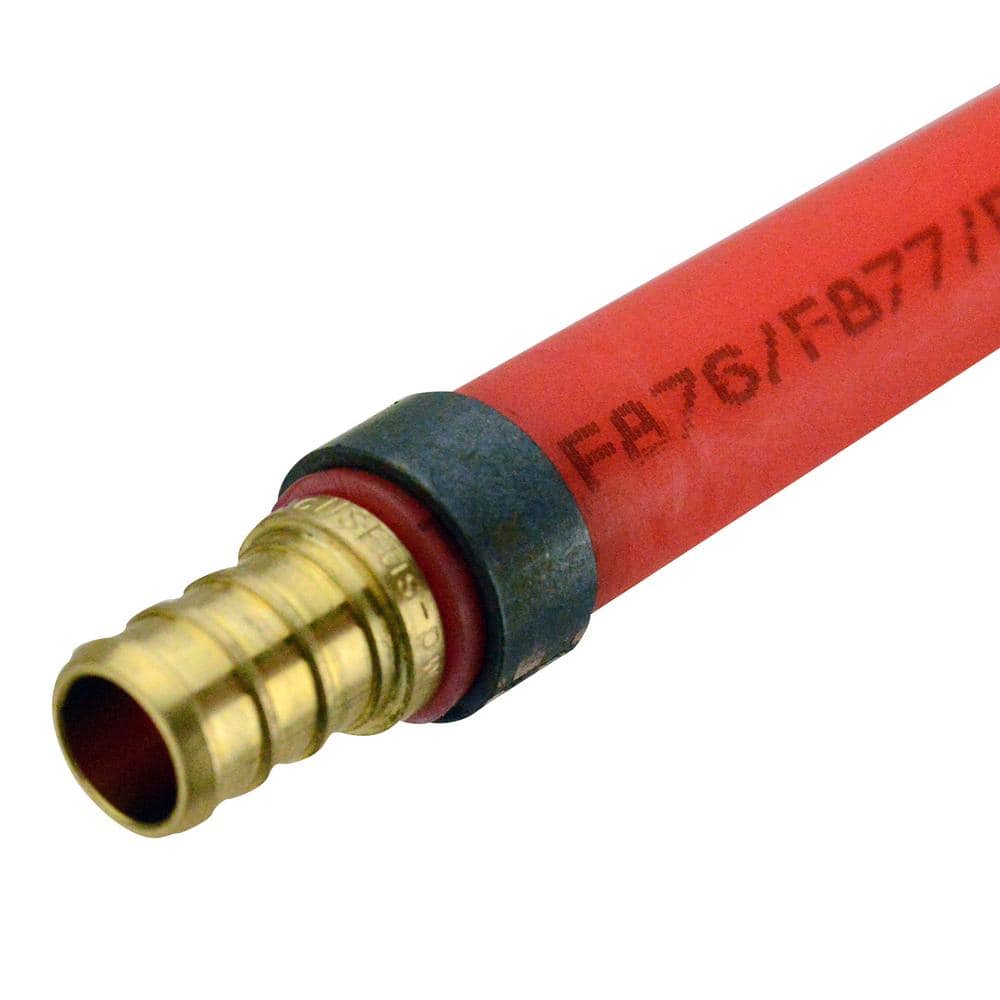

1/2 in. Red PEX-B Pipe, 5 ft.

Flexible, durable PEX-B tubing for potable water lines. Red color clearly marks hot water runs and installs easily with crimp, clamp, or push-to-connect fittings. Rated for high temperature and pressure with corrosion resistance for long service life.

---

Key Features:

• Flexible Installation: Reduces fittings and leak points while navigating tight spaces
• Hot Water Identification: Red color designates hot lines for quick routing
• Durable PEX-B Material: Cross-linked polyethylene resists corrosion and harsh install environments
• High Performance Ratings: Up to 160 psi at 73°F and 200°F max working temperature
• System Compatibility: Works with ApolloPEX and Tectite by Apollo push-to-connect fittings

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Application	Potable Water
Color Family	Red
Color/Finish	Red
Connectivity	Barb
Material	Cross-Linked Polyethylene (PEX)
Maximum Flow Rate	2.3 GPM
Maximum Working Temperature	200°F
Maximum Working Pressure	160 psi
Minimum Working Temperature	32°F
PEX Type	B
Pack Size	1
Pipe Features	Corrosion Resistant; Flexible
Pipe or Fitting Product Type	Pipe & Tubing
Product Weight	0.265 lb

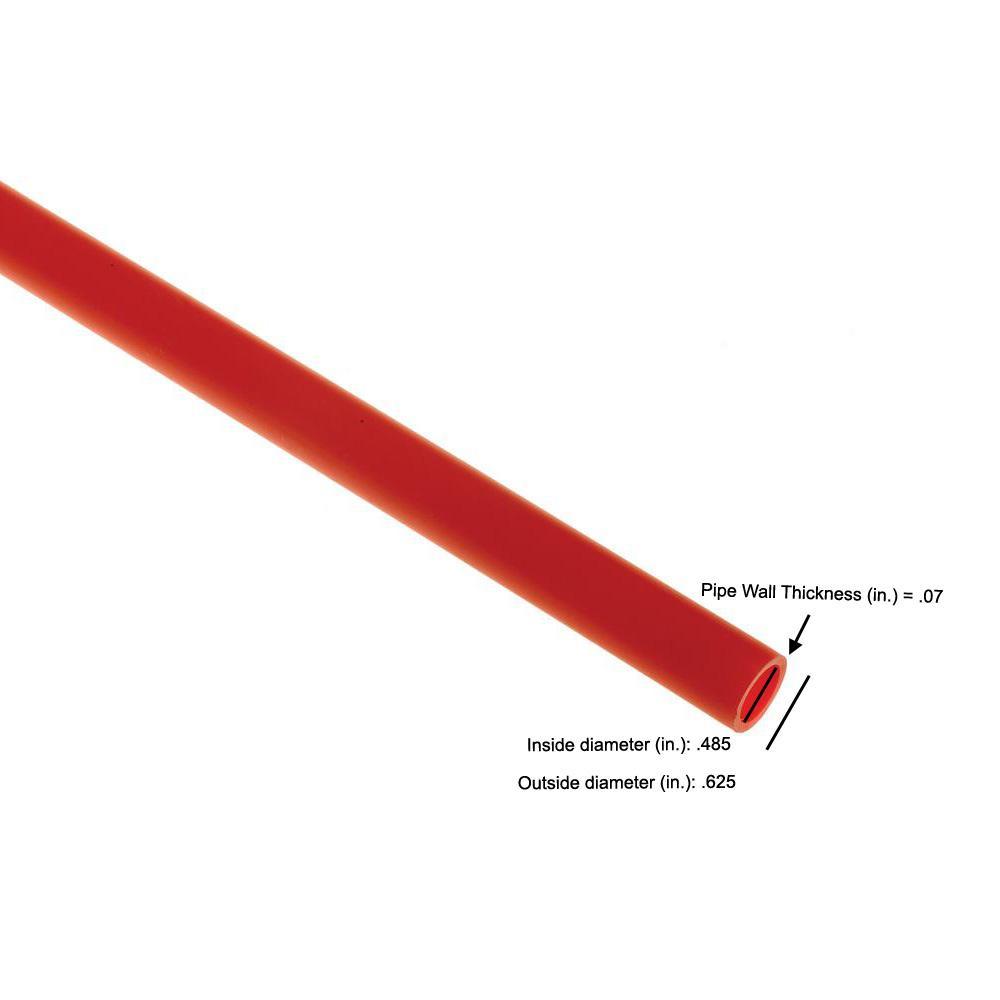

Actual Inside Diameter	0.485 in.
Actual Outside Diameter	0.625 in.
Nominal Inside Pipe Diameter	1/2 in.
Product Length	5 ft
Certifications and Listings	ASTM Compliant; NSF Certified
Manufacturer Warranty	25 years
Pressure & Temperature Ratings	160 psi @ 73°F, 100 psi @ 180°F
Standards	ASTM F876/F877/2023; CSA B137.5

---

Frequently Asked Questions (FAQ):

Q: Is this safe for potable water?
A: Yes—listed to NSF 14 and CSA B137.5 and designed for potable water distribution.

---

Q: What fittings can I use?
A: Compatible with ApolloPEX crimp/clamp fittings and Tectite by Apollo push-to-connect fittings.

---

Q: Can it be installed in slabs or behind walls?
A: Yes—suitable for installation in concrete, lightweight gypsum, sand, asphalt, under wood flooring, or behind wallboard/plaster.

---

Q: What are the operating limits?
A: Pressure & temperature: 160 psi @ 73°F, 100 psi @ 180°F; maximum working temperature 200°F.

---

Q: What is the length and diameter?
A: 5 ft stick; nominal 1/2 in. with 0.625 in. OD and 0.485 in. ID.

---

A Sleek, Modern Line for Effortless Hot-Water Runs

This vivid red PEX-B pipe brings order and clarity to the hidden architecture of a home. Its supple flexibility creates graceful pathways, minimizing fittings and visual clutter. Pair with clean brass push-to-connects for a polished, contemporary utility aesthetic. A quiet luxury essential, it keeps hot-water delivery reliable and refined behind the scenes.

---

Upgrade your hot-water lines with flexible, durable Apollo PEX-B—add this 5 ft. stick to your project today.
