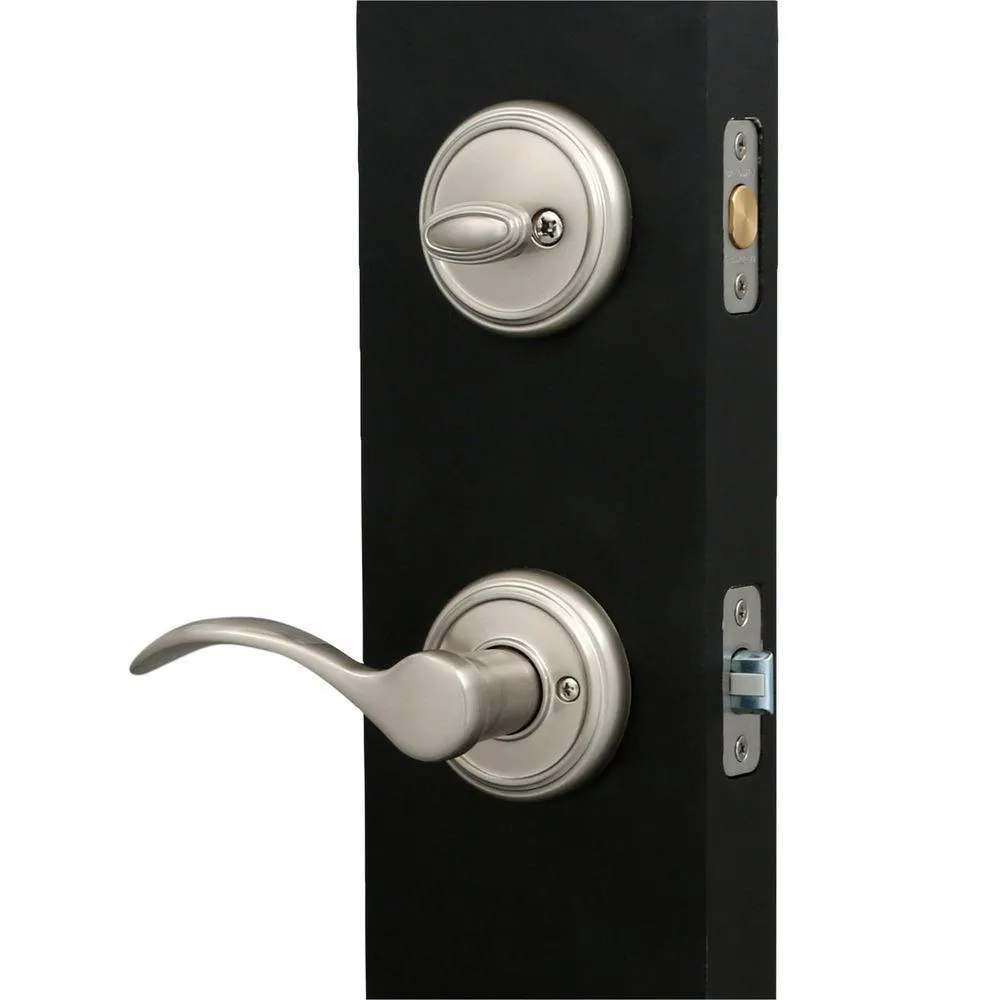

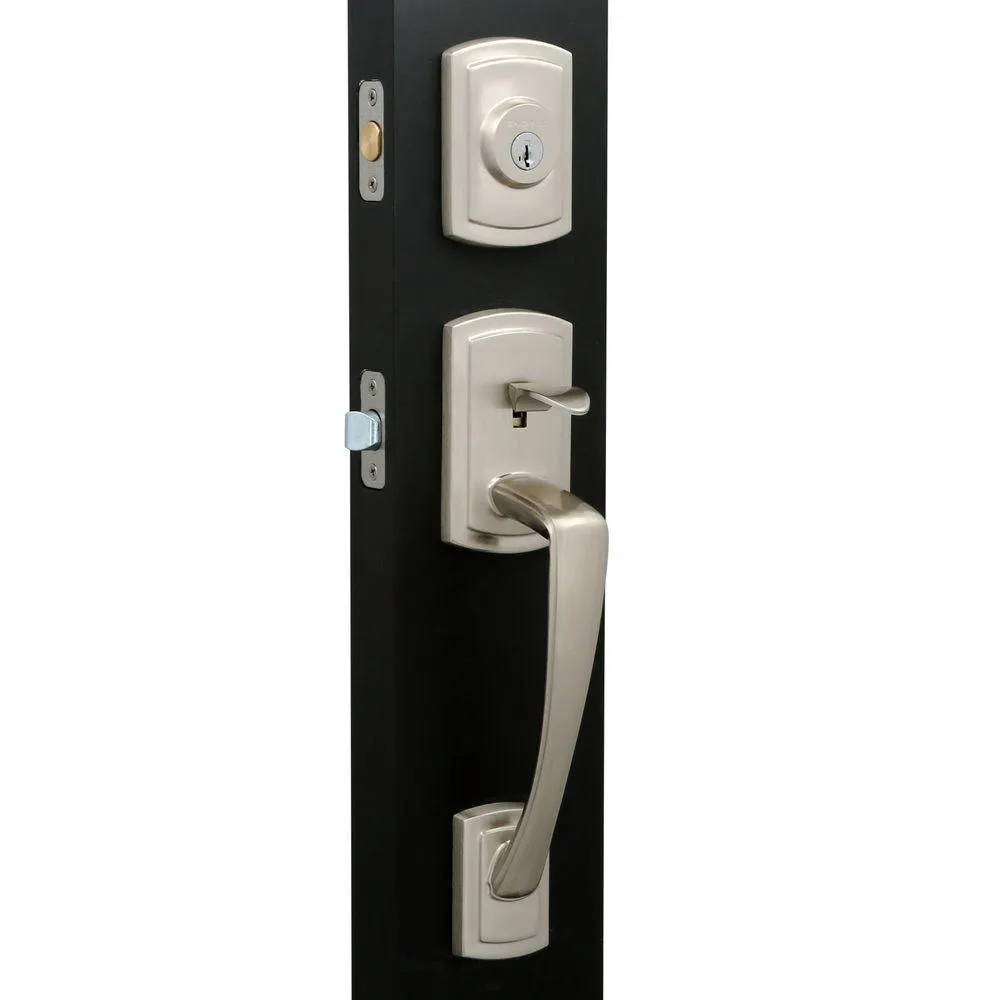

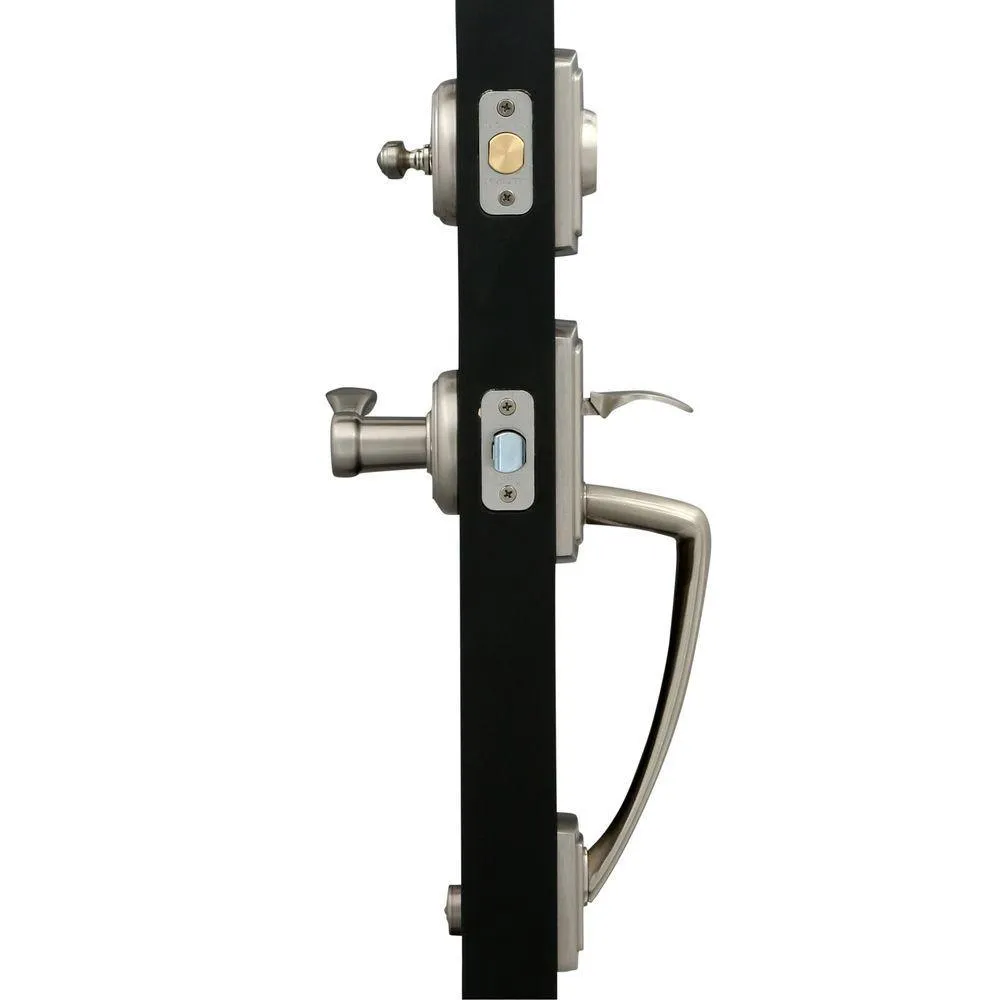

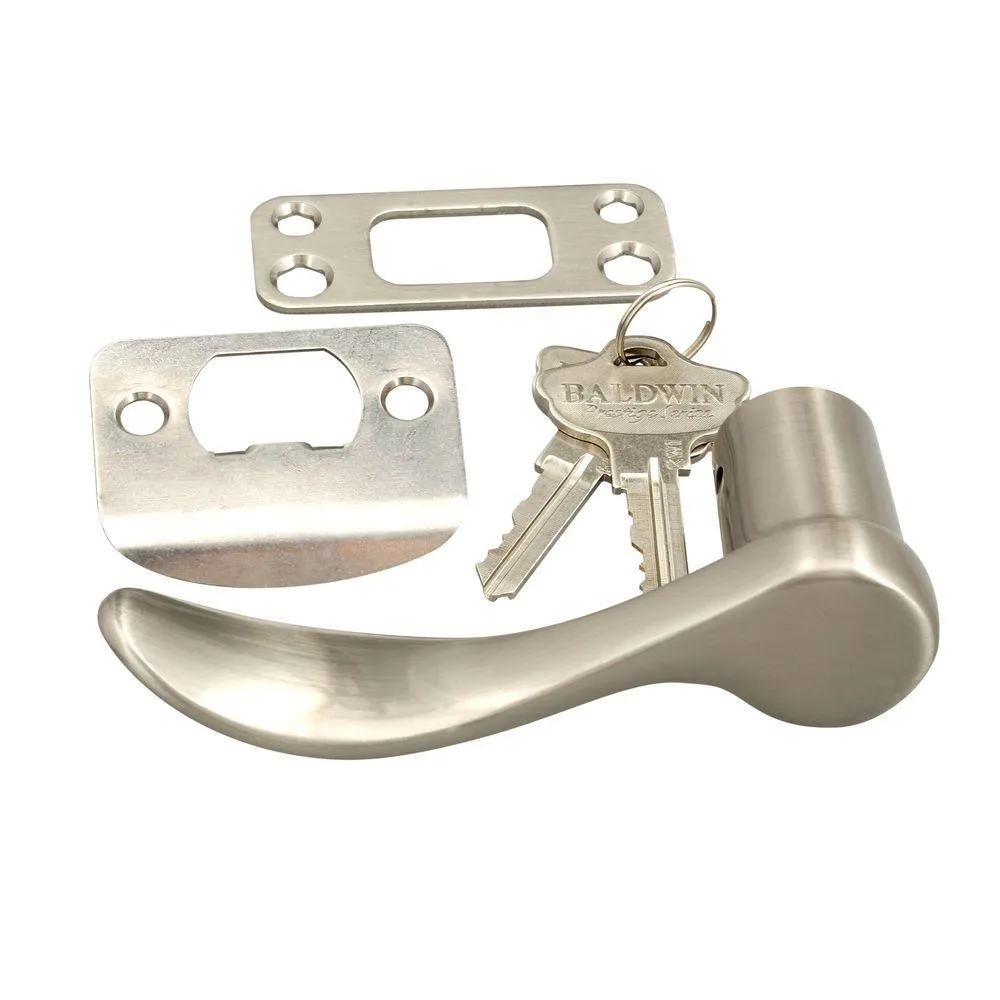

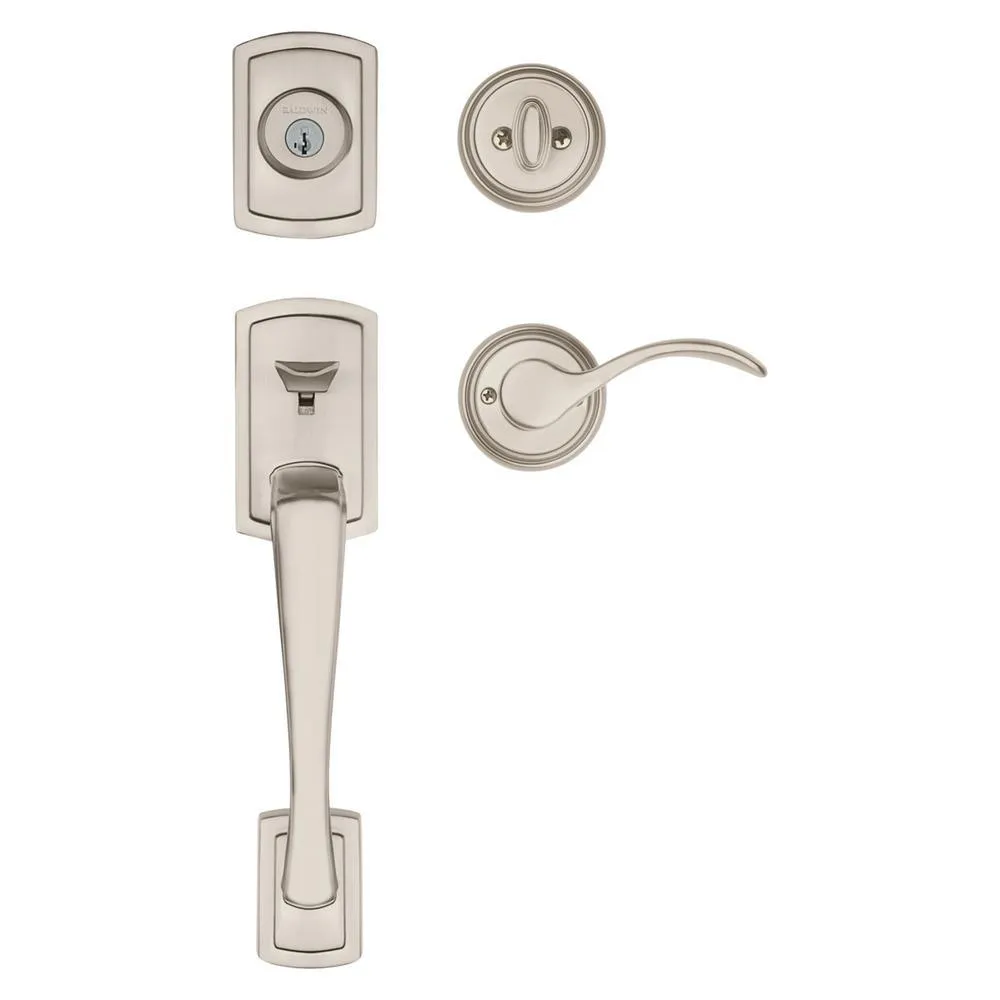

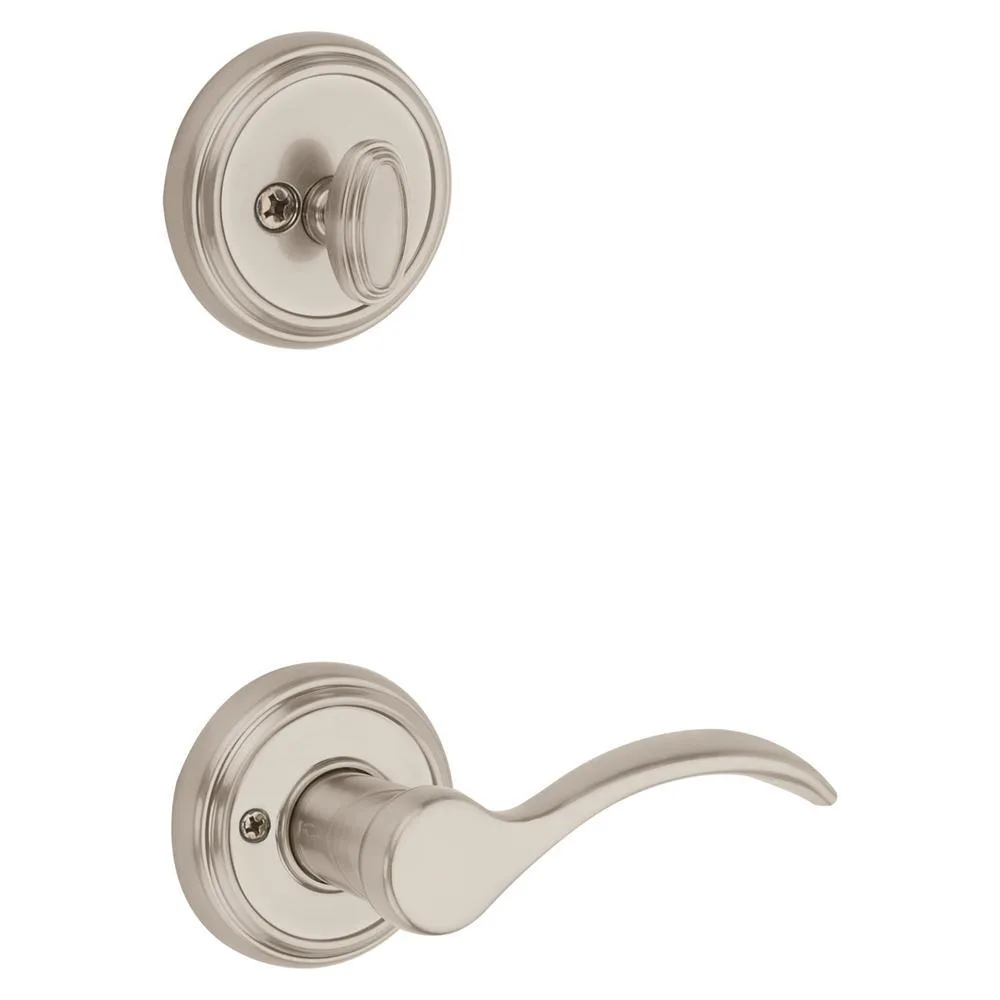

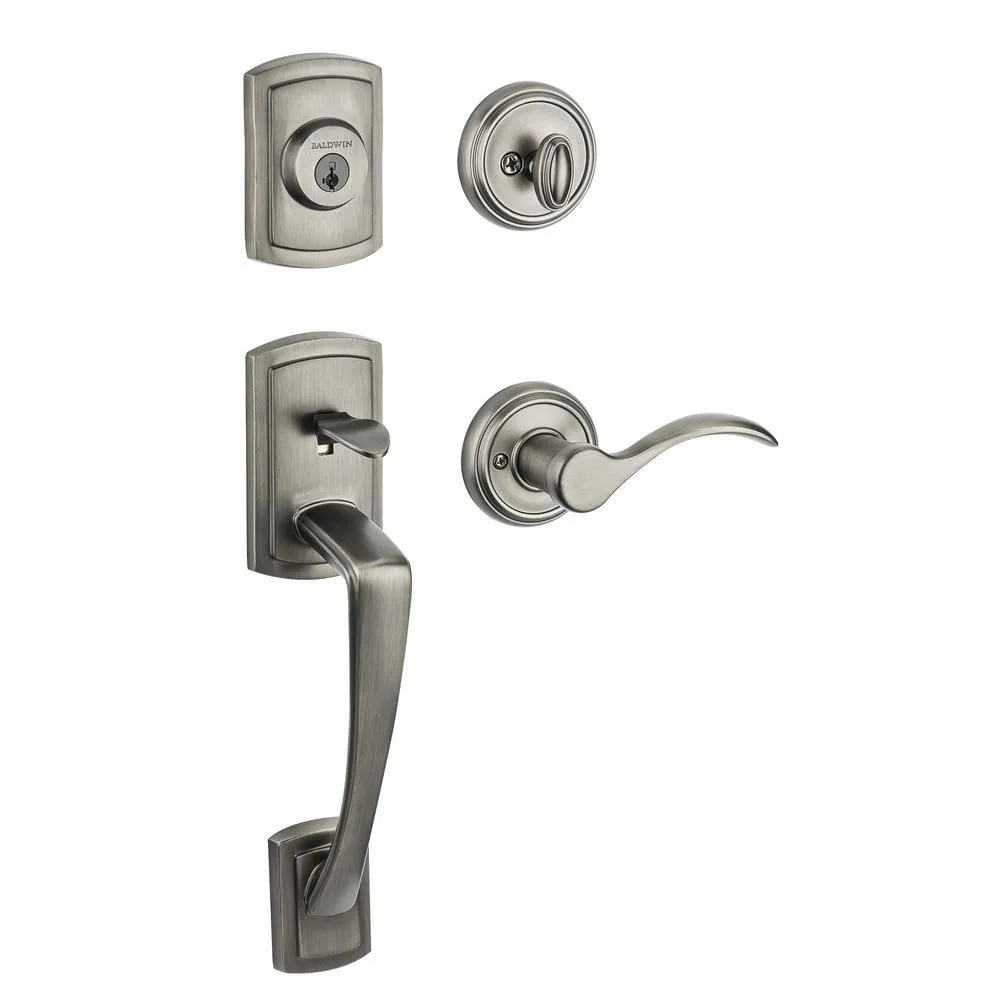

Prestige Nautica Single Cylinder Satin Nickel Door Handleset with Tobin Door Lever Featuring SmartKey Security
Regular price $169.00/
Shipping calculated at checkout.
- Solid forged brass
- Elegant low profile cylinder
- Architecturally inspired design
- Easy to install; adjustable backset latch fits 2-3/8 in. (60 mm) or 2-3/4 in. (70 mm)
- Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- Accommodates door thickness of 1-3/4 in. (44 mm) conversion kit available for 2-1/4 in. thick doors
- Patented side locking bar technology offers improved security by protecting against lock bumping, an attack technique used to defeat conventional pin and tumbler locks
- SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
- SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
Features
| Item Weight | 8.45 |
| Material | Solid Brass |
| Door Handing | Universal |
| Lock Type | Keyed |
| Security/ANSI Grade | N/A |
| Door Lock Style | Classic |
| Features | Adjustable Backset,Kwikset SmartKey |
| Commercial/Residential | Residential |
| Total Number of Keys Included | 2 |
| Keyway | KW1 |
| Deadbolt Type | Single Cylinder Deadbolt |
| Minimum door thickness (in.) | 1.75 |
| Knob/lever strike | Round corner |
| Handleset Product Type | 2 Piece Front & Back |
| Product Weight (lb.) | 8.45 |
| Application Type | Entry |
| Lock Type2 | Keyed Entry |
| Backset size (in.) | Adjustable |
| Finish | Satin Nickel |
| Hardware Finish Family | Nickel |
| Keying Type | Keyed Different |
| Deadbolt strike | Round corner |
| Returnable | 180-Day |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Lever style | Wave |
| Interior/Exterior | Interior/Exterior |
| Electronic/Mechanical | Mechanical |

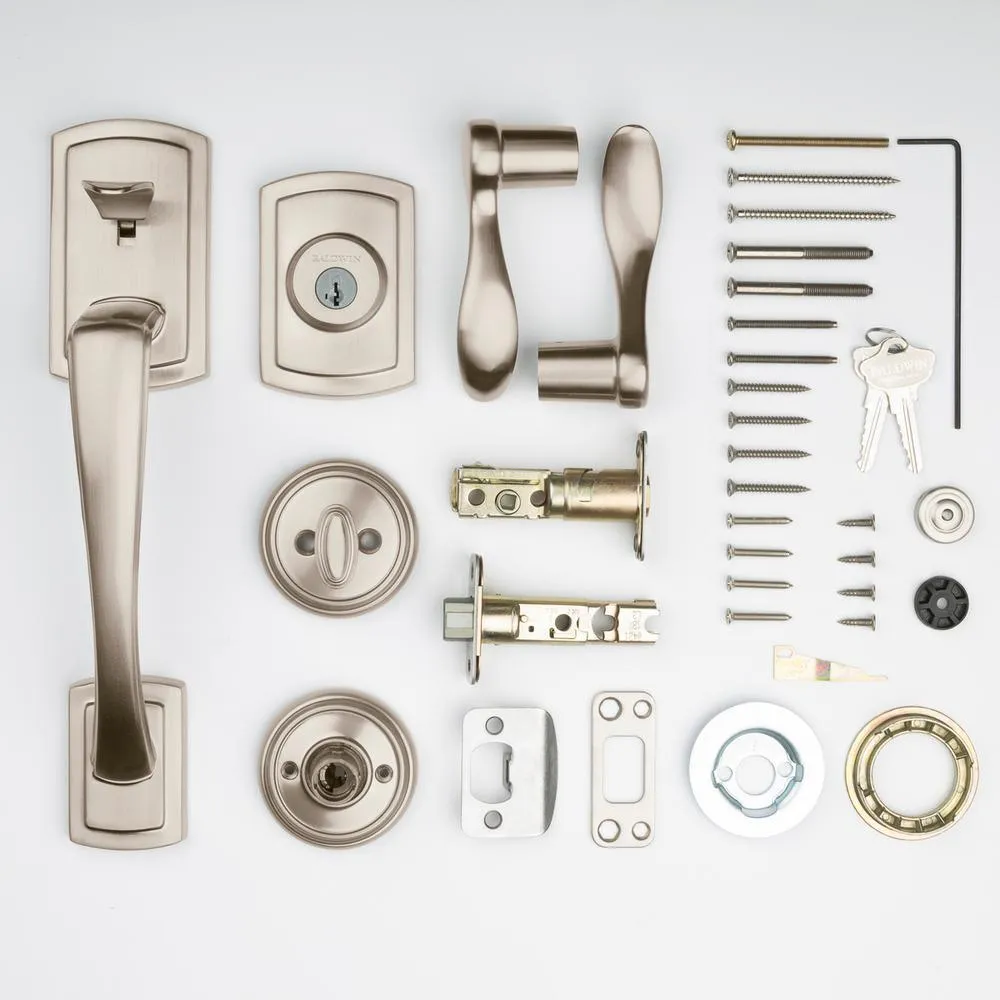

| Included | Hardware,Installation Instructions |
| Assembled Depth (in.) | 3.06 in |
| Deadbolt cross bore diameter (in.) | 2.125 |
| Inside top plate width (in.) | 2.63 |
| Outside key plate width (in.) | 2.78 |
| Deadbolt bore hole diameter (in.) | 1 |
| Outside bottom handle plate length (in.) | 12.78 |
| Assembled Height (in.) | 12.78 in |
| Knob/lever strike height (in.) | 2.25 |
| Knob/lever strike width (in.) | 1 |
| Lever grip length (in.) | 4.20 |
| Projection (in.) | 3.06 |
| Knob/lever housing width (in.) | 1 |
| Deadbolt trim ring diameter (in.) | 2.80 |
| Knob/lever housing height (in.) | 2.67 |
| Deadbolt strike width (in.) | 1.125 |
| Assembled Width (in.) | 2.78 in |
| Outside top handle plate width (in.) | 2.78 |
| Inside top plate length (in.) | 2.80 |
| Knob/lever cross bore diameter (in.) | 2.13 |
| Maximum door thickness (in.) | 2.25 |
| Deadbolt strike height (in.) | 2.25 |
| Outside top handle plate length (in.) | 4.00 |
| Outside key plate length (in.) | 4.00 |
| Outside bottom handle plate width (in.) | 2.78 |
| Deadbolt throw length (in.) | 1 |
| Handle grip length (in.) | 3.06 |
| Knob/lever throw length (in.) | .5 |
| Knob/lever bore hole diameter (in.) | 1 |
| Manufacturer Warranty | Limited lifetime warranty |
| Certifications and Listings | No Certifications or Listings |
