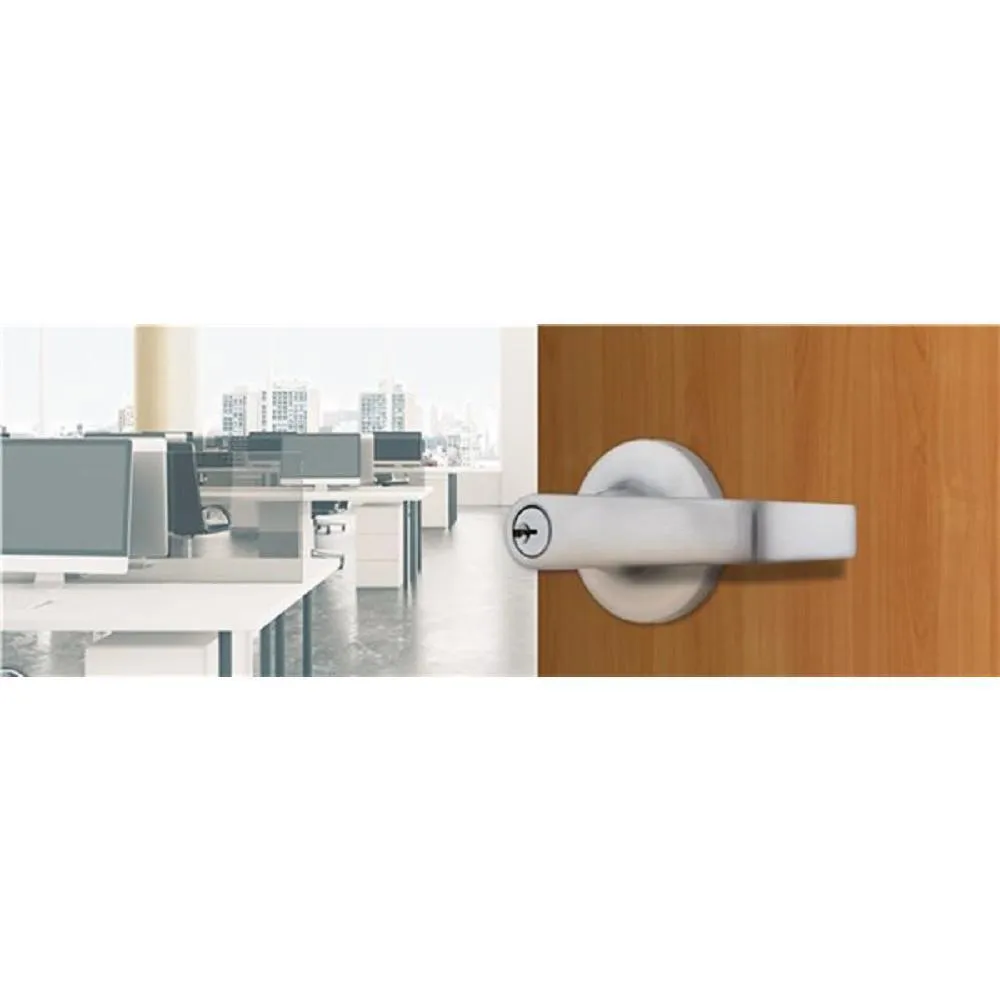

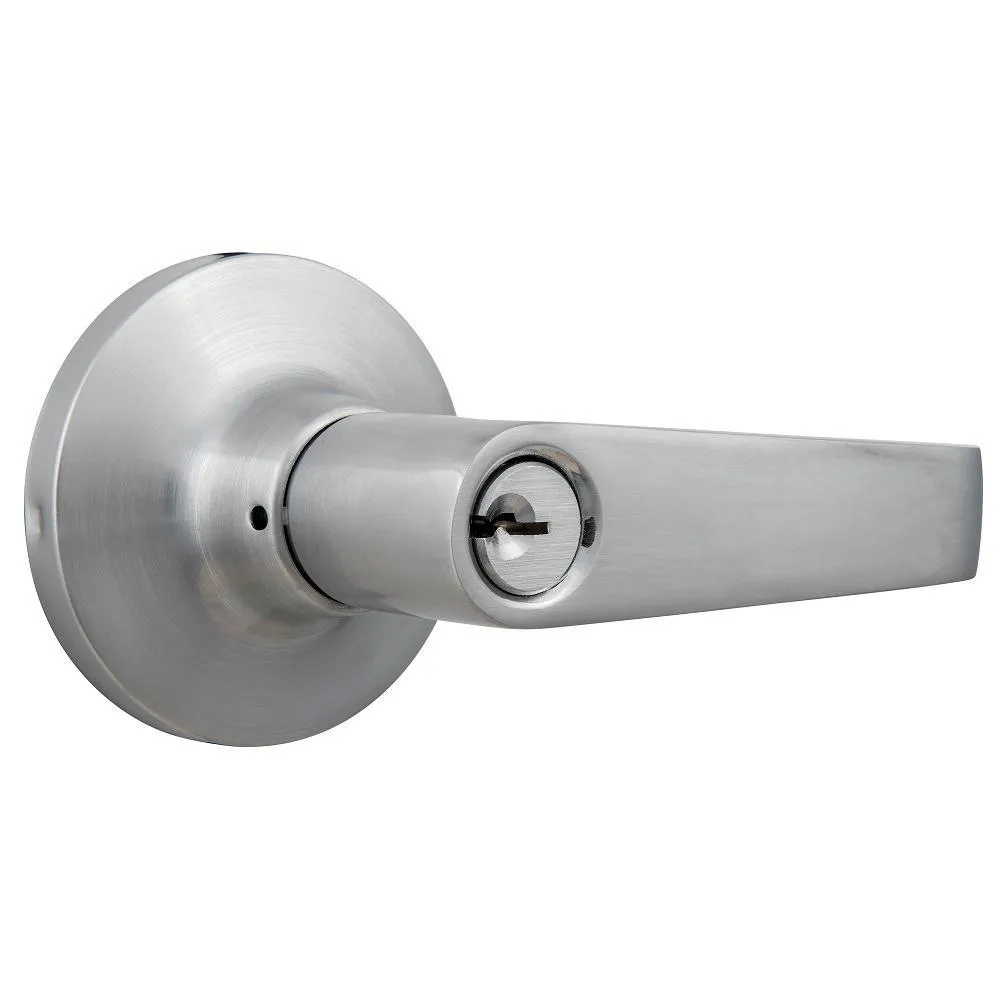

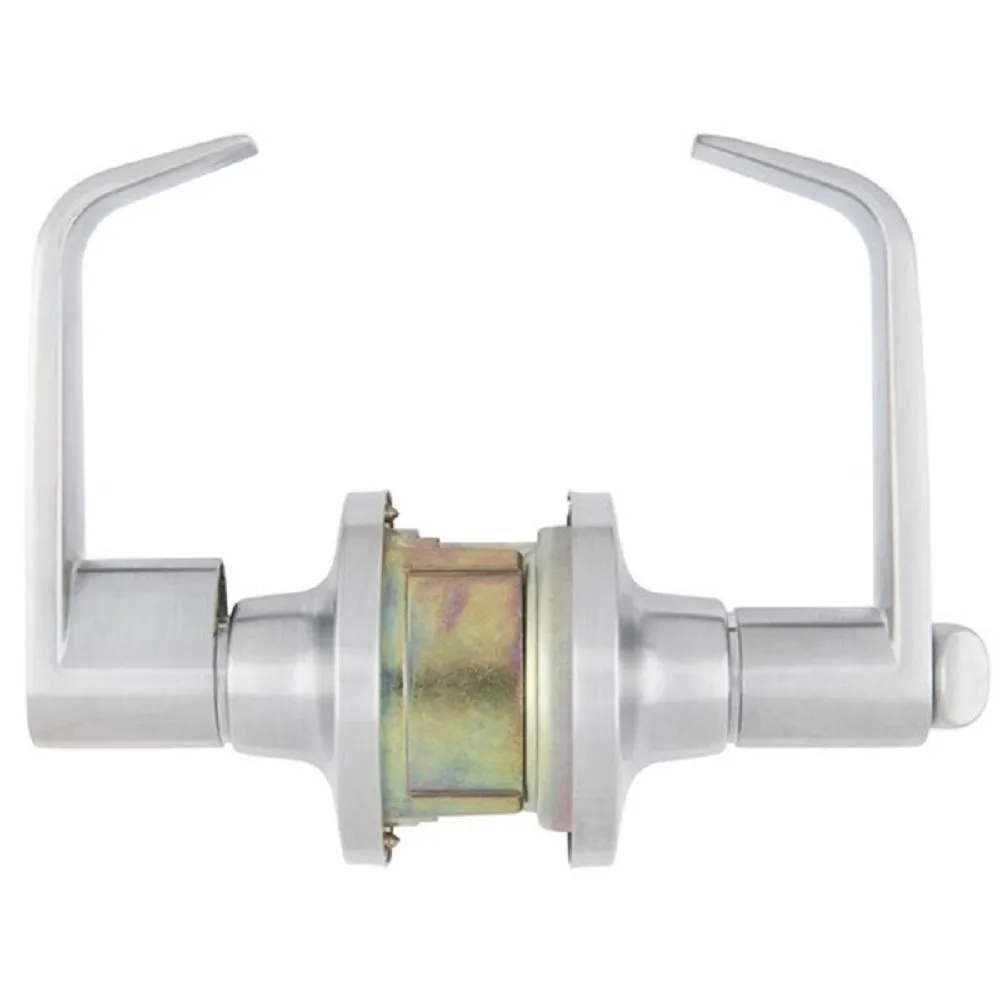

Commercial 2-3/4 in. Satin Chrome Standard Duty Keyed Entry Door Lever
ANSI grade 22-3/4 in backset
$39.97 each
Orders start at $399. Combine any items to reach it.
- Handing Universal
- 1 item
- $39.97
- Standard delivery
- $49.99 per order
- Sales tax
- Added at checkout
All orders are subject to approval.
You're not charged until your order is approved and ready to ship. Cancel free before then.
Standard delivery$49.99
Per order, added in your cart. We deliver to the 48 contiguous states.
Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns
Complete the door
Hardware
Details & specifications.
From the maker · the maker’s description
The entry function works great for doors that need to be locked/unlocked from the inside with a thumb turn and locked/unlocked from the outside with a key. Constructed with an all-metal, tubular chassis, this lock is designed for light commercial and residential application. This lock is also versatile and can fit doors from 1-3/8 in. to 2 in. T for commercial and residential use. It meets or exceeds ANSI Grade 2 standards and is ADA compliant.
- California residents
- Tested to 400,000 cycles
- Fits 1-3/8 in. - 2 in. T doors
- Adjustable backset for 2-3/8 in. or 2-3/4 in.
- Non-handed, completely reversible
- ADA compliant
- UL fire rated for 3 hours
- SKU
- 300987033
- Function
- Keyed entry
- Finish
- Chrome
- ANSI grade
- ANSI Grade 2
- Backset
- 2-3/4 in
- Style
- Classic
- Item Weight
- 2.48
- Strike
- Square corner
- Door Handing
- Universal
- Commercial/Residential
- Commercial, Residential
- Material
- Steel
- Lock Type
- Keyed
- Total Number of Keys Included
- 2
- Wired or Wireless
- No electrical connectivity
- Product Weight (lb.)
- 2.48
- Number of Pins
- 5
- Application Type
- Entry
- Lock Type2
- Keyed Entry
- Combo Pac
- Non-Combo
- Keyway
- No Keyway
- Lever material
- Zinc
- Door Locks & Knobs Product Type
- Keyed Levers
- Minimum door thickness (in.)
- 1.375
- Lever style
- Straight
- Interior/Exterior
- Interior/Exterior
- Features
- Easy Installation
- Electronic/Mechanical
- Mechanical
- Included
- Hardware, Installation Instructions
- Throw length (in.)
- .5
- Lever grip length (in.)
- 4
- Cross bore diameter (in.)
- 2.125
- Assembled Width (in.)
- 6.5 in
- Maximum door thickness (in.)
- 2
- Projection (in.)
- 2.5
- Housing height (in.)
- 2.75
- Strike height (in.)
- 2.75
- Strike width (in.)
- 1
- Bore hole diameter (in.)
- 2.375
- Assembled Height (in.)
- 2.75 in
- Assembled Depth (in.)
- 2.75 in
- Housing Width (in.)
- 2.75
- Certifications and Listings
- ADA Compliant
- Manufacturer Warranty
- Limited Lifetime
Specifications are provided by the manufacturer. Brand names are trademarks of their owners.
Guide
Door hardware, by function
- 1
Passage
No lock. Halls and closets.
- 2
Privacy
A push-button lock inside. Bedrooms and baths.
- 3
Keyed entry
Locks with a key from outside. Exterior and garage entry doors, often with a deadbolt.
- 4
ANSI grade
Grade 1 is the toughest, grade 3 the lightest residential grade.
- 5
Cabinet pulls
Sized by hole spacing, center to center. Match the holes you have.
